BAXI
WM 30/4 RS SS - (Boiler)
Appliance Code: 41-077-57

Appliance Diagram


Boiler diagram for Baxi WM 30/4 RS SSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY PANEL FRONT UPPER
Baxi part no. 225306
2   OBSOLETE TRIM-FACIA-WM 30/4 RS
Baxi part no. 225859
3 Part number 224183, WINDOW-VIEWING.WM40/4RS WINDOW-VIEWING.WM40/4RS
Baxi part no. 224183
4   OBSOLETE PAINTED ASSY PANEL SIDE LH
Baxi part no. 225302
5   OBSOLETE PAINTED ASSY PANEL SIDE RH
Baxi part no. 225304
6 Part number 225310, NOW USE 225310BAX SCR-ST-No6x1/4in FLHD POZI AB NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310
6 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX		 £3.12
7   OBSOLETE TOP AND BOTTOM PANEL 224137 41-077-46 364
Baxi part no. 224137
8 Part number 225863, OBSOLETE PANEL-DOOR-LOWER-ASSY-30/4RS OBSOLETE PANEL-DOOR-LOWER-ASSY-30/4RS
Baxi part no. 225863
9 Part number 225818, OBSOLETE SCR-SET-M5x14 PN PZ ZP&WASHER OBSOLETE SCR-SET-M5X14 PN PZ ZP&WASHER
Baxi part no. 225818
10   OBSOLETE PLATE-WALL MOUNTING-ASS-30/4RS
Baxi part no. 225328
10   OBSOLETE O RING-10.4 OD X 2.4MM THICK
Baxi part no. 225877
11 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
11   OBSOLETE LATCH-SERIES 4 RS
Baxi part no. 225845
12   OBSOLETE DUCT AIR INNER
Baxi part no. 225338
13   OBSOLETE COMBUSTION BOX-ASSY-30/4 RS
Baxi part no. 225895
14 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
15   OBSOLETE BRKT THERMOSTAT MOUNTING -4 RS
Baxi part no. 225431
16   OBSOLETE SUPPORT-BOILER-RH-ASSY-ALL 4RS
Baxi part no. 225886
17   OBSOLETE SUPPORT-BOILER-LH-ASSY-ALL 4RS
Baxi part no. 225887
18 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
19   OBSOLETE ASSY INSULATION SIDE RH 604 RS
Baxi part no. 226527
20   OBSOLETE INSULATION - SIDE ASSEMBLY - L.H. 226529 4
Baxi part no. 226529
21   OBSOLETE INSULATION-SIDE-WM40/4RS
Baxi part no. 225337
22   OBSOLETE INSULATION-REAR-ASSY-20-30/4RS
Baxi part no. 226537
23   OBSOLETE INSULATION-REAR-WM30/4RS
Baxi part no. 224171
24   OBSOLETE SCR-ST-NO.8X5/8IN FL PZ S/S AB
Baxi part no. 225889
25   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15.01
26   OBSOLETE COMBUSTION BOX DOOR ASSEMBLY 227607 41-077
Baxi part no. 227607
26   OBSOLETE DOOR COMB BOX ASSY 30/4 RS
Baxi part no. 226668
27   OBSOLETE SHIELD-HEAT-CONTROL V/V-WM4/RS
Baxi part no. 224170
28 Part number 112066, CLIP-RETAIN-BRIERLY-SPRG-11157 CLIP-RETAIN-BRIERLY-SPRG-11157
Baxi part no. 112066		 £11.80
29   OBSOLETE INSULATION - DOOR ASSEMBLY 226780 41-077-4
Baxi part no. 226780
29   OBSOLETE INSULATION-DOOR-ASSY-30-20/4RS
Baxi part no. 226533
30   OBSOLETE INSUL-DOOR-COMB BOX-WM30/4RS
Baxi part no. 225472
31   OBSOLETE SHIELD-BOILER SUPPORT-WM/4
Baxi part no. 226635
32 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
33   OBSOLETE TELE P/COVER KIT 13IN 18IN
Baxi part no. 225424
34   NUT-WING-M6-ZN-PD
Baxi part no. 112028
35 Part number 225833, OBSOLETE SCR-SET-M6x18mm-PAN POZ-ZN PD OBSOLETE SCR-SET-M6X18MM-PAN POZ-ZN PD
Baxi part no. 225833
36 Part number 229418, KIT-CONTROL VALVE KIT-CONTROL VALVE
Baxi part no. 229418		 £126.24
36 Part number 226669, SOLENOID-SIT NOVA-WM SERIES 4 SOLENOID-SIT NOVA-WM SERIES 4
Baxi part no. 226669
37   OBSOLETE O RING-24MM ID X 4MM SECTION
Baxi part no. 112082
38   OBSOLETE PIPE-BURNER FEED-WM40/4RS
Baxi part no. 223930
39 Part number 062697, SCR-SET-M5x10mm-PAN POZI ZN P SCR-SET-M5X10MM-PAN POZI ZN P
Baxi part no. 062697		 £3.14
40 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
40 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3.14
41   OBSOLETE INJECTOR-BOILER-BO6
Baxi part no. 225821
42 Part number 042812, TAILPIECE-M-TAP-SERVICE-3WAY TAILPIECE-M-TAP-SERVICE-3WAY
Baxi part no. 042812		 £17.19
43 Part number 042811, NUT-UNION- (for 7/8 BSP LINER) NUT-UNION- (FOR 7/8 BSP LINER)
Baxi part no. 042811		 £9.11
44 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
44 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
45 Part number 226113, KIT-PIEZO-IGNITION-4/RS KIT-PIEZO-IGNITION-4/RS
Baxi part no. 226113
46   OBSOLETE BRKT-IGNITOR SUPPORT.4/RS
Baxi part no. 224166
47 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
48   SCR-SET-M5X8MM-PAN POZI ZNPD
Baxi part no. 062727		 £3.06
49 Part number 223981, BURNER-PILOT-WM40/4RS BURNER-PILOT-WM40/4RS
Baxi part no. 223981
51 Part number 225492, INJECTOR-PILOT-.27mm NG INJECTOR-PILOT-.27MM NG
Baxi part no. 225492		 £11.84
52   OBSOLETE KIT PIPE PILOT FEED WM4 RS
Baxi part no. 226112
53 Part number 228853, OBSOLETE INSERT INTERRUPTER SIT RS/SS OBSOLETE INSERT INTERRUPTER SIT RS/SS
Baxi part no. 228853
53 Part number 225496BAX, T/COUPLE-280mm LONG-SHORT SLVE T/COUPLE-280MM LONG-SHORT SLVE
Baxi part no. 225496BAX		 £11.43
53 Part number 10/13846, OBSOLETE INTERRUPTER INSERT OBSOLETE INTERRUPTER INSERT
Baxi part no. 10/13846
53 Part number 225496, NOW USE 225496BAX T/COUPLE-280mm LONG-SHORT SLVE NOW USE 225496BAX T/COUPLE-280MM LONG-SHORT SLVE
Baxi part no. 225496
53 Part number 640845, OBSOLETE THERMOCOUPLE INTERRUPTER OBSOLETE THERMOCOUPLE INTERRUPTER
Baxi part no. 640845
54 Part number 225498, OBSOLETE ELECTRODE-PILOT-INC RETAIN.NUT OBSOLETE ELECTRODE-PILOT-INC RETAIN.NUT
Baxi part no. 225498
55 Part number 225826, NOW USE 7672054 LEAD-ELECTRODE-410mm LONG NOW USE 7672054 LEAD-ELECTRODE-410MM LONG
Baxi part no. 225826
55   LEAD ELECTRODE 410MM
Baxi part no. 7672054		 £16.41
56   OBSOLETE SLEEVE 6MM - GLASS FIBRE 226664 41-077-46
Baxi part no. 226664
56   OBSOLETE GLASS FIBRE SLEEVE 6MM
Baxi part no. 227606
57 Part number 226114, KIT-WINDOW-VIEWING-30-40-504PF KIT-WINDOW-VIEWING-30-40-504PF
Baxi part no. 226114		 £14.87
58   OBSOLETE BURNER-6 BLADE-16 PORT
Baxi part no. 223906
59   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
60   OBSOLETE PLATE MOUNTING THERMOSTAT
Baxi part no. 223905
61   OBSOLETE STRIP-TERMINAL-3 WAY
Baxi part no. 225817
62   OBSOLETE CLAMP-CABLE-LOWER
Baxi part no. 224079
63   OBSOLETE INSULATION - ELECTRICAL 225491 41-077-46
Baxi part no. 225491
64   OBSOLETE PIN-FIXING
Baxi part no. 225813
65   OBSOLETE CLAMP-CABLE-PLASTIC
Baxi part no. 112048
66   OBSOLETE BUSH-PRESS IN
Baxi part no. 227223
67 Part number 232170, OBSOLETE COVER ELECTRICAL OBSOLETE COVER ELECTRICAL
Baxi part no. 232170
68 Part number 224244, SCR-TF-M4x12mm-PAN.POZ-ZN.PD SCR-TF-M4X12MM-PAN.POZ-ZN.PD
Baxi part no. 224244		 £3.12
69   OBSOLETE HOUSING-THERMOSTAT
Baxi part no. 225433
70 Part number 225471, THERMOSTAT-RANCO-CL6 PO151 THERMOSTAT-RANCO-CL6 PO151
Baxi part no. 225471
70 Part number 227799, THERMOSTAT-OVERHEAT-4RS/SS THERMOSTAT-OVERHEAT-4RS/SS
Baxi part no. 227799		 £33.89
70 Part number 227786, THERMOSTAT-BOILER-4RS/SS THERMOSTAT-BOILER-4RS/SS
Baxi part no. 227786
70 Part number CL6P0151, THERMOSTAT THERMOSTAT
Baxi part no. CL6P0151
71 Part number 226821, OBSOLETE KNOB-THERMOSTAT ASSY OBSOLETE KNOB-THERMOSTAT ASSY
Baxi part no. 226821
72   OBSOLETE CAPACITOR-ASSY
Baxi part no. 225842

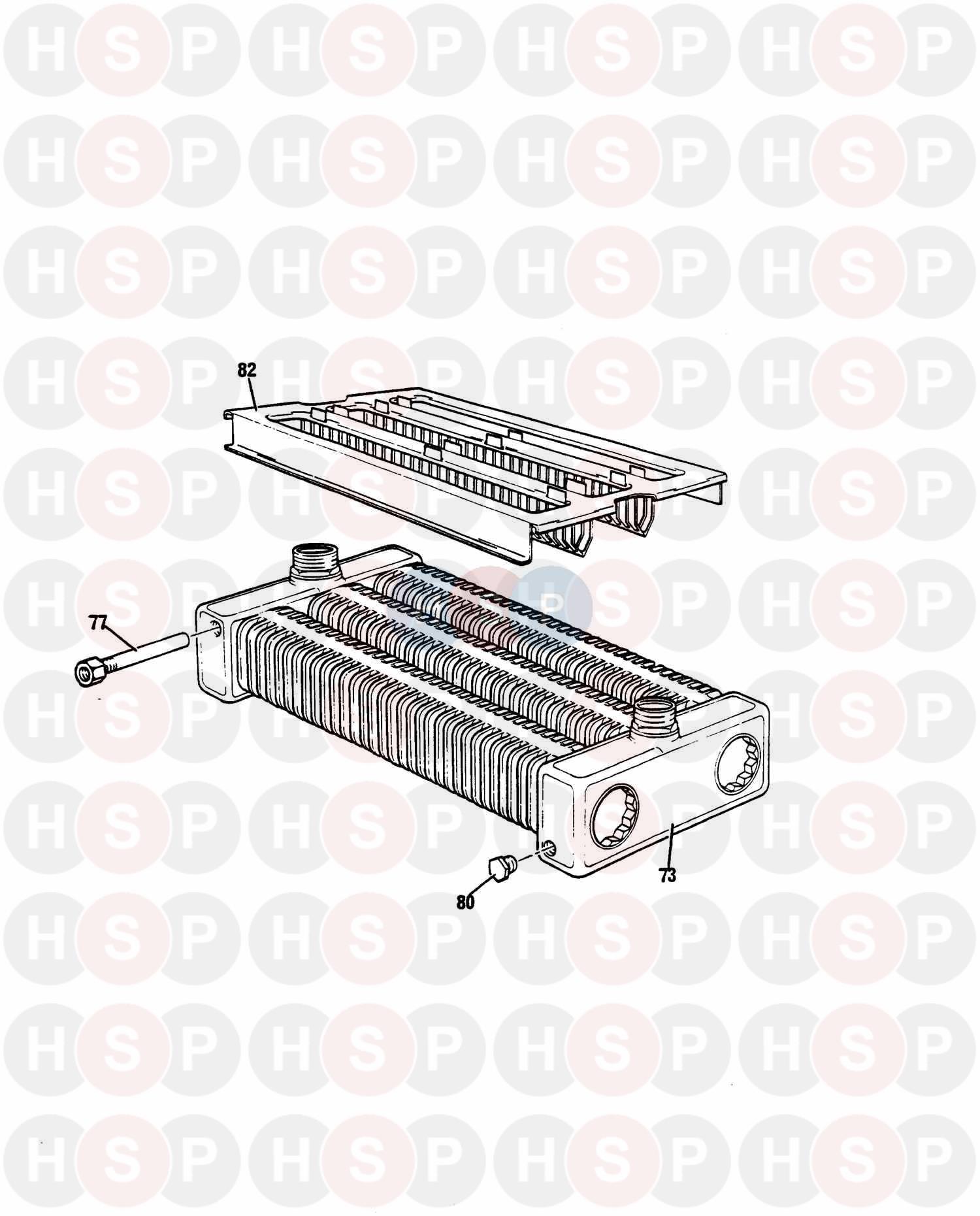

73   OBSOLETE HEAT EXCHANGER-ASSY-WM 20/30/4
Baxi part no. 227615
73   OBSOLETE HEAT EXCHANGER ASSY 20/30RS SS
Baxi part no. 227795
74   OBSOLETE TUBE-DIP-SER.4/RS
Baxi part no. 226450
75   OBSOLETE WASHER RETNG-THERM.CAPILLARY
Baxi part no. 226515
76 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
77 Part number 225435, OBSOLETE POCKET-THERMOSTAT-WM.PF OBSOLETE POCKET-THERMOSTAT-WM.PF
Baxi part no. 225435
77   OBSOLETE POCKET T/STAT O/HEAT-40/4RS/PF
Baxi part no. 224172
78 Part number 227831, OBSOLETE SEAL-THERMOSTAT POCKET OBSOLETE SEAL-THERMOSTAT POCKET
Baxi part no. 227831
79 Part number 225825, WASHER-FIBRE-28 ODx13.5 ID WASHER-FIBRE-28 ODX13.5 ID
Baxi part no. 225825		 £3.26
80   OBSOLETE PLUG-DRAIN-RP 1/4
Baxi part no. 224141
82   OBSOLETE BAFFLE-HEAT EXCH-20-30/4 RS
Baxi part no. 225852
83   OBSOLETE PIPE 225489 41-077-46 364-732
Baxi part no. 225489
84   OBSOLETE PIPE 225487 41-077-46 364-733
Baxi part no. 225487
85   OBSOLETE KIT WIRES SOLO WM 4 RS
Baxi part no. 226670
86   OBSOLETE FLUE TERMINAL COLOURED 20 30RS
Baxi part no. 230508
87   OBSOLETE ASSY TRIM FLUE
Baxi part no. 230513
88   OBSOLETE WIRE - BLACK - 210 MM
Baxi part no. 227800
