BAXI
SYSTEM 32 - (Wall Jig & Hydraulic Connections)
Appliance Code: 41-470-01

Appliance Diagram

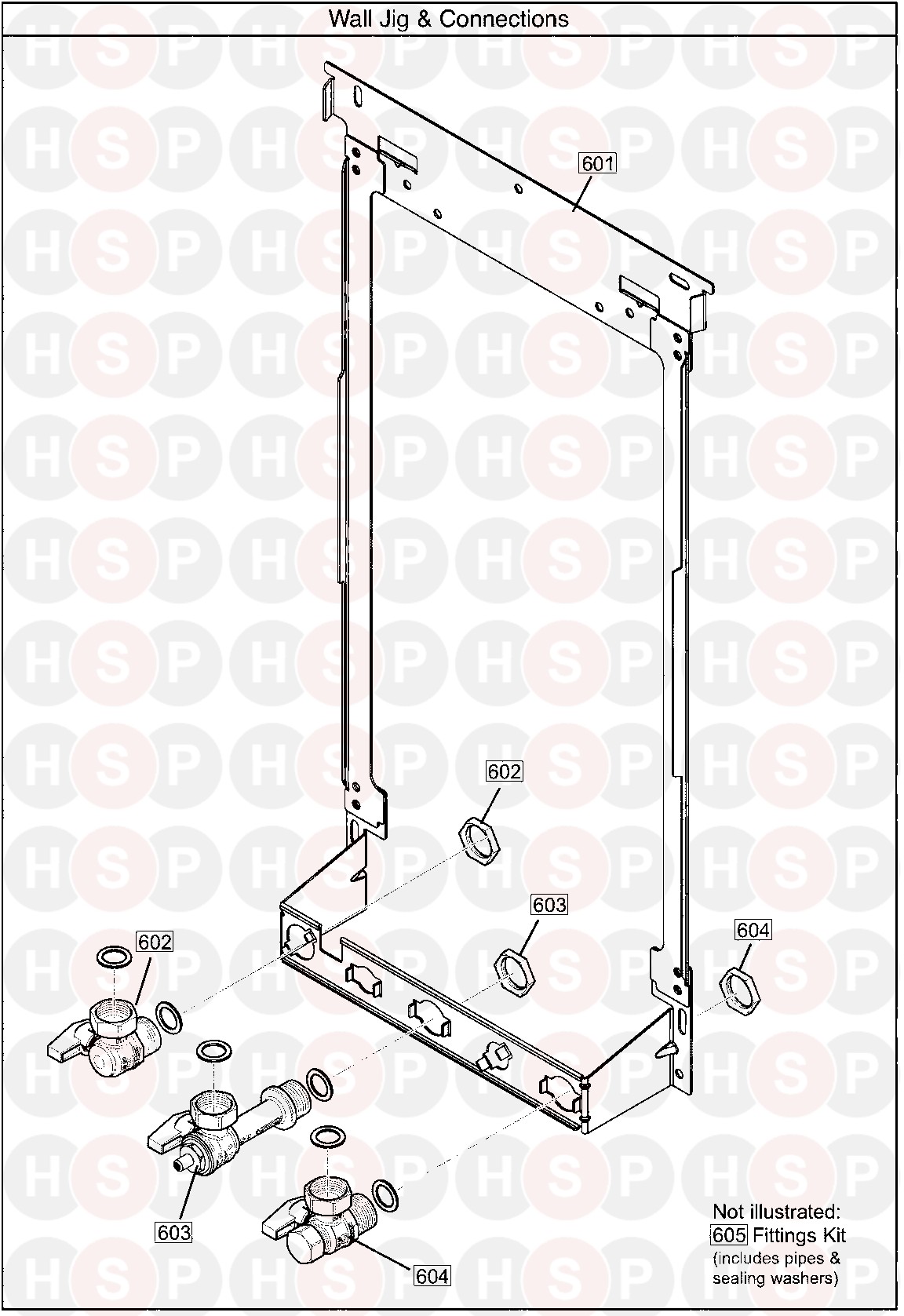

Wall Jig & Hydraulic Connections diagram for Baxi System 32Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

601   WALL JIG INC TAPS SYS 32
Baxi part no. 7215582
£101.89
601   WALL JIG ADVANCE/SYSTEM 32
Baxi part no. 7215577
£56.50
602 Part number 720773001, CENTRAL HEATG VALVE WITHOUT DRN CENTRAL HEATG VALVE WITHOUT DRN
Baxi part no. 720773001
£31.80
603   GAS INLET VALVE TEST POINT
Baxi part no. 7214351
£42.68
604 Part number 720773201, VALVE RETURN CENTRAL HEATING VALVE RETURN CENTRAL HEATING
Baxi part no. 720773201
£24.66
605   FIXINGS KIT ECOBLUE SYS 32
Baxi part no. 7214361
£99.31
