BAXI
SOLO WM 70/4 PF SS - (Combustion Box)
Appliance Code: 41-077-55

Appliance Diagram

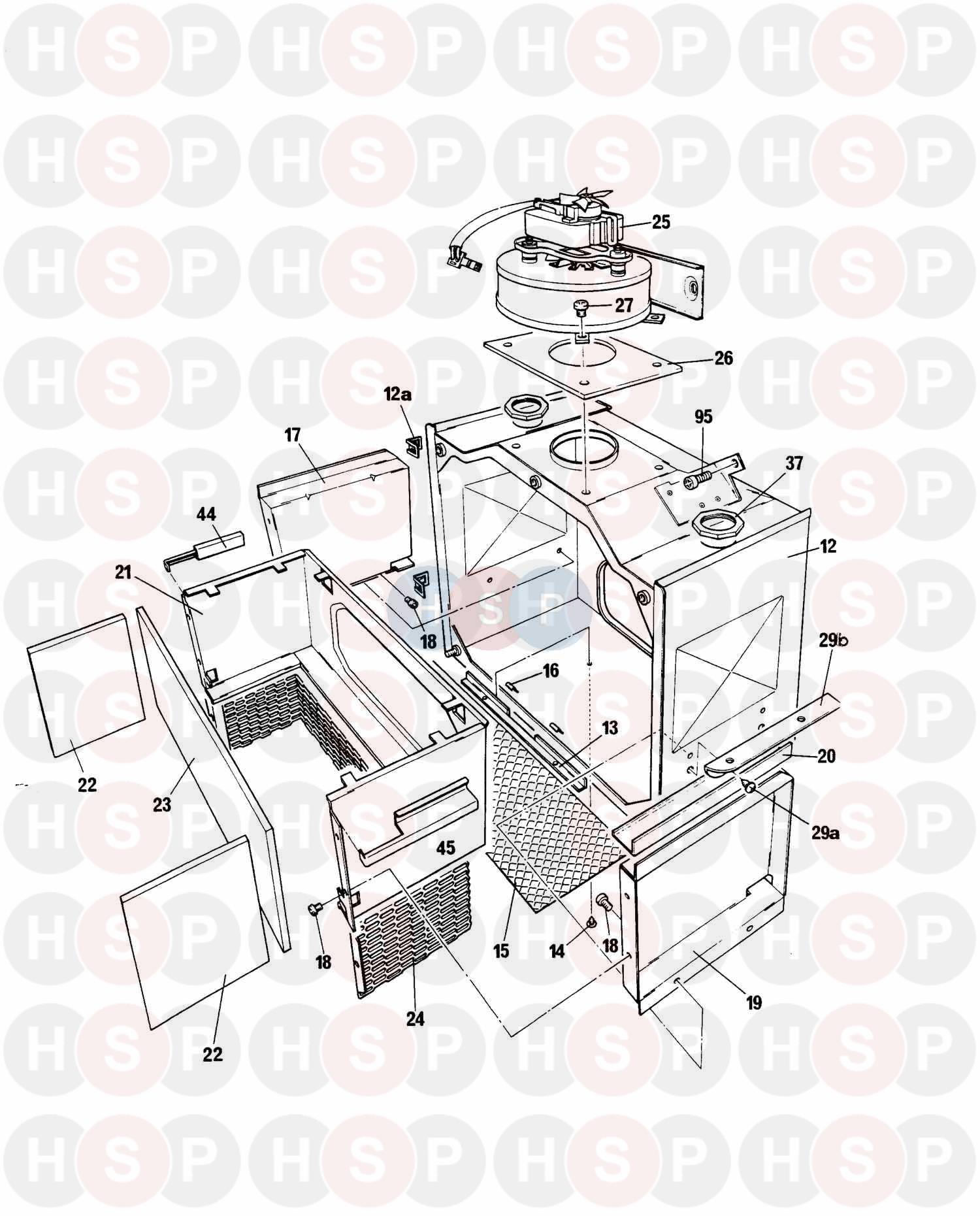

Combustion Box diagram for Baxi Solo WM 70/4 PF SS Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	OBSOLETE Baxi part n^o. 227855
2	OBSOLETE PANEL-FRONT ASSY 70PF/4 Baxi part n^o. 225324
3	OBSOLETE ASSY PANEL SIDE RH WMB PF4 Baxi part n^o. 225293
4	OBSOLETE TERM L GRILLE ASSY 100LPG Baxi part n^o. 225291
5	OBSOLETE PANEL-TOP-WM 70/4 PF Baxi part n^o. 225402
6	OBSOLETE BOTTOM PANEL 224138 41-077-45 364-782 Baxi part n^o. 224138
7	OBSOLETE PANEL-DOOR ASSY-LOWER-WM70/4PF Baxi part n^o. 226273
8	OBSOLETE PANEL-INFILL-ASSY-CLPS&SCRS-PF Baxi part n^o. 227157
9	OBSOLETE TRIM-FACIA-WM 70/4 PF Baxi part n^o. 225520
10	WINDOW-VIEWING.WM40/4RS Baxi part n^o. 224183
11	OBSOLETE SCR-SET-M5X14 PN PZ ZP&WASHER Baxi part n^o. 225818
11	SCR-ST-NO6X1/4IN FLHD POZI AB Baxi part n^o. 225310BAX	£3.12
11	NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB Baxi part n^o. 225310
12	OBSOLETE CLIP-THERMOSTAT-CAPILLARY Baxi part n^o. 226514
12	OBSOLETE BOX-COMB-SUB.ASSY-WMB 70/4 PF Baxi part n^o. 226430
13	OBSOLETE AIR GUIDE 226091 41-077-45 364-783 Baxi part n^o. 226091
14	SCR-ST-NO 8X3/8IN POZI FL.HD A Baxi part n^o. 062548	£3.01
14	SCR-ST-NO8X1/4 FLHD-POZI-ZPD B Baxi part n^o. 062683	£2.53
15	OBSOLETE INSULATION - RIGIDISED FOIL 226416 41-077- Baxi part n^o. 226416
16	OBSOLETE RETAINING CLIP - TRW UNITED FASTENINGS 286 Baxi part n^o. 225957
17	OBSOLETE ASSY SUPPORT LH HEAT EXCH 70PF Baxi part n^o. 226442
18	SCR-TF-M5X8MM-PAN POZI ZN PD Baxi part n^o. 062531	£3.12
19	OBSOLETE ASSY SUPPORT RH HEAT EXCH 70PF Baxi part n^o. 226443
20	OBSOLETE SHIELD-HEAT EXCH.SUPPORT-RH Baxi part n^o. 226363
21	OBSOLETE ASSY CARRIER INSULATION 70/4PF Baxi part n^o. 226742
22	OBSOLETE INSULATION-SIDE-COMB BOX-70/PF Baxi part n^o. 225686
23	OBSOLETE INSULATION-REAR-COMB BOX-70 PF Baxi part n^o. 225685
24	OBSOLETE MESH-AIR GUIDE-ASSY-WM 70/4 PF Baxi part n^o. 226441
25	FAN IMPELLER WM/4/PF Baxi part n^o. 229192	£14.65
25	ASSY FAN -70/4PF Baxi part n^o. 227161	£301.12
26	OBSOLETE SEAL-FAN TO COMB BOX-WM70PF Baxi part n^o. 225674
27	OBSOLETE SCR-SET-M6X10MM-PAN POZ-ZN PD Baxi part n^o. 226110
28	OBSOLETE SEAL-FAN TO AIR BOX-70/4 PF Baxi part n^o. 226298
29	OBSOLETE BRKT-SOCKET MTG-WM 4/PF Baxi part n^o. 226090
30	OBSOLETE HEAT EXCH-ASSY-WM 70/4 PF Baxi part n^o. 226538
31	OBSOLETE POCKET T/STAT O/HEAT-40/4RS/PF Baxi part n^o. 224172
32	OBSOLETE SEAL-THERMOSTAT POCKET-4/PF Baxi part n^o. 225810
33	WASHER-FIBRE-28 ODX13.5 ID Baxi part n^o. 225825	£3.26
36	OBSOLETE PLUG-DRAIN-RP 1/4 Baxi part n^o. 224141
37	OBSOLETE NUT-LOCK-1 3/8IN-14 TPI WHIT Baxi part n^o. 225621
38	OBSOLETE ASSY BAFFLE TOP 70/4 PF Baxi part n^o. 227162
39	OBSOLETE ASSY BAFFLE CENTRE WM70/4 PF Baxi part n^o. 226421
42	OBSOLETE ASSY CARRIER INSULATION BAFFLE Baxi part n^o. 226431
44	OBSOLETE RETAINER 226425 41-077-45 364-796 Baxi part n^o. 226425
45	OBSOLETE RETAINER 226426 41-077-45 364-797 Baxi part n^o. 226426
46	OBSOLETE PANEL-DOOR ASSY-70/4PF Baxi part n^o. 227163
46	OBSOLETE SCR-SET-M6X18MM-PAN POZ-ZN PD Baxi part n^o. 225833
46	NUT-WING-M6-ZN-PD Baxi part n^o. 112028
47	OBSOLETE DATA LABEL 227687 41-077-45 364-837 Baxi part n^o. 227687
47	SCR-TF-M4 X 6MM PAN POZI ZN P Baxi part n^o. 062560	£3.12
47	CLIP-CABLE-F/E-T/CARR 23790-11 Baxi part n^o. 062539
47	CLIP-RETAIN-BRIERLY-SPRG-11157 Baxi part n^o. 112066	£11.80
48	OBSOLETE INDICATOR INPUT HEAT Baxi part n^o. 220236
49	OBSOLETE CARRIER-INSUL-DOOR-ASSY-70/4PF Baxi part n^o. 226741
50	OBSOLETE INSULATION-DOOR-WM 70 PF Baxi part n^o. 225951
51	OBSOLETE BURNER-7 BLADE-22 PORT Baxi part n^o. 225965
51	OBSOLETE SHIELD PILOT 70/4 PF Baxi part n^o. 226414
52	OBSOLETE INJECTOR-BOILER-BO 4-70/4 PF Baxi part n^o. 226094
53	NOW USE 7211908 WASHER COPPER INJECTOR SEALING Baxi part n^o. 062695
53	WASHER COPPER SEALING Baxi part n^o. 7211908	£3.14
54	OBSOLETE V/FLUE TERM.KIT 40 PACK F Baxi part n^o. 225607
55	NUT-HEXAGON-M5-STEEL- Baxi part n^o. 062440	£3.01
56	OBSOLETE NIPPLE PRES TEST Baxi part n^o. 062240
57	OBSOLETE BRACKET CONTROLS Baxi part n^o. 225906
58	OBSOLETE O RING-21.9MM ID X 2.62MM-TH Baxi part n^o. 102233
59	VALVE-CONTROL-H/WELL Baxi part n^o. 225959
60	SCR-SET-M4X12MM-PAN HD PZ ZNPD Baxi part n^o. 062726
61	OBSOLETE COVER-VALVE-HONEYWELL VR 4700 Baxi part n^o. 226251
63	OBSOLETE SUPPORT-VALVE INLET-WM.PF Baxi part n^o. 225619
64	GAS TAP C/W NUT & TAIL PIECE Baxi part n^o. 5110466	£46.03
64	NOW USE 5110466 TAP SERVICE Baxi part n^o. 102205
65	OBSOLETE BURNER-PILOT-ASSY-WM/PF Baxi part n^o. 225938
67	OBSOLETE PIPE PILOT FEED INC N&O 704 PF Baxi part n^o. 228206
68	ELECTRODE-WM/PF Baxi part n^o. 225934
69	OBSOLETE LEAD-ELECTRODE.315MM LONG Baxi part n^o. 225966
70	OBSOLETE SLEEVE-6MM-ELAS.GLS/FIBX330MM Baxi part n^o. 100393
71	KIT-WINDOW-VIEWING-30-40-504PF Baxi part n^o. 226114	£14.87
72	OBSOLETE AIR BOX ASSEMBLY 226437 41-077-45 364-847 Baxi part n^o. 226437
72	OBSOLETE SEAL-AIR BOX TO COMB BOX-70/4PF Baxi part n^o. 225673
73	OBSOLETE TURRET-4/PF Baxi part n^o. 225530
74	OBSOLETE MACHINE SCREW M5 X 10 RECESSED COUNTER SUNK Baxi part n^o. 225968
76	OBSOLETE LATCH AIR BOX Baxi part n^o. 225630
77	OBSOLETE MACHINE SCREW M6 X 12 RECESSED PAN HEAD GE Baxi part n^o. 226358
78	O RING-WM.PF Baxi part n^o. 225941
79	ASSY BLANKING CAP 70/PF Baxi part n^o. 226823	£9.05
80	OBSOLETE PIPE-PRESSURE-POSITIVE-SER.4PF Baxi part n^o. 226331
81	OBSOLETE PIPE-PRESSURE-NEGATIVE-SER.4PF Baxi part n^o. 226097
83	OBSOLETE SCR-TF-M4X6MM HEX POZI ZNPD Baxi part n^o. 225405
84	OBSOLETE LID-AIR BOX-70/4 PF Baxi part n^o. 226089
85	OBSOLETE SEAL-AIR BOX LID-WM70/4PF Baxi part n^o. 225672
87	OBSOLETE PLATE BLANKING WMB 4/PF Baxi part n^o. 225625
88	SWITCH-PRESSURE-KIT-WM.PF Baxi part n^o. 226060	£67.30
89	OBSOLETE COVER-PRESSURE SWITCH KIT Baxi part n^o. 226067
90	SCR-ST-NO6X3/8 PAN HD PZ ZP Baxi part n^o. 062699	£3.12
91	OBSOLETE CABLE RESTRAINT 226068 41-077-43 364-642 Baxi part n^o. 226068
92	OBSOLETE BRKT-PRESSURE SWITCH-WM4/PF Baxi part n^o. 225623
93	OBSOLETE BRIGHT WASHER M4 FORM A (4.3 X 9 X 0.8) MI Baxi part n^o. 226144
94	OBSOLETE PIPE PRESSURE Baxi part n^o. 226096
94	OBSOLETE FLEX TUBE - RED - 260 X 4MM OD 226869 41-0 Baxi part n^o. 226869
94	KIT REPLACEMENT PRESSURE PIPES Baxi part n^o. 239748
95	OBSOLETE SCREW Baxi part n^o. 226357
96	2M HORIZ.FLUE SYSTEM 30 50 Baxi part n^o. 225543
97	2M HORIZ.FLUE SYSTEM 60/80 PRO Baxi part n^o. 225544
98	OBSOLETE SCR-TF-PLAS-NO8X3/8 FL.H.PZ.ZP Baxi part n^o. 226237
99	SCR-TF-M4X8MM-PAN POZI ZN PD Baxi part n^o. 062532	£3.01
100	THERMOSTAT Baxi part n^o. C77P0130
100	THERMOSTAT Baxi part n^o. LM7P8505
101	SEQUENCE CONTROLLERS-WM-4/PF Baxi part n^o. 225120BAX	£169.63
101	NOW USE 225120BAX SEQUENCE CONTROLLERS-WM-4/PF Baxi part n^o. 225120
102	OBSOLETE PEG-PLASTIC-RICHO Baxi part n^o. 225969
103	OBSOLETE KNOB-THERMOSTAT ASSY Baxi part n^o. 226821
104	OBSOLETE FUSE-2 AMP-250 V Baxi part n^o. 226070
105	OBSOLETE WIRE HARNESS VALVE-ALL 4PF Baxi part n^o. 226574
106	OBSOLETE BRKT-ELEC.TERM.MTG-ASSY-4PF Baxi part n^o. 226557
107	OBSOLETE FLUE ASSY PACK 100 (PRE PART_L Baxi part n^o. 225542
108	OBSOLETE SCR-SET-M5X20MM-PN PZ-ZNPD Baxi part n^o. 226513
109	OBSOLETE BRIGHT WASHER M5 FORM A (5.3 X 10 X 1) MIL Baxi part n^o. 226258
110	OBSOLETE INSULATION-TERMINAL STRIP-WMPF Baxi part n^o. 225645
111	OBSOLETE STRIP-TERMINAL-3 WAY Baxi part n^o. 225817
112	OBSOLETE PIN-FIXING Baxi part n^o. 225813
113	OBSOLETE STRIP-TERMINAL-4 WAY-WM.PF Baxi part n^o. 225953
114	OBSOLETE CLAMP-CABLE-PLASTIC Baxi part n^o. 112048
115	OBSOLETE CLAMP-CABLE-LOWER Baxi part n^o. 224079
117	OBSOLETE CLAMP-CBL-MULTI-FSTX-217031830 Baxi part n^o. 112068
122	OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD Baxi part n^o. 062451
122	NUT-FULL HEX-4MM-ZINC PLTD Baxi part n^o. 062439	£3.01
123	OBSOLETE WIRE-HARNESS-ASSY-SERIES 4/PF Baxi part n^o. 226575
124	OBSOLETE SOCKET-ASSY-9 WAY-SERIES 4/PF Baxi part n^o. 226573
125	OBSOLETE DUCT-AIR-ASSEMBLY-WMB 70/4 PF Baxi part n^o. 226440
126	OBSOLETE DUCT FLUE ASSY 30 40 50 70/4PF Baxi part n^o. 226406
127	OBSOLETE DUCT-AIR-TELESCOPIC.SER 4/PF Baxi part n^o. 225632
128	OBSOLETE ASSY DUCT AIR TERMINAL 50/4PF Baxi part n^o. 227070	£66.99
129	OBSOLETE ASSY SLEEVE INNER Baxi part n^o. 226700
130	OBSOLETE ASSEMBLY SLEEVE OUTER Baxi part n^o. 226410
