BAXI
SOLO WM 40/4 PF SS - (Outer Case)
Appliance Code: 41-077-53

Appliance Diagram


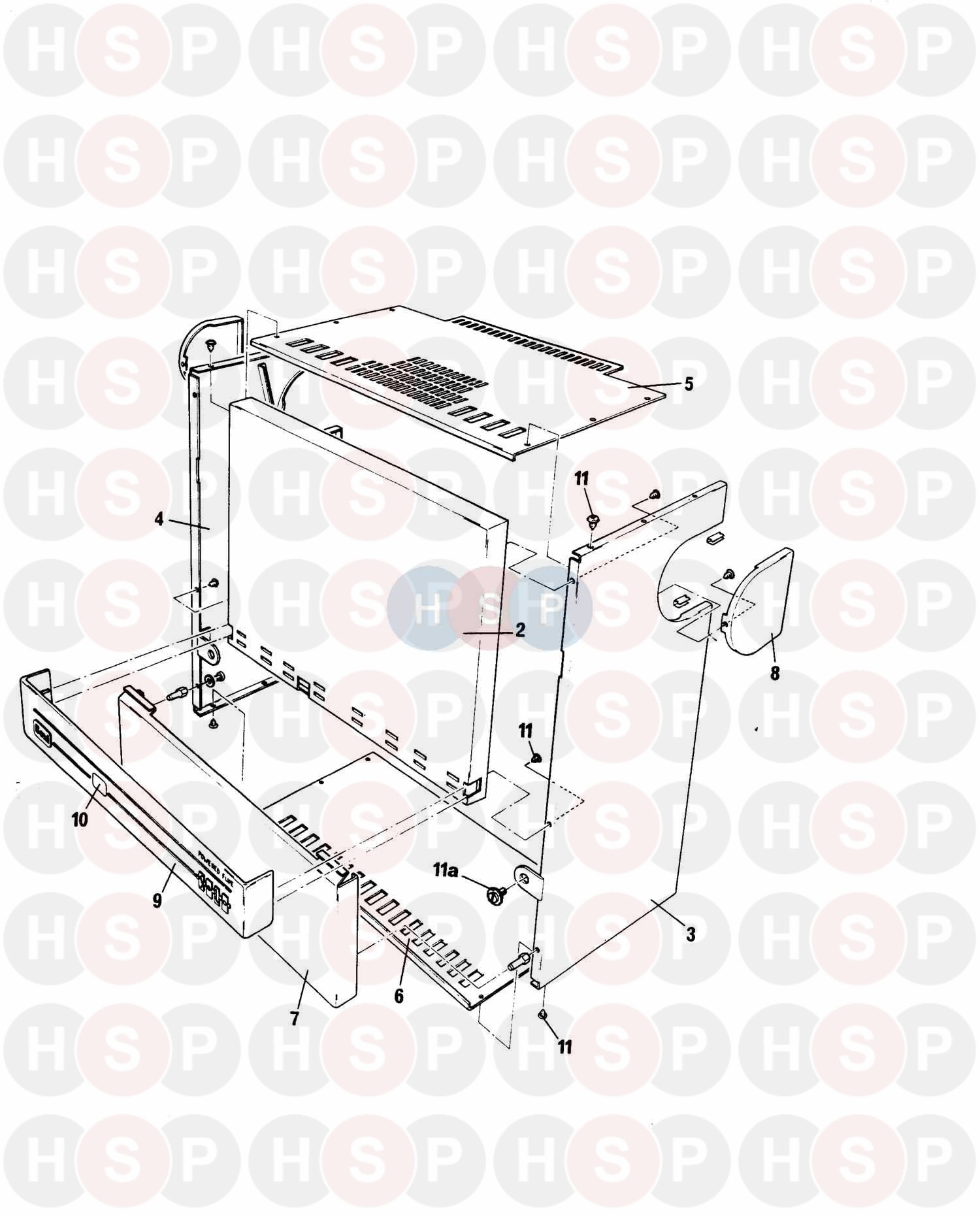

Outer Case diagram for Baxi Solo WM 40/4 PF SSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE CABINET COMPLETE 227854 41-077-43 364-848
Baxi part no. 227854
1   OBSOLETE KIT CABINET SOLO 30 40 50/4 PF
Baxi part no. 226277
2   OBSOLETE ASSY PANEL FRONT UPPER(SPARES)
Baxi part no. 226791
3   OBSOLETE ASSY PANEL SIDE RH WMB PF4
Baxi part no. 225293
4   OBSOLETE TERM L GRILLE ASSY 100LPG
Baxi part no. 225291
5   OBSOLETE PANEL TOP OUTER CASE
Baxi part no. 225298
6   OBSOLETE TOP AND BOTTOM PANEL 224139 41-077-43 364
Baxi part no. 224139
7   OBSOLETE PANEL-DOOR-LOWER-ASSY-50/4PF
Baxi part no. 226272
8   OBSOLETE PANEL-INFILL-ASSY-CLPS&SCRS-PF
Baxi part no. 227157
9   OBSOLETE TRIM-FACIA-WM 30-40-50/4 PF
Baxi part no. 225519
10 Part number 224183, WINDOW-VIEWING.WM40/4RS WINDOW-VIEWING.WM40/4RS
Baxi part no. 224183
11 Part number 225818, OBSOLETE SCR-SET-M5x14 PN PZ ZP&WASHER OBSOLETE SCR-SET-M5X14 PN PZ ZP&WASHER
Baxi part no. 225818
11 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX		 £3.12
11 Part number 225310, NOW USE 225310BAX SCR-ST-No6x1/4in FLHD POZI AB NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310
12   OBSOLETE ASSY BOX COMBUSTION-30-40-50PF
Baxi part no. 226368
12   OBSOLETE CLIP-THERMOSTAT-CAPILLARY
Baxi part no. 226514
13   OBSOLETE AIR GUIDE 225628 41-077-43 364-590
Baxi part no. 225628
14 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683		 £2.53
15   OBSOLETE INSULATION-RIGID.FOIL-340X113
Baxi part no. 225956
16   OBSOLETE RETAINING CLIP - TRW UNITED FASTENINGS 286
Baxi part no. 225957
17   OBSOLETE ASSY SUPPORT LH HEAT EXCH 70PF
Baxi part no. 226442
18 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
19   OBSOLETE ASSY SUPPORT RH HEAT EXCH 70PF
Baxi part no. 226443
20   OBSOLETE SHIELD-HEAT EXCH.SUPPORT-RH
Baxi part no. 226363
21   OBSOLETE ASSY CARRIER/INSULATION 50/4PF
Baxi part no. 226744
22   OBSOLETE INSULATION SIDE - 30/40/50PF
Baxi part no. 225643
23   OBSOLETE INSULATION REAR - 30/40/50PF
Baxi part no. 225640
24   OBSOLETE MESH
Baxi part no. 225634
25 Part number 229192, FAN IMPELLER WM/4/PF FAN IMPELLER WM/4/PF
Baxi part no. 229192		 £14.65
25 Part number 227040, Assy Fan 30&40&50 PF ASSY FAN 30&40&50 PF
Baxi part no. 227040		 £256.70
26 Part number 225639, SEAL-FAN COMB BOX-WM 4/PF SEAL-FAN COMB BOX-WM 4/PF
Baxi part no. 225639
27   OBSOLETE SCR-SET-M6X10MM-PAN POZ-ZN PD
Baxi part no. 226110
28 Part number 226297, SEAL-FAN TO AIR BOX-30/40/50PF SEAL-FAN TO AIR BOX-30/40/50PF
Baxi part no. 226297
29   OBSOLETE BRKT-SOCKET MTG-WM 4/PF
Baxi part no. 226090
30   OBSOLETE HEAT EXCH-ASSY-WM 30-40-50/4PF
Baxi part no. 226362
31   OBSOLETE POCKET T/STAT O/HEAT-40/4RS/PF
Baxi part no. 224172
32   OBSOLETE SEAL-THERMOSTAT POCKET-4/PF
Baxi part no. 225810
33 Part number 225825, WASHER-FIBRE-28 ODx13.5 ID WASHER-FIBRE-28 ODX13.5 ID
Baxi part no. 225825		 £3.26
34   OBSOLETE WASHER RETNG-THERM.CAPILLARY
Baxi part no. 226515
35 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
36   OBSOLETE PLUG-DRAIN-RP 1/4
Baxi part no. 224141
37 Part number 225621, OBSOLETE NUT-LOCK-1 3/8in-14 TPI WHIT OBSOLETE NUT-LOCK-1 3/8IN-14 TPI WHIT
Baxi part no. 225621
38   OBSOLETE ASSY BAFFLE TOP 30 40 50/4PF
Baxi part no. 226729
39   OBSOLETE ASSY BAFFLE CENTRE 30 40 50 PF
Baxi part no. 226730
42   OBSOLETE ASSY CARRIER/INSULATION/BAFFLE
Baxi part no. 226369
44   OBSOLETE RETAINER-BAFFLE-LH-30-40-50-PF
Baxi part no. 226377
45   OBSOLETE RETAINER-BAFFLE-RH-30-40-50-PF
Baxi part no. 226378
46 Part number 225833, OBSOLETE SCR-SET-M6x18mm-PAN POZ-ZN PD OBSOLETE SCR-SET-M6X18MM-PAN POZ-ZN PD
Baxi part no. 225833
46   OBSOLETE PANEL-DOOR ASSY-WM 50/4 PF
Baxi part no. 226802
47 Part number 112066, CLIP-RETAIN-BRIERLY-SPRG-11157 CLIP-RETAIN-BRIERLY-SPRG-11157
Baxi part no. 112066		 £11.80
47 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
47   OBSOLETE DATA LABEL 227733 41-077-51 364-841
Baxi part no. 227733
48   OBSOLETE INDICATOR INPUT HEAT
Baxi part no. 220236
49   OBSOLETE ASSY CARRIER INSULATION DOOR
Baxi part no. 226743
50   OBSOLETE INSULATION-DOOR-30-40-50/4 PF
Baxi part no. 225641
51   OBSOLETE BURNER-7 BLADE-18 PORT-40/4 PF
Baxi part no. 225963
52   OBSOLETE INJECTOR-B02-WM40 PF
Baxi part no. 225936
53 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3.14
53 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
54   OBSOLETE V/FLUE TERM.KIT 40 PACK F
Baxi part no. 225607
55   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
56 Part number 062240, OBSOLETE NIPPLE PRES TEST OBSOLETE NIPPLE PRES TEST
Baxi part no. 062240
57   OBSOLETE BRACKET CONTROLS
Baxi part no. 225906
58   OBSOLETE O RING-21.9MM ID X 2.62MM-TH
Baxi part no. 102233
59 Part number 225959, VALVE-CONTROL-H/WELL VALVE-CONTROL-H/WELL
Baxi part no. 225959
60   SCR-SET-M4X12MM-PAN HD PZ ZNPD
Baxi part no. 062726
61   OBSOLETE COVER-VALVE-HONEYWELL VR 4700
Baxi part no. 226251
63   OBSOLETE SUPPORT-VALVE INLET-WM.PF
Baxi part no. 225619
64 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
64 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
65 Part number 225938, OBSOLETE BURNER-PILOT-ASSY-WM/PF OBSOLETE BURNER-PILOT-ASSY-WM/PF
Baxi part no. 225938
67   OBSOLETE PIPE PILOT FEED INC N&O3/4/5PF
Baxi part no. 228205
68 Part number 225934, ELECTRODE-WM/PF ELECTRODE-WM/PF
Baxi part no. 225934
69   OBSOLETE LEAD-ELECTRODE.315MM LONG
Baxi part no. 225966
70   OBSOLETE SLEEVE-6MM-ELAS.GLS/FIBX330MM
Baxi part no. 100393
71 Part number 226114, KIT-WINDOW-VIEWING-30-40-504PF KIT-WINDOW-VIEWING-30-40-504PF
Baxi part no. 226114		 £14.87
72   OBSOLETE AIR BOX ASSEMBLY 226740 41-077-51 364-842
Baxi part no. 226740
72   OBSOLETE SEAL-AIR BOX TO COMB.BOX-50/4PF
Baxi part no. 225638
73   OBSOLETE TURRET-4/PF
Baxi part no. 225530
74   OBSOLETE MACHINE SCREW M5 X 10 RECESSED COUNTER SUNK
Baxi part no. 225968
75   NUT-WING-M6-ZN-PD
Baxi part no. 112028
76   OBSOLETE LATCH AIR BOX
Baxi part no. 225630
77   OBSOLETE MACHINE SCREW M6 X 12 RECESSED PAN HEAD GE
Baxi part no. 226358
78 Part number 225941, O RING-WM.PF O RING-WM.PF
Baxi part no. 225941
79 Part number 226823, Assy Blanking Cap 70/PF ASSY BLANKING CAP 70/PF
Baxi part no. 226823		 £9.05
80 Part number 062583, SCR-TF-M5x10mm PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583		 £3.12
80   OBSOLETE PIPE-PRESSURE-POSITIVE-SER.4PF
Baxi part no. 226331
81   OBSOLETE PIPE-PRESSURE-NEGATIVE-SER.4PF
Baxi part no. 226097
83   OBSOLETE SCR-TF-M4X6MM HEX POZI ZNPD
Baxi part no. 225405
84   OBSOLETE LID AIR BOX ASSY 50/4 PF
Baxi part no. 226718
85   OBSOLETE SEAL-AIR BOX LID-WM50/4PF
Baxi part no. 225671
87   OBSOLETE PLATE BLANKING WMB 4/PF
Baxi part no. 225625
88 Part number 226060, SWITCH-PRESSURE-KIT-WM.PF SWITCH-PRESSURE-KIT-WM.PF
Baxi part no. 226060		 £67.30
89   OBSOLETE COVER-PRESSURE SWITCH KIT
Baxi part no. 226067
90 Part number 062699, SCR-ST-No6x3/8 PAN HD PZ ZP SCR-ST-NO6X3/8 PAN HD PZ ZP
Baxi part no. 062699		 £3.12
91   OBSOLETE CABLE RESTRAINT 226068 41-077-43 364-642
Baxi part no. 226068
92   OBSOLETE BRKT-PRESSURE SWITCH-WM4/PF
Baxi part no. 225623
93   OBSOLETE BRIGHT WASHER M4 FORM A (4.3 X 9 X 0.8) MI
Baxi part no. 226144
94 Part number 226096, OBSOLETE PIPE PRESSURE OBSOLETE PIPE PRESSURE
Baxi part no. 226096
94   OBSOLETE FLEX TUBE - RED - 260 X 4MM OD 226869 41-0
Baxi part no. 226869
94 Part number 239748, KIT REPLACEMENT PRESSURE PIPES KIT REPLACEMENT PRESSURE PIPES
Baxi part no. 239748
95   OBSOLETE SCREW
Baxi part no. 226357
96 Part number 225543, 2M HORIZ.FLUE SYSTEM 30 50 2M HORIZ.FLUE SYSTEM 30 50
Baxi part no. 225543
97 Part number 225544, 2M HORIZ.FLUE SYSTEM 60/80 PRO 2M HORIZ.FLUE SYSTEM 60/80 PRO
Baxi part no. 225544
98   OBSOLETE SCR-TF-PLAS-NO8X3/8 FL.H.PZ.ZP
Baxi part no. 226237
100 Part number C77P0130, THERMOSTAT THERMOSTAT
Baxi part no. C77P0130
100   THERMOSTAT
Baxi part no. LM7P8505
101 Part number 225120BAX, SEQUENCE CONTROLLERS-WM-4/PF SEQUENCE CONTROLLERS-WM-4/PF
Baxi part no. 225120BAX		 £169.63
101 Part number 225120, NOW USE 225120BAX SEQUENCE CONTROLLERS-WM-4/PF NOW USE 225120BAX SEQUENCE CONTROLLERS-WM-4/PF
Baxi part no. 225120
102   OBSOLETE PEG-PLASTIC-RICHO
Baxi part no. 225969
103 Part number 226821, OBSOLETE KNOB-THERMOSTAT ASSY OBSOLETE KNOB-THERMOSTAT ASSY
Baxi part no. 226821
104   OBSOLETE FUSE-2 AMP-250 V
Baxi part no. 226070
105   OBSOLETE WIRE HARNESS VALVE-ALL 4PF
Baxi part no. 226574
106   OBSOLETE BRKT-ELEC.TERM.MTG-ASSY-4PF
Baxi part no. 226557
107   OBSOLETE FLUE ASSY PACK 100 (PRE PART_L
Baxi part no. 225542
108   OBSOLETE SCR-SET-M5X20MM-PN PZ-ZNPD
Baxi part no. 226513
109   OBSOLETE BRIGHT WASHER M5 FORM A (5.3 X 10 X 1) MIL
Baxi part no. 226258
110   OBSOLETE INSULATION-TERMINAL STRIP-WMPF
Baxi part no. 225645
111   OBSOLETE STRIP-TERMINAL-3 WAY
Baxi part no. 225817
112   OBSOLETE PIN-FIXING
Baxi part no. 225813
113   OBSOLETE STRIP-TERMINAL-4 WAY-WM.PF
Baxi part no. 225953
114   OBSOLETE CLAMP-CABLE-PLASTIC
Baxi part no. 112048
115   OBSOLETE CLAMP-CABLE-LOWER
Baxi part no. 224079
117   OBSOLETE CLAMP-CBL-MULTI-FSTX-217031830
Baxi part no. 112068
122   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
122   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
123   OBSOLETE WIRE-HARNESS-ASSY-SERIES 4/PF
Baxi part no. 226575
124   OBSOLETE SOCKET-ASSY-9 WAY-SERIES 4/PF
Baxi part no. 226573
125   OBSOLETE DUCT-AIR-ASSY-30-40-50/4 PF
Baxi part no. 226407
126   OBSOLETE DUCT FLUE ASSY 30 40 50 70/4PF
Baxi part no. 226406
127   OBSOLETE DUCT-AIR-TELESCOPIC.SER 4/PF
Baxi part no. 225632
128 Part number 227070, OBSOLETE Assy Duct Air Terminal 50/4PF OBSOLETE ASSY DUCT AIR TERMINAL 50/4PF
Baxi part no. 227070		 £66.99
129   OBSOLETE ASSY SLEEVE INNER
Baxi part no. 226700
130   OBSOLETE ASSEMBLY SLEEVE OUTER
Baxi part no. 226410
