BAXI
SOLO PF 2 70 - (Combustion Box)
Appliance Code: 41-075-01

Appliance Diagram

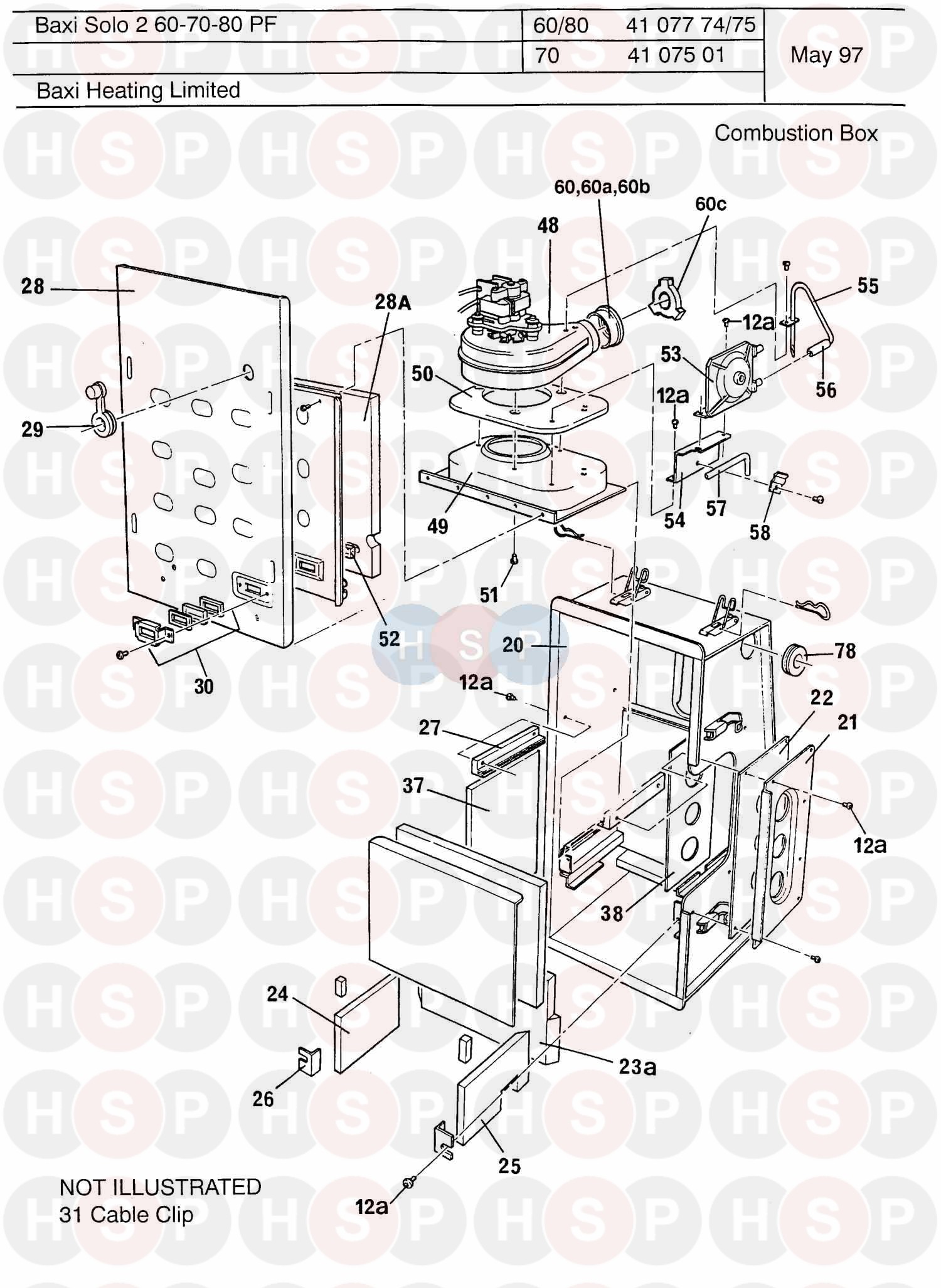

Combustion Box diagram for Baxi Solo PF 2 70Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE FLUE TRIM - BROWN
Baxi part no. 231456
0   OBSOLETE KIT SOL-VER FLUE/TERMINAL PF2
Baxi part no. 229425
0   OBSOLETE PANEL BOTTOM-LARGE-PF2 (BLUE)
Baxi part no. 241269
0   OBSOLETE PANEL FRONT-LARGE-PF2 (BLUE)
Baxi part no. 241270
0   OBSOLETE PANEL LOWER 60/70/80 PF GREEN
Baxi part no. 241319
0   OBSOLETE PANEL FRONT-LARGE-PF2 (GREEN)
Baxi part no. 241268
0   OBSOLETE PANEL TOP-LARGE-PF2 (GREEN)
Baxi part no. 241263
0   OBSOLETE PANEL TOP-LARGE-PF2 (BLUE)
Baxi part no. 241265
0   OBSOLETE PANEL BOTTOM-LARGE-PF2 (GREEN)
Baxi part no. 241267
0   OBSOLETE PANEL SIDE LH - (BLUE)
Baxi part no. 241372
0   OBSOLETE PANEL LOWER 60/70/80 PF BLUE
Baxi part no. 241320
0   OBSOLETE PANEL SIDE LH - (GREEN)
Baxi part no. 241242
0   OBSOLETE PANEL SIDE RH - (GREEN)
Baxi part no. 241245
0   OBSOLETE PANEL SIDE RH - (BLUE)
Baxi part no. 241249
0   OBSOLETE KIT - BURNER PILOT INFILL
Baxi part no. 238370
0   OBSOLETE KIT FLUE EXTENSION 2M PF2
Baxi part no. 231790
0 Part number 231792, OBSOLETE Kit Flue Extension 1m PF2 OBSOLETE KIT FLUE EXTENSION 1M PF2
Baxi part no. 231792
0   OBSOLETE KIT SOL-VER TERMINAL PF2
Baxi part no. 231785
0   OBSOLETE BNR.MANIFOLD ASSY.PAINTED
Baxi part no. 231787
0   OBSOLETE INSTRUCTIONS USER - PF MK 2
Baxi part no. 230989
0   OBSOLETE INSTRUCTIONS INSTALLER-PF MK 2
Baxi part no. 230988
1   OBSOLETE O/CASE ASSY(SPARES)-LARGE-PF2
Baxi part no. 231713
2 Part number 230863, OUTER CASE OUTER CASE
Baxi part no. 230863
2 Part number 230759, LATCH TOGGLE COMB BOX-PF MK 2 LATCH TOGGLE COMB BOX-PF MK 2
Baxi part no. 230759
2 Part number 247679, PACKED-O/CASE-SOLO PF3-LARGE PACKED-O/CASE-SOLO PF3-LARGE
Baxi part no. 247679
3   OBSOLETE KIT PANEL UPPER LARGE 60/80PF2
Baxi part no. 229428
4   OBSOLETE PANEL LOWER - 60 80
Baxi part no. 231429
5 Part number 230868, OUTER CASE OUTER CASE
Baxi part no. 230868
6 Part number 245921, OBSOLETE STUD LATCH-M3-BRASS OBSOLETE STUD LATCH-M3-BRASS
Baxi part no. 245921
6 Part number 247678, PACKED-O/CASE-SOLO PF3-SMALL PACKED-O/CASE-SOLO PF3-SMALL
Baxi part no. 247678
6 Part number 227292, SCR-SET-M3 x 5mm PAN POZ ZN PD SCR-SET-M3 X 5MM PAN POZ ZN PD
Baxi part no. 227292		 £2.53
6 Part number 230439, CASING CASING
Baxi part no. 230439
6 Part number 062450, OBSOLETE WASHER SHAKEPROOF.INT-M3-ZN PD OBSOLETE WASHER SHAKEPROOF.INT-M3-ZN PD
Baxi part no. 062450
6 Part number 224177, OBSOLETE STUD BRASS M3 INTERNAL. OBSOLETE STUD BRASS M3 INTERNAL.
Baxi part no. 224177
7 Part number 230951, CASING CASING
Baxi part no. 230951
8 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX		 £3.12
8   OBSOLETE PANEL-INFILL-ASSY-CLPS&SCRS-PF
Baxi part no. 227157
8 Part number 225310, NOW USE 225310BAX SCR-ST-No6x1/4in FLHD POZI AB NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310
9   OBSOLETE AIR BOX/W.PLATE ASSY-LGE-PF MK2
Baxi part no. 230916
10 Part number 231026, PLATE BLANKING PLATE BLANKING
Baxi part no. 231026		 £17.45
10 Part number 231322, NOW USE 231322BAX SEAL BLANKING PLATE.PF MK2 NOW USE 231322BAX SEAL BLANKING PLATE.PF MK2
Baxi part no. 231322
10 Part number 231322BAX, SEAL BLANKING PLATE.PF MK2 SEAL BLANKING PLATE.PF MK2
Baxi part no. 231322BAX		 £4.57
11 Part number 230956, NOW USE 244153 SEAL COMB TO AIR BOX NOW USE 244153 SEAL COMB TO AIR BOX
Baxi part no. 230956
11 Part number 244153, SEAL COMB BOX TO AIR BOX SEAL COMB BOX TO AIR BOX
Baxi part no. 244153		 £13.66
12 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683		 £2.53
12 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
13 Part number 230326, TURRET-PF MK 2 & 3 TURRET-PF MK 2 & 3
Baxi part no. 230326		 £20.52
14 Part number 230955, SEAL - FAN TO TURRET - PF MK 2 SEAL - FAN TO TURRET - PF MK 2
Baxi part no. 230955		 £16.46
15 Part number 231458, CAP & SCOOP ASSY CAP & SCOOP ASSY
Baxi part no. 231458		 £13.30
17 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
18 Part number 226823, Assy Blanking Cap 70/PF ASSY BLANKING CAP 70/PF
Baxi part no. 226823		 £9.05
20 Part number 230760, LATCH TOGGLE DOOR - PF MK 2 LATCH TOGGLE DOOR - PF MK 2
Baxi part no. 230760
20   OBSOLETE COMB.BOX ASSY-LARGE-PF MK2
Baxi part no. 230911
21 Part number 230877, PLATE RETAINING HEAT EXCHANGER PLATE RETAINING HEAT EXCHANGER
Baxi part no. 230877		 £27.81
22 Part number 230958, SEAL-H/EX TO COMB BOX -PF MK 2 SEAL-H/EX TO COMB BOX -PF MK 2
Baxi part no. 230958		 £16.72
23   OBSOLETE INSULATION REAR-LARGE-PF MK 2
Baxi part no. 231094
24 Part number 230652, INSULATION SIDE LH - PF MK 2 INSULATION SIDE LH - PF MK 2
Baxi part no. 230652
25 Part number 230653, INSULATION SIDE RH - PF MK 2 INSULATION SIDE RH - PF MK 2
Baxi part no. 230653		 £17.60
26 Part number 230817, Retainer Insulation RETAINER INSULATION
Baxi part no. 230817		 £1.98
27 Part number 230643, OBSOLETE SLIDE - PF MK 2 OBSOLETE SLIDE - PF MK 2
Baxi part no. 230643
27 Part number 230463, OBSOLETE SLIDE OBSOLETE SLIDE
Baxi part no. 230463
28 Part number 231093, INSULATION FRONT LARGE-PF MK 2 INSULATION FRONT LARGE-PF MK 2
Baxi part no. 231093
28 Part number 231093BAX, INSULATION FRONT LARGE-PF MK 2 INSULATION FRONT LARGE-PF MK 2
Baxi part no. 231093BAX
28 Part number 230925, COM.BOX DOOR COM.BOX DOOR
Baxi part no. 230925
28 Part number 237330, KIT - DOOR SEAL KIT - DOOR SEAL
Baxi part no. 237330
28 Part number 247191, KIT - COM.BOX DOOR PF3 LARGE KIT - COM.BOX DOOR PF3 LARGE
Baxi part no. 247191
29 Part number 231394, GROMMET SAMPLING PIPE GROMMET SAMPLING PIPE
Baxi part no. 231394
30 Part number 224183, WINDOW-VIEWING.WM40/4RS WINDOW-VIEWING.WM40/4RS
Baxi part no. 224183
31   CLIP-CABLE
Baxi part no. 227374		 £2.38
32 Part number 235620, TERMINAL BLOCK MALE/FEMALE ASS TERMINAL BLOCK MALE/FEMALE ASS
Baxi part no. 235620		 £16.92
32 Part number 235617, NOW USE 7683436 TERMINAL BLOCK FEMALE NOW USE 7683436 TERMINAL BLOCK FEMALE
Baxi part no. 235617
32 Part number 235616, NOW USE 7683434 TERMINAL BLOCK MALE NOW USE 7683434 TERMINAL BLOCK MALE
Baxi part no. 235616
32   TERMINAL BLOCK MALE
Baxi part no. 7683434		 £12.87
32   TERMINAL BLOCK FEMALE
Baxi part no. 7683436		 £12.87
33 Part number 229424, OBSOLETE KIT-HEAT EXCH 80PF Mk2 OBSOLETE KIT-HEAT EXCH 80PF MK2
Baxi part no. 229424
34 Part number 230692, ADAPTER 1" BSP-(DRY SEALED) ADAPTER 1" BSP-(DRY SEALED)
Baxi part no. 230692		 £7.70
35 Part number 230971, POCKET THERMOSTAT POCKET THERMOSTAT
Baxi part no. 230971		 £28.25
36   OBSOLETE BAFFLE TOP LARGE
Baxi part no. 231337
37 Part number 230655, INSULATION HEADER RH INSULATION HEADER RH
Baxi part no. 230655
38 Part number 230654, INSULATION HEADER LH - PF MK 2 INSULATION HEADER LH - PF MK 2
Baxi part no. 230654		 £16.01
39   OBSOLETE BURNER - SPECIAL - 60 80
Baxi part no. 231709
40 Part number 236142, PILOT KIT-PF2 PILOT KIT-PF2
Baxi part no. 236142
40   OBSOLETE WASHER FIBRE
Baxi part no. 231443
43 Part number 230673, MANIFOLD - PF MK 2 MANIFOLD - PF MK 2
Baxi part no. 230673		 £112.51
43 Part number 230684, GASKET MANIFOLD TO VALVE GASKET MANIFOLD TO VALVE
Baxi part no. 230684		 £3.26
44   70PF INJECTOR B30
Baxi part no. 239619		 £6.71
44 Part number 231776, NOW USE 231776BAX INJECTOR ASSEMBLY - 60PF MK 2 NOW USE 231776BAX INJECTOR ASSEMBLY - 60PF MK 2
Baxi part no. 231776
44 Part number 231777, NOW USE 231777BAX INJECTOR ASSEMBLY - 80PF MK 2 NOW USE 231777BAX INJECTOR ASSEMBLY - 80PF MK 2
Baxi part no. 231777
44 Part number 231776BAX, INJECTOR ASSEMBLY - 60PF MK 2 INJECTOR ASSEMBLY - 60PF MK 2
Baxi part no. 231776BAX		 £20.13
44 Part number 231777BAX, INJECTOR ASSEMBLY - 80PF MK 2 INJECTOR ASSEMBLY - 80PF MK 2
Baxi part no. 231777BAX		 £19.55
45 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3.14
45 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
46 Part number 230979, GASKET-MANIFOLD TO COMB.BOX GASKET-MANIFOLD TO COMB.BOX
Baxi part no. 230979		 £4.57
47 Part number 224244, SCR-TF-M4x12mm-PAN.POZ-ZN.PD SCR-TF-M4X12MM-PAN.POZ-ZN.PD
Baxi part no. 224244		 £3.12
48 Part number 237578, KIT FAN SPARES SOLO 2 70/80PF KIT FAN SPARES SOLO 2 70/80PF
Baxi part no. 237578		 £306.96
48   OBSOLETE FAN ASSEMBLY
Baxi part no. 239668
48 Part number 229421, KIT FAN SPARE 30-60 SOLO 2 PF KIT FAN SPARE 30-60 SOLO 2 PF
Baxi part no. 229421		 £214.10
48 Part number 229422, KIT FAN SPARE 80 PF2 KIT FAN SPARE 80 PF2
Baxi part no. 229422		 £291.61
49   OBSOLETE ASSY DOOR INNER/HOOD LARGE PF2
Baxi part no. 236080
50 Part number 231343, NOW USE 231343BAX GASKET - FAN TO HOOD PF2/3 NOW USE 231343BAX GASKET - FAN TO HOOD PF2/3
Baxi part no. 231343
50 Part number 231343BAX, GASKET - FAN TO HOOD PF2/3 GASKET - FAN TO HOOD PF2/3
Baxi part no. 231343BAX		 £8.72
51 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
52 Part number 226114, KIT-WINDOW-VIEWING-30-40-504PF KIT-WINDOW-VIEWING-30-40-504PF
Baxi part no. 226114		 £14.87
53 Part number 230068, PRESSURE SWITCH - PF MK2 PRESSURE SWITCH - PF MK2
Baxi part no. 230068
54   OBSOLETE BRACKET SWITCH PRESSURE
Baxi part no. 230818
55 Part number 230843, OBSOLETE SENSING HEAD - PF MK 2 OBSOLETE SENSING HEAD - PF MK 2
Baxi part no. 230843
56 Part number 230961, OBSOLETE TUBE FLEXIBLE - PF MK 2 OBSOLETE TUBE FLEXIBLE - PF MK 2
Baxi part no. 230961
57 Part number 230842, SAMPLING PIPE - SOLO PF MK 2 SAMPLING PIPE - SOLO PF MK 2
Baxi part no. 230842		 £10.12
58 Part number 112066, CLIP-RETAIN-BRIERLY-SPRG-11157 CLIP-RETAIN-BRIERLY-SPRG-11157
Baxi part no. 112066		 £11.80
59 Part number 236906, OBSOLETE PRESSURE SWITCH HARNESS OBSOLETE PRESSURE SWITCH HARNESS
Baxi part no. 236906
59 Part number 236905, BOILER HARNESS ASSEMBLY BOILER HARNESS ASSEMBLY
Baxi part no. 236905		 £65.01
60   OBSOLETE PLATE RESTRICTOR 60/4 PF2
Baxi part no. 240447
60   OBSOLETE FLUE RESTRICTOR - 60/70PF
Baxi part no. 240445
60   OBSOLETE 70PF RESTRICTOR
Baxi part no. 239641
60   OBSOLETE PLATE RESTRICTOR 80/4 PF2
Baxi part no. 239494
60   OBSOLETE PLATE RESTRICTOR 70/4 PF2
Baxi part no. 239493
60   OBSOLETE RESTRICTOR 60 PF MK 2
Baxi part no. 231153
60 Part number 231154, NOW USE 231154BAX RESTRICTOR PF3 SMALL NOW USE 231154BAX RESTRICTOR PF3 SMALL
Baxi part no. 231154
60 Part number 231154BAX, RESTRICTOR PF3 SMALL RESTRICTOR PF3 SMALL
Baxi part no. 231154BAX		 £12.71
61 Part number 231857, NOW USE 231857BAX VALVE HONEYWELL SOFTLITE-PFMK2 NOW USE 231857BAX VALVE HONEYWELL SOFTLITE-PFMK2
Baxi part no. 231857
61   COVER VALVE - PF 2/3
Baxi part no. 231185		 £18.32
61 Part number 245122, VALVE SOFTLITE KIT INC GASKETS VALVE SOFTLITE KIT INC GASKETS
Baxi part no. 245122		 £140.24
61 Part number 231857BAX, VALVE - SOFTLITE VALVE - SOFTLITE
Baxi part no. 231857BAX		 £139.60
62 Part number 042812, TAILPIECE-M-TAP-SERVICE-3WAY TAILPIECE-M-TAP-SERVICE-3WAY
Baxi part no. 042812		 £17.19
63 Part number 042811, NUT-UNION- (for 7/8 BSP LINER) NUT-UNION- (FOR 7/8 BSP LINER)
Baxi part no. 042811		 £9.11
64 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
64 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
66 Part number 239182, NOW USE 231711 BAX PCB NOW USE 231711 BAX PCB
Baxi part no. 239182
66 Part number 231402, FUSE-4AMP-QUICK BLOW-PF MK2 FUSE-4AMP-QUICK BLOW-PF MK2
Baxi part no. 231402		 £3.06
66 Part number 231711, NOW USE 231711BAX ELECTS CONTL BOARD (KIT)-PF2 NOW USE 231711BAX ELECTS CONTL BOARD (KIT)-PF2
Baxi part no. 231711
66 Part number 231711BAX, ELECTS CONTL BOARD (KIT)-PF2 ELECTS CONTL BOARD (KIT)-PF2
Baxi part no. 231711BAX		 £263.29
67 Part number 230258BAX, BOX CONTROLS - PF 2/3 BOX CONTROLS - PF 2/3
Baxi part no. 230258BAX		 £19.13
67 Part number 230258, NOW USE 230258BAX BOX CONTROLS - PF 2/3 NOW USE 230258BAX BOX CONTROLS - PF 2/3
Baxi part no. 230258
68   OBSOLETE SCR-TF-PLAS-NO8X3/8 FL.H.PZ.ZP
Baxi part no. 226237
69   OBSOLETE CABLE CLAMP
Baxi part no. 230848
70   OBSOLETE SCR ST NO8X1/2 CSK PZ ZNPD B
Baxi part no. 062678
71 Part number 230981, KNOB - THERMOSTAT KNOB - THERMOSTAT
Baxi part no. 230981		 £9.51
71 Part number 231249BAX, COVER - PROTECTION - PF MK2 COVER - PROTECTION - PF MK2
Baxi part no. 231249BAX		 £7.91
71   RIVET-SNAP-NYLON
Baxi part no. 062758		 £2.43
71 Part number 231249, NOW USE 231249BAX COVER - PROTECTION - PF MK2 NOW USE 231249BAX COVER - PROTECTION - PF MK2
Baxi part no. 231249
71   NOW USE 062758 BUTTON
Baxi part no. 227078
71 Part number 230259, COVER CONTROL BOX PF M COVER CONTROL BOX PF M
Baxi part no. 230259		 £13.63
72 Part number 231440, NOW USE 231440BAX CONNECTOR 3 WAY MALE - PF MK 2 NOW USE 231440BAX CONNECTOR 3 WAY MALE - PF MK 2
Baxi part no. 231440
72   CONNECTOR FEMALE 4 WAY-PF MK 2
Baxi part no. 230846		 £11.86
72 Part number 231440BAX, CONNECTOR 3 WAY MALE - PF MK 2 CONNECTOR 3 WAY MALE - PF MK 2
Baxi part no. 231440BAX		 £13.07
73 Part number 043080, NUT-COMPRESSION 22mm-CONEX NUT-COMPRESSION 22MM-CONEX
Baxi part no. 043080		 £6.05
73 Part number 043081, OLIVE-BRASS-22mm-CONEX OLIVE-BRASS-22MM-CONEX
Baxi part no. 043081		 £3.19
73 Part number 102212, OBSOLETE ELBOW-STREET-22mm OBSOLETE ELBOW-STREET-22MM
Baxi part no. 102212
73 Part number 230204, THERMOSTAT SENSOR - PF MK 2 THERMOSTAT SENSOR - PF MK 2
Baxi part no. 230204		 £27.93
74 Part number 230962, HARNESS - BOILER - PF MK2/3 HARNESS - BOILER - PF MK2/3
Baxi part no. 230962		 £51.54
75 Part number 225826, NOW USE 7672054 LEAD-ELECTRODE-410mm LONG NOW USE 7672054 LEAD-ELECTRODE-410MM LONG
Baxi part no. 225826
75   LEAD ELECTRODE 410MM
Baxi part no. 7672054		 £16.41
76   OBSOLETE SLEEVE-6MM-ELAS.GLS/FIBX420MM
Baxi part no. 230985
76   OBSOLETE SLEEVE-6MM-ELAST/GFX435MM
Baxi part no. 240363
77 Part number 5106746, KIT-SOLO PF OVERHEAT STAT KIT-SOLO PF OVERHEAT STAT
Baxi part no. 5106746		 £31.26
78   OBSOLETE GROMMET
Baxi part no. 231141
78   OBSOLETE GROMMET
Baxi part no. 231141BAX
79 Part number 229426, FLUE ASSY KIT - SOLO PF Mk2 FLUE ASSY KIT - SOLO PF MK2
Baxi part no. 229426
80   OBSOLETE DUCT AIR ASSY - PF MK 2
Baxi part no. 231171
81   OBSOLETE DUCT-AIR-TELESCOPIC.SER 4/PF
Baxi part no. 225632
82 Part number 227070, OBSOLETE Assy Duct Air Terminal 50/4PF OBSOLETE ASSY DUCT AIR TERMINAL 50/4PF
Baxi part no. 227070		 £66.99
83 Part number 226260, O RING-SEAL-INTERNAL FIX.KIT O RING-SEAL-INTERNAL FIX.KIT
Baxi part no. 226260		 £4.95
83   WALL LINER/INTERNAL FIXING
Baxi part no. 236441
83   WALL LINER/INTERNAL FIXING
Baxi part no. 236441BAX
86   OBSOLETE DUCT FLUE ASSY - PF MK 2
Baxi part no. 231395
87 Part number 231252BAX, CONTROL POTENTIOMETER & LEADS CONTROL POTENTIOMETER & LEADS
Baxi part no. 231252BAX		 £36.96
87 Part number 231252, NOW USE 231252BAX CONTROL POTENTIOMETER & LEADS NOW USE 231252BAX CONTROL POTENTIOMETER & LEADS
Baxi part no. 231252


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
