BAXI
SOLO II 30 RS - (Boiler)
Appliance Code: 41-077-76

Appliance Diagram


Boiler diagram for Baxi Solo II 30 RSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE - SPARE SOLO RS2
Baxi part no. 232508
2   OBSOLETE PANEL FRONT ASSY SOLO RS2
Baxi part no. 233700
3   OBSOLETE PANEL SIDE O/CASE-SOLO RS MK2
Baxi part no. 230675
4   OBSOLETE PANEL TOP ASS O/CASE-SOLO RS 2
Baxi part no. 231770
6   OBSOLETE PANEL DOOR LOWER ASSY - RS2
Baxi part no. 232111
7 Part number 225310, NOW USE 225310BAX SCR-ST-No6x1/4in FLHD POZI AB NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310
7 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX		 £3.12
8 Part number 245921, OBSOLETE STUD LATCH-M3-BRASS OBSOLETE STUD LATCH-M3-BRASS
Baxi part no. 245921
8 Part number 224177, OBSOLETE STUD BRASS M3 INTERNAL. OBSOLETE STUD BRASS M3 INTERNAL.
Baxi part no. 224177
9 Part number 062450, OBSOLETE WASHER SHAKEPROOF.INT-M3-ZN PD OBSOLETE WASHER SHAKEPROOF.INT-M3-ZN PD
Baxi part no. 062450
10 Part number 227292, SCR-SET-M3 x 5mm PAN POZ ZN PD SCR-SET-M3 X 5MM PAN POZ ZN PD
Baxi part no. 227292		 £2.53
11 Part number 043155, CLIP-EDGE-1/2-CARR-TRW-11770 CLIP-EDGE-1/2-CARR-TRW-11770
Baxi part no. 043155		 £2.17
12   OBSOLETE PANEL INFILL L/H - SOLO RS MK2
Baxi part no. 231767
13   OBSOLETE PANEL INFILL R/H - SOLO RS MK2
Baxi part no. 231766
14 Part number 225818, OBSOLETE SCR-SET-M5x14 PN PZ ZP&WASHER OBSOLETE SCR-SET-M5X14 PN PZ ZP&WASHER
Baxi part no. 225818
15   OBSOLETE PLATE WALL MOUNTING ASSY - RS2
Baxi part no. 230430
16   NUT-WING-M6-ZN-PD
Baxi part no. 112028
17   OBSOLETE COMB.BOX S/METAL ASS-SOLO 2 RS
Baxi part no. 231134
18   OBSOLETE INSULATION REAR LOWER
Baxi part no. 231806
19   OBSOLETE CHANNEL INSULATION REAR RS MK2
Baxi part no. 232028
20   OBSOLETE BRKT MOUNTING SIDE-SOLO 2 RS
Baxi part no. 231714
21 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
22   OBSOLETE SUPPORT HEAT EXCHANGER RS2
Baxi part no. 232509
23 Part number 232893, OBSOLETE INLET/OUTLET PIPE ASSY KIT-RS2 OBSOLETE INLET/OUTLET PIPE ASSY KIT-RS2
Baxi part no. 232893
24   OBSOLETE KIT SAMPLING PIPE - SOLO2 RS
Baxi part no. 232894

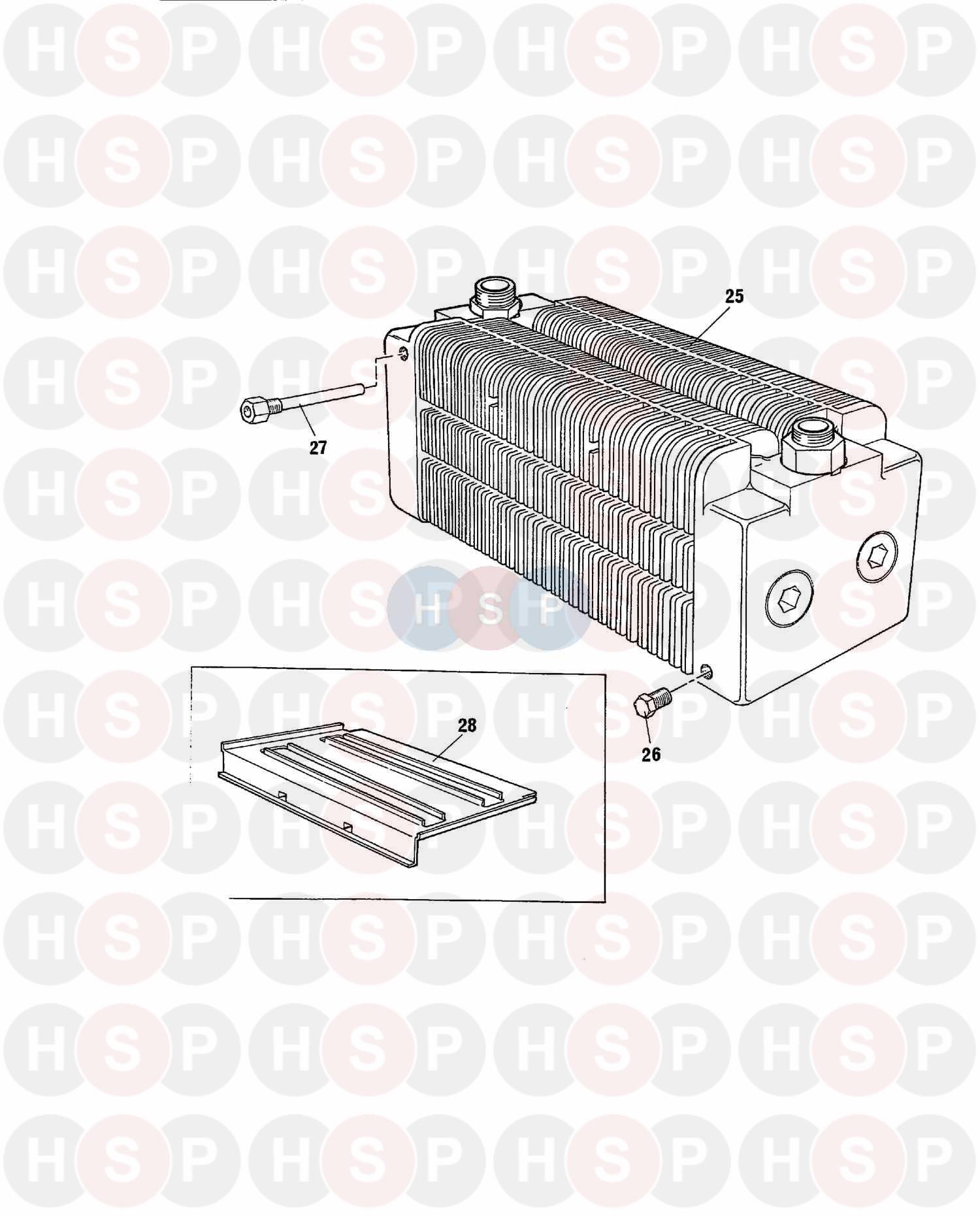

25 Part number 232511, HEAT EXCHANGER - SPARE HEAT EXCHANGER - SPARE
Baxi part no. 232511
26   OBSOLETE PLUG-DRAIN-RP 1/4
Baxi part no. 224141
27 Part number 231823, OBSOLETE POCKET THERMOSTAT - SOLO 2 RS OBSOLETE POCKET THERMOSTAT - SOLO 2 RS
Baxi part no. 231823
28   OBSOLETE PLATE BAFFLE ( 40-RS2 )
Baxi part no. 232905
28   OBSOLETE PLATE BAFFLE ( 50-RS2 )
Baxi part no. 232817
28   OBSOLETE PLATE BAFFLE - SOLO 30 RS MK2
Baxi part no. 231989
29 Part number 232156, OBSOLETE THERMOSTAT BOILER OBSOLETE THERMOSTAT BOILER
Baxi part no. 232156
30 Part number 231825, NOW USE 231825BAX THERMOSTAT OVERHEAT NOW USE 231825BAX THERMOSTAT OVERHEAT
Baxi part no. 231825
30 Part number 231825BAX, THERMOSTAT OVERHEAT THERMOSTAT OVERHEAT
Baxi part no. 231825BAX		 £25.58
31   OBSOLETE HOUSING-THERMOSTAT
Baxi part no. 225433
32   OBSOLETE CLIP-THERMOSTAT-CAPILLARY
Baxi part no. 226514
33 Part number 232182, OBSOLETE WIRING HARNESS ASSY OBSOLETE WIRING HARNESS ASSY
Baxi part no. 232182
34 Part number 232510, OBSOLETE PCB & SUPPORTS - RS Mk2 OBSOLETE PCB & SUPPORTS - RS MK2
Baxi part no. 232510
35   OBSOLETE CLAMP-CABLE-PLASTIC
Baxi part no. 112048
36   OBSOLETE PIN-FIXING
Baxi part no. 225813
37 Part number 232170, OBSOLETE COVER ELECTRICAL OBSOLETE COVER ELECTRICAL
Baxi part no. 232170
38   OBSOLETE KNOB THERMOSTAT
Baxi part no. 232171
39   OBSOLETE DOOR COMB.BOX SOLO RS MK2
Baxi part no. 230661
40 Part number 225833, OBSOLETE SCR-SET-M6x18mm-PAN POZ-ZN PD OBSOLETE SCR-SET-M6X18MM-PAN POZ-ZN PD
Baxi part no. 225833
42 Part number 237331, OBSOLETE KIT-DOOR SEAL-RS2 OBSOLETE KIT-DOOR SEAL-RS2
Baxi part no. 237331
44 Part number 231803, OBSOLETE INSULATION ASSY DOOR - RS2 OBSOLETE INSULATION ASSY DOOR - RS2
Baxi part no. 231803
45   OBSOLETE BURNER BOILER ASSEMBLY
Baxi part no. 232145BAX
46   OBSOLETE BURNER BOILER ASSEMBLY
Baxi part no. 232146BAX
47 Part number 232513, OBSOLETE OBSOLETE
Baxi part no. 232513
48   OBSOLETE BURNER BOILER ASSEMBLY
Baxi part no. 231609
49   OBSOLETE INJECTOR BLR W/GAS 30/40/50RS2
Baxi part no. 232446
50   OBSOLETE INJECTOR BLR WORGAS SPEC.60RS2
Baxi part no. 232445
51 Part number 232045, OBSOLETE GASKET MANIFOLD OBSOLETE GASKET MANIFOLD
Baxi part no. 232045
52 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
52 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
53 Part number 042812, TAILPIECE-M-TAP-SERVICE-3WAY TAILPIECE-M-TAP-SERVICE-3WAY
Baxi part no. 042812		 £17.19
53 Part number 042811, NUT-UNION- (for 7/8 BSP LINER) NUT-UNION- (FOR 7/8 BSP LINER)
Baxi part no. 042811		 £9.11
53 Part number 241857, VALVE SOFT LIGHT INC O VALVE SOFT LIGHT INC O
Baxi part no. 241857
53 Part number 230145, GAS VALVE GAS VALVE
Baxi part no. 230145
54   OBSOLETE PIPE BURNER FEED
Baxi part no. 230812
55   SEAL MANIFOLD 3.5MM DIA
Baxi part no. 232105
55   SEAL MANIFOLD 22MM DIA
Baxi part no. 232105BAX
56   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
57 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
58   OBSOLETE PIPE PILOT FEED ASSY
Baxi part no. 233180
59 Part number 232150, INJECTOR PILOT INJECTOR PILOT
Baxi part no. 232150
59 Part number 232150BAX, INJECTOR PILOT INJECTOR PILOT
Baxi part no. 232150BAX
60 Part number 233122, KIT PILOT BURNER - SOLO 2 RS KIT PILOT BURNER - SOLO 2 RS
Baxi part no. 233122
61 Part number 232094, GASKET WINDOW VIEWING GASKET WINDOW VIEWING
Baxi part no. 232094
61 Part number 232094BAX, GASKET WINDOW VIEWING GASKET WINDOW VIEWING
Baxi part no. 232094BAX
62 Part number 232190BAX, OBSOLETE Shield Pilot-SOLO RS MK2 OBSOLETE SHIELD PILOT-SOLO RS MK2
Baxi part no. 232190BAX
62 Part number 232190, OBSOLETE Shield Pilot-SOLO RS MK2 OBSOLETE SHIELD PILOT-SOLO RS MK2
Baxi part no. 232190
63 Part number 232159, NOW USE 232159BAX THERMOCOUPLE NOW USE 232159BAX THERMOCOUPLE
Baxi part no. 232159
63 Part number 232159BAX, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 232159BAX		 £10.48
64 Part number 232151, ELECTRODE PILOT ELECTRODE PILOT
Baxi part no. 232151
65 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
67 Part number 232168, OBSOLETE LEAD ECO LONG OBSOLETE LEAD ECO LONG
Baxi part no. 232168
68 Part number 232164, LEAD ECO SHORT LEAD ECO SHORT
Baxi part no. 232164		 £14.65
69 Part number 224244, SCR-TF-M4x12mm-PAN.POZ-ZN.PD SCR-TF-M4X12MM-PAN.POZ-ZN.PD
Baxi part no. 224244		 £3.12
70 Part number 227831, OBSOLETE SEAL-THERMOSTAT POCKET OBSOLETE SEAL-THERMOSTAT POCKET
Baxi part no. 227831
71   OBSOLETE INJECTOR TEE
Baxi part no. 232192
72 Part number 230679, FLUE TERMINAL ASSY-SOLO RS MK2 FLUE TERMINAL ASSY-SOLO RS MK2
Baxi part no. 230679
73 Part number 230681, OBSOLETE TRIM OBSOLETE TRIM
Baxi part no. 230681
74   OBSOLETE INJECTOR
Baxi part no. 231954
75   OBSOLETE KIT FLUE EXTENSION
Baxi part no. 232595
76   OBSOLETE KIT - GRAVITY - RS2
Baxi part no. 233121
