SOLO 3 30 PF - (Flue)
Appliance Code: 41-075-04

Appliance Diagram

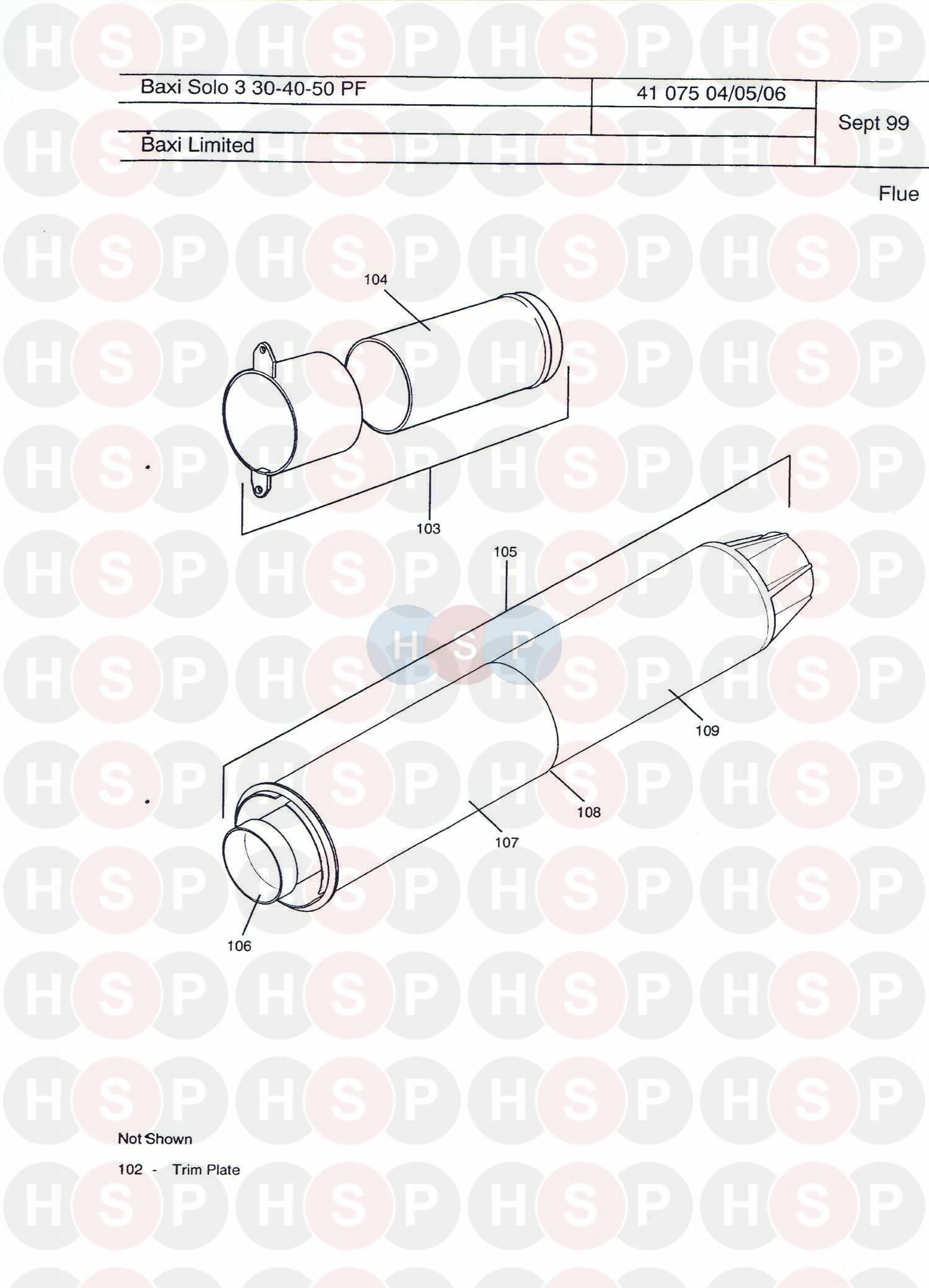

Flue diagram for Baxi Solo 3 30 PF Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	CASING Baxi part n^o. 243271
1	PACKED-O/CASE-SOLO PF3-SMALL Baxi part n^o. 247678
2	CASING Baxi part n^o. 230442
4	CASING Baxi part n^o. 246039
5	CASING Baxi part n^o. 230446
6	CASING Baxi part n^o. 230439
7	OBSOLETE STUD BRASS M3 INTERNAL. Baxi part n^o. 224177
8	OBSOLETE STUD LATCH-M3-BRASS Baxi part n^o. 245921
9	CASING Baxi part n^o. 230951
10	OBSOLETE PANEL-INFILL-ASSY-CLPS&SCRS-PF Baxi part n^o. 227157
11	SCR-ST-NO6X1/4IN FLHD POZI AB Baxi part n^o. 225310BAX	£3.12
11	NOW USE 225310BAX SCR-ST-NO6X1/4IN FLHD POZI AB Baxi part n^o. 9841534
12	OBSOLETE SCR-SET-M5X14 PN PZ ZP&WASHER Baxi part n^o. 225818
13	CLIP-EDGE-1/2-CARR-TRW-11770 Baxi part n^o. 043155	£2.17
14	OBSOLETE AIR BOX/W.PLATE ASSY-SML-PF MK2 Baxi part n^o. 230915
15	PLATE BLANKING Baxi part n^o. 231026	£17.45
16	SEAL BLANKING PLATE.PF MK2 Baxi part n^o. 231322BAX	£4.57
17	NOW USE 244153 SEAL COMB TO AIR BOX Baxi part n^o. 230956
17	SEAL COMB BOX TO AIR BOX Baxi part n^o. 244153	£13.66
18	SCR-ST-NO8X1/4 FLHD-POZI-ZPD B Baxi part n^o. 062683	£2.53
19	SCR-TF-M4X8MM-PAN POZI ZN PD Baxi part n^o. 062532	£3.01
20	TURRET-PF MK 2 & 3 Baxi part n^o. 230326	£20.52
21	SEAL - FAN TO TURRET - PF MK 2 Baxi part n^o. 230955	£16.46
22	CAP & SCOOP ASSY Baxi part n^o. 231458	£13.30
23	RETAINER TURRET Baxi part n^o. 230875	£5.81
24	SCR-TF-M5X8MM-PAN POZI ZN PD Baxi part n^o. 062531	£3.12
25	ASSY BLANKING CAP 70/PF Baxi part n^o. 226823	£9.05
26	O RING-WM.PF Baxi part n^o. 225941
27	COMB BOX ASSY PF3 SMALL Baxi part n^o. 243300	£112.06
28	LATCH TOGGLE COMB BOX-PF MK 2 Baxi part n^o. 230759
29	LATCH TOGGLE DOOR - PF MK 2 Baxi part n^o. 230760
30	PLATE RETAINING HEAT EXCHANGER Baxi part n^o. 230877	£27.81
31	SEAL-H/EX TO COMB BOX -PF MK 2 Baxi part n^o. 230958	£16.72
32	INSUL BACK COMB BOX - SMALL Baxi part n^o. 240435	£14.53
33	INSULATION SIDE LH - PF MK 2 Baxi part n^o. 230652
34	INSULATION SIDE RH - PF MK 2 Baxi part n^o. 230653	£17.60
35	RETAINER INSULATION Baxi part n^o. 230817	£1.98
36	OBSOLETE SLIDE Baxi part n^o. 230463
36	OBSOLETE SLIDE - PF MK 2 Baxi part n^o. 230643
37	COM BOX DOOR ASSY - SMALL SOLO Baxi part n^o. 243292	£43.65
38	FRONT INS.ASSY.SMALL PF Baxi part n^o. 231085BAX	£30.67
39	KIT - DOOR SEAL Baxi part n^o. 237329	£29.88
40	NOW USE 237135BAX SEAL - ROPE - SOLO 2 PF(SMALL) Baxi part n^o. 237135
40	SEAL - ROPE - SOLO 2 PF(SMALL) Baxi part n^o. 237135BAX	£15.61
41	GROMMET SAMPLING PIPE Baxi part n^o. 231394
42	WINDOW-VIEWING.WM40/4RS Baxi part n^o. 224183
43	CLIP-CABLE Baxi part n^o. 227374	£2.38
44	TERMINAL BLOCK MALE/FEMALE ASS Baxi part n^o. 235620	£16.92
45	NOW USE 7683434 TERMINAL BLOCK MALE Baxi part n^o. 235616
45	TERMINAL BLOCK MALE Baxi part n^o. 7683434	£12.87
46	TERMINAL BLOCK FEMALE Baxi part n^o. 7683436	£12.87
46	NOW USE 7683436 TERMINAL BLOCK FEMALE Baxi part n^o. 235617
47	KIT - HEAT EXCHANGER - SMALL Baxi part n^o. 246044
48	ADAPTER 1IN BSP-(DRY SEALED) Baxi part n^o. 230692	£7.70
49	POCKET THERMOSTAT Baxi part n^o. 230971	£28.25
50	NOW USE 242889 BAFFLE TOP HEAT EXCHANGER Baxi part n^o. 246047
51	INSULATION HEADER LH - PF MK 2 Baxi part n^o. 230654	£16.01
51	BAFFLE TOP HEAT EXCHANGER Baxi part n^o. 242889	£10.72
52	INSULATION HEADER RH Baxi part n^o. 230655
53	BURNER ASSY-SOLO 30/40/50PFMK2 Baxi part n^o. 231708
54	PILOT KIT-PF2 Baxi part n^o. 236142	£31.16
55	OBSOLETE ELBOW-STREET-22MM Baxi part n^o. 102212
56	OBSOLETE KIT - ELBOW OUTLET Baxi part n^o. 246050
57	MANIFOLD - PF MK 2 Baxi part n^o. 230673	£112.51
58	GASKET MANIFOLD TO VALVE Baxi part n^o. 230684	£3.26
59	INJECTOR - 30 PF MK 2 Baxi part n^o. 231354BAX	£12.34
59	INJECTOR - 40 PF MK 2 Baxi part n^o. 231355BAX
60	NOW USE 7211908 WASHER COPPER INJECTOR SEALING Baxi part n^o. 062695
60	WASHER COPPER SEALING Baxi part n^o. 7211908	£3.14
61	GASKET-MANIFOLD TO COMB.BOX Baxi part n^o. 230979	£4.57
62	SCR-TF-M4X12MM-PAN.POZ-ZN.PD Baxi part n^o. 224244	£3.12
64	KIT - FAN - SMALL Baxi part n^o. 246051	£280.71
65	DOOR INNER/HOOD ASSY SMALL-PF2 Baxi part n^o. 236079	£129.43
66	GASKET - FAN TO HOOD PF2/3 Baxi part n^o. 231343BAX	£8.72
67	SCR-ST-NO 8X3/8IN POZI FL.HD A Baxi part n^o. 062548	£3.01
68	KIT-WINDOW-VIEWING-30-40-504PF Baxi part n^o. 226114	£14.87
69	NOW USE 720011401 KIT - PRESSURE SWITCH 30/40/50 Baxi part n^o. 246053
69	PRESSURE SWITCH SOLO PF 30-50 Baxi part n^o. 720011401	£67.91
70	OBSOLETE BRACKET SWITCH PRESSURE Baxi part n^o. 230818
71	SENSING TUBE Baxi part n^o. 240752
71	SENSING TUBE Baxi part n^o. 241155
72	R - CLIP Baxi part n^o. 231453	£9.71
73	SAMPLING PIPE - SOLO PF MK 2 Baxi part n^o. 230842	£10.12
74	CLIP-RETAIN-BRIERLY-SPRG-11157 Baxi part n^o. 112066	£11.80
75	BOILER HARNESS ASSEMBLY Baxi part n^o. 236905	£65.01
76	PLATE RESTRICTOR FAN PF30 Baxi part n^o. 244427
77	VALVE - SOFTLITE Baxi part n^o. 231857BAX	£139.60
77	VALVE SOFTLITE KIT INC GASKETS Baxi part n^o. 245122	£140.24
78	COVER VALVE - PF 2/3 Baxi part n^o. 231185	£18.32
79	SCR SET M4X30MM POZI PAN STEEL Baxi part n^o. 231438BAX	£2.26
80	TAILPIECE-M-TAP-SERVICE-3WAY Baxi part n^o. 042812	£17.19
81	NUT-UNION- (FOR 7/8 BSP LINER) Baxi part n^o. 042811	£9.11
82	NOW USE 5110466 TAP SERVICE Baxi part n^o. 102205
82	GAS TAP C/W NUT & TAIL PIECE Baxi part n^o. 5110466	£46.03
83	ELECTS CONTL BOARD (KIT)-PF2 Baxi part n^o. 231711BAX	£263.29
84	FUSE-4AMP-QUICK BLOW-PF MK2 Baxi part n^o. 231402	£3.06
85	BOX CONTROLS - PF 2/3 Baxi part n^o. 230258BAX	£19.13
86	COVER CONTROL BOX PF M Baxi part n^o. 230259	£13.63
87	COVER - PROTECTION - PF MK2 Baxi part n^o. 231249BAX	£7.91
88	SCR-ST NO 6X1/2-PAN-POZI-PL Baxi part n^o. 231405	£3.16
89	RIVET-SNAP-NYLON Baxi part n^o. 062758	£2.43
90	KNOB - THERMOSTAT Baxi part n^o. 230981	£9.51
91	CONTROL POTENTIOMETER & LEADS Baxi part n^o. 231252BAX	£36.96
92	SOLENOID PILOT SOLO 2 PF Baxi part n^o. 238295	£54.55
94	THERMISTOR Baxi part n^o. 244540	£19.07
95	HARNESS - VALVE - PF MK 2 Baxi part n^o. 230983	£19.14
96	NUT HEX M3 NYLON Baxi part n^o. 233681	£2.42
97	SCR-SET-M3X16MM-PAN POZI-ZN PD Baxi part n^o. 231492BAX	£3.16
98	KIT-SOLO PF OVERHEAT STAT Baxi part n^o. 5106746	£31.26
99	OBSOLETE GROMMET Baxi part n^o. 231141
99	OBSOLETE GROMMET Baxi part n^o. 231141BAX
100	NOW USE 7672054 LEAD-ELECTRODE-410MM LONG Baxi part n^o. 225826
100	LEAD ELECTRODE 410MM Baxi part n^o. 7672054	£16.41
101	BADGE Baxi part n^o. 243362	£4.89
101	NOW USE 243362 BADGE Baxi part n^o. 246072
102	OBSOLETE TRIM FLUE Baxi part n^o. 246222
103	WALL LINER/INTERNAL FIXING Baxi part n^o. 236441BAX
104	O RING-SEAL-INTERNAL FIX.KIT Baxi part n^o. 226260	£4.95
105	OBSOLETE PF MK3 FLUE KIT ASSY 9IN-15IN Baxi part n^o. 244082
108	O RING AIR DUCT - PF MK 2 Baxi part n^o. 231099BAX	£12.90
109	OBSOLETE PF MK3 FLUE KIT ASSY 9IN-15IN Baxi part n^o. 244082
109	OBSOLETE FLUE Baxi part n^o. 246070
110	RESTRICTOR PF3 SMALL Baxi part n^o. 231154BAX	£12.71
111	KIT-CONNECTORS Baxi part n^o. 246428	£11.35
112	ELBOW PRESSURE SWITCH Baxi part n^o. 245643
113	FAN IMPELLER WM/4/PF Baxi part n^o. 229192	£14.65
114	CLIP RETAINING BAFFLE Baxi part n^o. 244488	£4.22
