BAXI
SOLAIRE SUPER - (Inner Case)
Appliance Code: 32-077-36

Appliance Diagram

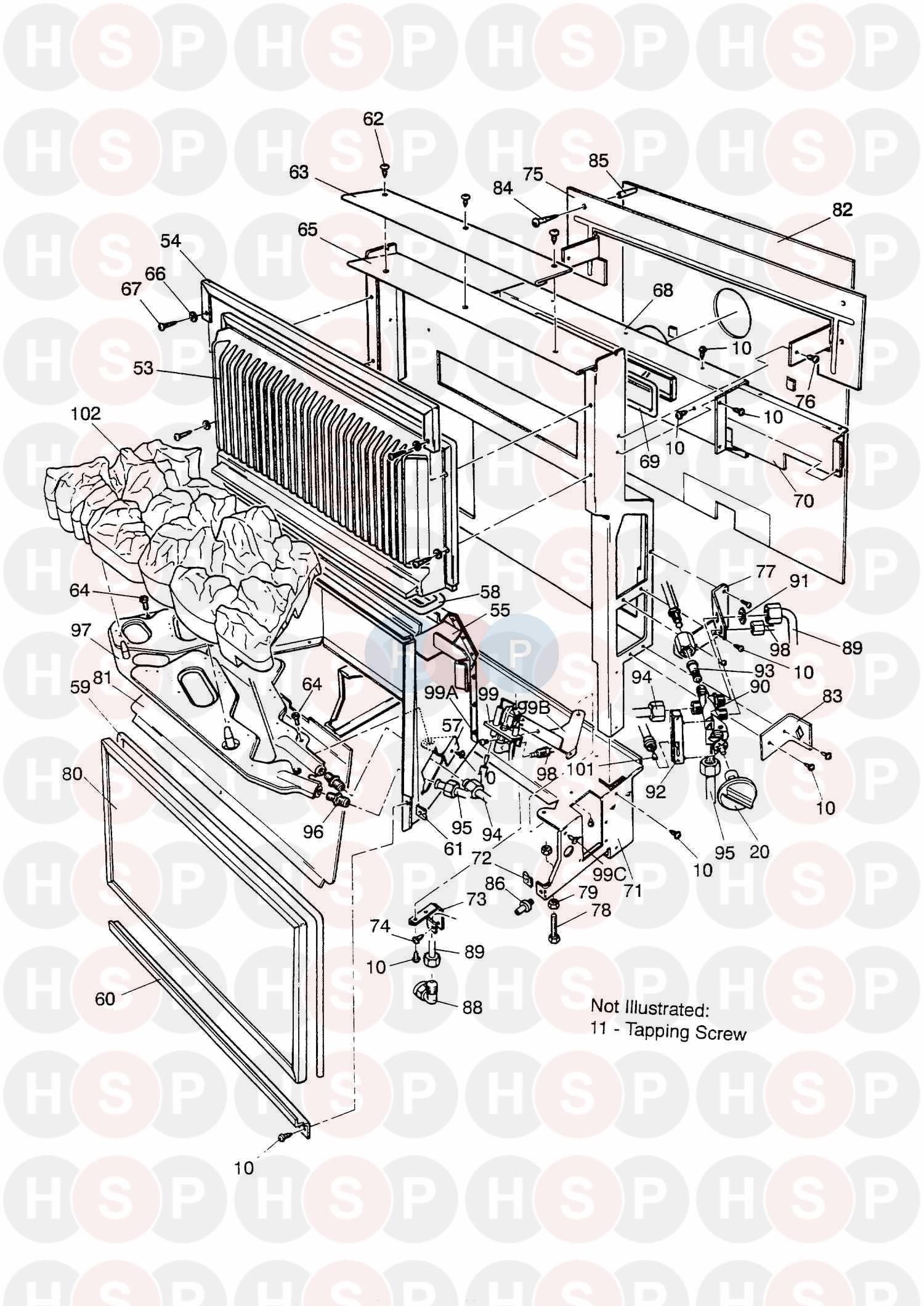

Inner Case diagram for Baxi Solaire SuperClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE INSTRUCTIONS INSTALLATION
Baxi part no. 236216
0   OBSOLETE INSTRUCTIONS USERS
Baxi part no. 236217
2   OBSOLETE CANOPY ASSY COMPLETE(SPARE)
Baxi part no. 229412
3   OBSOLETE CANOPY AND TOP 229413 37-077-26 156-187
Baxi part no. 229413
4   OBSOLETE LOUVRE CANOPY
Baxi part no. 230009
4   OBSOLETE LOUVRE CANOPY SL
Baxi part no. 230009BAX
5   OBSOLETE BADGE CANOPY
Baxi part no. 230080
5   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
6   FIX PUSH ON 1/8IN
Baxi part no. 042499		 £2.51
7   OBSOLETE DISTANCE PIECE TOP
Baxi part no. 228105
8   DISTANCE PIECE-REAR-G.F.
Baxi part no. 040921		 £12.88
9   OBSOLETE TRIM CANOPY
Baxi part no. 230082
9   OBSOLETE TRIM CANOPY
Baxi part no. 230082BAX
10 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.11
11   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648		 £2.86
12   OBSOLETE SHIELD HEAT CANOPY BER B
Baxi part no. 220754
13   OBSOLETE SHIELD HEAT PANEL TOP
Baxi part no. 230743
15   OBSOLETE DISTANCE PIECE SIDE SL
Baxi part no. 228107
17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035
17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035BAX
18   OBSOLETE BEZEL - SOLAIRE SUPER
Baxi part no. 236205
19 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954
20 Part number 234544, CONTROL KNOB ASSY CONTROL KNOB ASSY
Baxi part no. 234544
21   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144
22   OBSOLETE HARNESS-ELECTRICAL BOX-GF
Baxi part no. 223037
23 Part number 5134533, OBSOLETE PLUG & SOCKET 3 PIN OBSOLETE PLUG & SOCKET 3 PIN
Baxi part no. 5134533
23 Part number 042971, OBSOLETE PLUG - 3-PIN OBSOLETE PLUG - 3-PIN
Baxi part no. 042971
24 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT
24 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260
25 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261
26 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
26 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
27   CLIP-RESISTOR
Baxi part no. 043174		 £2.20
28 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.22
29   OBSOLETE KIT - REFLECTOR LAMP LOWER
Baxi part no. 236812
30   OBSOLETE PANEL COVER (E/BOX)
Baxi part no. 231145
31   OBSOLETE ASSY PANEL HEARTH - SL
Baxi part no. 229414
31   OBSOLETE BADGE HEARTH
Baxi part no. 230081
32   OBSOLETE PANEL BASE SIDE LH ASSY
Baxi part no. 230879
33   OBSOLETE PANEL BASE SIDE RH ASSY SL
Baxi part no. 230878
34   OBSOLETE CONTROLS COVER ASSEMBLY
Baxi part no. 231149
35   OBSOLETE REFLECTOR ASSY COMPL - SL/SOL
Baxi part no. 229415
36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095
36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095BAX
37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069BAX
37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069
38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096
38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096BAX
39   OBSOLETE KIT FINIALS
Baxi part no. 229416
40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049BAX
40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049
41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067
41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067BAX
42   OBSOLETE PANEL FENDER
Baxi part no. 230012BAX
42   OBSOLETE PANEL FENDER
Baxi part no. 230012
43   OBSOLETE TRIM UPPER FENDER
Baxi part no. 230071
44   LEAD ASSEMBLY
Baxi part no. 231726		 £13.93
45   OBSOLETE TRIM TOP HEARTH SL
Baxi part no. 230644
46   OBSOLETE DEFLECTOR-LIGHT-G.F.
Baxi part no. 043145
47   SCR-ST NO 6 X 1/4-PAN HD POZI
Baxi part no. 062520		 £2.71
48 Part number 220469, SHIELD CONTROLS (BOILER) SHIELD CONTROLS (BOILER)
Baxi part no. 220469
51   OBSOLETE CABLE-CLAMP-ENOTS-340218-03
Baxi part no. 092062
52 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
53   OBSOLETE HEAT EXCH ASSY GAS FLAME
Baxi part no. 090083
54   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934
57   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985		 £2.68
58   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308
59 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111
60   OBSOLETE CHANNEL - GLASS FRAME SUPPORT
Baxi part no. 040936
61 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.22
62   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725
63   OBSOLETE EXTENSION-PLATE-BACK
Baxi part no. 222983
64   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729		 £2.03
65   OBSOLETE PLATE-BACK-BAXI GAS FLAME
Baxi part no. 090103
66   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.44
67   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706		 £2.49
71   OBSOLETE RETURN PIPE GASKET
Baxi part no. 236890
72   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092
73   OBSOLETE BRKT-PIPE-INLET FEED.GAS FLAME
Baxi part no. 090089
74 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.22
75 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602
76 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.22
77   OBSOLETE BRACKET MOUNTING GAS TAP
Baxi part no. 230020
78   OBSOLETE SCR-SET-M8 X 35MM-HEX-HD ZNPD
Baxi part no. 062710
79 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.22
80 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955		 £173.66
81   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944		 £7.37
84   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
85 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.48
88   OBSOLETE ELBOW-INLET-GAS FLAME.
Baxi part no. 092065
90 Part number 235335, GAS TAP GAS TAP
Baxi part no. 235335		 £115.09
91 Part number 043152, NUT-HEXAGON.LOCK-1/4" BSP NUT-HEXAGON.LOCK-1/4" BSP
Baxi part no. 043152		 £3.64
92 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
93 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
94   OBSOLETE PIPE BURNER FEED REAR ASSY
Baxi part no. 230024
95   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039
95   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039BAX
96   OBSOLETE INJECTOR-FIRE-CAT 18/230
Baxi part no. 092133
97 Part number 043210, BURNER-TYPE 2-BER GF SUPER-NG BURNER-TYPE 2-BER GF SUPER-NG
Baxi part no. 043210
98   OBSOLETE PIPE PILOT FEED
Baxi part no. 235540
99   BRACKET MOUNTING PILOT
Baxi part no. 236074		 £4.35
101   OBSOLETE ELECTRODE LEAD
Baxi part no. 236209
102 Part number 235149, OBSOLETE COAL BED OBSOLETE COAL BED
Baxi part no. 235149
