BAXI
PLATINUM COMBI 33 HE A (BEFORE SERIAL NO. BNE1112 ISSUE 6) - (Hydraulics Without Bypass)
Appliance Code: 47-075-33 BEFORE

Appliance Diagram


Hydraulics Without Bypass diagram for Baxi Platinum Combi 33 HE A (Before Serial No. BNE1112 Issue 6)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

400 Part number 248723, NOW USE 7223558 HEAT EXCHANGER-DHW (22 PLATES) NOW USE 7223558 HEAT EXCHANGER-DHW (22 PLATES)
Baxi part no. 248723

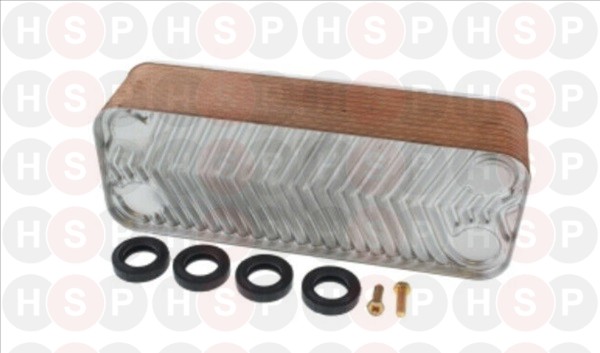

400 Part number 7223558, PLATE HEAT EX 20 PLATES KIT PLATE HEAT EX 20 PLATES KIT
Baxi part no. 7223558		 £137.55
401 Part number 5114715, BYPASS PIPE ASSY BYPASS PIPE ASSY
Baxi part no. 5114715		 £9.51
402 Part number 5114716, FIXING CLIP FIXING CLIP
Baxi part no. 5114716		 £3.26
403 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Baxi part no. 248049		 £5.78
403 Part number 5114756, O-RING O-RING
Baxi part no. 5114756		 £3.16
404 Part number 5114767, SENSOR - HALL EFFECT SENSOR - HALL EFFECT
Baxi part no. 5114767		 £16.66
405 Part number 5132454, INLET ASSY 12L INLET ASSY 12L
Baxi part no. 5132454		 £100.02
406 Part number 248055, DRAIN TAP DRAIN TAP
Baxi part no. 248055		 £9.88
407 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Baxi part no. 248056		 £14.76
408 Part number 5114699, GAS PIPE ASSY GAS PIPE ASSY
Baxi part no. 5114699		 £18.73
409 Part number 5114704, RETURN PIPE ASSY RETURN PIPE ASSY
Baxi part no. 5114704		 £30.18
410 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Baxi part no. 247745		 £3.16
411 Part number 5114771, GROMMET GROMMET
Baxi part no. 5114771		 £3.26
412 Part number 248054, PUMP CONNECTION ELEMENT PUMP CONNECTION ELEMENT
Baxi part no. 248054		 £6.31
413 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Baxi part no. 248043		 £12.50
414 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Baxi part no. 248044		 £3.16
415 Part number 248042, NOW USE 7722642 PUMP (15-60) - 105 NOW USE 7722642 PUMP (15-60) - 105
Baxi part no. 248042
415 Part number 26009031, SCREW M6 X 25mm SCREW M6 X 25MM
Baxi part no. 26009031		 £3.26
415 Part number 7722642, PUMP 15-60 105 PUMP 15-60 105
Baxi part no. 7722642		 £254.27
416 Part number 247429, O RING 22mm X 3mm O RING 22MM X 3MM
Baxi part no. 247429		 £3.16
417 Part number 248021, O RING 17.86 x 2.62 O RING 17.86 X 2.62
Baxi part no. 248021		 £3.16
418   HEAT EX PIPE 33
Baxi part no. 5118380		 £46.42
419 Part number 5114748, PRESSURE SWITCH PRESSURE SWITCH
Baxi part no. 5114748		 £19.79
420 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Baxi part no. 248079		 £12.56
421 Part number 5114725, NTC SENSOR NTC SENSOR
Baxi part no. 5114725
422 Part number 5114734, NOW USE 720301001 GAS VALVE NOW USE 720301001 GAS VALVE
Baxi part no. 5114734
422   KIT GAS VALVE
Baxi part no. 720301001		 £80.78
423   SCREW M4X12 ST/ST
Baxi part no. 0560449		 £3.12
423 Part number 5114757, GAS VALVE CONNECTOR GAS VALVE CONNECTOR
Baxi part no. 5114757		 £6.28
424 Part number 5114733, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Baxi part no. 5114733		 £18.65
425 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Baxi part no. 247741		 £3.16
426 Part number 5132452, NOW USE 7216534 MOTOR 3 WAY VALVE ( FROM SERIAL NO DPF0802) NOW USE 7216534 MOTOR 3 WAY VALVE ( FROM SERIAL NO DPF0802)
Baxi part no. 5132452
426 Part number 710188301, NOW USE 7216534 SPARES KIT MOTOR ELBI (B/W) NOW USE 7216534 SPARES KIT MOTOR ELBI (B/W)
Baxi part no. 710188301
426 Part number 7216534, MOTOR BLACK/WHITE INC CLIP MOTOR BLACK/WHITE INC CLIP
Baxi part no. 7216534		 £46.67
427 Part number 5132456, NOW USE 7224764 VALVE-3 WAY OUTLET ASSEMBLY NOW USE 7224764 VALVE-3 WAY OUTLET ASSEMBLY
Baxi part no. 5132456
427 Part number 720003100, NOW USE 7656807 3 WAY VALVE CARTRIDGE NOW USE 7656807 3 WAY VALVE CARTRIDGE
Baxi part no. 720003100
427 Part number 7224764, VALVE 3 WAY WITHOUT BYPASS KIT VALVE 3 WAY WITHOUT BYPASS KIT
Baxi part no. 7224764		 £113.96
427   CARTRIDGE - 3 WAY VALVE
Baxi part no. 7656807		 £53.87
428 Part number 248736, CLIP-RETAINING CLIP-RETAINING
Baxi part no. 248736		 £4.57
429 Part number 248069, GASKET GASKET
Baxi part no. 248069		 £3.34
430 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Baxi part no. 247776		 £4.38
431 Part number 247996, PRESSURE SWITCH PIPE PRESSURE SWITCH PIPE
Baxi part no. 247996		 £6.07
432 Part number 5114690, FIXING CLIP FIXING CLIP
Baxi part no. 5114690		 £4.04
433 Part number 248000, WASHER - SEALING WASHER - SEALING
Baxi part no. 248000		 £3.16
434 Part number 5114756, O-RING O-RING
Baxi part no. 5114756		 £3.16
435 Part number 607939, SCREW M3 X 8mm TAPTITE SCREW M3 X 8MM TAPTITE
Baxi part no. 607939		 £3.12
436   NOW USE 710115301 SCREW M5 X 13
Baxi part no. 248431
436 Part number 710115301, SCREW M5X14 HEX POZI SCREW M5X14 HEX POZI
Baxi part no. 710115301		 £2.55
437 Part number 26009031, SCREW M6 X 25mm SCREW M6 X 25MM
Baxi part no. 26009031		 £3.26
438 Part number 0590430002, M4 X 30 POZI PAN HD SCREW M4 X 30 POZI PAN HD SCREW
Baxi part no. 0590430002		 £2.92
439   SCREW M4X12 ST/ST
Baxi part no. 0560449		 £3.12
439   NOW USE 0560449 SCREW M4X12 ST/ST
Baxi part no. 633943
440 Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617		 £3.16
440 Part number 613437, NOW USE 062617 SCREW NO8B X 13mm NOW USE 062617 SCREW NO8B X 13MM
Baxi part no. 613437
