BAXI
MAXFLOW COMBI FS - (Outer Case)
Appliance Code: 47-075-10

Appliance Diagram

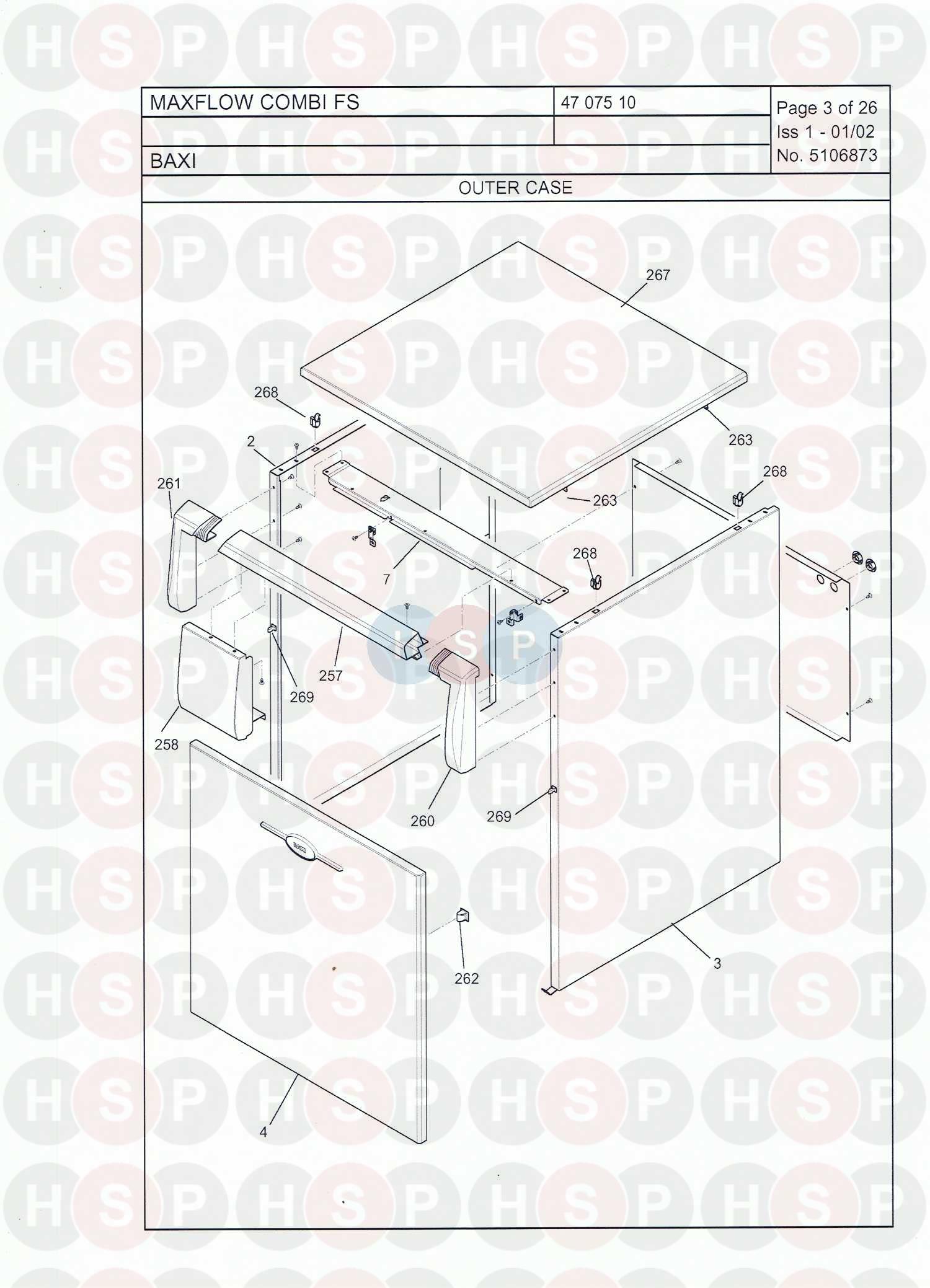

Outer Case diagram for Baxi Maxflow Combi FSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE LEFT PANEL - OUTER CASE
Baxi part no. 248623
3   OBSOLETE RIGHT PANEL - OUTER CASE
Baxi part no. 248624
4   OBSOLETE FRONT PANEL - OUTER CASE
Baxi part no. 248625
7   OBSOLETE BRACKET - OUTER CASE
Baxi part no. 248627
8 Part number 248628, PRESSURE SWITCH PIPE PRESSURE SWITCH PIPE
Baxi part no. 248628		 £7.74
9   OBSOLETE RESTRICTOR = AIR
Baxi part no. 247728
10 Part number 247729, FLUE ADAPTER FLUE ADAPTER
Baxi part no. 247729		 £14.29
11 Part number 247730, GASKET ADAPTER GASKET ADAPTER
Baxi part no. 247730		 £5.88
12 Part number 247731, PLATE BLANKING PLATE BLANKING
Baxi part no. 247731		 £5.88
13 Part number 247732, GASKET - PLATE BLANKING GASKET - PLATE BLANKING
Baxi part no. 247732		 £3.26
17   OBSOLETE 45 DEGREE BEND - FAN OUTLET
Baxi part no. 248629
18 Part number 247417, PRESSURE SENSING VENTURI PRESSURE SENSING VENTURI
Baxi part no. 247417		 £7.15
19 Part number 248049, GASKET - PLATE HEAT EXCHANGER GASKET - PLATE HEAT EXCHANGER
Baxi part no. 248049		 £5.78
21 Part number 248000, WASHER - SEALING WASHER - SEALING
Baxi part no. 248000		 £3.16
22 Part number 247381, FAN FAN
Baxi part no. 247381		 £102.05
23 Part number 248630, FAN PRESSURE SWITCH FAN PRESSURE SWITCH
Baxi part no. 248630		 £31.33
24   OBSOLETE VALVE PRESSURE PIPE
Baxi part no. 247418
25   OBSOLETE HOOD-HT.EX.TO FAN HOOD
Baxi part no. 248631
26   OBSOLETE SEALED CHAMBER SIDE PANEL
Baxi part no. 248632
28 Part number 247424, SIDE INSULATION SIDE INSULATION
Baxi part no. 247424
29 Part number 247425, REAR INSULATION REAR INSULATION
Baxi part no. 247425
30 Part number 247426, FRONT INSULATION FRONT INSULATION
Baxi part no. 247426
31   PANEL-FRONT INSULATION
Baxi part no. 247427		 £6.87
32 Part number 247428, HEAT EXCHANGER HEAT EXCHANGER
Baxi part no. 247428		 £213.89
32 Part number 248633, NOW USE 247428 HEAT EXCHANGER NOW USE 247428 HEAT EXCHANGER
Baxi part no. 248633
33 Part number 247429, O RING 22MM X 3MM O RING 22MM X 3MM
Baxi part no. 247429		 £3.16
35 Part number 248634, OBSOLETE EXPANSION VESSEL OBSOLETE EXPANSION VESSEL
Baxi part no. 248634
37   INNER DOOR
Baxi part no. 248635		 £37.19
38 Part number 247435, VIEWING WINDOW GASKET VIEWING WINDOW GASKET
Baxi part no. 247435		 £3.36
39 Part number 247436, VIEWING WINDOW VIEWING WINDOW
Baxi part no. 247436		 £5.88
40 Part number 247437, SURROUND - VIEWING WINDOW SURROUND - VIEWING WINDOW
Baxi part no. 247437		 £5.88
41   OBSOLETE BURNER ASSEMBLY
Baxi part no. 248636
41   OBSOLETE BURNER ASSEMBLY
Baxi part no. 247387
43   OBSOLETE INJECTOR MANIFOLD
Baxi part no. 248637
44 Part number 247439, INJECTOR 1.18mm INJECTOR 1.18MM
Baxi part no. 247439		 £4.45
59 Part number 247385, ELECTRODE LEAD IGNITION ELECTRODE LEAD IGNITION
Baxi part no. 247385		 £5.32
60   OBSOLETE GROMMET ELECTRODE LEADS
Baxi part no. 248638
61   INSULATION BOOT - ELECTRODES
Baxi part no. 247736		 £2.06
62 Part number 247445, ADAPTER - PRESSURE PIPE ADAPTER - PRESSURE PIPE
Baxi part no. 247445		 £7.15
64 Part number 247384, IGNITION ELECTRODE - FRONT IGNITION ELECTRODE - FRONT
Baxi part no. 247384		 £11.95
66   OBSOLETE RESET PUSH BUTTON
Baxi part no. 247446
67   OBSOLETE PANEL - BASE - ASSEMBLY
Baxi part no. 248639
70   OBSOLETE PIPE - PUMP TO HEAT EXCHANGER
Baxi part no. 248640
71   SEALING WASHER - G1
Baxi part no. 247737		 £3.26
72 Part number 247738, OBSOLETE PUMP UPS 15.60 OBSOLETE PUMP UPS 15.60
Baxi part no. 247738
73 Part number 248641, NOW USE 247391 AUTOMATIC AIR VENT NOW USE 247391 AUTOMATIC AIR VENT
Baxi part no. 248641
73 Part number 247391, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Baxi part no. 247391		 £14.29
74 Part number 248642, NOW USE 248044 O-RING NOW USE 248044 O-RING
Baxi part no. 248642
74 Part number 248044, O-RING - AIR VENT O-RING - AIR VENT
Baxi part no. 248044		 £3.16
76   OBSOLETE DHW HEATING COIL
Baxi part no. 248643
77   OBSOLETE GASKET - STORE
Baxi part no. 248644
78   OBSOLETE DHW CYLINDER COMPLETE
Baxi part no. 248645
79 Part number 247405, P & T RELIEF VALVE P & T RELIEF VALVE
Baxi part no. 247405		 £82.24
87   OBSOLETE PIPE - RIGHT HAND
Baxi part no. 248649
91   OBSOLETE CYLINDER DRAIN TRAP
Baxi part no. 247489
92 Part number 248650, SAFETY VALVE - 3 BAR SAFETY VALVE - 3 BAR
Baxi part no. 248650		 £12.30
96   OBSOLETE PIPE - STORE TO 3-WAY VALVE
Baxi part no. 248651
98   OBSOLETE PIPE - 3 WAY VALVE TO BY-PASS
Baxi part no. 248652
102   OBSOLETE DIVERTER VALVE
Baxi part no. 248653
103 Part number 247463, DIVERTER VALVE MOTOR DIVERTER VALVE MOTOR
Baxi part no. 247463
112 Part number 248654, NOW USE 248065 DIAPHRAGM NOW USE 248065 DIAPHRAGM
Baxi part no. 248654
112 Part number 248065, DIAPHRAGM - 3 WAY VALVE DIAPHRAGM - 3 WAY VALVE
Baxi part no. 248065		 £10.78
131 Part number 5108265, TEMPERATURE SENSOR TEMPERATURE SENSOR
Baxi part no. 5108265		 £20.07
131 Part number 248655, NOW USE 5108265 TEMPERATURE SENSOR NOW USE 5108265 TEMPERATURE SENSOR
Baxi part no. 248655
135 Part number 248656, OBSOLETE LIMIT STAT OBSOLETE LIMIT STAT
Baxi part no. 248656
136   OBSOLETE PIPE-DIVERTER VALVE TO HT.EX.
Baxi part no. 248657
137   OBSOLETE PIPE-GAS VALVE TO BURNER
Baxi part no. 248658
138 Part number 247741, O RING 22.22 x 2.62 O RING 22.22 X 2.62
Baxi part no. 247741		 £3.16
140 Part number 247392, GAS VALVE - SIGMA GAS VALVE - SIGMA
Baxi part no. 247392		 £103.81
147   OBSOLETE BRACKET - UPPER SUPPORT
Baxi part no. 248662
149   OBSOLETE PIPE-3 WAY VALVE/HEATING FLOW
Baxi part no. 248663
151   OBSOLETE ELECTRICAL CONTROL BOX
Baxi part no. 248664
152   OBSOLETE FACIA PANEL
Baxi part no. 248671
154 Part number 248672, OBSOLETE MAIN P.C.B. OBSOLETE MAIN P.C.B.
Baxi part no. 248672
155 Part number 248673, IGNITION P.C.B. IGNITION P.C.B.
Baxi part no. 248673
156 Part number 247400, OBSOLETE NEON PCB OBSOLETE NEON PCB
Baxi part no. 247400
157   OBSOLETE DOOR - FACIA PANEL
Baxi part no. 248674
162   OBSOLETE FACIA PANEL INSERT
Baxi part no. 248675
163   OBSOLETE PLATE - TIMER HOUSING
Baxi part no. 248676
165   OBSOLETE PIPE ASSEMBLY - DHW OUTLET
Baxi part no. 248669
166   OBSOLETE TERMINAL BLOCK
Baxi part no. 248665
167 Part number 247481, FUSE HOLDER FUSE HOLDER
Baxi part no. 247481		 £4.57
168 Part number 248089, NOW USE 7727139 FUSE - (2A-250V) NOW USE 7727139 FUSE - (2A-250V)
Baxi part no. 248089
168 Part number 720853801, NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER
Baxi part no. 720853801
168 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139		 £29.61
169   OBSOLETE PRESSURE GAUGE
Baxi part no. 248670
171 Part number 247401, RELAY PCB RELAY PCB
Baxi part no. 247401
172 Part number 247397, CAPACITOR CAPACITOR
Baxi part no. 247397
174   OBSOLETE TEMPERATURE CONTROL KNOB
Baxi part no. 248666
175   OBSOLETE SELECTOR SWITCH KNOB
Baxi part no. 248667
182   OBSOLETE PIPE ASSEMBLY - INLET
Baxi part no. 248668
191 Part number 247744, SEALING WASHER G. 1/2 SEALING WASHER G. 1/2
Baxi part no. 247744		 £3.16
192 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Baxi part no. 247745		 £3.16
199   OBSOLETE FLUE ADAPTER
Baxi part no. 248677
200   OBSOLETE CONNECTIONS - VACUUM PACK
Baxi part no. 248678
201 Part number 247485, TAP TAP
Baxi part no. 247485		 £19.05
203   OBSOLETE TAP ADAPTER
Baxi part no. 247486
207   OBSOLETE DHW OUTLET PIPE
Baxi part no. 247488
209   OBSOLETE CONNECTIONS - TAIL 22MM
Baxi part no. 247747
215   COMBUSTION BOX SIDE PANEL
Baxi part no. 247430
224 Part number 247748, AIR DUCT - STANDARD AIR DUCT - STANDARD
Baxi part no. 247748		 £33.26
225 Part number 247749, FLUE DUCT - STANDARD FLUE DUCT - STANDARD
Baxi part no. 247749		 £19.05
226   OBSOLETE CENTRING SUPPORT
Baxi part no. 247750
227 Part number 247751, CLAMP - FLUE DUCT CLAMP - FLUE DUCT
Baxi part no. 247751		 £9.97
230 Part number 247752, FLUE BEND 90 DEG FLUE BEND 90 DEG
Baxi part no. 247752		 £35.70
231 Part number 247753, CLIP - FLUE BEND CLIP - FLUE BEND
Baxi part no. 247753		 £9.51
232 Part number 247754, SEAL - FLUE BEND SEAL - FLUE BEND
Baxi part no. 247754		 £9.51
234   OBSOLETE PIPE ASSEMBLY - DRAINING
Baxi part no. 248679
237   OBSOLETE PIPE ASSEMBLY-GAS VALVE INLET
Baxi part no. 248680
252   OBSOLETE SWITCH - SELECTOR
Baxi part no. 248681
253   OBSOLETE DRIVE PIN - SELECTOR
Baxi part no. 248682
254   OBSOLETE THERMOMETER - CENTRAL HEATING
Baxi part no. 248683
257   OBSOLETE TOP PROFILE - FACIA ASSEMBLY
Baxi part no. 248684
258   OBSOLETE EXTENSION - FACIA ASSEMBLY
Baxi part no. 248685
260   OBSOLETE RIGHT PILLAR - FACIA ASSEMBLY
Baxi part no. 248686
261   OBSOLETE LEFT PILLAR - FACIA ASSEMBLY
Baxi part no. 248687
262   CLIP - DOOR PANEL - FEMALE
Baxi part no. 248688		 £2.70
263   CLIP - TOP PANEL - MALE
Baxi part no. 248689		 £2.43
264 Part number 247761, FLUE TERMINAL - PLASTIC FLUE TERMINAL - PLASTIC
Baxi part no. 247761		 £7.38
265 Part number 247762, FLUE TRIM FLUE TRIM
Baxi part no. 247762		 £9.51
267   OBSOLETE TOP PANEL - OUTER CASE
Baxi part no. 248626
268   CLIP - SIDE PANELS - FEMALE
Baxi part no. 248690		 £2.50
269   CLIP - SIDE PANELS - MALE
Baxi part no. 248691		 £2.50
269 Part number 247719, STANDARD FLUE KIT - HORIZONTAL STANDARD FLUE KIT - HORIZONTAL
Baxi part no. 247719		 £151.88
270   OBSOLETE MAXFLOW UNVENTED KIT
Baxi part no. 247369
271   CAPTIVE NUT - LARGE
Baxi part no. 248692		 £2.70
274   OBSOLETE REDUCING VALVE CARTRIDGE
Baxi part no. 247403
275 Part number 247404, EXPANSION VALVE CARTRIDGE EXPANSION VALVE CARTRIDGE
Baxi part no. 247404
276   OBSOLETE PRESSURE REDUCING VALVE
Baxi part no. 247682
277 Part number 247683, OBSOLETE EXPANSION VALVE OBSOLETE EXPANSION VALVE
Baxi part no. 247683
278   OBSOLETE TUNDISH - STRAIGHT
Baxi part no. 247684
279 Part number 247649, OBSOLETE EXPANSION VESSEL - UNVENTED OBSOLETE EXPANSION VESSEL - UNVENTED
Baxi part no. 247649
280 Part number 247764, RUBBER SEAL - GAS TAP RUBBER SEAL - GAS TAP
Baxi part no. 247764		 £3.26
291 Part number 248718, OBSOLETE NAC CONNECTOR (SIT) OBSOLETE NAC CONNECTOR (SIT)
Baxi part no. 248718
292 Part number 247758, LOCK NUT - G3/4 LOCK NUT - G3/4
Baxi part no. 247758		 £5.88
293 Part number 247760, LOCK NUT - G1/2 LOCK NUT - G1/2
Baxi part no. 247760		 £5.88
294   OBSOLETE FLANGE ASSEMBLY - CYLINDER
Baxi part no. 248694
295   OBSOLETE O RING 26 X 4
Baxi part no. 248695
296   OBSOLETE HOUSING-O RING-COIL CONNECTION
Baxi part no. 248696
297   OBSOLETE LOCKNUT-G3/4-COIL CONNECTION
Baxi part no. 248697
298   OBSOLETE TOP/BACK PANEL-COMB CHAMBER
Baxi part no. 248698
299   OBSOLETE GASKET-COMB CHAMBER L=290
Baxi part no. 248699
300   OBSOLETE GASKET-COMB CHAMBER L=230
Baxi part no. 248700
301   OBSOLETE GASKET-COMBUSTION CHAMBER
Baxi part no. 248701
302   OBSOLETE GASKET-COMB CHAMBER L=320
Baxi part no. 248702
303   OBSOLETE GASKET-COMB CHAMBER L=240
Baxi part no. 248703
305   OBSOLETE PLATE - FAN MOUNTING
Baxi part no. 248704
306   OBSOLETE GASKET - 45 DEGREE FAN BEND
Baxi part no. 248705
307   OBSOLETE SCREW - GRUB
Baxi part no. 248715
308   OBSOLETE PIPE ASSEMBLY - HEAT EX.INLET
Baxi part no. 248706
309   OBSOLETE PIPE ASSEMBLY - HEAT EX.OUTLET
Baxi part no. 248707
310 Part number 247388, DIFFERENTIAL PRESSURE SWITCH DIFFERENTIAL PRESSURE SWITCH
Baxi part no. 247388
311   OBSOLETE NUT - BLANKING
Baxi part no. 248712
312   WASHER - SEALING - 36MM DIA.
Baxi part no. 248708		 £2.99
313   OBSOLETE POTENTIOMETER - INC. CABLE
Baxi part no. 248709
314 Part number 248710, OBSOLETE LEAD - SENSING ELECTRODE OBSOLETE LEAD - SENSING ELECTRODE
Baxi part no. 248710
315 Part number 248711, TEMPERATURE SENSOR - DHW TEMPERATURE SENSOR - DHW
Baxi part no. 248711
316 Part number 247757, CLIP-MICROSWITCH RETAINING CLIP-MICROSWITCH RETAINING
Baxi part no. 247757		 £3.26
321   OBSOLETE PANEL - ELECTRICAL ACCESS
Baxi part no. 248713
322   OBSOLETE CLIP-RETAINING C/H TEMP SENSOR
Baxi part no. 248714
327   OBSOLETE CAPTIVE NUT - SMALL
Baxi part no. 248693
328 Part number 240751, OBSOLETE SEAL FAN OBSOLETE SEAL FAN
Baxi part no. 240751
342 Part number 247453, OBSOLETE MICROSWITCH WITH CABLE OBSOLETE MICROSWITCH WITH CABLE
Baxi part no. 247453
351   OBSOLETE CONNECTOR - STRAIGHT G1/2
Baxi part no. 248716
352   OBSOLETE CONNECTOR - STRAIGHT G3/4
Baxi part no. 248717
353   ANODE-CYLINDER
Baxi part no. 249467		 £17.63
354 Part number 249468, NOW USE 248434 O-RING 26.64 x 2.62 NOW USE 248434 O-RING 26.64 X 2.62
Baxi part no. 249468
354 Part number 248434, O-RING 26.64 x 2.62 O-RING 26.64 X 2.62
Baxi part no. 248434		 £3.06
540   OBSOLETE INSULATION - FRONT - CYLINDER
Baxi part no. 248719
541   OBSOLETE INSULATION - REAR - CYLINDER
Baxi part no. 248720
542   OBSOLETE CABLE - PUMP
Baxi part no. 247770
543   OBSOLETE CABLE - EXTERNAL TIMER
Baxi part no. 247767
545   CABLE-PCB CONNECTION-FS
Baxi part no. 249493		 £6.56
546   OBSOLETE CABLE-RESET
Baxi part no. 249494
547   CABLE-SELECTOR SWITCH
Baxi part no. 249495		 £2.46
548   CABLE-FAN/PRESSURE SWITCH
Baxi part no. 249496		 £16.31
549   CABLE-EARTH
Baxi part no. 249492		 £1.02
550   CABLE-EARTH-NAC
Baxi part no. 249497		 £1.21
551   OBSOLETE CABLE - MAINS INPUT/SUPPRESSOR
Baxi part no. 247775


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
