BAXI
GASFLAME WS SUPER - (Outer Case)
Appliance Code: 32-077-27

Appliance Diagram

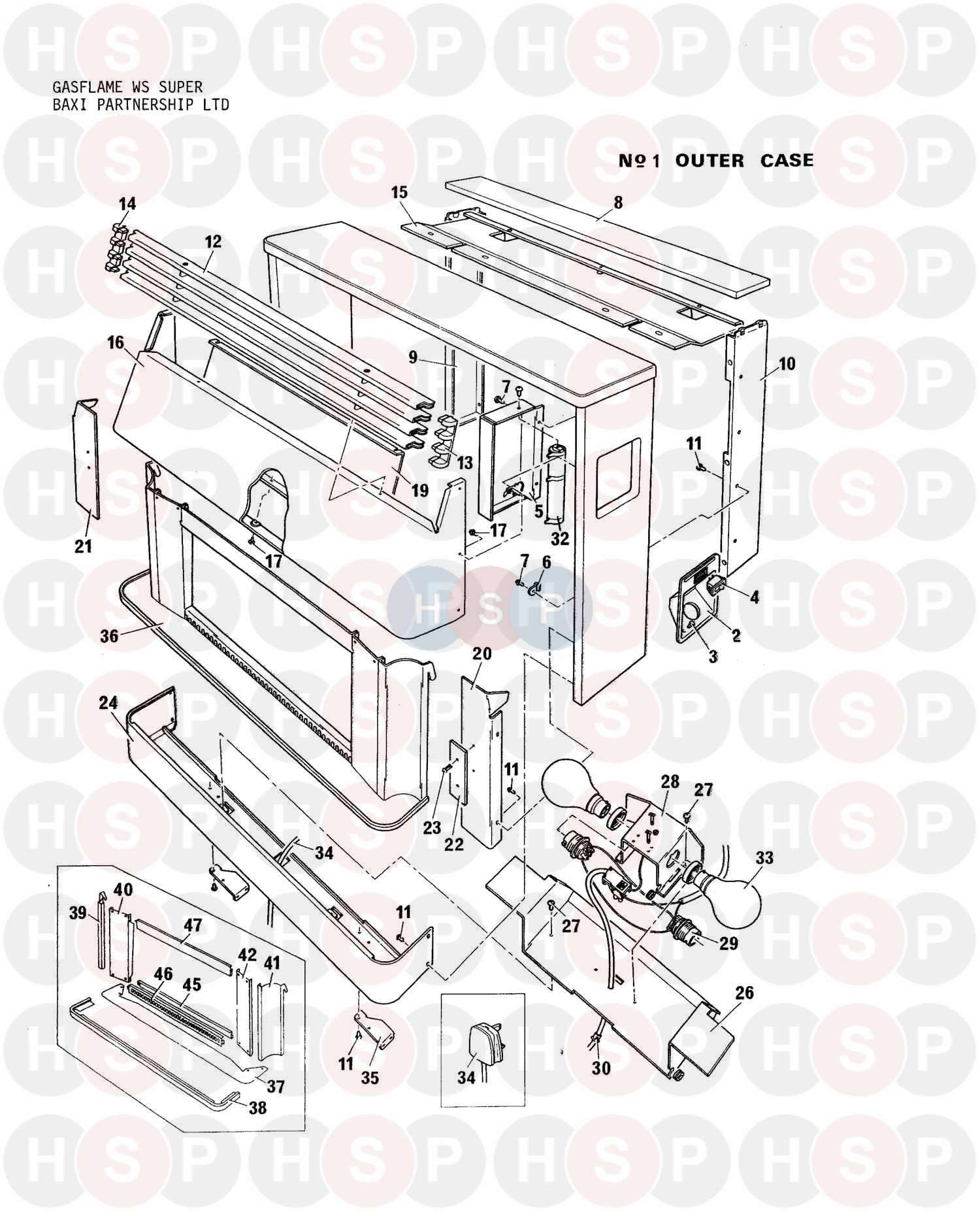

Outer Case diagram for Baxi Gasflame WS SuperClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 230184, NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184

0 Part number 230282, NOW USE 230282BAX KIT-KNOB CONTROL ADAPT-GF/LFE3 NOW USE 230282BAX KIT-KNOB CONTROL ADAPT-GF/LFE3
Baxi part no. 230282

0 Part number 230272, NOW USE 230272BAX KNOB CONTROL INNER ADAPTER NOW USE 230272BAX KNOB CONTROL INNER ADAPTER
Baxi part no. 230272

0   OBSOLETE FITTING INSTRUCTIONS
Baxi part no. 230280

0 Part number 230184BAX, KNOB CONTROL OUTER ADAPTER KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184BAX
£13.40
0 Part number 230272BAX, KNOB CONTROL INNER ADAPTER KNOB CONTROL INNER ADAPTER
Baxi part no. 230272BAX
£8.41
0 Part number 230282BAX, KIT-KNOB CONTROL ADAPT-GF/LFE3 KIT-KNOB CONTROL ADAPT-GF/LFE3
Baxi part no. 230282BAX
£20.11
1   OBSOLETE OUTER CASE-GAS FLAME WS SUPER
Baxi part no. 090177

2   OBSOLETE BEZEL-KNOB ASY-GAS FL WS SUPER
Baxi part no. 090178

3 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595

4 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954

5   OBSOLETE SHIELD-HEAT-BEZEL-GAS FL WS
Baxi part no. 090142

6 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325

7   OBSOLETE WOOD SCREW NO.8 X 1/2IN. TWINFAST RECESSED
Baxi part no. 062755

8   OBSOLETE DISTANCE PIECE-TOP GAS FL WS
Baxi part no. 090139

9   OBSOLETE DISTANCE PIECE-LH-GAS FLAME WS
Baxi part no. 090140

10   OBSOLETE DISTANCE PIECE-RH-GAS FLAME WS
Baxi part no. 090141

11 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
12   OBSOLETE LOUVRE-ASSY-LFE SUPER
Baxi part no. 090121

13   OBSOLETE CAP LOUVRE END RH
Baxi part no. 092096

14   OBSOLETE CAP LOUVRE END LH
Baxi part no. 092097

15   OBSOLETE CHANNEL-CASE TOP-GAS FL WS
Baxi part no. 090122

16   OBSOLETE CANOPY
Baxi part no. 092113

17   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731
£2.47
18   CLIP-CABLE.RICHCO.WHC250N
Baxi part no. 043219
£1.63
19   OBSOLETE SHIELD HEAT CANOPY LFE
Baxi part no. 223348

20   OBSOLETE BRKT-HEARTH LOC-RH GAS FL WS
Baxi part no. 090133

21   BRKT-HEARTH LOC-LH GAS FL WS
Baxi part no. 090132
£2.99
22   OBSOLETE LABEL - USERS CAUTION
Baxi part no. 045418

23   OBSOLETE PAPERCLIP - BRASS
Baxi part no. 042934

24   OBSOLETE PANEL - HEARTH
Baxi part no. 092120

25   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539

26   OBSOLETE KIT-REFLECTOR LAMPS LOWER
Baxi part no. 225694

27 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560
£3.12
28   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144

29 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT

29 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260

30   OBSOLETE OPEN/CLOSED BUSHING FOR 9.5MM HOLE - BLACK
Baxi part no. 082487

31   OBSOLETE WIRE KIT
Baxi part no. 090180

32 Part number 043215, OBSOLETE RESISTOR-207ohms-SUPER MODELS OBSOLETE RESISTOR-207OHMS-SUPER MODELS
Baxi part no. 043215

33 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261

35   OBSOLETE BRKT-CASE FIXING.GAS FLAME WS
Baxi part no. 090125

36   OBSOLETE REFLECTOR-ASSY-LFE RANGE
Baxi part no. 090156

37   OBSOLETE COVER-PANEL HEARTH GAS FL.WS
Baxi part no. 092100

38   OBSOLETE TRIM - PANEL - HEARTH
Baxi part no. 092098

39   OBSOLETE TRIM-HEARTH-OUTER LH-GAS FL WS
Baxi part no. 092099

41   OBSOLETE TRIM-HEARTH-OUTER RH GAS FL WS
Baxi part no. 092101

42   OBSOLETE TRIM HEARTH-RH-GAS FLAME WS
Baxi part no. 090138

43   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010
£2.04
44   NUT-FLAT-NO8-LEWIS SPR-401/11
Baxi part no. 042870
£2.25
45   OBSOLETE STRAP-LOWER-GAS FL WS
Baxi part no. 090127

46   OBSOLETE DIFFUSER-LIGHT-GAS FL WS
Baxi part no. 090128

48   OBSOLETE HEAT EXCH ASSY GAS FLAME
Baxi part no. 090083

49   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934

51   OBSOLETE STRIP - SEAL RETAINING
Baxi part no. 040978

52   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985
£2.68
53   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308

54 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111

55   OBSOLETE CHANNEL GLASS FRAME SUPPORT
Baxi part no. 225195

56 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
57   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725

59   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729
£2.03
60   OBSOLETE PLATE-BACK-GAS FLAME WS
Baxi part no. 090154

61   OBSOLETE DEFLECTOR-HEAT-GAS FL WS
Baxi part no. 090153

62   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
63   OBSOLETE TAPPING SCREW ISO NO. 8AB X 19 RECESSED PA
Baxi part no. 062748

64   OBSOLETE HEAT SHIELD - WALL
Baxi part no. 090155

68   OBSOLETE FRAME MOUNTING
Baxi part no. 090179

70   OBSOLETE CABLE CLAMP - ENOTS 34021805
Baxi part no. 092118

71   OBSOLETE PLATE-BACKING-GAS FLAME WS
Baxi part no. 090136

72 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
73   BRKT-GAS TAP MOUNT-BER LFE 3
Baxi part no. 090131
£10.62
74   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749
£2.33
74 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313
£1.87
75   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 062723

76 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955
£168.60
77   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944
£7.37
78   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648

81   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

82 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
83 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571
£3.12
84 Part number 043115, KNOB-CONTROL ASSY-G.F. KNOB-CONTROL ASSY-G.F.
Baxi part no. 043115
£9.51
85   OBSOLETE PIPE-INLET EXTENSION-GAS FL WS
Baxi part no. 092114

86   OBSOLETE SOCKET-1/4" BSP-GAS FLAME WS
Baxi part no. 092115

87   OBSOLETE ELBOW-INLET-GAS FLAME WS
Baxi part no. 092110

88   OBSOLETE PIPE-INLET FEED ASSY-GAS FL WS
Baxi part no. 092105

89 Part number 092132, OBSOLETE FFD/GAS TAP-GAS FLAME SUPER OBSOLETE FFD/GAS TAP-GAS FLAME SUPER
Baxi part no. 092132

90 Part number 043152, NUT-HEXAGON.LOCK-1/4" BSP NUT-HEXAGON.LOCK-1/4" BSP
Baxi part no. 043152
£3.64
91 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

92   PIPE BRNR FEED
Baxi part no. 090146

92   PIPE-BURNER FEED FRNT-GAS F WS
Baxi part no. 092106

93   PIPE-BURNER FEED REAR-GAS F WS
Baxi part no. 092107
£4.27
93   OBSOLETE PIPE BRNR FEED REAR.N&O WS
Baxi part no. 090147

94 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462

95   OBSOLETE INJECTOR-FIRE-CAT 18/230
Baxi part no. 092133

96 Part number 043210, BURNER-TYPE 2-BER GF SUPER-NG BURNER-TYPE 2-BER GF SUPER-NG
Baxi part no. 043210

98 Part number 092136, THERMOCOUPLE-SITx400mm-INC.NUT THERMOCOUPLE-SITX400MM-INC.NUT
Baxi part no. 092136

99 Part number 092137, ELECTRODE-GAS FLAME SUPER ELECTRODE-GAS FLAME SUPER
Baxi part no. 092137

101 Part number 043206, OBSOLETE COAL BED-TYPE 2-NG OBSOLETE COAL BED-TYPE 2-NG
Baxi part no. 043206

102   OBSOLETE FITTERS INSTRUCTIONS
Baxi part no. DUMMY
