BAXI
FS 701S RS CHB - (Boiler)
Appliance Code: 41-077-26

Appliance Diagram

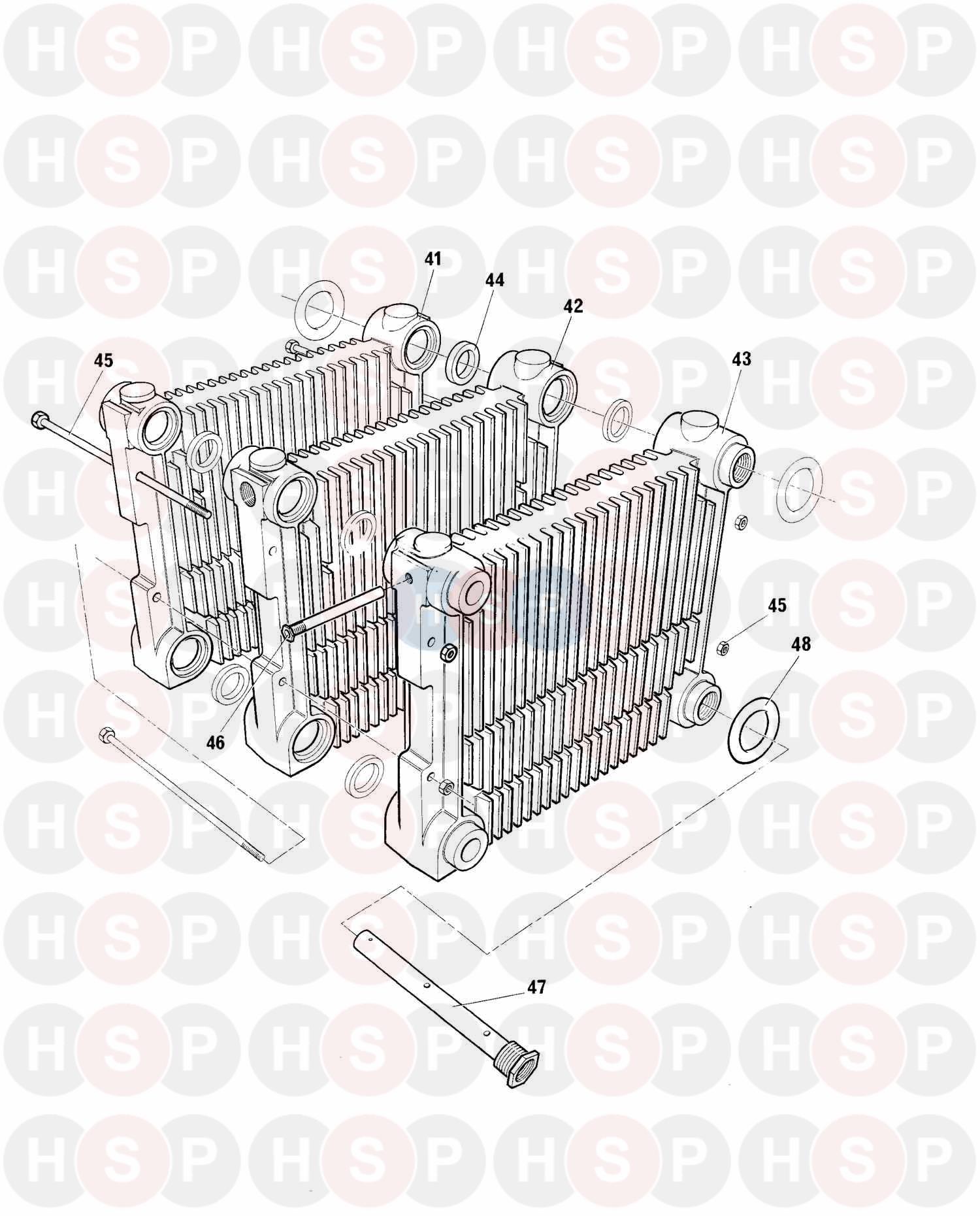

Boiler diagram for Baxi FS 701S RS CHBClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PANEL - TOP 110000 41-077-66 364-243
Baxi part no. 110000
2 Part number 112000, STUD-FOREST-FAST-SRV-1762-17-0 STUD-FOREST-FAST-SRV-1762-17-0
Baxi part no. 112000		 £2.50
3 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
4   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
5   OBSOLETE PANEL SIDE RH ASSY FS BOILERS
Baxi part no. 110001
6 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
7 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
8   OBSOLETE PANEL SIDE ASSY FS BOILERS
Baxi part no. 110002
9   OBSOLETE FRONT PANEL
Baxi part no. 110003
10   OBSOLETE BOX-COM-FS-801-701-601-RS
Baxi part no. 110004
11   OBSOLETE SCOOP CENTRAL - FS 60/70/80 RS
Baxi part no. 110071
12   OBSOLETE INSUL-SIDE-UPP-3 SECT.BLR.
Baxi part no. 112084
14   SCR-SET-M5X16MM-PAN HD PZ ZNPD
Baxi part no. 062708		 £2.35
15   OBSOLETE BRACKET OUTER CASE FIXING
Baxi part no. 110064
16 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683		 £2.53
18   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
20   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
22   OBSOLETE INSUL-FRONT-3-SECTION-BOILER
Baxi part no. 112064
23   OBSOLETE SUPPORT-INSUL-FRONT-ASSY-3-SEC
Baxi part no. 226686
24 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.12
25   OBSOLETE INSUL-REAR-RS-FS-BOILERS
Baxi part no. 112006
26   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15.01
27 Part number 062583, SCR-TF-M5x10mm PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583		 £3.12
28   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
29 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
30 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
31   OBSOLETE PANEL INSPECTION.COMB.BOX - ALL FS
Baxi part no. 110014
32   OBSOLETE SEAL-PANEL-INSP-9.5MM X 395MM-DI
Baxi part no. 112056
33   OBSOLETE THUMB SCREW M6 X 16 - STEEL ZINC PLATED 40
Baxi part no. 402440
34   OBSOLETE GROMMET-SEAL-BOILER
Baxi part no. 112008
36   OBSOLETE SEAL-PANEL-DOOR-9.5MM X 240MM-DI
Baxi part no. 112057
37   OBSOLETE AIR BOX-ASSY-F.S. BOILERS
Baxi part no. 110018
38   OBSOLETE MACHINE SCREW M6 X 20 RECESSED PAN HEAD -
Baxi part no. 062696
39   OBSOLETE FLUE TERMINAL STD BOSTON
Baxi part no. 110019
40 Part number 226685, OBSOLETE TESTED BOILER ASSY-3 SECTION OBSOLETE TESTED BOILER ASSY-3 SECTION
Baxi part no. 226685
41   OBSOLETE BOILER SECTION - LEFT HAND 111002 41-077-6
Baxi part no. 111002
42   OBSOLETE BOILER SECTION - CENTRE 111004 41-077-64
Baxi part no. 111004
43   OBSOLETE SECTION-RH-ASSY-FS BLR-3 SECT.
Baxi part no. 110005
44 Part number 112009, GASKET-FS-BOILER GASKET-FS-BOILER
Baxi part no. 112009
46 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
46 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
47   OBSOLETE SPREADER-WATER-3 SECTION-FSB
Baxi part no. 112020
48 Part number 110040, OBSOLETE ROPE GASKET OBSOLETE ROPE GASKET
Baxi part no. 110040
48 Part number 112058, OBSOLETE SEAL-BOILER-END-8.0mm x 46mm-DIA OBSOLETE SEAL-BOILER-END-8.0MM X 46MM-DIA
Baxi part no. 112058
49   OBSOLETE PANEL-DOOR-ASSY-FS-801-RS
Baxi part no. 110023
50   OBSOLETE PANEL-DOOR-ASSY-FS-701-RS
Baxi part no. 110024
51   OBSOLETE PANEL-DOOR-ASSY-FS-601-RS
Baxi part no. 110025
52   NUT-WING-M6-ZN-PD
Baxi part no. 112028
53   OBSOLETE KIT-SIGHT-WINDOW-WM532-381RS
Baxi part no. 100134
54 Part number 112012, OBSOLETE BURNER-BOILER-3-SECTION-AEROMT OBSOLETE BURNER-BOILER-3-SECTION-AEROMT
Baxi part no. 112012
56 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Baxi part no. 635506
56 Part number 112031, M 5 NUT M 5 NUT
Baxi part no. 112031
58   OBSOLETE INJECTOR-BURNER-FS-701-RS
Baxi part no. 112022
60   OBSOLETE O RING-24MM ID X 4MM SECTION
Baxi part no. 112082
60   OBSOLETE KIT-PIPE-BNR-FEED-TWIN-FSB
Baxi part no. 110144
61 Part number 062623, NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL
Baxi part no. 062623
61 Part number V4600C1029, NOW USE V4600C1086 HONEYWELL GAS VALVE NOW USE V4600C1086 HONEYWELL GAS VALVE
Baxi part no. V4600C1029
61 Part number V4600C1086, GAS VALVE TRADELINE GAS VALVE TRADELINE
Baxi part no. V4600C1086		 £160.92
62   OBSOLETE COVER-ELECTRICAL-PLASTIC
Baxi part no. 112044
63   OBSOLETE SCR-SET-M4X16MM-PAN-HD-POZ-ZNP
Baxi part no. 112043
64   OBSOLETE KIT-PIPE-INLET-FS-BOILER
Baxi part no. 110143
65   OBSOLETE TAP-SERV-STR-SIRAL-REF-0073853
Baxi part no. 112081
66   OBSOLETE SHIELD-HEAT-PROT.-IGN-MNTG-FS
Baxi part no. 110030
67   OBSOLETE BURNER PILOT H/WELL Q359A 1058
Baxi part no. 082211
67   OBSOLETE PILOT BURNER/BRKT ASSY
Baxi part no. 402841
68 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £7.03
69 Part number 042740, LEAD-ELECTRODE-675 LEAD-ELECTRODE-675
Baxi part no. 042740
70 Part number 112011, OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A
Baxi part no. 112011
70 Part number 402560, OBSOLETE PILOT INJECTOR (STD) OBSOLETE PILOT INJECTOR (STD)
Baxi part no. 402560
71 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
72 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
74   OBSOLETE PIPE-PIL-FEED-NUTS-OLIVE.T-BNR
Baxi part no. 110007
75 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
76   OBSOLETE GRIP-CABLE-HEYCO-SR-5-M3
Baxi part no. 102197
77   OBSOLETE PLUG 3 PIN LEADS FS BOILER
Baxi part no. 110031
78   OBSOLETE FACIA ASSEMBLY-BOS 2
Baxi part no. 235374
79   OBSOLETE KIT-BEZEL-T/STAT-FS-BOILER
Baxi part no. 110033
80 Part number 112025, OBSOLETE THERMOSTAT RANCO OBSOLETE THERMOSTAT RANCO
Baxi part no. 112025
81   OBSOLETE KNOB - THERMOSTAT (BAXI SPECIAL) 112026 41
Baxi part no. 112026
82   OBSOLETE SUPPORT TERMINAL
Baxi part no. 110034
83   OBSOLETE WASHER-PLAIN-4MM-ZINC. PLTD
Baxi part no. 062446
84   OBSOLETE CLAMP-CABLE-PLASTIC
Baxi part no. 112048
85   OBSOLETE TAPPING SCREW ISO NO.4AB X 19 RECESSED PAN
Baxi part no. 062716
87   OBSOLETE ASSY-3 PIN SOCKET & LEADS-FSB
Baxi part no. 226690
88   OBSOLETE WASHER-ANTI-LOSS
Baxi part no. 112030
89   OBSOLETE CAPACITOR ASSY-FS-BOILERS
Baxi part no. 110039
90   OBSOLETE TRIM-FLUE-TERM-FS-BOILER-RS
Baxi part no. 110066
91   OBSOLETE KIT-FLUE-TERM-111MM-238MM
Baxi part no. 110037
92   OBSOLETE FLUE TERMINAL 367MM-466MM
Baxi part no. 110038
93   OBSOLETE GUARD - FLUE TERMINAL 110065 41-077-66 36
Baxi part no. 110065
94   OBSOLETE FACIA-CONTROL-PROGRAMMER-MODEL
Baxi part no. 110102
95   OBSOLETE PROGRAMMER - LANDIS AND GYR RWB 4 112063 4
Baxi part no. 112063
96   OBSOLETE FACIA-TIMER-FS-BOILER
Baxi part no. 112062
97   OBSOLETE PLATE MOUNTING 9 WAY BARRIER STRIP ASSEMBLY
Baxi part no. 110100
98   OBSOLETE KIT-WIRES-PROGRAMMER-FS-BOILER
Baxi part no. 110099
99   OBSOLETE COVER-TIMER-ASSY-FS-BOILERS
Baxi part no. 110101
