BAXI
EBONY SUPER - (Inner Case)
Appliance Code: 32-077-37

Appliance Diagram

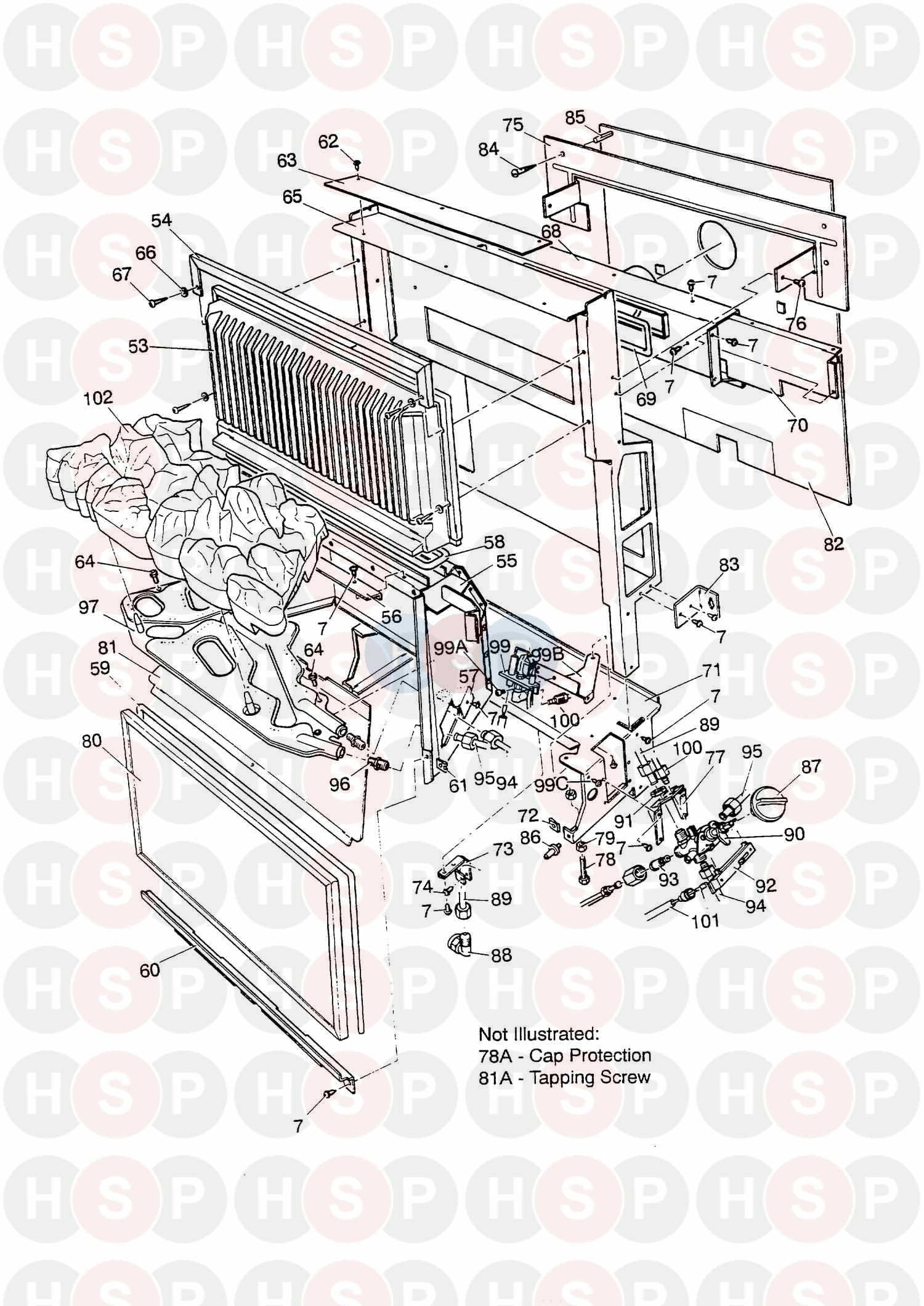

Inner Case diagram for Baxi Ebony SuperClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE ASSY - EBONY SUPER
Baxi part no. 236419
2   OBSOLETE NITRILE WASHER PACK
Baxi part no. 236815
3 Part number 236818, OBSOLETE KIT-PANEL-TOP-EBONY SUPER OBSOLETE KIT-PANEL-TOP-EBONY SUPER
Baxi part no. 236818
4   OBSOLETE TEMPLATE INSTALLATION
Baxi part no. 236814
5   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
6   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731		 £2.47
7 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
8   OBSOLETE RESTRICTOR PACK 50 LTR
Baxi part no. 236817
9   PIECE DISTANCE TOP
Baxi part no. 235697		 £4.83
10   DISTANCE PIECE-REAR-G.F.
Baxi part no. 040921		 £12.88
11   OBSOLETE PIECE DISTANCE SIDE
Baxi part no. 235699
12   PANEL BASE SIDE RH
Baxi part no. 235700		 £5.56
13   OBSOLETE PANEL BASE SIDE LH
Baxi part no. 235701
14 Part number 230724, LATCH-FEMALE LATCH-FEMALE
Baxi part no. 230724		 £9.77
15   PANEL SIDE UPPER LH
Baxi part no. 235702		 £8.96
16   PANEL SIDE UPPER RH
Baxi part no. 235703		 £4.72
17   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
18   OBSOLETE BEZEL - EBONY SUPER
Baxi part no. 236813
19 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595
20 Part number 235694, SWITCH ROCKER SINGLE POLE SWITCH ROCKER SINGLE POLE
Baxi part no. 235694		 £6.91
21   OBSOLETE ASSY PANEL HEARTH EBONY SUPER
Baxi part no. 236816
22 Part number 043045, CLIP-SPRING-UTD.CARR REF.24840 CLIP-SPRING-UTD.CARR REF.24840
Baxi part no. 043045		 £2.71
23   OBSOLETE KIT - REFLECTOR LAMP LOWER
Baxi part no. 236812
24   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144
25 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
26   OBSOLETE PLUG-3 PIN & LEADS-GAS FL SUP
Baxi part no. 090173
28 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
28 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
30 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260
30 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT
31 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261
32   OBSOLETE LEG & FINIAL ADJ FOOT RH
Baxi part no. 235723
33   LEG & FINIAL ADJ FOOT LH
Baxi part no. 235724		 £16.67
34   RAIL-TOP/BOTTOM-ASSY.
Baxi part no. 043029		 £94.31
35   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040776
36   NOW USE 043029KIT RAIL TOP BERMUDA B
Baxi part no. 040777
37   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040778
39   KIT-PIN-SECURING-BERMUDA B
Baxi part no. 040804		 £16.14
40   KIT-MOTIF-ROSE-BERMUDA B
Baxi part no. 040807		 £23.48
41   CLIP-SPRING-MOTIF-RETAINING.
Baxi part no. 043049
42   FIX PUSH ON 1/8IN
Baxi part no. 042499		 £2.51
43 Part number 040951, REFLECTOR-ASSY-BERMUDA GF REFLECTOR-ASSY-BERMUDA GF
Baxi part no. 040951
44 Part number 040952, OBSOLETE COVER-PANEL HEARTH ASSY OBSOLETE COVER-PANEL HEARTH ASSY
Baxi part no. 040952
46   TRIM PANEL HEARTH
Baxi part no. 235705		 £6.26
47   SCR-ST NO 6 X 1/4-PAN HD POZI
Baxi part no. 062520		 £2.63
48   OBSOLETE CONTROLS COVER ASSY
Baxi part no. 235710
48   LATCH-MALE
Baxi part no. 230723
51   OBSOLETE CABLE-CLAMP-ENOTS-340218-03
Baxi part no. 092062
52 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
53   OBSOLETE HEAT EXCH ASSY GAS FLAME
Baxi part no. 090083
54   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934
56   OBSOLETE STRIP - SEAL RETAINING
Baxi part no. 040978
57   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985		 £2.68
58   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308
59 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111
60   OBSOLETE CHANNEL GLASS FRAME SUPPORT
Baxi part no. 225195
61 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
62   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725
63   OBSOLETE EXTENSION-PLATE-BACK
Baxi part no. 222983
64   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729		 £2.03
65   OBSOLETE PLATE-BACK-BAXI GAS FLAME
Baxi part no. 090103
66   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
67   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706		 £2.42
71   OBSOLETE RETURN PIPE GASKET
Baxi part no. 236890
72   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092
73   OBSOLETE BRKT-PIPE-INLET FEED.GAS FLAME
Baxi part no. 090089
74 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.12
75 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602
76 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
77   BRKT GAS TAP MOUNTING
Baxi part no. 040943		 £1.67
78   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749		 £2.33
78 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
79   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 062723
80 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955		 £168.60
81   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944		 £7.37
81   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648		 £2.78
84   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
85 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
87   CONTROL KNOB ASSY
Baxi part no. 234551
88   OBSOLETE ELBOW-INLET-GAS FLAME.
Baxi part no. 092065
90 Part number 235335, GAS TAP GAS TAP
Baxi part no. 235335		 £111.74
91 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152		 £3.64
92 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
93 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
94 Part number 090091, NOW USE 224513 PIPE BNR.FEED REAR NOW USE 224513 PIPE BNR.FEED REAR
Baxi part no. 090091
94 Part number 224513, PIPE-BNR.FEED-REAR-GF/GAS FL-P PIPE-BNR.FEED-REAR-GF/GAS FL-P
Baxi part no. 224513		 £19.85
95 Part number 040956, OBSOLETE PIPE BURNER OBSOLETE PIPE BURNER
Baxi part no. 040956
96   OBSOLETE INJECTOR-FIRE-CAT 18/230
Baxi part no. 092133
97 Part number 043210, BURNER-TYPE 2-BER GF SUPER-NG BURNER-TYPE 2-BER GF SUPER-NG
Baxi part no. 043210
99 Part number 236820BAX, OBSOLETE BURNER SENSING PILOT & FILTER OBSOLETE BURNER SENSING PILOT & FILTER
Baxi part no. 236820BAX
99   BRACKET MOUNTING PILOT
Baxi part no. 236074		 £4.35
99 Part number 236820, OBSOLETE BURNER SENSING PILOT & FILTER OBSOLETE BURNER SENSING PILOT & FILTER
Baxi part no. 236820
100   OBSOLETE PILOT PIPE FEED KIT
Baxi part no. 236819
101   OBSOLETE ELECTRODE LEAD
Baxi part no. 236199
102 Part number 235149, OBSOLETE COAL BED OBSOLETE COAL BED
Baxi part no. 235149
103   OBSOLETE INSTRUCTIONS INSTALLATION
Baxi part no. 236202
104   OBSOLETE INSTRUCTIONS USERS
Baxi part no. 236203
