BAXI
DUO TEC 33 HE A (AFTER SERIAL NO.BTH1112 ISSUE 9),
DUO TEC 33 HE A (BEFORE SERIAL NO.BTH1112 ISSUE 8) - (Casing Outer)
Appliance Code: 47-075-37 BEFORE

Appliance Diagram


Casing Outer diagram for Baxi Duo Tec 33 HE A (Before Serial No.BTH1112 Issue 8)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

100   PANEL ASSEMBLY - LEFT
Baxi part no. 5114679
£23.80
101   PANEL ASSEMBLY - RIGHT
Baxi part no. 5114680
£30.86
102 Part number 5118373, FRONT PANEL C/S FRONT PANEL C/S
Baxi part no. 5118373
£63.78

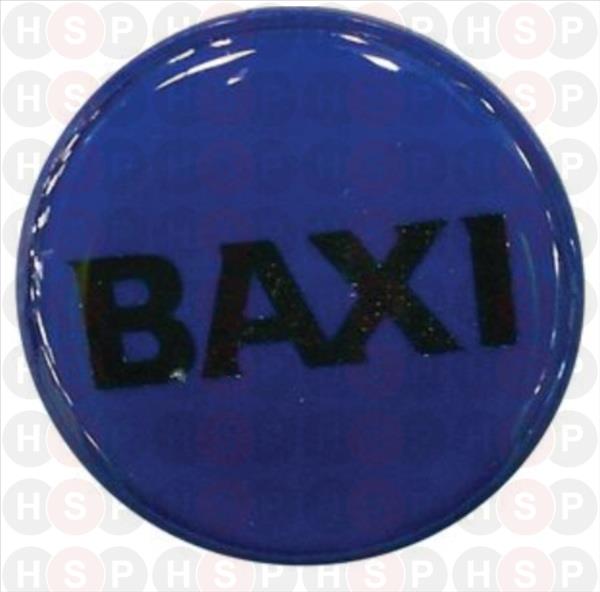

102A Part number 5118910, BADGE ASSY (BAXI) BADGE ASSY (BAXI)
Baxi part no. 5118910
£8.98
103 Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617
£3.16
103 Part number 613437, NOW USE 062617 SCREW NO8B X 13mm NOW USE 062617 SCREW NO8B X 13MM
Baxi part no. 613437
