BAXI
DUO TEC 2 28 GA RANGE - (Controls)
Appliance Code: 47-075-55

Appliance Diagram


Controls diagram for Baxi Duo Tec 2 28 GA RangeClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

501   NOW USE 7727139 TERMINAL BLOCK 5 POS
Baxi part no. 720852801

501 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
502 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
502   NOW USE 7727139 TERMINAL BLOCK 1 POS
Baxi part no. 720853601

503 Part number 720853801, NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER
Baxi part no. 720853801

503 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
505   TERMINAL BLOCK 10 POLES
Baxi part no. 720754101
£15.21
506   TERMINAL BOX COVER
Baxi part no. 720771401
£18.62
507   CLIP IN COVER
Baxi part no. 720771601
£19.93
508   PLUG FOR HOLE 30.5 X 25
Baxi part no. 720754701
£6.61
509   CONTROL BOX REAR
Baxi part no. 720792101
£26.77
510   CONTROL BOX FACIA
Baxi part no. 720792301
£26.77
511   EARTH FASTON 6 CONNECTIONS
Baxi part no. 720755301
£9.54
512 Part number 720878202, PCB - COMBI/SYSTEM PCB - COMBI/SYSTEM
Baxi part no. 720878202
£183.83

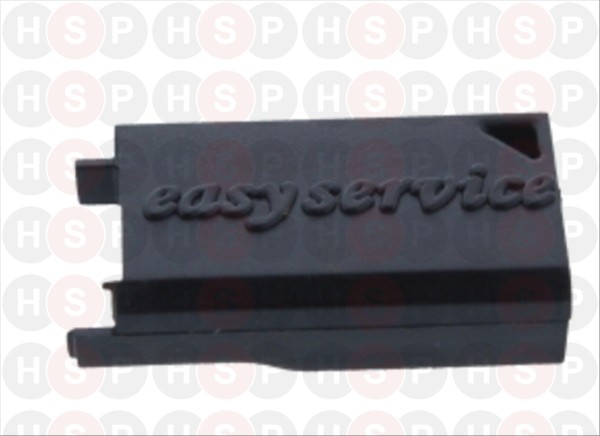

513   SERVICE ACCESS PLUG
Baxi part no. 720756101
£6.70
514   KEYPAD
Baxi part no. 720772401
£15.79
515   TIMER PLUG
Baxi part no. 720792501
£18.42
516   SUPPORT CONTROL BOX
Baxi part no. 720792701
£18.14
517 Part number 720843501, RDS-STANDARD COMBI 28 RDS-STANDARD COMBI 28
Baxi part no. 720843501
£36.78
517   RDS-STANDARD COMBI 28 LPG
Baxi part no. 720844701
£36.78
