BAXI
COMBI INSTANT 105 E - (Control Box)
Appliance Code: 47-075-09

Appliance Diagram

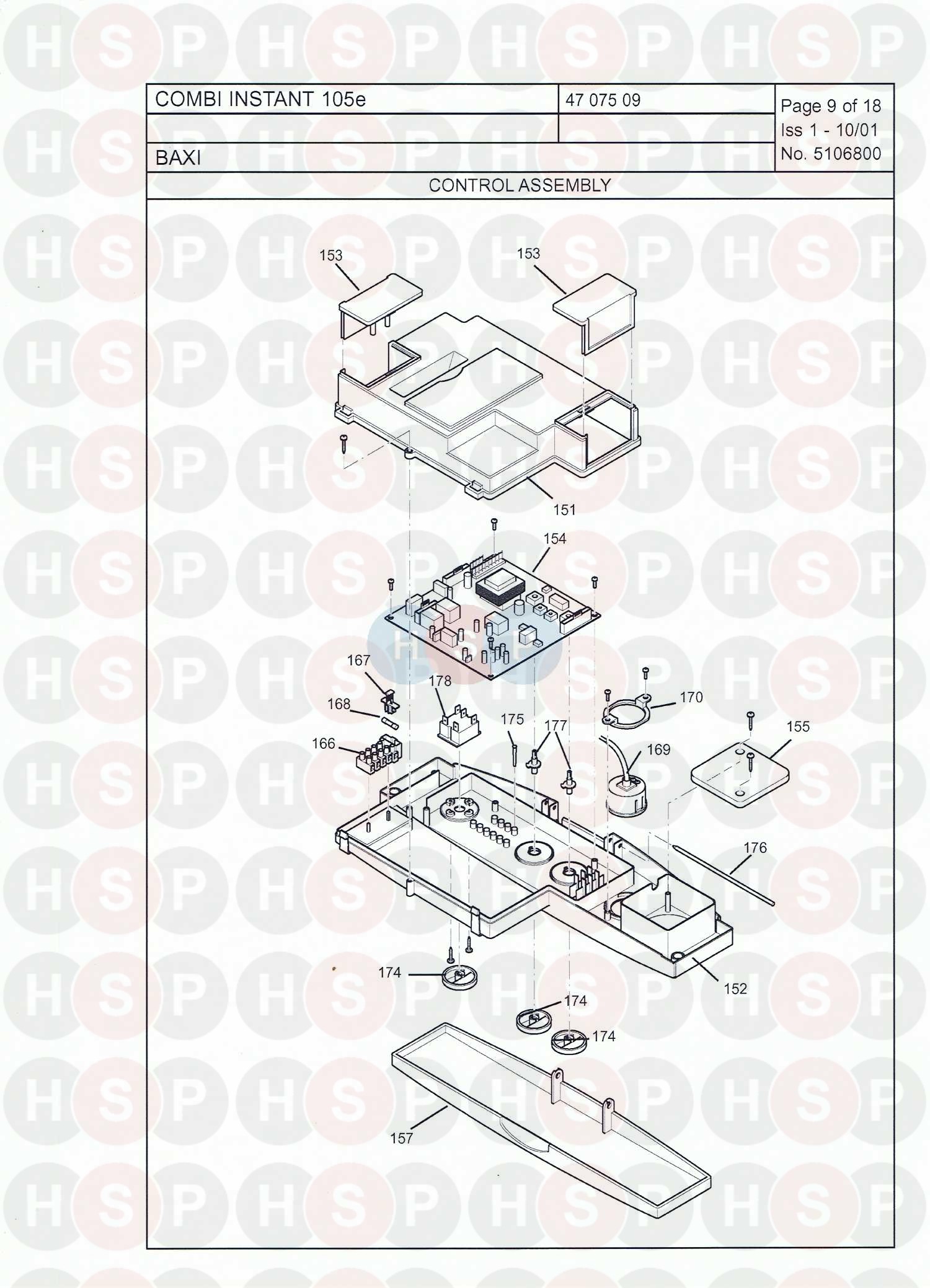

Control Box diagram for Baxi Combi Instant 105 EClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

151 Part number 248088, COVER - ELECTRICAL BOX COVER - ELECTRICAL BOX
Baxi part no. 248088
£9.83
152   PANEL-FACIA-INSTANT
Baxi part no. 248730
£12.13
153 Part number 248072, PANEL - ACCESS PANEL - ACCESS
Baxi part no. 248072
£5.88
154 Part number 248731, PRINTED CIRCUIT BOARD PRINTED CIRCUIT BOARD
Baxi part no. 248731
£179.01
155 Part number 248076, COVER - INTEGRAL TIMER COVER - INTEGRAL TIMER
Baxi part no. 248076
£5.88
157 Part number 248077, COVER - CONTROL FACIA COVER - CONTROL FACIA
Baxi part no. 248077
£7.15
166 Part number 247480, TERMINAL BLOCK TERMINAL BLOCK
Baxi part no. 247480
£7.15
167 Part number 247481, FUSE HOLDER FUSE HOLDER
Baxi part no. 247481
£4.57
168 Part number 248089, NOW USE 7727139 FUSE - (2A-250V) NOW USE 7727139 FUSE - (2A-250V)
Baxi part no. 248089

168 Part number 720853801, NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER
Baxi part no. 720853801

168 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139
£29.61
169 Part number 248090, GAUGE PRESSURE C/W RETAINER GAUGE PRESSURE C/W RETAINER
Baxi part no. 248090
£23.80
170 Part number 248091, RETAINER - PRESSURE GAUGE RETAINER - PRESSURE GAUGE
Baxi part no. 248091
£5.88
174 Part number 248092, CONTROL KNOB CONTROL KNOB
Baxi part no. 248092
£6.96

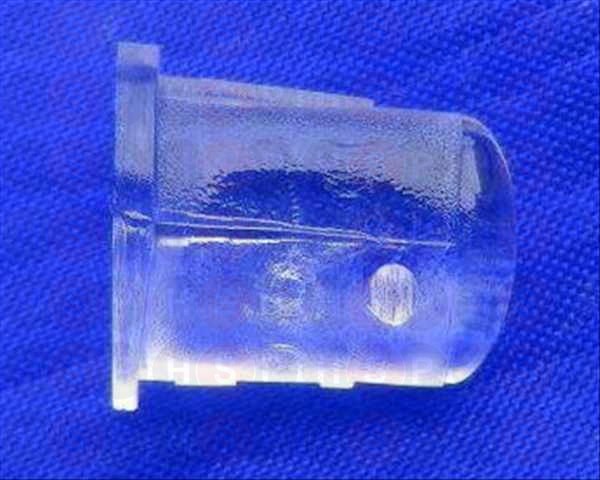

175 Part number 248367, LENS-NEON LENS-NEON
Baxi part no. 248367
£2.78
176 Part number 248194, PIN - HINGED FACIA PANEL PIN - HINGED FACIA PANEL
Baxi part no. 248194
£2.29
177 Part number 248096, DRIVE PIN - POTENTIOMETER DRIVE PIN - POTENTIOMETER
Baxi part no. 248096
£3.26
178 Part number 248095, SWITCH - SELECTOR SWITCH - SELECTOR
Baxi part no. 248095
£11.95
