BAXI
COMBI 130HE - (Gas Valve/Pump)
Appliance Code: 47-075-04

Appliance Diagram


Gas Valve/Pump diagram for Baxi Combi 130HEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

41 Part number 247131, NOW USE 5113420 KIT - HARNESS COMBI 130 M.V. NOW USE 5113420 KIT - HARNESS COMBI 130 M.V.
Baxi part no. 247131
41 Part number 5113420, KIT - HARNESS COMBI 130 M.V. KIT - HARNESS COMBI 130 M.V.
Baxi part no. 5113420		 £120.44
42 Part number 247222, KIT-GAS VALVE KIT-GAS VALVE
Baxi part no. 247222		 £197.86
43 Part number 240839, O-RING (GREEN) O-RING (GREEN)
Baxi part no. 240839		 £4.52
44   OBSOLETE SCREW SET M4 X 8MM POZI HEX
Baxi part no. 245747
45 Part number 241739, NOW USE 7683446 BOX MANIFOLD VALVE NOW USE 7683446 BOX MANIFOLD VALVE
Baxi part no. 241739
45 Part number 242228, GROMMET GROMMET
Baxi part no. 242228		 £4.45
45   BOX MANIFOLD VALVE
Baxi part no. 7683446		 £17.49
46 Part number 242229, GASKET GASKET
Baxi part no. 242229		 £3.16
47 Part number 242226, SCR SET M5x15mm CAP HD SOCKET SCR SET M5X15MM CAP HD SOCKET
Baxi part no. 242226		 £3.26
48 Part number 242475, 5mm PIPE - SPARES 5MM PIPE - SPARES
Baxi part no. 242475		 £19.61
49   OBSOLETE BRACKET SECURING FRAME
Baxi part no. 244745
49   OBSOLETE BRACKET SECURING FRAME
Baxi part no. 243077
50 Part number 633404, SCREW M6X20 SCREW M6X20
Baxi part no. 633404		 £3.06
51 Part number 242461, BRASS FITTINGS BRASS FITTINGS
Baxi part no. 242461		 £29.51
51 Part number 243133, ADAPTER RETURN ASSEMBLY ADAPTER RETURN ASSEMBLY
Baxi part no. 243133		 £33.69
52 Part number 633404, SCREW M6X20 SCREW M6X20
Baxi part no. 633404		 £3.06

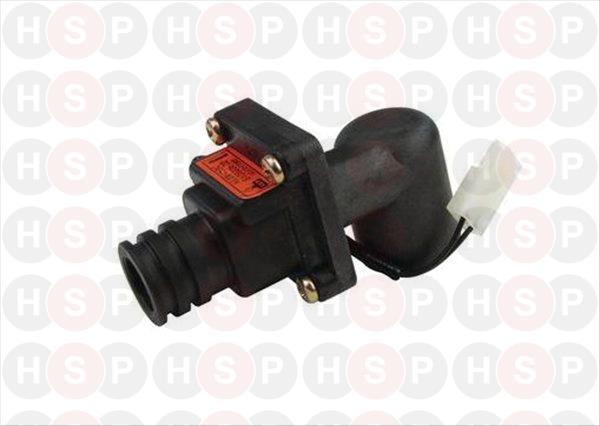

53 Part number 242459, FLOW SWITCH FLOW SWITCH
Baxi part no. 242459		 £49.78
54 Part number 242493, HEAT EX. MANIFOLD HEAT EX. MANIFOLD
Baxi part no. 242493		 £34.55
55 Part number 242495, NOW USE 7671969 SEAL MANIFOLD NOW USE 7671969 SEAL MANIFOLD
Baxi part no. 242495
55 Part number 240676, NOW USE 7671969 SEAL MANIFOLD 2.62mm DIA NOW USE 7671969 SEAL MANIFOLD 2.62MM DIA
Baxi part no. 240676
55 Part number 7671969, SEAL MANIFOLD 2.62mm D-240676 SEAL MANIFOLD 2.62MM D-240676
Baxi part no. 7671969		 £7.63
56 Part number 240799, PIPE CLIP PIPE CLIP
Baxi part no. 240799		 £5.88
57 Part number 5108692, MANUAL AIR VENT KIT MANUAL AIR VENT KIT
Baxi part no. 5108692		 £10.73
58 Part number 242819, NUT COMPRESSION 28MM NUT COMPRESSION 28MM
Baxi part no. 242819		 £4.73
59 Part number 102218, OLIVE-28MM-CONEX OLIVE-28MM-CONEX
Baxi part no. 102218		 £5.38
60 Part number 240396, VENT AUTO VENT AUTO
Baxi part no. 240396		 £25.05
60 Part number 241154, NOW USE 240396 AUTO AIR VENT NOW USE 240396 AUTO AIR VENT
Baxi part no. 241154
61 Part number 240812, O-RING 20.64 x 2.62mm O-RING 20.64 X 2.62MM
Baxi part no. 240812		 £3.26
62 Part number 243347, RETURN PIPE RETURN PIPE
Baxi part no. 243347
62 Part number 5121359, PIPE RETURN BOILER (SPARES) PIPE RETURN BOILER (SPARES)
Baxi part no. 5121359
63 Part number 240670, NOW USE 7671970 THERMOSTAT BOILER NOW USE 7671970 THERMOSTAT BOILER
Baxi part no. 240670
63 Part number 7671970, THERMOSTAT BOILER-240670 THERMOSTAT BOILER-240670
Baxi part no. 7671970		 £13.59
64 Part number 5108879, OBSOLETE KIT PIPE FLOW BOILER OBSOLETE KIT PIPE FLOW BOILER
Baxi part no. 5108879
65 Part number 243341, DIVERTER VALVE PLASTIC DIVERTER VALVE PLASTIC
Baxi part no. 243341		 £125.67
66 Part number 243725, NOW USE 5113174 SCREW M4 x 25MM PLASTITE NOW USE 5113174 SCREW M4 X 25MM PLASTITE
Baxi part no. 243725
66 Part number 5113174, SCREW TAPTITE M4 X 35 SCREW TAPTITE M4 X 35
Baxi part no. 5113174		 £2.93
67 Part number 247310, VALVE BODY VALVE BODY
Baxi part no. 247310		 £92.79
68 Part number 245325, OBSOLETE PIPE CONNECTION FLOW OBSOLETE PIPE CONNECTION FLOW
Baxi part no. 245325
69 Part number 241157, NOW USE 5113411 PUMP NOW USE 5113411 PUMP
Baxi part no. 241157
69 Part number 5113411, PUMP HEAD REPLACEMENT INC SEAL PUMP HEAD REPLACEMENT INC SEAL
Baxi part no. 5113411
69 Part number 240395, NOW USE 5113411 PUMP NOW USE 5113411 PUMP
Baxi part no. 240395
70 Part number 244663, SCREW M6 x 45MM SET PAN POZI SCREW M6 X 45MM SET PAN POZI
Baxi part no. 244663		 £2.33
71 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
72 Part number 244742, NOW USE 242369 MANIFOLD PUMP NOW USE 242369 MANIFOLD PUMP
Baxi part no. 244742
72 Part number 242369, MANIFOLD PUMP VALVE MANIFOLD PUMP VALVE
Baxi part no. 242369		 £66.86
73   OBSOLETE BRACKET SUPPORT PUMP
Baxi part no. 244027
74 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
75 Part number 240390, NOW USE 5000721 SAFETY VALVE NOW USE 5000721 SAFETY VALVE
Baxi part no. 240390
75 Part number 5000721, VALVE PRESSURE RELIEF. VALVE PRESSURE RELIEF.
Baxi part no. 5000721		 £22.38
75 Part number 241567, NOW USE 5000721 SAFETY VALVE (PRV) NOW USE 5000721 SAFETY VALVE (PRV)
Baxi part no. 241567
76   OBSOLETE PIPE VENT AUTO
Baxi part no. 247161
77   OBSOLETE PIPE FEED GAS
Baxi part no. 246556
78 Part number 247162, PIPE CONNECTION PIPE CONNECTION
Baxi part no. 247162		 £32.10
79   PIPE PHE RETURN
Baxi part no. 244021		 £18.25
80 Part number 244697, PIPE DHW PIPE DHW
Baxi part no. 244697
81 Part number 244696, PIPE COLD FEED PIPE COLD FEED
Baxi part no. 244696
82 Part number 246229, NOW USE 247502 FLOW SWITCH NOW USE 247502 FLOW SWITCH
Baxi part no. 246229
82 Part number 247502, KIT-ADAPTER FLOW SWITCH DHW KIT-ADAPTER FLOW SWITCH DHW
Baxi part no. 247502		 £75.35
83 Part number 245740, CLIP RETAINING PIPE CLIP RETAINING PIPE
Baxi part no. 245740		 £15.79
84 Part number 231405, SCR-ST No 6x1/2-PAN-POZI-PL SCR-ST NO 6X1/2-PAN-POZI-PL
Baxi part no. 231405		 £3.16
85 Part number 243953, RH MANIFOLD RH MANIFOLD
Baxi part no. 243953		 £42.76
86 Part number 240810, O-RING O-RING
Baxi part no. 240810		 £3.16
87 Part number 243958, LH MANIFOLD LH MANIFOLD
Baxi part no. 243958		 £20.16
88 Part number 245009, O-RING I/D 21.82 x 3.53 O-RING I/D 21.82 X 3.53
Baxi part no. 245009		 £3.26
