BAXI
COMBI 105E - (Wall Jig & Hydraulic Connections)
Appliance Code: 47-075-08

Appliance Diagram


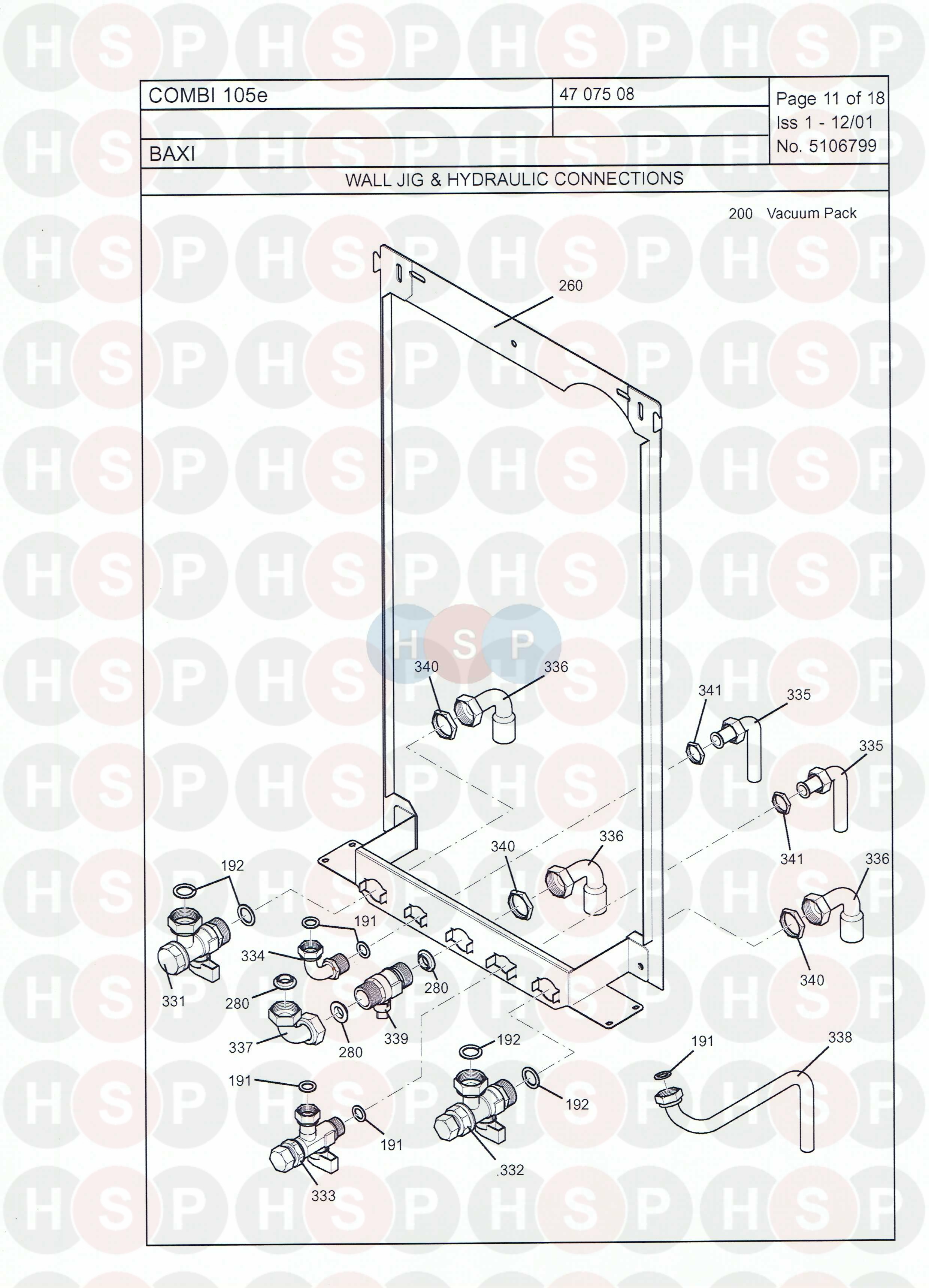

Wall Jig & Hydraulic Connections diagram for Baxi Combi 105EClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

191 Part number 247744, SEALING WASHER G. 1/2 SEALING WASHER G. 1/2
Baxi part no. 247744
£3.16
192 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Baxi part no. 247745
£3.16
200 Part number 248212, CONNECTIONS-VACUUM PACK CONNECTIONS-VACUUM PACK
Baxi part no. 248212
£66.72
260 Part number 248100, WALL JIG ASSEMBLY WALL JIG ASSEMBLY
Baxi part no. 248100
£28.54
280 Part number 247764, RUBBER SEAL - GAS TAP RUBBER SEAL - GAS TAP
Baxi part no. 247764
£3.26
331 Part number 248224, TAP - ISOLATION - FLOW TAP - ISOLATION - FLOW
Baxi part no. 248224
£33.91
332 Part number 248225, TAP - ISOLATION - RETURN TAP - ISOLATION - RETURN
Baxi part no. 248225
£43.27
333 Part number 248226, TAP - ISOLATION - DHW RETURN TAP - ISOLATION - DHW RETURN
Baxi part no. 248226
£31.48
334 Part number 248227, ELBOW - DHW OUTLET ELBOW - DHW OUTLET
Baxi part no. 248227
£9.51
335 Part number 248228, CONNECTION TAIL - 15mm CONNECTION TAIL - 15MM
Baxi part no. 248228
£7.15
336   CONNECTION TAIL - 22MM
Baxi part no. 248229
£9.51
337 Part number 248230, ELBOW - GAS INLET ELBOW - GAS INLET
Baxi part no. 248230
£9.51
338 Part number 248231, PIPE-DISCHARGE-SAFETY VALVE PIPE-DISCHARGE-SAFETY VALVE
Baxi part no. 248231
£11.95
339 Part number 247485, TAP TAP
Baxi part no. 247485
£19.05
340 Part number 247758, LOCK NUT - G3/4 LOCK NUT - G3/4
Baxi part no. 247758
£5.88
341 Part number 247760, LOCK NUT - G1/2 LOCK NUT - G1/2
Baxi part no. 247760
£5.88
