BAXI
BRAZILIA SLIMLINE 8 S - (Optional Extras)
Appliance Code: 35-077-17

Appliance Diagram


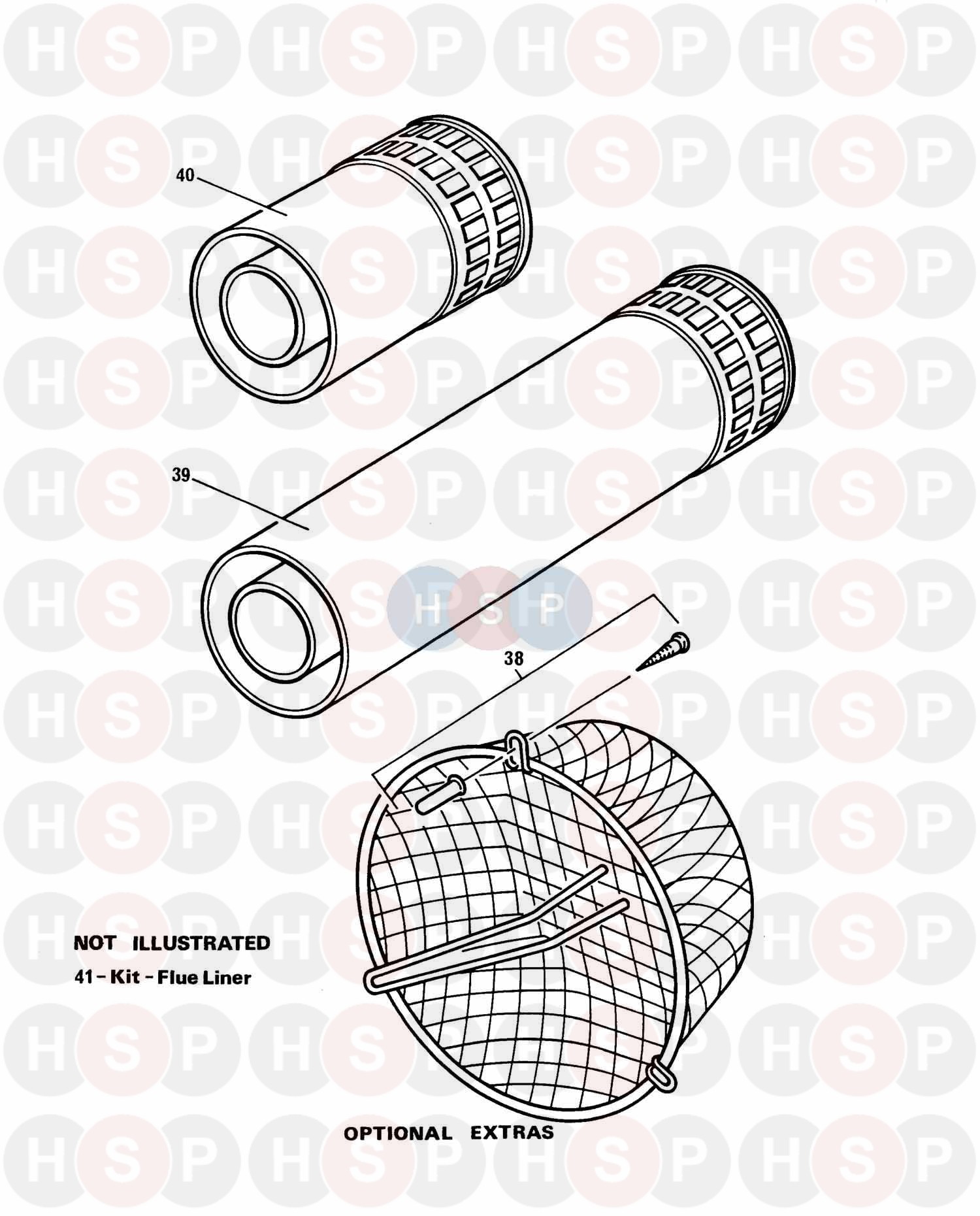

Optional Extras diagram for Baxi Brazilia Slimline 8 SClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE KNOB CONTROL OUTER ADAPTER
Baxi part no. 230299
0 Part number 230284, OBSOLETE KIT-KNOB CONTROL ADAPT-BRAZ OBSOLETE KIT-KNOB CONTROL ADAPT-BRAZ
Baxi part no. 230284
0   OBSOLETE FITTING INSTRUCTIONS
Baxi part no. 230280
1 Part number 225045, OBSOLETE OUTER CASE OBSOLETE OUTER CASE
Baxi part no. 225045
2   OBSOLETE SIDE CHEEK-LH-BRAZILIA 8S
Baxi part no. 223954
3   OBSOLETE SIDE CHEEK-RH-BRAZILIA 8S
Baxi part no. 223955
4   OBSOLETE
Baxi part no. 225128
5   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
6   OBSOLETE BUTTON-INDICATOR-WHITE.
Baxi part no. 223959
7 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
8   OBSOLETE HEAT SHIELD - OUTER CASE
Baxi part no. 223957
8   OBSOLETE STRIP-BACK-OUTER CASE-BRAZ 8S
Baxi part no. 223986
9   OBSOLETE KNOB-CONTROL-ASSY. 8S
Baxi part no. 223950
10   OBSOLETE AIR BOX-ASSY-SLIMLINE 8S
Baxi part no. 223960
13   OBSOLETE SCR-SET-M8 X 50MM-ZN PD
Baxi part no. 223996
14   OBSOLETE STUD-SPACER-M8-ZN PD
Baxi part no. 223990
15 Part number 225114, OBSOLETE GAUZE-BURNER-BRAZILIA SLIMLINE OBSOLETE GAUZE-BURNER-BRAZILIA SLIMLINE
Baxi part no. 225114
16   OBSOLETE PLATE RETAINING BURNER 8S
Baxi part no. 223964
17   OBSOLETE SCR-TF-M4X6MM HEX POZI ZNPD
Baxi part no. 225405
19 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
20   OBSOLETE BRKT-GAS TAP RETAINING
Baxi part no. 223970
21 Part number 223966, NUT-LOCK-M14 X 1-BRASS NUT-LOCK-M14 X 1-BRASS
Baxi part no. 223966		 £3.12
22   OBSOLETE GROMMET-GAS TAP-SEAL.
Baxi part no. 223969
23 Part number 224104, OBSOLETE INJECTOR.CO 1-BRAZ. 8S OBSOLETE INJECTOR.CO 1-BRAZ. 8S
Baxi part no. 224104
25   GROMMET-RUBBER M36
Baxi part no. 042566		 £8.25
25 Part number 043043, OBSOLETE LEAD-ELECTRODE-BER B. OBSOLETE LEAD-ELECTRODE-BER B.
Baxi part no. 043043
26   OBSOLETE SLEEVE 6MM ELAS.GLS/FIBX100MM
Baxi part no. 225054
27   OBSOLETE GROMMET AIR BOX. HEAT RESISTANT
Baxi part no. 082358
28   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
29   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
30 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
32 Part number 225121, OBSOLETE KIT-SIGHT WINDOW.BRAZ S/LINE OBSOLETE KIT-SIGHT WINDOW.BRAZ S/LINE
Baxi part no. 225121
33 Part number 223974, OBSOLETE SEAL-HEAT EXCH-8MM x 424 DIA OBSOLETE SEAL-HEAT EXCH-8MM X 424 DIA
Baxi part no. 223974
34 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252
35   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 224318
38 Part number 080266, KIT-GUARD-TERMINAL-BRAZ 8000 KIT-GUARD-TERMINAL-BRAZ 8000
Baxi part no. 080266
39   OBSOLETE KIT-FLUE TERM 15-19 BRAZ 8000
Baxi part no. 080263
40   OBSOLETE FLUE TERMINAL 5-9IN BRAZ 8000
Baxi part no. 080264
44   OBSOLETE FITTERS INSTRUCTIONS
Baxi part no. 224262
45   OBSOLETE USERS INSTRUCTIONS
Baxi part no. 224263
