BAXI
BRAZILIA 8000 CAT 1N - (Outer Case)
Appliance Code: 35-077-06

Appliance Diagram


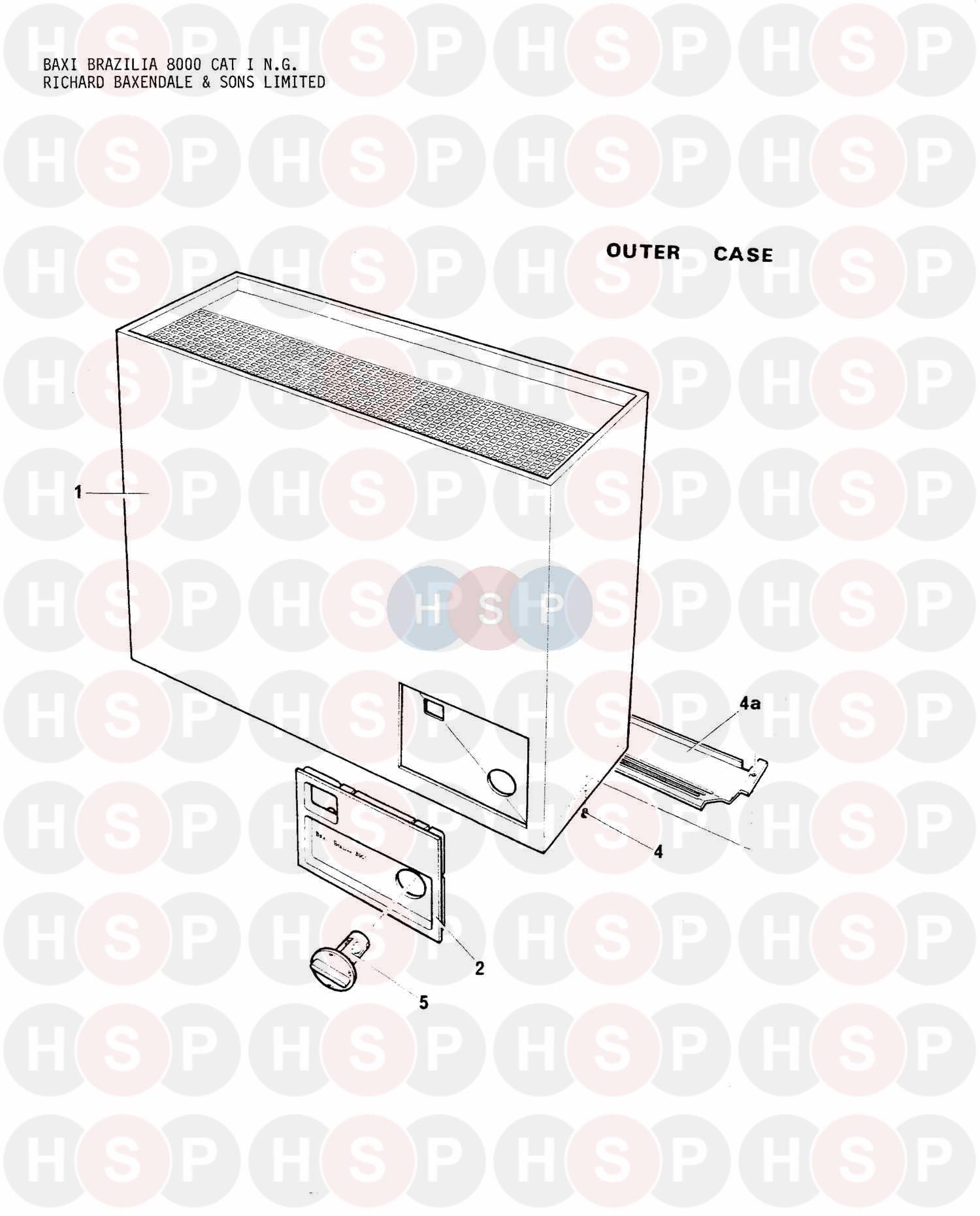

Outer Case diagram for Baxi Brazilia 8000 CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY OUTER CASE BRAZILIA 8000
Baxi part no. 080255

2   OBSOLETE BEZEL-CONTROL-BRAZILIA 8000
Baxi part no. 082236

4   OBSOLETE SHIELD - RADIATION
Baxi part no. 080265

4 Part number 062699, SCR-ST-No6x3/8 PAN HD PZ ZP SCR-ST-NO6X3/8 PAN HD PZ ZP
Baxi part no. 062699
£3.12
5   OBSOLETE KNOB-CONTROL.ASSY-BRAZ 8000
Baxi part no. 082228

6   OBSOLETE PLATE - BACK
Baxi part no. 080259

6   OBSOLETE CABLE/PIPE CLIP (EDGE TYPE) - SPRING STEEL
Baxi part no. 082240

7   OBSOLETE SHIELD - HEAT AIR BOX
Baxi part no. 080260

8   OBSOLETE GROMMET AIR BOX. HEAT RESISTANT
Baxi part no. 082358

9   OBSOLETE WOOD SCREW NO.10 X 2INS. SLOTTED ROUND HEA
Baxi part no. 062367

10   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
10 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
11   OBSOLETE H/EXCH-SECT-REAR BRAZ 8000
Baxi part no. 081013

12   OBSOLETE GASKET-HEAT EXCH/AIR BOX-UPPER
Baxi part no. 082235

13   NLA GASKET-H/EX-AIR-BOX-SEAL-LOW
Baxi part no. 082237

14 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441
£3.01
15   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463

16 Part number 082234, OBSOLETE BURNER-BRAZILIA 8000 OBSOLETE BURNER-BRAZILIA 8000
Baxi part no. 082234

17 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
18   OBSOLETE ADAPT- INJ/GAS TAP BRAZ 8000
Baxi part no. 082242

19   OBSOLETE SHIELD-HEAT CONTROL-BRAZ.8000
Baxi part no. 080267

19   OBSOLETE NUT-LOCK-M15 X 1-4H-BRASS
Baxi part no. 042032

20   OBSOLETE INJECTOR-NG-AMAL-270 BRAZ 8000
Baxi part no. 082233

21   OBSOLETE ELECTRODE-SPARK IGN-5000MK2
Baxi part no. 082187

22   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
24   OBSOLETE SLEEVE-6MM-ELAS.GLS/FIBX150MM
Baxi part no. 080227

25   OBSOLETE HEAT EXCH.SECT.FRONT-BRAZ.8000
Baxi part no. 081014

26 Part number 082109, OBSOLETE WINDOW-VIEWING OBSOLETE WINDOW-VIEWING
Baxi part no. 082109

27   OBSOLETE GASKET-VIEWING WINDOW
Baxi part no. 082110

28   OBSOLETE HOUSING-WINDOW-VIEWING
Baxi part no. 080193

29   OBSOLETE SEAL-HEAT EXCHANGER-10MM X 1210MM
Baxi part no. 082231

30   OBSOLETE SCR-SET-M8X35MM-PH SLTD ZNPD
Baxi part no. 062644

31 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252

33 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
34   OBSOLETE ADAPTER-GAS INLET BRAZ MK2
Baxi part no. 082188

35   OBSOLETE WASHER-SEALING-M10
Baxi part no. 082118

36   OBSOLETE BRKT-ADAPT-SEC BRAZ 5000 MK2
Baxi part no. 080228

37   OBSOLETE NUT-LOCK-1/8IN BSP-ZNPD
Baxi part no. 082159

38   OBSOLETE TUBE-GAS TAP SUPPLY BRAZ 8000
Baxi part no. 082230

39 Part number 082229, OBSOLETE IGNITOR/GAS TAP-CONCENTRIC OBSOLETE IGNITOR/GAS TAP-CONCENTRIC
Baxi part no. 082229

41 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

45   OBSOLETE LINER WALL 9.75-13.75IN
Baxi part no. 080351

46   OBSOLETE KIT-FLUE TERM 15-19 BRAZ 8000
Baxi part no. 080263

47   OBSOLETE FLUE TERMINAL 5-9IN BRAZ 8000
Baxi part no. 080264

48 Part number 080266, KIT-GUARD-TERMINAL-BRAZ 8000 KIT-GUARD-TERMINAL-BRAZ 8000
Baxi part no. 080266

49   OBSOLETE FITTERS INSTRUCTIONS
Baxi part no. 183917

50   OBSOLETE USERS INSTRUCTIONS
Baxi part no. 183918
