BAXI
BRAZILIA 8000 C CAT 1N - (Optional Extras)
Appliance Code: 35-077-12

Appliance Diagram


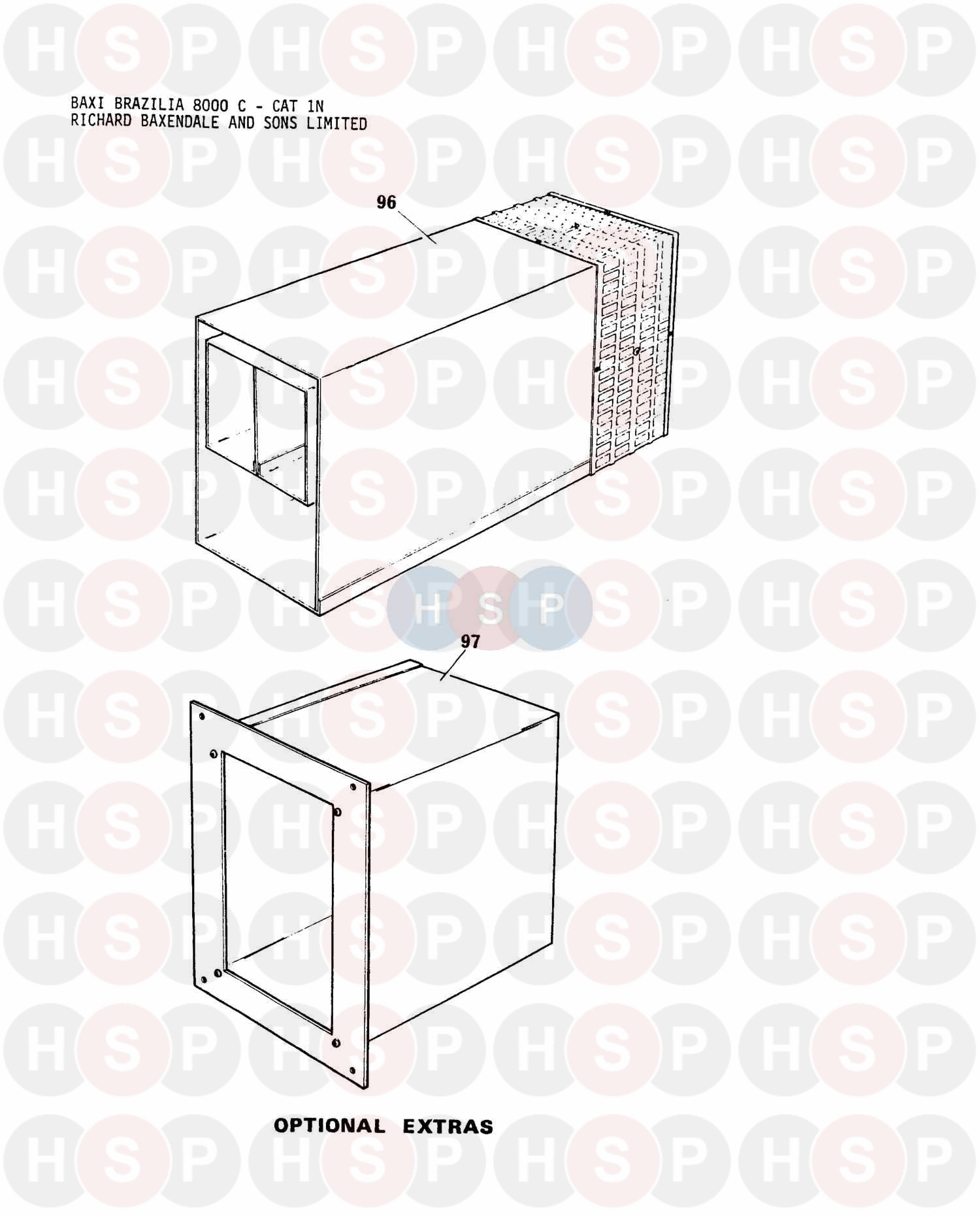

Optional Extras diagram for Baxi Brazilia 8000 C CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER CASE-BRAZILIA 8000 C
Baxi part no. 080436

2 Part number 080423, OBSOLETE SIDE CHEEK-ASSY-LH-8000C OBSOLETE SIDE CHEEK-ASSY-LH-8000C
Baxi part no. 080423

3   OBSOLETE SIDE CHEEK-ASSY-RH-8000C
Baxi part no. 080424

4   OBSOLETE KIT - PANELS
Baxi part no. 080437

4   OBSOLETE KIT - SHIELD - HEAT - OUTER CASE
Baxi part no. 080480

5   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104

6   SCR-NO 8X14TPIX1/2 HARDTWIN-WD
Baxi part no. 042244
£2.18
7   OBSOLETE LOCATING BRACKET RIGHT HAND - OUTER CASE
Baxi part no. 080428

8   OBSOLETE LOCATING BRACKET LEFT HAND - OUTER CASE
Baxi part no. 080470

9   OBSOLETE SHIELD - WALL
Baxi part no. 080486

10   OBSOLETE SHIELD - HEAT/PIPE COVER
Baxi part no. 080426

11 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
12   OBSOLETE FACIA PANEL KIT - INCLUDES KEY NO 13
Baxi part no. 080472

13   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010
£2.04
14   OBSOLETE CASE FIXING BRACKET - OUTER CASE
Baxi part no. 080432

15   OBSOLETE SHIELD RADIATION KIT - INCLUDES KEY NO 13
Baxi part no. 080431

16   OBSOLETE AIR BOX-ASSY. BRAZILIA 8000 C
Baxi part no. 080438

16   OBSOLETE FLUE SEAL
Baxi part no. 080483

16 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549
£3.12
17   OBSOLETE CASE FIXING BRACKET - AIR BOX
Baxi part no. 080429

18   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
£2.78
19   OBSOLETE BRACKET - ADAPTER TO INLET TEE
Baxi part no. 080430

20   OBSOLETE HEAT EXCHANGER SECTION - REAR
Baxi part no. 081016

21   OBSOLETE KIT-GAS-H/EX-A/BOX-SEAL-B8000I
Baxi part no. 080297

22 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441
£3.01
23   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463

24   OBSOLETE BURNER-AEROMATIC BRAZ 8000 ST
Baxi part no. 082374

25 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
26   OBSOLETE ADAPTER-INJ-PRESS-TEST-POINT
Baxi part no. 082401

27   OBSOLETE WASHER - FIBRE -1/4IN B.S.P
Baxi part no. 082422

28   OBSOLETE INJECTOR-8000C CONVECTOR
Baxi part no. 082423

28 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695

28 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908
£3.14
29   OBSOLETE HEAT EXCH.SECT.FRONT-BRAZ.8000
Baxi part no. 081014

30 Part number 100017, OBSOLETE KIT-SIGHT-WINDOW OBSOLETE KIT-SIGHT-WINDOW
Baxi part no. 100017

31   OBSOLETE SEAL-HEAT EXCHANGER-10MMX1210MM
Baxi part no. 082231

32   OBSOLETE SCR-SET-M8X35MM-PH SLTD ZNPD
Baxi part no. 062644

33 Part number 082252, OBSOLETE WASHER.5/16 IDx7/8 OD MS ZN PD OBSOLETE WASHER.5/16 IDX7/8 OD MS ZN PD
Baxi part no. 082252

34 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
35   OBSOLETE FFD/GAS TAP-CONVECTION
Baxi part no. 082395

36   OBSOLETE LOCKNUT - 1/4IN B.S.P.
Baxi part no. 062712

37   OBSOLETE NUT-LOCK-1/8IN BSP-ZNPD
Baxi part no. 082159

38 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462

39   OBSOLETE KIT-BURNER-PILOT-FS-BOILERS
Baxi part no. 110028

41 Part number 402560, OBSOLETE PILOT INJECTOR (STD) OBSOLETE PILOT INJECTOR (STD)
Baxi part no. 402560

41 Part number 112011, OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A
Baxi part no. 112011

42 Part number 102050, CONNECTOR REDUCING.6mm-4mm CONNECTOR REDUCING.6MM-4MM
Baxi part no. 102050

43   OBSOLETE SCR-SET-M4 X 8MM HEX.HD-ZNPD
Baxi part no. 062620

43 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532
£3.01
44   OBSOLETE KIT-ELECTRODE-CONVECTOR-8000C
Baxi part no. 080492

45   OBSOLETE LEAD-ELECTRODE BRAZILIA C
Baxi part no. 082424

46   OBSOLETE SLEEVE - 6MM - GLASS FIBRE X 240 MM LONG
Baxi part no. 080475

47 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005
£19.17
48 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412

49   OBSOLETE PIPE-PILOT FEED CONVECTOR N/O
Baxi part no. 080439

50   OBSOLETE PIPE-INLET/FFD CONVECTOR & N/O
Baxi part no. 080440

51   OBSOLETE ADAPTER - INLET TEE
Baxi part no. 082402

52   OBSOLETE KNOB-CONTROL-ASSY-CONVECTOR
Baxi part no. 082397

53   OBSOLETE ASSY BOX COMBUSTION 8000C
Baxi part no. 080441

54 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
55   OBSOLETE BAFFLE - AIR INLET
Baxi part no. 080484

55   OBSOLETE KIT-GASKETS-COMB BOX-AIR BOX
Baxi part no. 080455

56   OBSOLETE ADAPTER - INJECTOR
Baxi part no. 082447

57   OBSOLETE INJECTOR-8000C CIRCULATOR-SECT
Baxi part no. 082427

58   OBSOLETE BURNER-CIRCULATION SECTION
Baxi part no. 082428

59   OBSOLETE TAPTITE SCREW NO. 10-24UNC X 3/8IN.
Baxi part no. 062714

60   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
61   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
62   OBSOLETE KIT - HEAT EXCHANGER
Baxi part no. 080442

63   OBSOLETE POCKET-THERMOSTAT-PHIAL-BRAZ C
Baxi part no. 082439

64   OBSOLETE GASKET-HEAT EXCHANGER
Baxi part no. 082418

65   OBSOLETE LOCKNUT - HEX 7/8IN BSP BRASS
Baxi part no. 082405

66 Part number 062583, SCR-TF-M5x10MM PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583
£3.12
67   OBSOLETE PIPE-FLOW-NUTS-OLIVES B 8000 C
Baxi part no. 080473

68   OBSOLETE PIPE-RETURN-NUTS-OLIVES B8000C
Baxi part no. 080474

69   OBSOLETE KIT - INSULATION COMBUSTION BOX
Baxi part no. 080443

70 Part number 112066, CLIP-RETAIN-BRIERLY-SPRG-11157 CLIP-RETAIN-BRIERLY-SPRG-11157
Baxi part no. 112066
£11.80
71   OBSOLETE KIT-BNR-PILOT-CIRCUL-B8000 C
Baxi part no. 080444

71   OBSOLETE CLIP-EDGE-HARD-TEM CAR STL 1/2
Baxi part no. 082097

71   OBSOLETE PILOT SHIELD
Baxi part no. 080485

72   OBSOLETE GASKET-PIL-BRK-75MMX23MM-FOIL
Baxi part no. 082419

73 Part number 082430, OBSOLETE ELECTRODE-PILOT-IGN-CIRCULATOR OBSOLETE ELECTRODE-PILOT-IGN-CIRCULATOR
Baxi part no. 082430

74   OBSOLETE BRACKET - GAS TAP TO IGNITER
Baxi part no. 080433

75   OBSOLETE FFD/GAS TAP
Baxi part no. 082396

76   OBSOLETE THERMOSTAT-TEDDINGTON-BRAZ C
Baxi part no. 082431

77   OBSOLETE TEE-OUTLET-BRAZILIA C
Baxi part no. 082403

78   OBSOLETE NIPPLE-PRESSURE TEST-1/8IN-FEM
Baxi part no. 052013

79   OBSOLETE PIPE-PILOT FEED CIRCULATOR & NO
Baxi part no. 080445

80   OBSOLETE PIPE-INLET ADAPT/FFD CIRC(N/O)
Baxi part no. 080446

81   OBSOLETE PIPE-OUTLET-TEE-ADAP-INJ-BRAZC
Baxi part no. 082435

82   OBSOLETE KNOB-CONTROL-ASSY-CIRCULATOR
Baxi part no. 082398

83   OBSOLETE IGNITOR-PIEZO/LOCKNUT BRAZ C
Baxi part no. 082436

84   OBSOLETE DOOR COMBUSTION BOX
Baxi part no. 080447

85   OBSOLETE INSULATION-DOOR-CER-246X154MM
Baxi part no. 082416

86   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011
£15.01
87   SCR-SET-M4 X 16MM-CH.HD-ZNPD
Baxi part no. 062411
£1.61
88   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439
£3.01
89   OBSOLETE SEAL-DOOR PANEL
Baxi part no. 082417

90 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679
£3.01
91   OBSOLETE TERMINAL-FLUE-STANDARD-B8000 C
Baxi part no. 080449

92   OBSOLETE CLIP - PIPE - 22MM - PLASTIC
Baxi part no. 082465

92   OBSOLETE ELBOW - 22MM COPPER
Baxi part no. 082463

93   OBSOLETE TAP-SERVICE-1/4IN-STRAIGHT
Baxi part no. 082464

94   OBSOLETE KIT-BRACKET-WALL FIXING-8000C
Baxi part no. 080435

95   OBSOLETE KIT-TRIM-FLUE BRAZ 8000C
Baxi part no. 080450

96   OBSOLETE KIT-FLUE-TERMINAL LONG-B 8000C
Baxi part no. 080451

97   OBSOLETE FLUE LINER KIT - COMBUSTIBLE WALL
Baxi part no. 080452

98   OBSOLETE GUARD - FLUE TERMINAL - TOWER FLUES 102127
Baxi part no. 102127
