BAXI
BOSTON 2 50 OF - (Burner & Controls)
Appliance Code: 41-077-81

Appliance Diagram


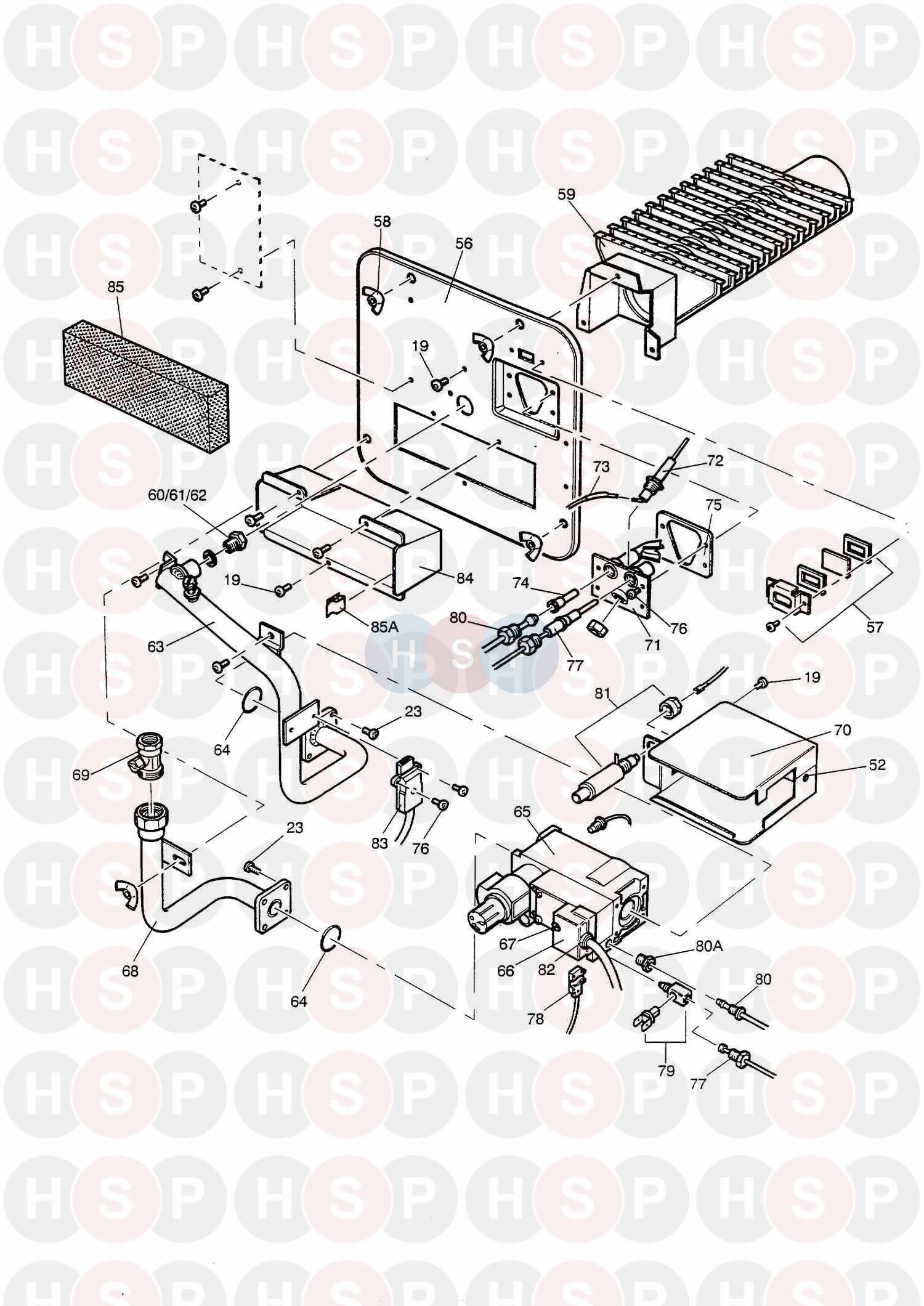

Burner & Controls diagram for Baxi Boston 2 50 OfClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PANEL TOP ASSY FSB OF
Baxi part no. 110053
2 Part number 112000, STUD-FOREST-FAST-SRV-1762-17-0 STUD-FOREST-FAST-SRV-1762-17-0
Baxi part no. 112000		 £2.50
3 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
4   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
5   OBSOLETE TRIM-FLUE - FS 40/50/60 OF
Baxi part no. 110077
6   OBSOLETE PANEL SIDE RH ASSY FS BOILERS
Baxi part no. 110001
7 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
8 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
9   OBSOLETE PANEL SIDE ASSY FS BOILERS
Baxi part no. 110002
10   OBSOLETE FRONT PANEL
Baxi part no. 110003
11 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.12
12   OBSOLETE CABINET-BOSTON 2 OF
Baxi part no. 236111
13   OBSOLETE BOX COMBUSTION ASSEMBLY (BOSTON 2 40 & 50
Baxi part no. 236737
13   OBSOLETE DC FRT.PANEL RHS ASSY 50+
Baxi part no. 236738
14   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15.01
15   OBSOLETE GUIDE-AIR-COMB-BOX
Baxi part no. 235532
16   SCR-SET-M5X16MM-PAN HD PZ ZNPD
Baxi part no. 062708		 £2.35
17 Part number 235381, OBSOLETE CARRIER INSUL FRONT DOOR ASSY OBSOLETE CARRIER INSUL FRONT DOOR ASSY
Baxi part no. 235381
19 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
20   OBSOLETE HORIZONTAL FLUE SYSTEM
Baxi part no. 236346
23 Part number 062583, SCR-TF-M5x10mm PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Baxi part no. 062583		 £3.12
24   OBSOLETE PANEL INSPECTION.COMB.BOX - ALL FS
Baxi part no. 110014
26   OBSOLETE SEAL-PANEL-INSP-9.5MM X 395MM-DI
Baxi part no. 112056
27   OBSOLETE GROMMET-SEAL-BOILER
Baxi part no. 112008
28   OBSOLETE SEAL-PANEL-DOOR-9.5MM X 240MM-DI
Baxi part no. 112057
30   OBSOLETE DIV.DRAUGHT FS 601 501 401 OF
Baxi part no. 110060
31   OBSOLETE BRACKET OUTER CASE FIXING
Baxi part no. 110064
32   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
34   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
35   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
36   OBSOLETE SEAL HEAT EXCHANGER ROPE 15MM DIA X 875MM
Baxi part no. 235312
37   OBSOLETE SEAL HEAT EXCHANGER ROPE 15MM DIA X 260MM
Baxi part no. 235310
38   OBSOLETE BAFFLE ASSEMBLY (BOSTON 2 40 OF ONLY)
Baxi part no. 236607
39   OBSOLETE BAFFLE ASSEMBLY (BOSTON 2 50 OF ONLY)
Baxi part no. 236608
40   OBSOLETE BAFFLE ASSEMBLY (BOSTON 2 60 OF ONLY)
Baxi part no. 236609
41   OBSOLETE BRACKET LOCATION BAFFLE
Baxi part no. 235327
42   OBSOLETE DEC.PANEL RIVET ASSY.LH.
Baxi part no. 236400
43   OBSOLETE ROPE SEAL SUPPORT PLATE ASSEMBLY - RIGHT H
Baxi part no. 236401
44 Part number 110046, OBSOLETE BOILER-ASSY-2-SECTION-FS-BLR OBSOLETE BOILER-ASSY-2-SECTION-FS-BLR
Baxi part no. 110046
45 Part number 110062, OBSOLETE BOILER SECTION OBSOLETE BOILER SECTION
Baxi part no. 110062
46 Part number 110051, OBSOLETE BOILER SECTION OBSOLETE BOILER SECTION
Baxi part no. 110051
48 Part number 112009, GASKET-FS-BOILER GASKET-FS-BOILER
Baxi part no. 112009
50 Part number 225435, OBSOLETE POCKET-THERMOSTAT-WM.PF OBSOLETE POCKET-THERMOSTAT-WM.PF
Baxi part no. 225435
51 Part number 110040, OBSOLETE ROPE GASKET OBSOLETE ROPE GASKET
Baxi part no. 110040
51 Part number 112058, OBSOLETE SEAL-BOILER-END-8.0mm x 46mm-DIA OBSOLETE SEAL-BOILER-END-8.0MM X 46MM-DIA
Baxi part no. 112058
52 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
55   OBSOLETE PUSH ON FIX-SALTERFIX-5305-31
Baxi part no. 112039
56   OBSOLETE PANEL DOOR SUB ASS BOSTON 2 OF
Baxi part no. 236612
57 Part number 226114, KIT-WINDOW-VIEWING-30-40-504PF KIT-WINDOW-VIEWING-30-40-504PF
Baxi part no. 226114		 £14.87
58   NUT-WING-M6-ZN-PD
Baxi part no. 112028
60   OBSOLETE INJECTOR-STEREO-6 X 1.3MM
Baxi part no. 112051
61   OBSOLETE INJECTOR-SMATIC-6 X 1.4MM
Baxi part no. 112060
62   OBSOLETE INJECTOR-STEREO-6X1.55MM
Baxi part no. 112040
63   OBSOLETE KIT-PIPE BURNER FEED-BOSTON 2
Baxi part no. 236663
64   OBSOLETE O RING-24MM ID X 4MM SECTION
Baxi part no. 112082
65 Part number 233359, VALVE MULTIFUNCTIONAL GAS VALVE MULTIFUNCTIONAL GAS
Baxi part no. 233359
66   OBSOLETE COVER-ELECTRICAL-PLASTIC
Baxi part no. 112044
67   OBSOLETE SCR-SET-M4X16MM-PAN-HD-POZ-ZNP
Baxi part no. 112043
68   OBSOLETE KIT-PIPE-INLET-FS-BOILER
Baxi part no. 110143
69   OBSOLETE TAP-SERV-STR-SIRAL-REF-0073853
Baxi part no. 112081
70   OBSOLETE SHIELD-HEAT-PROT.-IGN-MNTG-FS
Baxi part no. 110030
71   OBSOLETE KIT-BURNER-PILOT-BOSTON 2
Baxi part no. 236667
72 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £7.03
73 Part number 042740, LEAD-ELECTRODE-675 LEAD-ELECTRODE-675
Baxi part no. 042740
74   OBSOLETE INJECTOR PILOT (STD)
Baxi part no. 236107
74   OBSOLETE INJECTOR PILOT (STD)
Baxi part no. 236107BAX
76 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
77 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
79 Part number 235531, OBSOLETE THERMOCOUPLE INTERRUPTER OBSOLETE THERMOCOUPLE INTERRUPTER
Baxi part no. 235531
80   OBSOLETE PIPE PILOT FEED ASSY-BOSTON 2
Baxi part no. 236664
80 Part number 102050, CONNECTOR REDUCING.6mm-4mm CONNECTOR REDUCING.6MM-4MM
Baxi part no. 102050
81 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
82   OBSOLETE GRIP-CABLE-HEYCO-SR-5-M3
Baxi part no. 102197
83   OBSOLETE PLUG 3 PIN LEADS FS BOILER
Baxi part no. 110031
84   OBSOLETE BOX AIR BURNER
Baxi part no. 234842
85   OBSOLETE CABLE/PIPE CLIP (EDGE TYPE) - SPRING STEEL
Baxi part no. 082240
85   OBSOLETE ARRESTER LINT ASSY - ALL FS OF
Baxi part no. 110069
86   OBSOLETE FACIA-CONTROL-BOSTON 2
Baxi part no. 236665
87   OBSOLETE KIT-BEZEL-BOSTON 2
Baxi part no. 236666
88 Part number 112025, OBSOLETE THERMOSTAT RANCO OBSOLETE THERMOSTAT RANCO
Baxi part no. 112025
90   OBSOLETE KNOB
Baxi part no. 235303
91   OBSOLETE SUPPORT TERMINAL
Baxi part no. 110034
92   OBSOLETE WASHER-LOCK EXT.M5 ST.ZPL
Baxi part no. 112065
93   OBSOLETE CLAMP-CABLE-PLASTIC
Baxi part no. 112048
95   OBSOLETE WASHER-ANTI-LOSS
Baxi part no. 112030
96   OBSOLETE ASSY-3 PIN SOCKET & LEADS-FSB
Baxi part no. 226690
98   OBSOLETE CAPACITOR ASSY-FS-BOILERS
Baxi part no. 110039
