BAXI
BERMUDA VP2 - (Outer Case)
Appliance Code: 37-077-36

Appliance Diagram

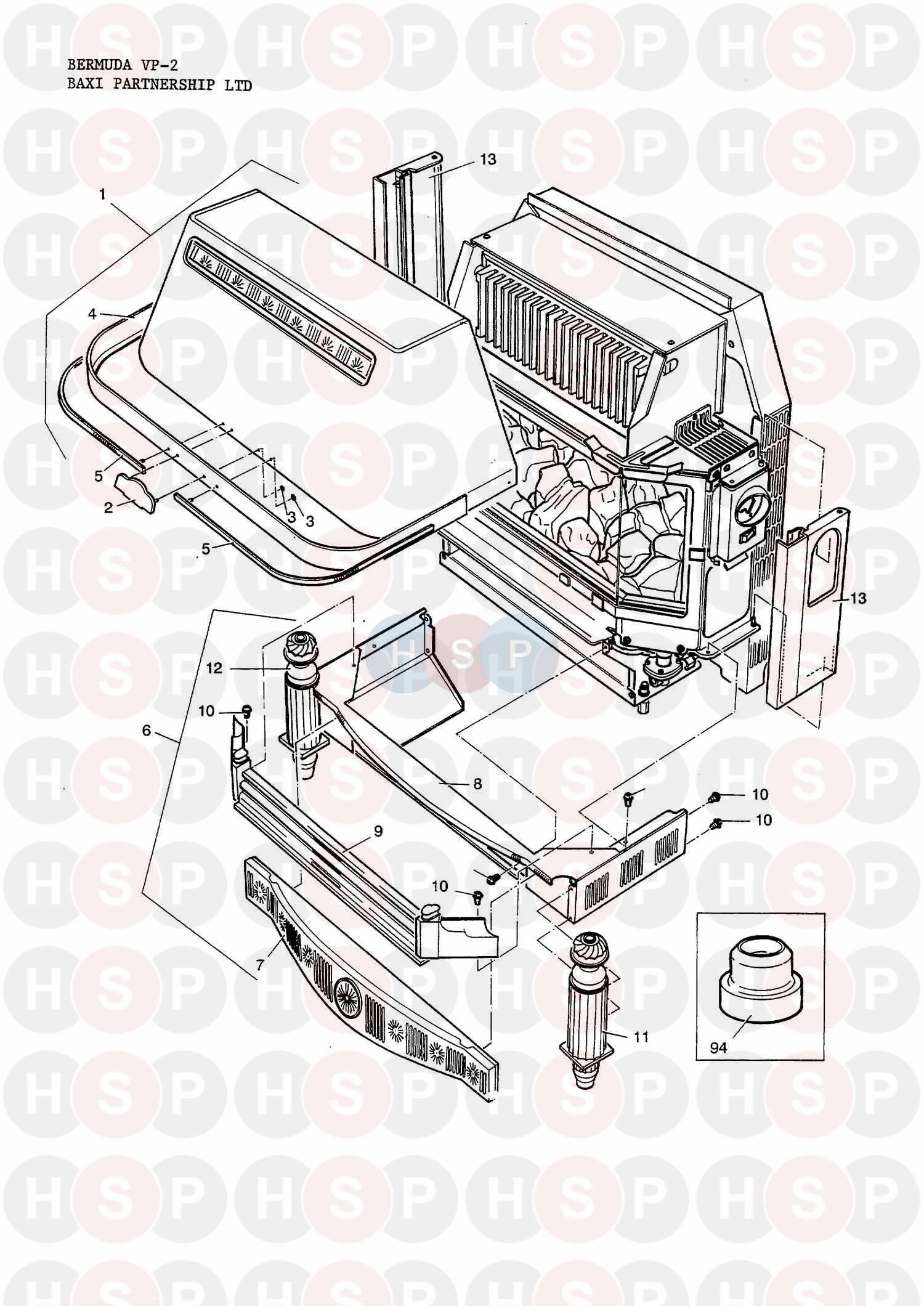

Outer Case diagram for Baxi Bermuda VP2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 042971, OBSOLETE PLUG - 3-PIN OBSOLETE PLUG - 3-PIN
Baxi part no. 042971
0   OBSOLETE USERS INSTRUCTIONS
Baxi part no. 227553
0   OBSOLETE INSTRUCTIONS-INST/SERV-BER.VP
Baxi part no. 227554
0 Part number 230184, NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184
0 Part number 230283, NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283
0 Part number 230273, OBSOLETE KNOB CONTROL INNER ADAPTER OBSOLETE KNOB CONTROL INNER ADAPTER
Baxi part no. 230273
0 Part number 241875, KIT C/KNOB ADAPR Blk VP2/3 KIT C/KNOB ADAPR BLK VP2/3
Baxi part no. 241875		 £15.47
0   OBSOLETE KIT CONV.LPG TO NG 552-VP/SP/2
Baxi part no. 230330
0 Part number 230184BAX, KNOB CONTROL OUTER ADAPTER KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184BAX		 £13.40
0 Part number 230273BAX, OBSOLETE KNOB CONTROL INNER ADAPTER OBSOLETE KNOB CONTROL INNER ADAPTER
Baxi part no. 230273BAX
0 Part number 230283BAX, KIT-KNOB CONTROL ADAPT-VP/SP KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283BAX		 £20.88
0 Part number 5134533, OBSOLETE PLUG & SOCKET 3 PIN OBSOLETE PLUG & SOCKET 3 PIN
Baxi part no. 5134533
1   OBSOLETE OUTER CASE ASSY - VP2/BAROQUE
Baxi part no. 236342
1   CANOPY ASSY (SPARE)-VP2/3 BARQ
Baxi part no. 236343		 £105.85
1   OBSOLETE CHANNEL-TRIM-VP
Baxi part no. 225368
2   OBSOLETE BADGE-CANOPY-BERMUDA VP
Baxi part no. 225758
3   OBSOLETE PUSH-ON FIX - RECTANGULAR - FOR 1/8IN DIA
Baxi part no. 226896
4   OBSOLETE TRIM BOTTOM CANOPY
Baxi part no. 236047
5   OBSOLETE TRIM-LOWER-CANOPY-BERMUDA VP
Baxi part no. 225759BAX
5   OBSOLETE TRIM-LOWER-CANOPY-BERMUDA VP
Baxi part no. 225759
6   OBSOLETE FENDER ASSY SPARES - VP3
Baxi part no. 238362BAX
6   OBSOLETE FENDER ASSY COMPLETE(SPARE)VP2
Baxi part no. 236344
7   OBSOLETE COVER DECORATIVE (SPARE)
Baxi part no. 225724
7   OBSOLETE COVER DECORATIVE (SPARE)
Baxi part no. 225724BAX
9   OBSOLETE GRATE-ASSEMBLY-VP
Baxi part no. 226899
10 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
11   OBSOLETE LEG ASSEMBLY RH
Baxi part no. 236046
12   OBSOLETE LEG ASSEMBLY LH
Baxi part no. 236045
13   OBSOLETE DOORS ASSEMBLY - VP2/3
Baxi part no. 235733
13   PIN-PIVOT-VP
Baxi part no. 227303		 £2.57
15 Part number 225391, SPARES Assy Frame Glass - VP SPARES ASSY FRAME GLASS - VP
Baxi part no. 225391
16   PANEL-DEFTOR-REAR-D/DRGHT-VP
Baxi part no. 225702		 £12.45
17 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
18   OBSOLETE PANEL-DEFTOR-CENTRE-D.DRGT-VP
Baxi part no. 225709
19   PANEL-DEFTOR-LOWER-D/DRGHT-VP
Baxi part no. 225381		 £7.39
20   OBSOLETE BAFFLE-BOTTOM-FLUE-VP
Baxi part no. 225710
21   PANEL-DEFTOR-BOTTOM-D.DRGT-VP
Baxi part no. 226893		 £11.43
22   PANEL-GLASS-LAMP-BERMUDA VP
Baxi part no. 225703		 £11.86
23   OBSOLETE CLIP - SPRING STEEL 225799 37-077-45 156-
Baxi part no. 225799
24   CHANNEL COVER TOP - (PAINTED)
Baxi part no. 228254		 £5.41
24   OBSOLETE ASSY HEAT EXCHANGER VP(SPARES)
Baxi part no. 225388
25   GASKET-HT.EX.CERAMIC
Baxi part no. 226874
26   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725
27   BRKT-SECURING CASTING-VP
Baxi part no. 226870		 £3.59
28   PANEL TOP COMB BOX ASSY
Baxi part no. 227318		 £92.74
29   SHIELD-UPPER WIRING-VP
Baxi part no. 226879		 £1.57
30   RAIL-TOP SEAL-VP/SP/BAROQUE
Baxi part no. 225737BAX		 £4.87
30   NOW USE 225737BAX RAIL-TOP SEAL-VP
Baxi part no. 225737
31   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
32   OBSOLETE VERT.FLUE TERM.KIT
Baxi part no. 225735
33   OBSOLETE PANEL-MOUNTING-LAMP-LH-VP
Baxi part no. 225395
34   OBSOLETE PANEL-MOUNTING-RH-LAMP-VP
Baxi part no. 225782
35   OBSOLETE VERTEX V/FLUE ASS.PACK 30
Baxi part no. 225726
36   FRAME-LAMP-BOX-ASSY-BERVP/BARO
Baxi part no. 227319		 £17.68
37   OBSOLETE BRKT-LOCATION GLASS FRAME.VP
Baxi part no. 226901
38   NOW USE 225796BAX PANEL-DEFLECTOR-TOP/BACK
Baxi part no. 225796
38   PANEL-DEFLECTOR-TOP/BACK
Baxi part no. 225796BAX		 £16.86
39   SCR-ST-NO8X3/8IN-FL.HD-BLK-B
Baxi part no. 227312		 £2.32
40   OBSOLETE VERT.FLUE TERM.KIT PRO.50
Baxi part no. 225742
41   OBSOLETE VERT.FLUE TERM.KIT 30 40
Baxi part no. 225741
41   PANEL-DEFLECTOR-RH-INNER CASE
Baxi part no. 226871		 £10.58
42   OBSOLETE VERT.FLUE TERM.KIT PRO.80
Baxi part no. 225744
43 Part number 234715, OBSOLETE CONTROL KNOB ASSY OBSOLETE CONTROL KNOB ASSY
Baxi part no. 234715
44   OBSOLETE BEZEL OUTER CASE
Baxi part no. 235651
45 Part number 225771BAX, LAMP-40 W-AMBER-BERMUDA VP LAMP-40 W-AMBER-BERMUDA VP
Baxi part no. 225771BAX
45 Part number 225771, OBSOLETE LAMP-40 W-AMBER-BERMUDA VP OBSOLETE LAMP-40 W-AMBER-BERMUDA VP
Baxi part no. 225771
46   OBSOLETE BRKT-SUPPORT REAR-BURNER-VP
Baxi part no. 225792
47 Part number 226876, SEAL-FRAME-GLASS-ROPE SEAL-FRAME-GLASS-ROPE
Baxi part no. 226876
48   ASSY COVER LAMP - VP
Baxi part no. 226881		 £14.83
49   OBSOLETE GRILLE RH INNER CASE
Baxi part no. 235686
50 Part number 112000, STUD-FOREST-FAST-SRV-1762-17-0 STUD-FOREST-FAST-SRV-1762-17-0
Baxi part no. 112000		 £2.50
51   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
52 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
53   OBSOLETE GRILLE LH INNER CASE
Baxi part no. 235687
54 Part number 235685, OBSOLETE CHANNEL LOCATION CANOPY OBSOLETE CHANNEL LOCATION CANOPY
Baxi part no. 235685
55 Part number 225780, PANEL-MOUNTING-APPLIANCE-VP PANEL-MOUNTING-APPLIANCE-VP
Baxi part no. 225780		 £11.47
56 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3.01
58 Part number 235694, SWITCH ROCKER SINGLE POLE SWITCH ROCKER SINGLE POLE
Baxi part no. 235694		 £6.91
58 Part number 230173, RESISTOR UPGRADE KIT RESISTOR UPGRADE KIT
Baxi part no. 230173
59   OBSOLETE LAMP HOLDER ASSY BERMUDA VP
Baxi part no. 227589
60   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749		 £2.33
61   NUT-HEX-M8-CHEMI BLACK
Baxi part no. 062750		 £1.85
62 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
63   PIN-LOCATION-COAL BED
Baxi part no. 092125		 £32.67
64 Part number 092137, ELECTRODE-GAS FLAME SUPER ELECTRODE-GAS FLAME SUPER
Baxi part no. 092137
66   BRACKET MOUNTING GAS TAP VP
Baxi part no. 225396
67 Part number 232302BAX, OBSOLETE GAS TAP/FFD KIT - VP OBSOLETE GAS TAP/FFD KIT - VP
Baxi part no. 232302BAX
67 Part number 232302, OBSOLETE GAS TAP/FFD KIT - VP OBSOLETE GAS TAP/FFD KIT - VP
Baxi part no. 232302
68 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
69 Part number 232333, MICRO SWITCH KIT MICRO SWITCH KIT
Baxi part no. 232333
69 Part number 227761, MICRO SWITCH MICRO SWITCH
Baxi part no. 227761
70 Part number 227866, IPE-FEED-FRONT-BURNER-VP IPE-FEED-FRONT-BURNER-VP
Baxi part no. 227866
70 Part number 225788BAX, PIPE-FEED-FRONT-BURNER-VP PIPE-FEED-FRONT-BURNER-VP
Baxi part no. 225788BAX
71 Part number 225786BAX, PIPE-FEED-REAR-BURNER-VP PIPE-FEED-REAR-BURNER-VP
Baxi part no. 225786BAX
71 Part number 227865, NOW USE 225786BAX PIPE FEED REAR NOW USE 225786BAX PIPE FEED REAR
Baxi part no. 227865
72 Part number 225797, OBSOLETE PIPE-ASSY-INLET-GAS TAP-VP OBSOLETE PIPE-ASSY-INLET-GAS TAP-VP
Baxi part no. 225797
73 Part number 043136, ADAPTER-10mm TO 1/4in BSPT ADAPTER-10MM TO 1/4IN BSPT
Baxi part no. 043136
74 Part number 043138, OBSOLETE ADAPTER-1/4in BSPT TO 6mm OBSOLETE ADAPTER-1/4IN BSPT TO 6MM
Baxi part no. 043138
75   OBSOLETE GOVERNOR-SPECIAL
Baxi part no. 230746
76 Part number 225400, NOW USE 5134747 BURNER ASSY VP/SP/Baroque NOW USE 5134747 BURNER ASSY VP/SP/BAROQUE
Baxi part no. 225400
76 Part number 5134747, Spares Burner Kit - VP/SP/Barq SPARES BURNER KIT - VP/SP/BARQ
Baxi part no. 5134747		 £62.05
77 Part number 236103BAX, COAL BED COAL BED
Baxi part no. 236103BAX		 £164.12
77 Part number 236103, NOW USE 236103BAX COAL BED NOW USE 236103BAX COAL BED
Baxi part no. 236103
77 Part number 226877, NOW USE 236103BAX coal bed NOW USE 236103BAX COAL BED
Baxi part no. 226877
78 Part number 230677, THERMOCOUPLE-750 mm LONG. THERMOCOUPLE-750 MM LONG.
Baxi part no. 230677
78 Part number 226875, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 226875
79 Part number 226905, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 226905
80 Part number 226910, INJECTOR-FO2 INJECTOR-FO2
Baxi part no. 226910		 £12.65
81 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
81 Part number 240257, NOW USE 240257BAX SPARK GENERATOR - 1HZ NOW USE 240257BAX SPARK GENERATOR - 1HZ
Baxi part no. 240257
81   CLIP-RESISTOR
Baxi part no. 043174		 £2.20
81 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
81 Part number 240257BAX, SPARK GENERATOR - 1HZ SPARK GENERATOR - 1HZ
Baxi part no. 240257BAX		 £26.41
82   OBSOLETE PANEL-SUPPORT-RH-INNER CASE-VP
Baxi part no. 225712
83   OBSOLETE PANEL-SUPPORT-LH-INNER CASE-VP
Baxi part no. 225746
84   NOW USE 225795BAX FRAME-SURROUND-FRNT-COAL BED-VP
Baxi part no. 225795
84   FRAME-SURROUND-FRNT-COAL BED-VP
Baxi part no. 225795BAX		 £7.40
85 Part number 225386BAX, BRKT-SUPPORT BURNER ASSY-VP BRKT-SUPPORT BURNER ASSY-VP
Baxi part no. 225386BAX
85 Part number 225386, BRKT-SUPPORT BURNER ASSY-VP BRKT-SUPPORT BURNER ASSY-VP
Baxi part no. 225386
86   OBSOLETE BRKT-STRENGTHENING-INNER CASE.VP
Baxi part no. 227302
87 Part number 227304, LEAD-ELECTRODE x 125mm-VP LEAD-ELECTRODE X 125MM-VP
Baxi part no. 227304
88   SLEEVE-H.T-ELECTRODE LEAD-VP
Baxi part no. 227409		 £8.37
89 Part number 225743, OBSOLETE VERT.FLUE TERM.KIT PRO.60 OBSOLETE VERT.FLUE TERM.KIT PRO.60
Baxi part no. 225743
91   OBSOLETE LAMP HOLDER
Baxi part no. 227863
92   OBSOLETE CHASSIS
Baxi part no. 227862
93   OBSOLETE KIT PIPE RENEWAL RG2/VP2/SP2
Baxi part no. 236965
93   OBSOLETE FLOW PIPE GASKET
Baxi part no. 236889
94   CUP FOOT EXTENSION-VP (SINGLE)
Baxi part no. 229430		 £38.03
96   OBSOLETE SUPPORT - WALL FIXING - G.F.
Baxi part no. 220467
97 Part number 220469, SHIELD CONTROLS (BOILER) SHIELD CONTROLS (BOILER)
Baxi part no. 220469
98   SHIELD-TOP-VALVE-VP
Baxi part no. 227314		 £2.83
