BAXI
BERMUDA SP - (Outer Case)
Appliance Code: 37-077-18

Appliance Diagram


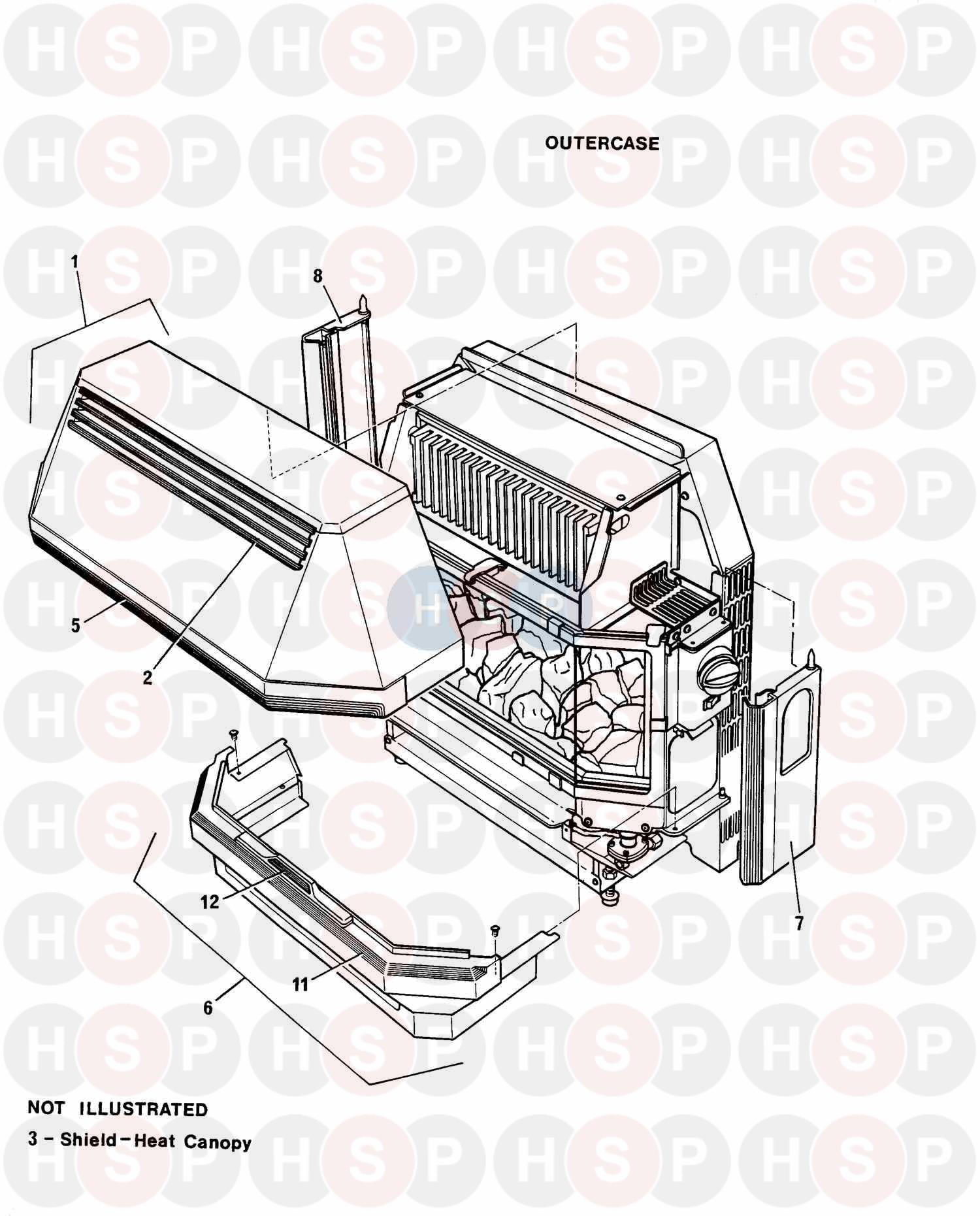

Outer Case diagram for Baxi Bermuda SPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE USERS INSTRUCTIONS
Baxi part no. 227553
0   OBSOLETE INSTRUCTIONS-INST/SERV-BER.VP
Baxi part no. 227554
0 Part number 230184, NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184
0 Part number 230283, NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283
0 Part number 230273, OBSOLETE KNOB CONTROL INNER ADAPTER OBSOLETE KNOB CONTROL INNER ADAPTER
Baxi part no. 230273
0 Part number 230184BAX, KNOB CONTROL OUTER ADAPTER KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184BAX		 £13.40
0 Part number 230273BAX, OBSOLETE KNOB CONTROL INNER ADAPTER OBSOLETE KNOB CONTROL INNER ADAPTER
Baxi part no. 230273BAX
0 Part number 230283BAX, KIT-KNOB CONTROL ADAPT-VP/SP KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283BAX		 £20.88
1 Part number 227939, OBSOLETE CANOPY-ASSY-SPARE-BER SP OBSOLETE CANOPY-ASSY-SPARE-BER SP
Baxi part no. 227939
2   OBSOLETE LOUVRE-CANOPY-SP
Baxi part no. 227942
3   SHIELD-HEAT-CANOPY BERMUDA SP
Baxi part no. 227945		 £4.67
4 Part number 112083, PUSH ON FIX-8mm PUSH ON FIX-8MM
Baxi part no. 112083		 £1.78
5 Part number 227947, TRIM-CANOPY-BERMUDA-SP TRIM-CANOPY-BERMUDA-SP
Baxi part no. 227947
6   OBSOLETE ASSY-HEARTH-BER-SP-SPARE
Baxi part no. 227960
9   PIN-PIVOT-VP
Baxi part no. 227303		 £2.57
10   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731		 £2.47
11   TRIM-HEARTH SP
Baxi part no. 227964		 £45.53
12   OBSOLETE BADGE-SP
Baxi part no. 227959
13   SCREW-PLASTITE NO6 X 3/8
Baxi part no. 228121		 £2.18
15 Part number 225391, SPARES Assy Frame Glass - VP SPARES ASSY FRAME GLASS - VP
Baxi part no. 225391
16   PANEL-DEFTOR-REAR-D/DRGHT-VP
Baxi part no. 225702		 £12.45
17 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
18   OBSOLETE PANEL-DEFTOR-CENTRE-D.DRGT-VP
Baxi part no. 225709
19   PANEL-DEFTOR-LOWER-D/DRGHT-VP
Baxi part no. 225381		 £7.39
20   OBSOLETE BAFFLE-BOTTOM-FLUE-VP
Baxi part no. 225710
21   PANEL-DEFTOR-BOTTOM-D.DRGT-VP
Baxi part no. 226893		 £11.43
22   PANEL-GLASS-LAMP-BERMUDA VP
Baxi part no. 225703		 £11.86
23   NOW USE 231364BAX CLIP - MOUNTING GLASS
Baxi part no. 231364
23   CLIP - MOUNTING GLASS
Baxi part no. 231364BAX		 £4.94
24   OBSOLETE ASSY HEAT EXCHANGER VP(SPARES)
Baxi part no. 225388
24   CHANNEL COVER TOP - (PAINTED)
Baxi part no. 228254		 £5.41
25   GASKET-HT.EX.CERAMIC
Baxi part no. 226874
26   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725
27   BRKT-SECURING CASTING-VP
Baxi part no. 226870		 £3.59
28   PANEL TOP COMB BOX ASSY
Baxi part no. 227318		 £92.74
29   SHIELD-UPPER WIRING-VP
Baxi part no. 226879		 £1.57
30   NOW USE 225737BAX RAIL-TOP SEAL-VP
Baxi part no. 225737
30   RAIL-TOP SEAL-VP/SP/BAROQUE
Baxi part no. 225737BAX		 £4.87
31   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
32   OBSOLETE VERT.FLUE TERM.KIT
Baxi part no. 225735
33   OBSOLETE PANEL-MOUNTING-LAMP-LH-VP
Baxi part no. 225395
34   OBSOLETE PANEL-MOUNTING-RH-LAMP-VP
Baxi part no. 225782
35   OBSOLETE VERTEX V/FLUE ASS.PACK 30
Baxi part no. 225726
36   FRAME-LAMP-BOX-ASSY-BERVP/BARO
Baxi part no. 227319		 £17.68
37   OBSOLETE BRKT-LOCATION GLASS FRAME.VP
Baxi part no. 226901
38   NOW USE 225796BAX PANEL-DEFLECTOR-TOP/BACK
Baxi part no. 225796
38   PANEL-DEFLECTOR-TOP/BACK
Baxi part no. 225796BAX		 £16.86
39   SCR-ST-NO8X3/8IN-FL.HD-BLK-B
Baxi part no. 227312		 £2.32
40   OBSOLETE VERT.FLUE TERM.KIT PRO.50
Baxi part no. 225742
41   OBSOLETE VERT.FLUE TERM.KIT 30 40
Baxi part no. 225741
41   PANEL-DEFLECTOR-RH-INNER CASE
Baxi part no. 226871		 £10.58
42   OBSOLETE VERT.FLUE TERM.KIT PRO.80
Baxi part no. 225744
43 Part number 227306, KNOB-CONTROL.GAS TAP-ASSY-VP KNOB-CONTROL.GAS TAP-ASSY-VP
Baxi part no. 227306
44   OBSOLETE BEZEL KIT - SP
Baxi part no. 232295
45 Part number 225771, OBSOLETE LAMP-40 W-AMBER-BERMUDA VP OBSOLETE LAMP-40 W-AMBER-BERMUDA VP
Baxi part no. 225771
45 Part number 225771BAX, LAMP-40 W-AMBER-BERMUDA VP LAMP-40 W-AMBER-BERMUDA VP
Baxi part no. 225771BAX
46   OBSOLETE BRKT-SUPPORT REAR-BURNER-VP
Baxi part no. 225792
47 Part number 226876, SEAL-FRAME-GLASS-ROPE SEAL-FRAME-GLASS-ROPE
Baxi part no. 226876
48   ASSY COVER LAMP - VP
Baxi part no. 226881		 £14.83
49 Part number 225383, GRILLE-RH-INNER CASE-SP GRILLE-RH-INNER CASE-SP
Baxi part no. 225383		 £15.88
49   OBSOLETE SHIELD-LOWER.FRONT LIGHT-VP
Baxi part no. 227317
50 Part number 112000, STUD-FOREST-FAST-SRV-1762-17-0 STUD-FOREST-FAST-SRV-1762-17-0
Baxi part no. 112000		 £2.50
51   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
52 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
53   NOW USE 225392BAX GRILLE-LH-INNER CASE-VP
Baxi part no. 225392
53   GRILLE-LH-INNER CASE-SP
Baxi part no. 225392BAX		 £17.91
54   OBSOLETE VERTEX VERTICAL FLUE PACK
Baxi part no. 225725
55 Part number 225780, PANEL-MOUNTING-APPLIANCE-VP PANEL-MOUNTING-APPLIANCE-VP
Baxi part no. 225780		 £11.47
56 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3.01
58 Part number 230173, RESISTOR UPGRADE KIT RESISTOR UPGRADE KIT
Baxi part no. 230173
58 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954
59   OBSOLETE LAMP HOLDER C/W RIM AND CAP
Baxi part no. 227861
60   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749		 £2.33
61   NUT-HEX-M8-CHEMI BLACK
Baxi part no. 062750		 £1.85

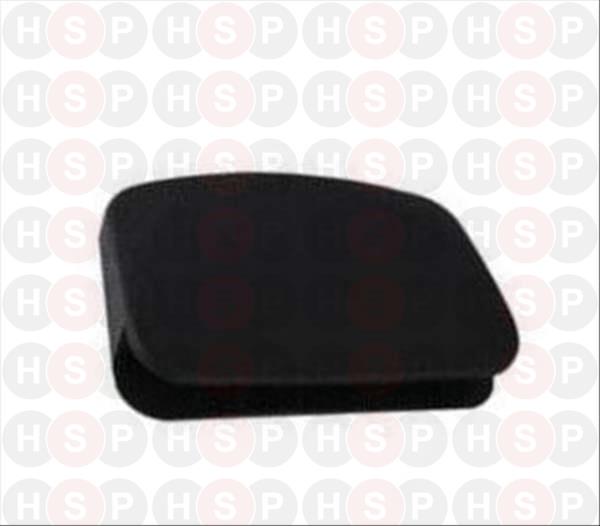

62 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
63   PIN-LOCATION-COAL BED
Baxi part no. 092125		 £32.67
64 Part number 092137, ELECTRODE-GAS FLAME SUPER ELECTRODE-GAS FLAME SUPER
Baxi part no. 092137
66   BRACKET MOUNTING GAS TAP VP
Baxi part no. 225396
67   OBSOLETE GAS TAP/FFD KIT - SP
Baxi part no. 232303
68 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
69 Part number 232333, MICRO SWITCH KIT MICRO SWITCH KIT
Baxi part no. 232333
70 Part number 225788BAX, PIPE-FEED-FRONT-BURNER-VP PIPE-FEED-FRONT-BURNER-VP
Baxi part no. 225788BAX
70 Part number 227866, IPE-FEED-FRONT-BURNER-VP IPE-FEED-FRONT-BURNER-VP
Baxi part no. 227866
71 Part number 227865, NOW USE 225786BAX PIPE FEED REAR NOW USE 225786BAX PIPE FEED REAR
Baxi part no. 227865
71 Part number 225786BAX, PIPE-FEED-REAR-BURNER-VP PIPE-FEED-REAR-BURNER-VP
Baxi part no. 225786BAX
72 Part number 225797, OBSOLETE PIPE-ASSY-INLET-GAS TAP-VP OBSOLETE PIPE-ASSY-INLET-GAS TAP-VP
Baxi part no. 225797
73 Part number 043136, ADAPTER-10mm TO 1/4in BSPT ADAPTER-10MM TO 1/4IN BSPT
Baxi part no. 043136
74 Part number 043138, OBSOLETE ADAPTER-1/4in BSPT TO 6mm OBSOLETE ADAPTER-1/4IN BSPT TO 6MM
Baxi part no. 043138
75   OBSOLETE GOVERNOR-SPECIAL
Baxi part no. 230746
76 Part number 225400, NOW USE 5134747 BURNER ASSY VP/SP/Baroque NOW USE 5134747 BURNER ASSY VP/SP/BAROQUE
Baxi part no. 225400
76 Part number 5134747, Spares Burner Kit - VP/SP/Barq SPARES BURNER KIT - VP/SP/BARQ
Baxi part no. 5134747		 £62.05
77 Part number 236103BAX, COAL BED COAL BED
Baxi part no. 236103BAX		 £164.12
77 Part number 226877, NOW USE 236103BAX coal bed NOW USE 236103BAX COAL BED
Baxi part no. 226877
78 Part number 226875, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 226875
78 Part number 230677, THERMOCOUPLE-750 mm LONG. THERMOCOUPLE-750 MM LONG.
Baxi part no. 230677
79 Part number 226905, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 226905
80 Part number 226910, INJECTOR-FO2 INJECTOR-FO2
Baxi part no. 226910		 £12.65
81 Part number 233254, NOW USE 240257BAX SPARK GENERATOR NOW USE 240257BAX SPARK GENERATOR
Baxi part no. 233254
81 Part number 232804, KIT GENERATOR - VP/SP KIT GENERATOR - VP/SP
Baxi part no. 232804
81   CLIP-RESISTOR
Baxi part no. 043174		 £2.20
81 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
81 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
81 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
81 Part number 240257BAX, SPARK GENERATOR - 1HZ SPARK GENERATOR - 1HZ
Baxi part no. 240257BAX		 £26.41
82   OBSOLETE PANEL-SUPPORT-RH-INNER CASE-VP
Baxi part no. 225712
82   SHIELD-LOWER WIRING-VP
Baxi part no. 226904		 £1.84
83   OBSOLETE PANEL-SUPPORT-LH-INNER CASE-VP
Baxi part no. 225746
84   FRAME-SURROUND-FRNT-COAL BED-VP
Baxi part no. 225795BAX		 £7.40
84   NOW USE 225795BAX FRAME-SURROUND-FRNT-COAL BED-VP
Baxi part no. 225795
86   OBSOLETE BRKT-STRENGTHENING-INNER CASE.VP
Baxi part no. 227302
87 Part number 227304, LEAD-ELECTRODE x 125mm-VP LEAD-ELECTRODE X 125MM-VP
Baxi part no. 227304
87   LEAD ELECTRODE 190MM
Baxi part no. 232788
88   SLEEVE-H.T-ELECTRODE LEAD-VP
Baxi part no. 227409		 £8.37
89 Part number 225743, OBSOLETE VERT.FLUE TERM.KIT PRO.60 OBSOLETE VERT.FLUE TERM.KIT PRO.60
Baxi part no. 225743
91   OBSOLETE LAMP HOLDER
Baxi part no. 227863
92   OBSOLETE CHASSIS
Baxi part no. 227862
93 Part number 227864, OBSOLETE PIPE SUPPLY FIRE 10mm OBSOLETE PIPE SUPPLY FIRE 10MM
Baxi part no. 227864
94   CUP FOOT EXTENSION-VP (SINGLE)
Baxi part no. 229430		 £38.03
