BERMUDA SL3 - (Outer Case)
Appliance Code: 37-077-60

Appliance Diagram


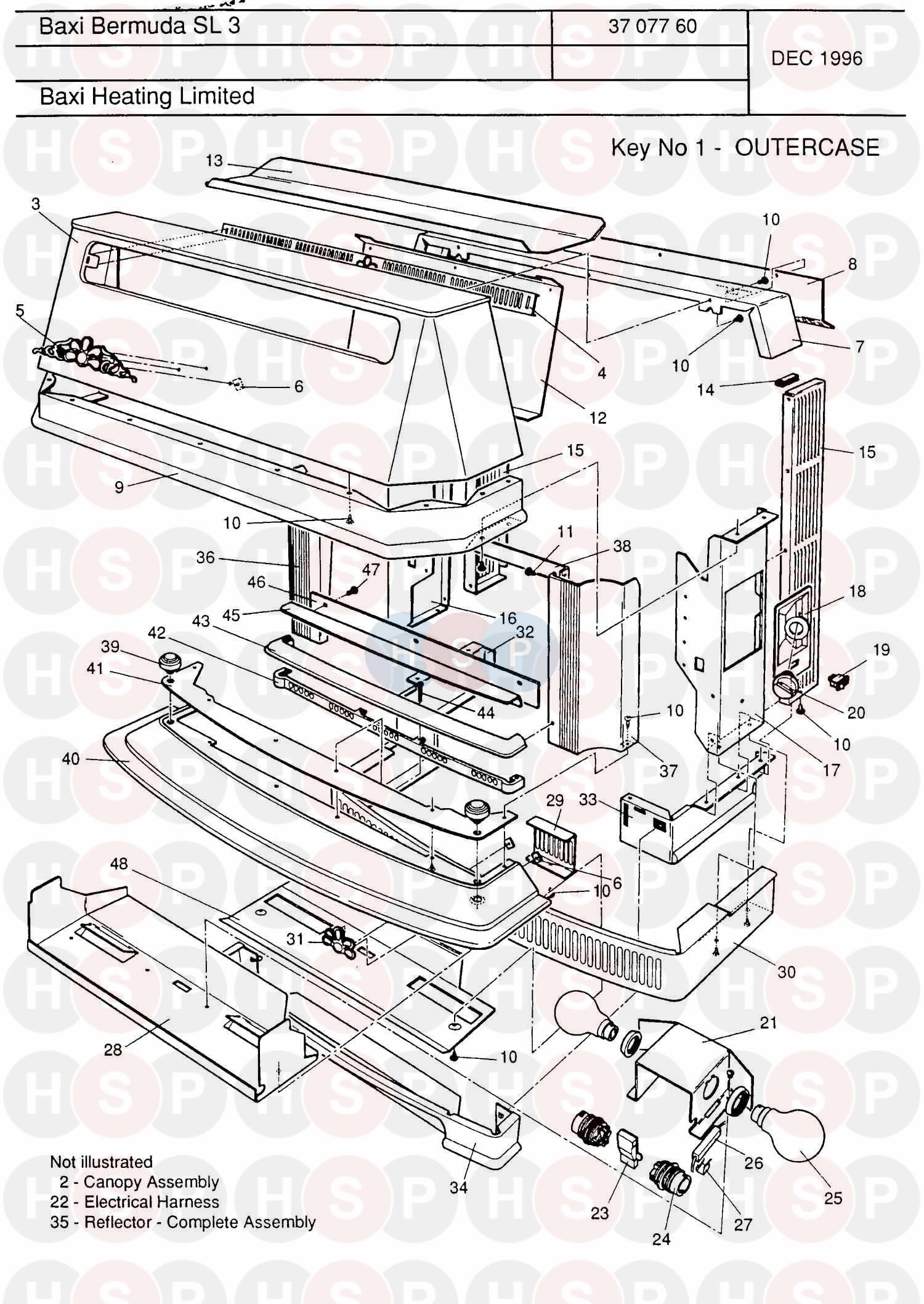

Outer Case diagram for Baxi Bermuda SL3Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE USERS INSTRUCTIONS - SL3
Baxi part no. 237884
0   OBSOLETE INSTALLATION AND SERVICING INSTRUCTIONS -
Baxi part no. 237883
0   OBSOLETE KIT C/ KNOB ADAPR BLK GF2/3
Baxi part no. 241871
0 Part number 230184, NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184
0   OBSOLETE KNOB-CONTROL-INNER-ADAPTER
Baxi part no. 230276
0 Part number 230277, NOW USE 230277BAX KIT KNOB CONTROL ADAPTER NOW USE 230277BAX KIT KNOB CONTROL ADAPTER
Baxi part no. 230277
0 Part number 230184BAX, KNOB CONTROL OUTER ADAPTER KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184BAX		 £13.40
0   OBSOLETE KNOB-CONTROL-INNER-ADAPTER
Baxi part no. 230276BAX
0 Part number 230277BAX, KIT KNOB CONTROL ADAPTER KIT KNOB CONTROL ADAPTER
Baxi part no. 230277BAX		 £14.47
2   OBSOLETE CANOPY ASSY COMPLETE(SPARE)
Baxi part no. 229412
3   OBSOLETE CANOPY AND TOP 229413 37-077-26 156-187
Baxi part no. 229413
4   OBSOLETE LOUVRE CANOPY
Baxi part no. 230009
4   OBSOLETE LOUVRE CANOPY SL
Baxi part no. 230009BAX
5   OBSOLETE BADGE CANOPY
Baxi part no. 230080
6   FIX PUSH ON 1/8IN
Baxi part no. 042499		 £2.51
7   OBSOLETE DISTANCE PIECE TOP
Baxi part no. 228105
8   OBSOLETE DISTANCE PIECE - REAR
Baxi part no. 239098
9   OBSOLETE TRIM CANOPY
Baxi part no. 230082
9   OBSOLETE TRIM CANOPY
Baxi part no. 230082BAX
10 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
11   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648		 £2.78
12   OBSOLETE SHIELD HEAT CANOPY BER B
Baxi part no. 220754
13   OBSOLETE SHIELD HEAT PANEL TOP
Baxi part no. 230743
14   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
15   OBSOLETE DISTANCE PIECE SIDE SL
Baxi part no. 228107
17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035
17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035BAX
18   OBSOLETE BEZEL - SL3
Baxi part no. 237612
19 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954
20 Part number 234544, CONTROL KNOB ASSY CONTROL KNOB ASSY
Baxi part no. 234544
21   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144
22   OBSOLETE HARNESS-ELECTRICAL BOX-GF
Baxi part no. 223037
23 Part number 040640, OBSOLETE SOCKET-3 PIN-ASSY OBSOLETE SOCKET-3 PIN-ASSY
Baxi part no. 040640
24 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT
24 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260
25 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261
26 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
26 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
27   CLIP-RESISTOR
Baxi part no. 043174		 £2.20
28   KIT REFLECTOR LAMP LOWER -GF
Baxi part no. 225693		 £17.95
29   OBSOLETE PANEL COVER (E/BOX)
Baxi part no. 231145
30   OBSOLETE ASSY PANEL HEARTH - SL
Baxi part no. 229414
31   OBSOLETE BADGE HEARTH
Baxi part no. 230081
32   OBSOLETE PANEL BASE SIDE LH ASSY
Baxi part no. 230879
33   OBSOLETE PANEL BASE SIDE RH ASSY SL
Baxi part no. 230878
34   OBSOLETE CONTROLS COVER ASSY
Baxi part no. 230710
34   OBSOLETE CONTROLS COVER ASSEMBLY - SL3
Baxi part no. 237919
35   OBSOLETE REFLECTOR ASSY COMPL - SL/SOL
Baxi part no. 229415
36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095BAX
36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095
37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069
37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069BAX
38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096BAX
38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096
39   OBSOLETE KIT FINIALS
Baxi part no. 229416
40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049
40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049BAX
41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067BAX
41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067
42   OBSOLETE PANEL FENDER
Baxi part no. 230012BAX
42   OBSOLETE PANEL FENDER
Baxi part no. 230012
43   OBSOLETE TRIM UPPER FENDER
Baxi part no. 230071
44   LEAD ASSEMBLY
Baxi part no. 231726		 £13.52
45   OBSOLETE TRIM TOP HEARTH SL
Baxi part no. 230644
46   OBSOLETE DEFLECTOR-LIGHT-G.F.
Baxi part no. 043145
47   SCR-ST NO 6 X 1/4-PAN HD POZI
Baxi part no. 062520		 £2.63
48 Part number 220469, SHIELD CONTROLS (BOILER) SHIELD CONTROLS (BOILER)
Baxi part no. 220469
49   HEAT EXCHANGER
Baxi part no. 040933
49   ASSY HEAT EXCHANGER GF(SPARES)
Baxi part no. 248445
50   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934
51   BOX-COMB.ASSY-BERM.GF SUPER
Baxi part no. 225129		 £90.18
52 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
53   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308
54 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111
56   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985		 £2.68
57   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729		 £2.03
58   OBSOLETE EXTENSION-PLATE-BACK
Baxi part no. 222983
58   OBSOLETE BACK PLATE
Baxi part no. 040336
59   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
60   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706		 £2.42
61   OBSOLETE SHIELD-HEAT-FLUE-LFE 3
Baxi part no. 040001
62   OBSOLETE DIVERTER-DOWNDRAFT-SPIGOT
Baxi part no. 040002
64   FRAME MOUNTING
Baxi part no. 236892BAX		 £9.11
64   NOW USE 236892BAX FRAME MOUNTING
Baxi part no. 236892
65 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602
66 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
67   OBSOLETE BRACKET MOUNTING GAS TAP
Baxi part no. 230020
68 Part number 040954, KIT-WALL FIXING-BERMUDA GF KIT-WALL FIXING-BERMUDA GF
Baxi part no. 040954
69   OBSOLETE SCR-SET-M8 X 35MM-HEX-HD ZNPD
Baxi part no. 062710
70 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.12
71 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
72 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955		 £168.60
73   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944		 £7.37
74 Part number 040787, Assy Shield/Label Controls LFE ASSY SHIELD/LABEL CONTROLS LFE
Baxi part no. 040787		 £23.90
75 Part number 235335, GAS TAP GAS TAP
Baxi part no. 235335		 £111.74
75   OBSOLETE GAS TAP - LPG
Baxi part no. 237100
76 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
77 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412
78 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152		 £3.64
79 Part number 232023, ADAPTER ADAPTER
Baxi part no. 232023
79 Part number 230192, ADAPTER-1in-BSP TO 22MM COMP ADAPTER-1IN-BSP TO 22MM COMP
Baxi part no. 230192
80 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
81   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039
81   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039BAX
82   OBSOLETE PIPE BURNER FEED REAR ASSY
Baxi part no. 230024
83 Part number 231053BAX, OBSOLETE PIPE ASSY-GAS TAP SUPPLY OBSOLETE PIPE ASSY-GAS TAP SUPPLY
Baxi part no. 231053BAX
83 Part number 232468, PIPE FEED FIRE ASSY PIPE FEED FIRE ASSY
Baxi part no. 232468		 £5.88
83 Part number 231053, OBSOLETE PIPE ASSY-GAS TAP SUPPLY OBSOLETE PIPE ASSY-GAS TAP SUPPLY
Baxi part no. 231053
84 Part number 236204, BURNER PILOT SENSING BURNER PILOT SENSING
Baxi part no. 236204
84   OBSOLETE OXYPILOT
Baxi part no. 237810
84 Part number 236820, OBSOLETE BURNER SENSING PILOT & FILTER OBSOLETE BURNER SENSING PILOT & FILTER
Baxi part no. 236820
84 Part number 236204BAX, BURNER PILOT SENSING BURNER PILOT SENSING
Baxi part no. 236204BAX
84 Part number 236820BAX, OBSOLETE BURNER SENSING PILOT & FILTER OBSOLETE BURNER SENSING PILOT & FILTER
Baxi part no. 236820BAX
85   OBSOLETE PIPE PILOT FEED
Baxi part no. 235540
86   BRACKET MOUNTING PILOT
Baxi part no. 236074		 £4.35
87   OBSOLETE INJECTOR-FIRE-CAT 18/230
Baxi part no. 092133
88   BURNER - LPG
Baxi part no. 237209
88 Part number 043210, BURNER-TYPE 2-BER GF SUPER-NG BURNER-TYPE 2-BER GF SUPER-NG
Baxi part no. 043210
89 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
89   NOW USE 236848BAX LIGHT SHIELD
Baxi part no. 236848
89   LIGHT SHIELD
Baxi part no. 236848BAX		 £4.22
90   OBSOLETE ELECTRODE LEAD
Baxi part no. 236209
91   OBSOLETE SLEEVE ELECTRODE 405MM
Baxi part no. 236218
92 Part number 040959, SUPPLY PIPE SUPPLY PIPE
Baxi part no. 040959
92 Part number 043121, PIPE-FIRE SUPPLY-10mm DIA-G.F. PIPE-FIRE SUPPLY-10MM DIA-G.F.
Baxi part no. 043121
94 Part number 235149, OBSOLETE COAL BED OBSOLETE COAL BED
Baxi part no. 235149
94 Part number 237221, OBSOLETE COAL BED - LPG OBSOLETE COAL BED - LPG
Baxi part no. 237221
95   OBSOLETE SUPPORT - WALL FIXING - G.F.
Baxi part no. 220467
96 Part number 222960, OBSOLETE BRACKET-WALL FIXING OBSOLETE BRACKET-WALL FIXING
Baxi part no. 222960
97   MIRROR-PILOT-G.F.
Baxi part no. 043142
