BAXI
BERMUDA SL-2 - (Inner Case)
Appliance Code: 37-077-49

Appliance Diagram

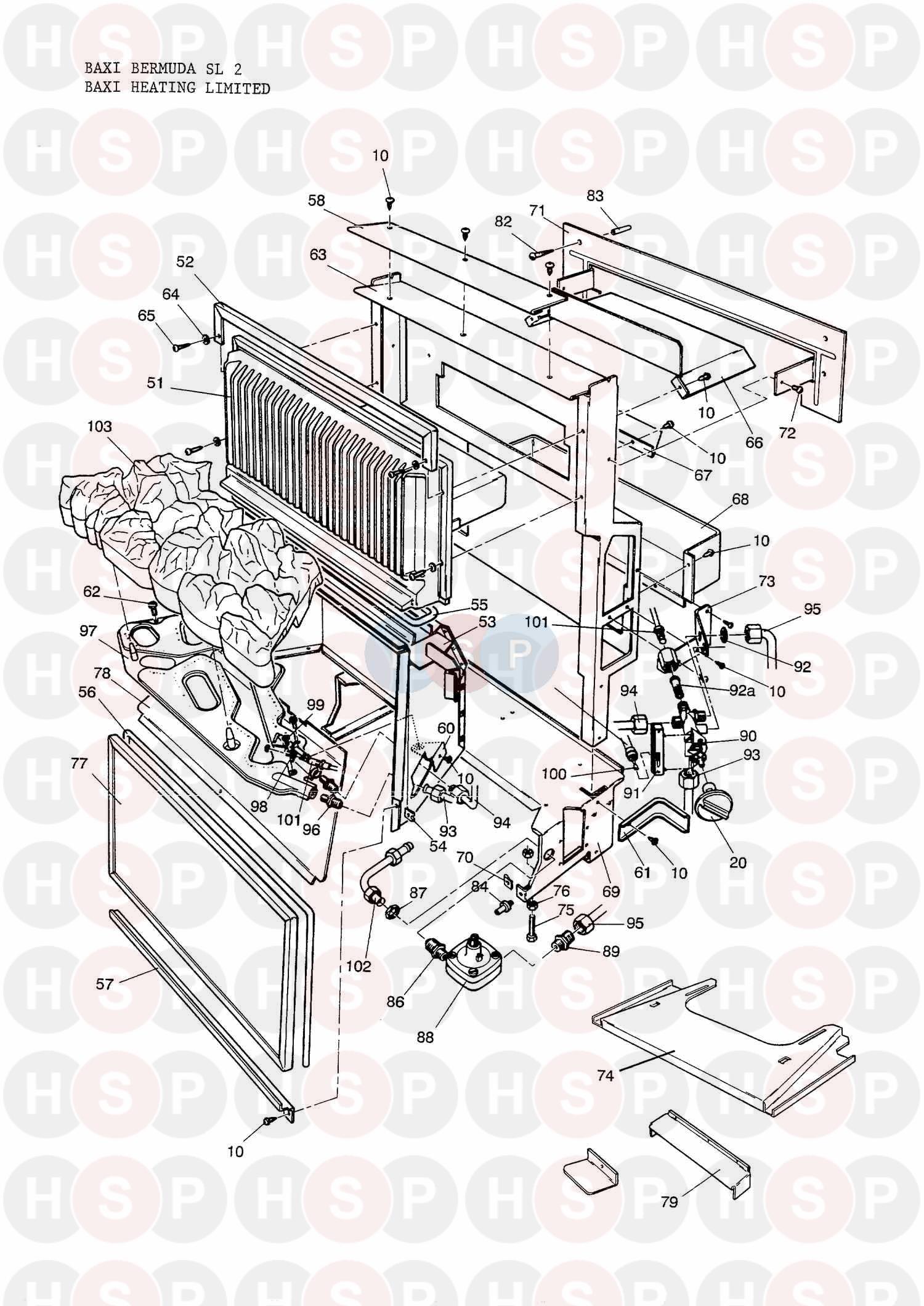

Inner Case diagram for Baxi Bermuda SL-2Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE ASSY OUTER CASE - SL (SPARE)
Baxi part no. 229411

2   OBSOLETE CANOPY ASSY COMPLETE(SPARE)
Baxi part no. 229412

3   OBSOLETE CANOPY AND TOP 229413 37-077-26 156-187
Baxi part no. 229413

4   OBSOLETE LOUVRE CANOPY
Baxi part no. 230009

4   OBSOLETE LOUVRE CANOPY SL
Baxi part no. 230009BAX

5   OBSOLETE BADGE CANOPY
Baxi part no. 230080

6   FIX PUSH ON 1/8IN
Baxi part no. 042499
£2.51
7   OBSOLETE DISTANCE PIECE TOP
Baxi part no. 228105

8   DISTANCE PIECE-REAR-G.F.
Baxi part no. 040921
£12.88
9   OBSOLETE TRIM CANOPY
Baxi part no. 230082

9   OBSOLETE TRIM CANOPY
Baxi part no. 230082BAX

10 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
11   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
£2.78
12   OBSOLETE SHIELD HEAT CANOPY BER B
Baxi part no. 220754

13   OBSOLETE SHIELD HEAT PANEL TOP
Baxi part no. 230743

14   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731
£2.47
15   OBSOLETE DISTANCE PIECE SIDE SL
Baxi part no. 228107

17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035

17   OBSOLETE PANEL SIDE UPPER RH
Baxi part no. 230035BAX

18   OBSOLETE BEZEL CONTROL KNOB
Baxi part no. 230172

19 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954

20   OBSOLETE CONTROL KNOB ASSEMBLY
Baxi part no. 230335

21   OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS
Baxi part no. 090144

22   OBSOLETE HARNESS-ELECTRICAL BOX-GF
Baxi part no. 223037

23 Part number 040640, OBSOLETE SOCKET-3 PIN-ASSY OBSOLETE SOCKET-3 PIN-ASSY
Baxi part no. 040640

24 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260

24 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT

25 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261

26 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023

26 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955

27   CLIP-RESISTOR
Baxi part no. 043174
£2.20
29   KIT REFLECTOR LAMP LOWER -GF
Baxi part no. 225693
£17.95
30   OBSOLETE PANEL COVER (E/BOX)
Baxi part no. 231145

31   OBSOLETE BADGE HEARTH
Baxi part no. 230081

31   OBSOLETE ASSY PANEL HEARTH - SL
Baxi part no. 229414

32   OBSOLETE PANEL BASE SIDE LH ASSY
Baxi part no. 230879

33   OBSOLETE PANEL BASE SIDE RH ASSY SL
Baxi part no. 230878

34   OBSOLETE CONTROLS COVER ASSY
Baxi part no. 230710

34   OBSOLETE CONTROLS COVER ASSEMBLY - SL3
Baxi part no. 237919

35   OBSOLETE REFLECTOR ASSY COMPL - SL/SOL
Baxi part no. 229415

36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095

36   OBSOLETE PANEL REFLECTOR SIDE LH
Baxi part no. 230095BAX

37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069BAX

37   OBSOLETE PANEL REFLECTOR SIDE RH
Baxi part no. 230069

38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096

38   OBSOLETE PANEL REFLECTOR TOP
Baxi part no. 230096BAX

39   OBSOLETE KIT FINIALS
Baxi part no. 229416

40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049

40   OBSOLETE PANEL UPPER HEARTH
Baxi part no. 230049BAX

41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067BAX

41   OBSOLETE PANEL REFLECTOR HEARTH
Baxi part no. 230067

42   OBSOLETE PANEL FENDER
Baxi part no. 230012

42   OBSOLETE PANEL FENDER
Baxi part no. 230012BAX

43   OBSOLETE TRIM UPPER FENDER
Baxi part no. 230071

44   LEAD ASSEMBLY
Baxi part no. 231726
£13.52
45   OBSOLETE TRIM TOP HEARTH SL
Baxi part no. 230644

46   OBSOLETE DEFLECTOR-LIGHT-G.F.
Baxi part no. 043145

47   SCR-ST NO 6 X 1/4-PAN HD POZI
Baxi part no. 062520
£2.63
48 Part number 220469, SHIELD CONTROLS (BOILER) SHIELD CONTROLS (BOILER)
Baxi part no. 220469

51   HEAT EXCHANGER
Baxi part no. 040933

51   ASSY HEAT EXCHANGER GF(SPARES)
Baxi part no. 248445

52   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934

53   BOX-COMB.ASSY-BERM.GF SUPER
Baxi part no. 225129
£90.18
54 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
55   OBSOLETE GASKET HEAT EXCHANGER
Baxi part no. 229308

55   OBSOLETE SEAL COMB BOX
Baxi part no. 043110

56 Part number 043111, SEAL-GLASS FRAME-GF SEAL-GLASS FRAME-GF
Baxi part no. 043111

57   OBSOLETE CHANNEL - GLASS FRAME SUPPORT
Baxi part no. 040936

58   OBSOLETE STRIP - SEAL RETAINING
Baxi part no. 040978

59   SCR-ST-NO8X1/2 PAN POZI S/S A
Baxi part no. 062725

60   BRKT-BURNER SUPP.ASSY-BER.GF
Baxi part no. 040985
£2.68
61   OBSOLETE CHANNEL GLASS FRAME SUPPORT
Baxi part no. 040945

62   SCR-SET-M5X12MM-HX.HD.SLT ZNPD
Baxi part no. 062729
£2.03
63   OBSOLETE BACK PLATE
Baxi part no. 040336

64   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
65   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706
£2.42
66   OBSOLETE SHIELD-HEAT-FLUE-LFE 3
Baxi part no. 040001

67   OBSOLETE DIVERTER-DOWNDRAFT-SPIGOT
Baxi part no. 040002

69   OBSOLETE FRAME - MOUNTING.- G.F
Baxi part no. 220466

70   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092

71 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602

72 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
73   OBSOLETE BRACKET MOUNTING GAS TAP
Baxi part no. 230020

74 Part number 040954, KIT-WALL FIXING-BERMUDA GF KIT-WALL FIXING-BERMUDA GF
Baxi part no. 040954

75   OBSOLETE SCR-SET-M8 X 35MM-HEX-HD ZNPD
Baxi part no. 062710

76 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
77 Part number 040955, SPARES Assy Frame/Glass GF SPARES ASSY FRAME/GLASS GF
Baxi part no. 040955
£168.60
78   REFLECTOR-LAMPS-UPPER.-G.F.
Baxi part no. 040944
£7.37
79 Part number 040787, Assy Shield/Label Controls LFE ASSY SHIELD/LABEL CONTROLS LFE
Baxi part no. 040787
£23.90
80   SCR-SET-M5X10-SLOT CHEESE
Baxi part no. 062415
£2.44
81   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
82   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

83 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
86 Part number 043136, ADAPTER-10mm TO 1/4in BSPT ADAPTER-10MM TO 1/4IN BSPT
Baxi part no. 043136

87 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875
£4.72
88   OBSOLETE GOVERNOR-SPECIAL
Baxi part no. 230746

89 Part number 043138, OBSOLETE ADAPTER-1/4in BSPT TO 6mm OBSOLETE ADAPTER-1/4IN BSPT TO 6MM
Baxi part no. 043138

90 Part number 092132, OBSOLETE FFD/GAS TAP-GAS FLAME SUPER OBSOLETE FFD/GAS TAP-GAS FLAME SUPER
Baxi part no. 092132

91 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

92 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462

92 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152
£3.64
93   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039BAX

93   OBSOLETE PIPE BURNER FEED FRONT ASSY
Baxi part no. 230039

94   OBSOLETE PIPE BURNER FEED REAR ASSY
Baxi part no. 230024

95   OBSOLETE PIPE ASSY FFD/GAS TAP SUPPLY
Baxi part no. 230021

96 Part number 043140, INJECTOR-CAT 18/260 INJECTOR-CAT 18/260
Baxi part no. 043140

97 Part number 043210, BURNER-TYPE 2-BER GF SUPER-NG BURNER-TYPE 2-BER GF SUPER-NG
Baxi part no. 043210

98 Part number 092137, ELECTRODE-GAS FLAME SUPER ELECTRODE-GAS FLAME SUPER
Baxi part no. 092137

99   SCR-SET-M4X12MM-PAN HD PZ ZNPD
Baxi part no. 062726

101 Part number 092136, THERMOCOUPLE-SITx400mm-INC.NUT THERMOCOUPLE-SITX400MM-INC.NUT
Baxi part no. 092136

102 Part number 043121, PIPE-FIRE SUPPLY-10mm DIA-G.F. PIPE-FIRE SUPPLY-10MM DIA-G.F.
Baxi part no. 043121

102 Part number 040959, SUPPLY PIPE SUPPLY PIPE
Baxi part no. 040959

103 Part number 043206, OBSOLETE COAL BED-TYPE 2-NG OBSOLETE COAL BED-TYPE 2-NG
Baxi part no. 043206

104   OBSOLETE SUPPORT - WALL FIXING - G.F.
Baxi part no. 220467
