BAXI
BERMUDA LFE5 SUPER - (Outer Case)
Appliance Code: 37-077-61

Appliance Diagram

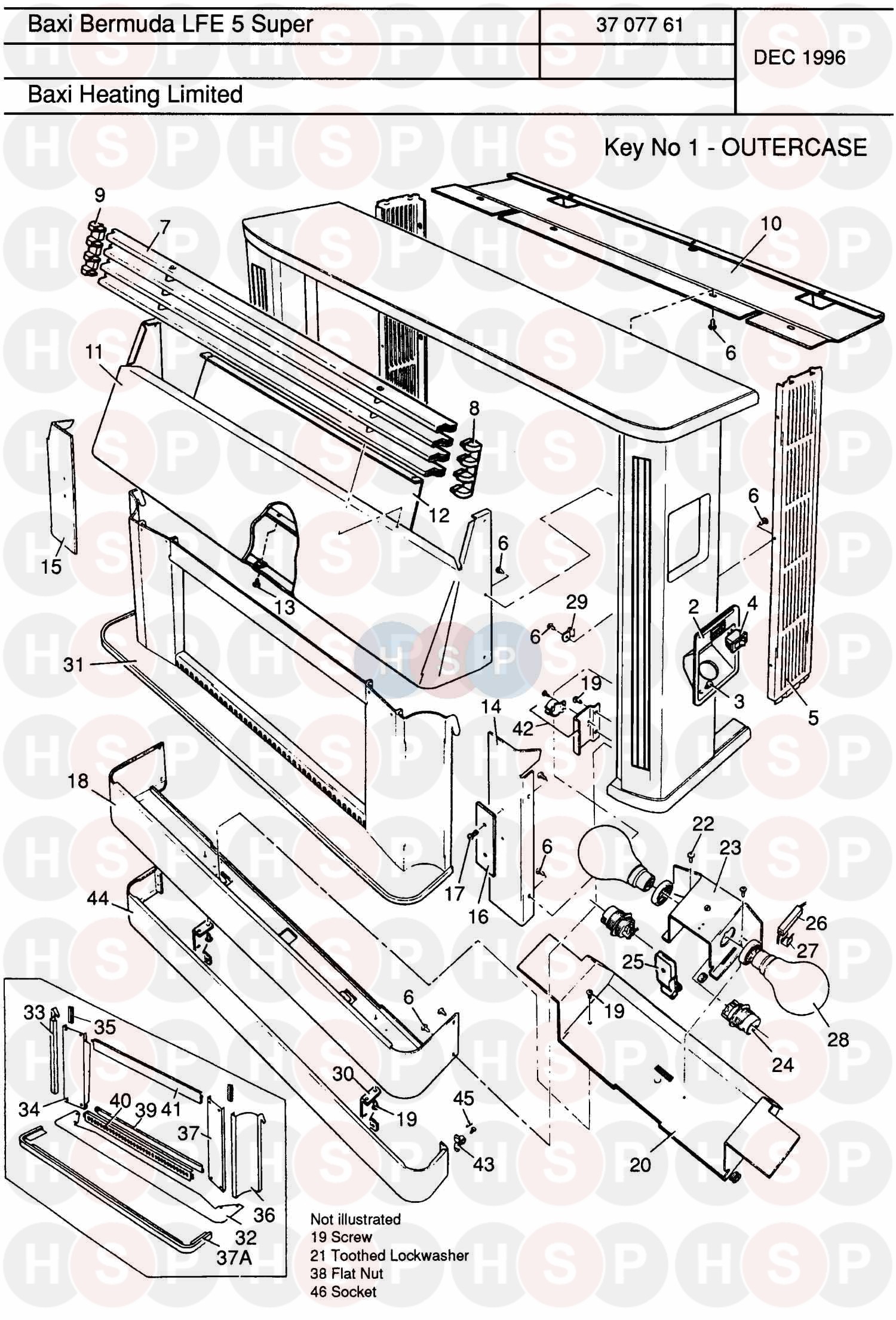

Outer Case diagram for Baxi Bermuda LFE5 Super Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0	OBSOLETE FITTING INSTRUCTIONS - BERMUDA Baxi part n^o. 237607
0	OBSOLETE USERS INSTRUCTIONS - BERMUDA Baxi part n^o. 237608
0	NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER Baxi part n^o. 230184
0	NOW USE 230282BAX KIT-KNOB CONTROL ADAPT-GF/LFE3 Baxi part n^o. 230282
0	NOW USE 230272BAX KNOB CONTROL INNER ADAPTER Baxi part n^o. 230272
0	KNOB CONTROL OUTER ADAPTER Baxi part n^o. 230184BAX	£13.40
0	KNOB CONTROL INNER ADAPTER Baxi part n^o. 230272BAX	£8.41
0	KIT-KNOB CONTROL ADAPT-GF/LFE3 Baxi part n^o. 230282BAX	£20.11
1	OBSOLETE OUTER CASE ASSY SPARES-LFE5 SUP Baxi part n^o. 238357
2	BEZEL - LFE5 Baxi part n^o. 237878
3	BUTTON-INDIC-UTD.CARR 70270-06 Baxi part n^o. 062595
4	SWITCH-ON/OFF Baxi part n^o. 228954
5	OBSOLETE DISTANCE PIECE SIDE GAS FL WL Baxi part n^o. 090120
6	SCR-NO 8X14TPIX1/2 HARDTWIN-WD Baxi part n^o. 042244	£2.18
7	OBSOLETE LOUVRE-ASSY-LFE SUPER Baxi part n^o. 090121
8	OBSOLETE CAP LOUVRE END RH Baxi part n^o. 092096
9	OBSOLETE CAP LOUVRE END LH Baxi part n^o. 092097
10	OBSOLETE CHANNEL-CASE TOP-GAS FL WS Baxi part n^o. 090122
11	OBSOLETE CANOPY-GAS FLAME WL/LFE5 SUPER Baxi part n^o. 092109
12	OBSOLETE SHIELD HEAT CANOPY LFE Baxi part n^o. 223348
13	SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB Baxi part n^o. 062731	£2.47
14	OBSOLETE BRKT-HEARTH LOC-RH GAS FL WS Baxi part n^o. 090133
15	BRKT-HEARTH LOC-LH GAS FL WS Baxi part n^o. 090132	£2.99
16	OBSOLETE LABEL - USERS CAUTION Baxi part n^o. 045418
17	OBSOLETE PAPERCLIP - BRASS Baxi part n^o. 042934
18	OBSOLETE PANEL-HEARTH-BER LFE 3 Baxi part n^o. 092119
19	SCR-ST-NO 8X3/8IN POZI FL.HD A Baxi part n^o. 062548	£3.01
20	OBSOLETE KIT-REFLECTOR LAMPS LOWER Baxi part n^o. 225694
21	OBSOLETE WASHER-LOCK EXT.M5 ST.ZPL Baxi part n^o. 112065
22	SCR-TF-M4 X 6MM PAN POZI ZN P Baxi part n^o. 062560	£3.12
23	OBSOLETE BOX-ELECTRIC ASSY-GAS FL WS Baxi part n^o. 090144
24	OBSOLETE Baxi part n^o. 225151
25	OBSOLETE PLUG - 3-PIN Baxi part n^o. 042971
25	OBSOLETE PLUG & SOCKET 3 PIN Baxi part n^o. 5134533
26	OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF Baxi part n^o. 047023
26	OBSOLETE RESISTOR Baxi part n^o. 228955
27	CLIP-RESISTOR Baxi part n^o. 043174	£2.20
28	LAMP-60 WATT-RED Baxi part n^o. 042261
29	CLIP-CABLE.RICHCO.WHC250N Baxi part n^o. 043219	£1.63
30	OBSOLETE BRKT-CASE FIXING.GAS FLAME WS Baxi part n^o. 090125
31	OBSOLETE REFLECTOR-ASSY-LFE RANGE Baxi part n^o. 090156
32	OBSOLETE COVER-PANEL HEARTH ASSY-WS/WL Baxi part n^o. 092122
33	OBSOLETE TRIM-HEARTH-OUTER LH-GAS FL WS Baxi part n^o. 092099
35	CLIP-EDGE-SPR.STEEL Baxi part n^o. 102010	£2.04
36	OBSOLETE TRIM-HEARTH-OUTER RH GAS FL WS Baxi part n^o. 092101
37	OBSOLETE TRIM - PANEL - HEARTH Baxi part n^o. 092098
37	OBSOLETE TRIM HEARTH-RH-GAS FLAME WS Baxi part n^o. 090138
38	NUT-FLAT-NO8-LEWIS SPR-401/11 Baxi part n^o. 042870	£2.25
39	OBSOLETE STRAP-LOWER-GAS FL WS Baxi part n^o. 090127
40	OBSOLETE DIFFUSER-LIGHT-GAS FL WS Baxi part n^o. 090128
42	OBSOLETE BRKT CLIP RETAINING ASSY S2&C3 Baxi part n^o. 040971
43	OBSOLETE BUTTON-INDICATOR-BROWN. Baxi part n^o. 231665
43	OBSOLETE CLIP-MALE-TERRY 487-605 Baxi part n^o. 062593
44	OBSOLETE ASSY COVER CONTROLS-LFE3 SUPER Baxi part n^o. 224767
44	OBSOLETE CONTROLS COVER ASSY - LFE5 Baxi part n^o. 237941
45	SCR-ST-NO6X3/8 PAN HD PZ ZP Baxi part n^o. 062699	£3.12
46	OBSOLETE SOCKET-3 PIN-ASSY Baxi part n^o. 040640
47	HEAT EXCHANGER Baxi part n^o. 040933
47	ASSY HEAT EXCHANGER GF(SPARES) Baxi part n^o. 248445
48	TRIM - HEAT EXCHANGER - G.F. Baxi part n^o. 040934
49	OBSOLETE BOX-COMB.ASSY-BERM.LFE3 SUPER Baxi part n^o. 225130
50	NUT-CAPT-U-TYPE-NO8 ZNPD CHRM Baxi part n^o. 102012	£3.12
51	BRKT-BURNER SUPP.ASSY-BER.GF Baxi part n^o. 040985	£2.68
52	OBSOLETE GASKET HEAT EXCHANGER Baxi part n^o. 229308
53	SEAL-GLASS FRAME-GF Baxi part n^o. 043111
54	OBSOLETE CHANNEL GLASS FRAME SUPPORT Baxi part n^o. 225195
55	OBSOLETE BACK PLATE Baxi part n^o. 040336
56	OBSOLETE DEFLECTOR-HEAT-GAS FL WS Baxi part n^o. 090153
57	OBSOLETE TAPPING SCREW ISO NO. 8AB X 19 RECESSED PA Baxi part n^o. 062748
58	WASHER-PLAIN-5MM ZINC PLTD Baxi part n^o. 062447	£2.36
59	OBSOLETE SHIELD-HEAT-FLUE-LFE 3 Baxi part n^o. 040001
60	OBSOLETE DIVERTER-DOWNDRAFT-SPIGOT Baxi part n^o. 040002
62	NOW USE 236892BAX FRAME MOUNTING Baxi part n^o. 236892
62	FRAME MOUNTING Baxi part n^o. 236892BAX	£9.11
63	OBSOLETE SHIELD HEAT CONTROLS Baxi part n^o. 237724
64	OBSOLETE PLATE-BACKING-BER LFE 3 Baxi part n^o. 090130
65	SCR-TF-M5X8MM-PAN POZI ZN PD Baxi part n^o. 062531	£3.12
66	BRACKET SPINDLE SUPPORT LFE3 Baxi part n^o. 040004	£4.39
66	OBSOLETE SPINDLE-EXTENSION-BER LFE 3 Baxi part n^o. 092104
66	PIN-SPLIT-2.5O X 15MM Baxi part n^o. 092124
67	BRKT-GAS TAP MOUNT-BER LFE 3 Baxi part n^o. 090131	£10.62
69	SCR-SET-M8X35MM-HEX.HD.BLK Baxi part n^o. 062749	£2.33
70	CAP-PROTECTION Baxi part n^o. 227313	£1.87
71	OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369 Baxi part n^o. 062723
72	SPARES ASSY FRAME/GLASS GF Baxi part n^o. 040955	£168.60
73	REFLECTOR-LAMPS-UPPER.-G.F. Baxi part n^o. 040944	£7.37
74	SCR-ST-NO8X3/8-FL.HD POZ B Baxi part n^o. 062648
75	ASSY SHIELD/LABEL CONTROLS LFE Baxi part n^o. 040787	£23.90
76	MIRROR-PILOT-G.F. Baxi part n^o. 043142
77	SCR-ST-NO8X1/2 POZI FLANGE Baxi part n^o. 062549	£3.12
78	CONTROL KNOB KIT Baxi part n^o. 240829
79	OBSOLETE FILTER PILOT Baxi part n^o. 082412
80	ADAPTER - 1" BSP TO 22MM COMP Baxi part n^o. 230192
80	ADAPTER Baxi part n^o. 232023
81	NUT-HEXAGON LOCK-3/8 BSP Baxi part n^o. 042875	£4.72
82	GAS TAP Baxi part n^o. 235335	£111.74
82	OBSOLETE GAS TAP - LPG Baxi part n^o. 237100
83	MAGNETIC UNIT-BRAZILIA 8000 C Baxi part n^o. 082462
84	IGNITOR-PIEZO-REF 66111 (VERN) Baxi part n^o. 042941
85	NUT-HEXAGON.LOCK-1/4" BSP Baxi part n^o. 043152	£3.64
86	OBSOLETE PIPE-FFD/GAS TAP-LFE 3-NG Baxi part n^o. 043211
87	PIPE BRNR FEED Baxi part n^o. 090146
87	PIPE-BURNER FEED FRNT-GAS F WS Baxi part n^o. 092106
88	PIPE-BURNER FEED REAR-GAS F WS Baxi part n^o. 092107	£4.27
88	OBSOLETE PIPE BRNR FEED REAR.N&O WS Baxi part n^o. 090147
89	OBSOLETE INJECTOR-FIRE-CAT 18/230 Baxi part n^o. 092133
90	BURNER - LPG Baxi part n^o. 237209
90	BURNER-TYPE 2-BER GF SUPER-NG Baxi part n^o. 043210
91	BURNER-PILOT-SENSING Baxi part n^o. 235601	£54.50
91	OXYPILOT - LPG Baxi part n^o. 237079
93	BRACKET MOUNTING PILOT Baxi part n^o. 236074	£4.35
94	NOW USE 236848BAX LIGHT SHIELD Baxi part n^o. 236848
94	LIGHT SHIELD Baxi part n^o. 236848BAX	£4.22
95	ELECTRODE LEAD Baxi part n^o. 237813
96	OBSOLETE SLEEVE ELECTRODE 405MM Baxi part n^o. 236218
97	OBSOLETE COAL BED Baxi part n^o. 235149
97	OBSOLETE COAL BED - LPG Baxi part n^o. 237221
98	OBSOLETE PIPE-FFD/GAS TAP SUPPLY-GF SUP Baxi part n^o. 225133
98	PIPE-FIRE SUPPLY-10MM DIA-G.F. Baxi part n^o. 043121
98	SUPPLY PIPE Baxi part n^o. 040959
99	OBSOLETE BRACKET-WALL FIXING Baxi part n^o. 222960
