BAXI
BERMUDA INSET BS - (Assembly 2)
Appliance Code: 37-077-41

Appliance Diagram


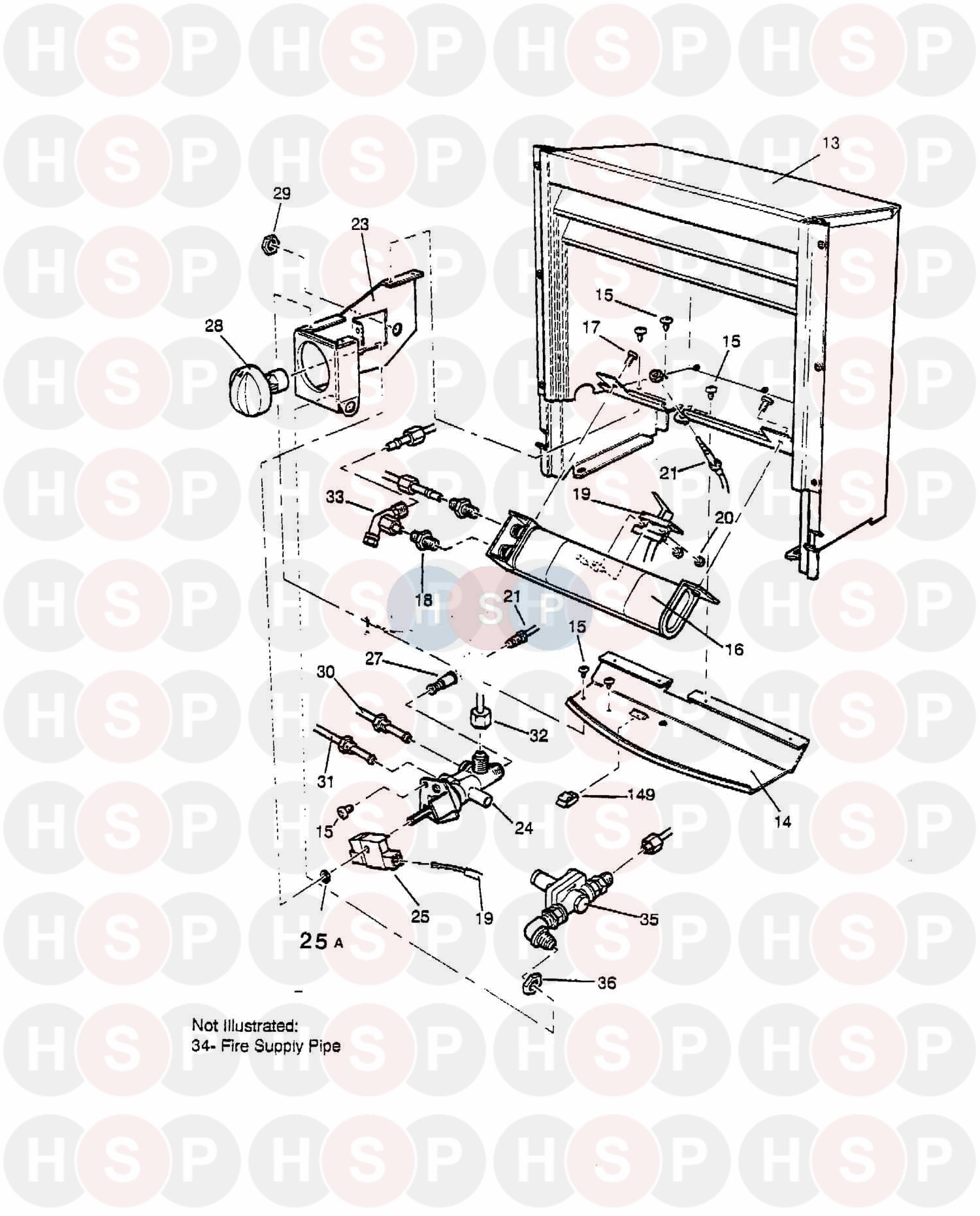

Assembly 2 diagram for Baxi Bermuda Inset BSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRAME SURROUND INSET - BRASS
Baxi part no. 233590

2   OBSOLETE FIREFRONT-ASSEMBLY
Baxi part no. 234965

3   OBSOLETE SHIELD FIRE ASSEMBLY (TS & BS)
Baxi part no. 234355

8   OBSOLETE COVER FIRE FRONT - INSET BS
Baxi part no. 237526

9   SCR-SET-M4X12MM-PAN HD PZ ZNPD
Baxi part no. 062726

9   OBSOLETE RING-FIREFRONT
Baxi part no. 233587

10 Part number 234742, OBSOLETE OBSOLETE
Baxi part no. 234742

13   OBSOLETE GAS VALVE SECURING BRKT.
Baxi part no. 236192

14   OBSOLETE INSET HEAT SHIELD EXT KIT
Baxi part no. 237098

14   OBSOLETE SHIELD HEAT FRONT CONTROLS
Baxi part no. 233655

15 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
16   OBSOLETE BURNER FIRE
Baxi part no. 233548

17   OBSOLETE SCREW-SET-M5X8-HEX-ST/STEEL
Baxi part no. 235283

18   OBSOLETE INJECTOR-F07
Baxi part no. 234084

19 Part number 233880, OBSOLETE ELECTRODE-BURNER OBSOLETE ELECTRODE-BURNER
Baxi part no. 233880

20   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440
£3.01
21 Part number 226875, THERMOCOUPLE THERMOCOUPLE
Baxi part no. 226875

21 Part number 230677, THERMOCOUPLE-750 mm LONG. THERMOCOUPLE-750 MM LONG.
Baxi part no. 230677

23   OBSOLETE BRACKET MOUNTING GAS TAP 235112 37-077-41
Baxi part no. 235112

24   OBSOLETE GAS TAP-FFD/IGN-FIRE
Baxi part no. 233679

25 Part number 239289, KIT - PIEZO IGNITION KIT - PIEZO IGNITION
Baxi part no. 239289

25 Part number 236244, SPARK GEN TE/SA/1065 SPARK GEN TE/SA/1065
Baxi part no. 236244

25 Part number 236259, OBSOLETE CIRCLIP OBSOLETE CIRCLIP
Baxi part no. 236259

27 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462

29   OBSOLETE NUT HEX LOCK M15 X 1
Baxi part no. 234666

30   OBSOLETE PIPE-FEED-OUTER-BURNER-ASSY
Baxi part no. 233890

31   OBSOLETE PIPE-FEED-REAR-BURNER-ASSY
Baxi part no. 233889

32   OBSOLETE PIPE FEED GAS TAP ASSEMBLED
Baxi part no. 233892

33   OBSOLETE ADAPTER-GAS TAP/PIPE REAR FEED
Baxi part no. 225608

35   OBSOLETE GOVERNOR-GAS
Baxi part no. 234144

36 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152
£3.64
