BAXI
BERMUDA INSET 50/4 ASD - (Controls Assembly)
Appliance Code: 44-075-01

Appliance Diagram


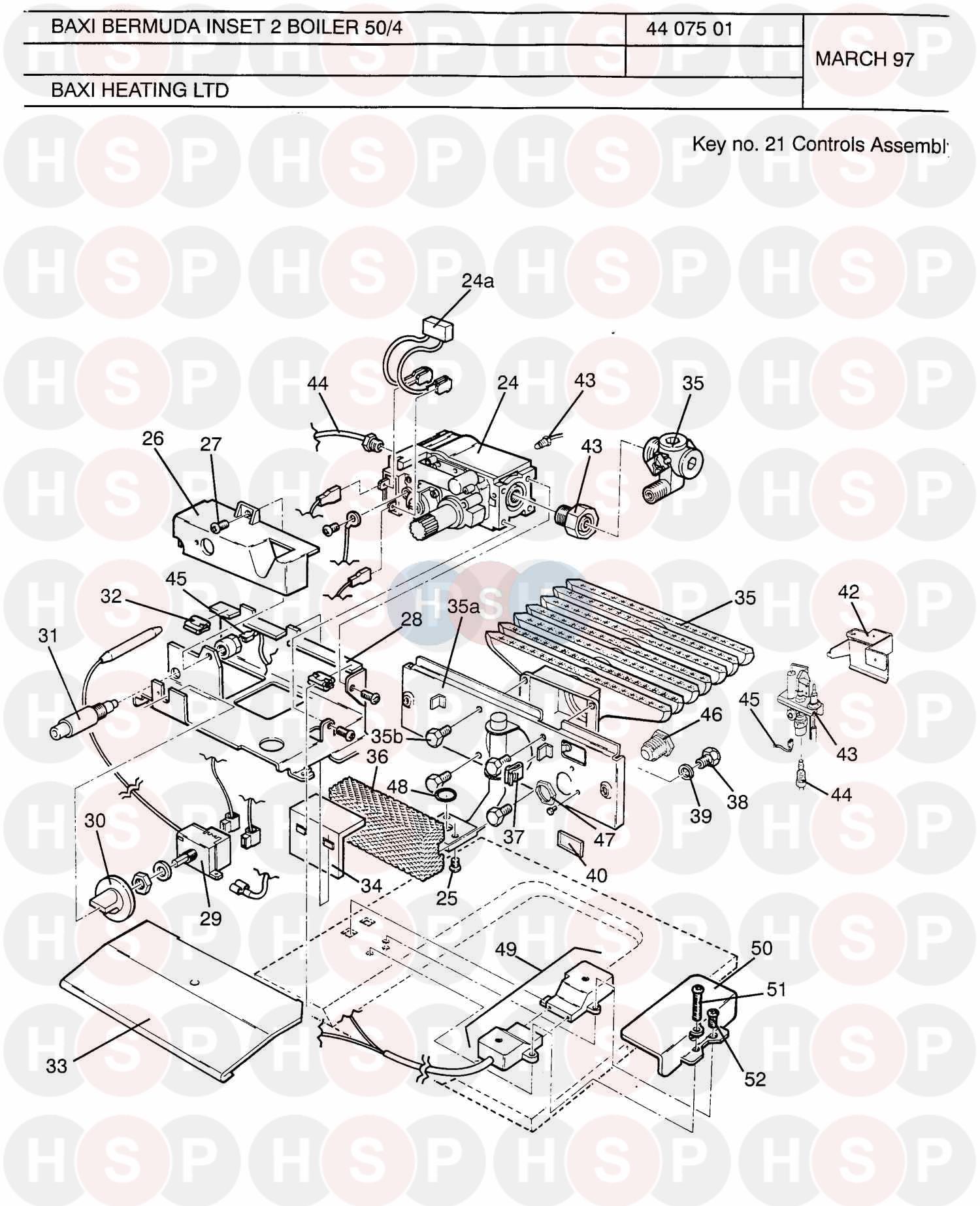

Controls Assembly diagram for Baxi Bermuda Inset 50/4 ASDClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE COMBUSTION BOX ASSEMBLY
Baxi part no. 239283
2 Part number 233605, HOOD ASSEMBLY HOOD ASSEMBLY
Baxi part no. 233605		 £12.29
3 Part number 062431, SCR-SET-M5 x 8mm-HEX HD ZNPD SCR-SET-M5 X 8MM-HEX HD ZNPD
Baxi part no. 062431		 £3.16
4   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
5 Part number 233851, INSULATION-BACK-HEAT EXCH INSULATION-BACK-HEAT EXCH
Baxi part no. 233851
6   PANEL-BACK-COMB/BOX
Baxi part no. 233296		 £7.39
7   SCR-TF-M5X8MM POZI-HEX-ZN PD
Baxi part no. 232742
8 Part number 231176, INSULATION-BACK-COMB-BOX INSULATION-BACK-COMB-BOX
Baxi part no. 231176		 £12.65
9 Part number 233601, INSULATION-SIDE-COMB-BOX INSULATION-SIDE-COMB-BOX
Baxi part no. 233601		 £12.65
10   BRACKET SUPPORT INSULATION
Baxi part no. 233599		 £11.39
12 Part number 230854, PANEL DOOR COM BOX PANEL DOOR COM BOX
Baxi part no. 230854
13 Part number 231177, INSULATION-FRONT-COMB-BOX INSULATION-FRONT-COMB-BOX
Baxi part no. 231177		 £12.65
14 Part number 042855, PLUG-BUTTON COMB BOX F/PANEL PLUG-BUTTON COMB BOX F/PANEL
Baxi part no. 042855
15 Part number 102028, SEAL-THERMOSTAT PHIAL. SEAL-THERMOSTAT PHIAL.
Baxi part no. 102028		 £8.26
16   CLIP-CABLE-FLARED EDGE
Baxi part no. 043131		 £8.89
17 Part number 062650, SCR-SET-M5 x 12mm-PAN PZ ZNPD SCR-SET-M5 X 12MM-PAN PZ ZNPD
Baxi part no. 062650		 £3.16
19 Part number 237146, PIPE CLIP PIPE CLIP
Baxi part no. 237146
20 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
21   OBSOLETE BERMUDA CONTROLS OPN 3 INSET
Baxi part no. 238985
22 Part number 231601, OBSOLETE GAS-TAP-SERVICE-3-WAY OBSOLETE GAS-TAP-SERVICE-3-WAY
Baxi part no. 231601
23 Part number 230192, ADAPTER - 1" BSP TO 22mm COMP ADAPTER - 1" BSP TO 22MM COMP
Baxi part no. 230192
24 Part number 040884, KIT-TV INTERFERENCE SUPP-72 KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040884		 £14.71
24 Part number 236129BAX, KIT VALVE KIT VALVE
Baxi part no. 236129BAX
24 Part number 040046, NOW USE 040884 SUPPRESSOR NOW USE 040884 SUPPRESSOR
Baxi part no. 040046
24 Part number 236129, KIT VALVE HONEYWELL KIT VALVE HONEYWELL
Baxi part no. 236129
26   OBSOLETE HOUSING-THERMOSTAT
Baxi part no. 233687
28   OBSOLETE BRACKET MTG CONTROLS
Baxi part no. 233916
29 Part number 233952, THERMOSTAT-BOILER THERMOSTAT-BOILER
Baxi part no. 233952		 £19.75
30 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717
31 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
32 Part number 043129, CLIP-EDGE-S TYPE CLIP-EDGE-S TYPE
Baxi part no. 043129		 £2.01
33   OBSOLETE SHIELD-HEAT-CONTROLS
Baxi part no. 234092
34   OBSOLETE NOISE PAD ASSY
Baxi part no. 236242
35 Part number 238652, BURNER BOILER ASSEMBLY BURNER BOILER ASSEMBLY
Baxi part no. 238652
35   OBSOLETE PLATE MOUNTING C/W BURNER FEED PIPE
Baxi part no. 239386
36   NOW USE 238351BAX LINT ARRESTOR
Baxi part no. 238351
36   LINT ARRESTOR
Baxi part no. 238351BAX		 £7.20
38   OBSOLETE INJECTOR-B19
Baxi part no. 234014
39 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
39 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3.14
40 Part number 102117, WINDOW-VIEWING-WM532/381RS WINDOW-VIEWING-WM532/381RS
Baxi part no. 102117
41 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
43 Part number 240117BAX, PILOT ASSEMBLY KIT PILOT ASSEMBLY KIT
Baxi part no. 240117BAX		 £46.16
43 Part number 240117, NOW USE 240117BAX PILOT ASSEMBLY KIT NOW USE 240117BAX PILOT ASSEMBLY KIT
Baxi part no. 240117
44   OBSOLETE PILOT FEED PIPE ASSEMBLED
Baxi part no. 238989
45   ELECTRODE LEAD (SPARK)
Baxi part no. 237811		 £12.28
46   ADAPTER 3/8 BSP
Baxi part no. 238317
46   ADAPTER 3/8 BSP
Baxi part no. 238317BAX
47 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875		 £4.72
48   OBSOLETE O RING-17MM-I/D X 2MM THICK
Baxi part no. 232530
49   OBSOLETE KIT PLUG AND SOCKET - INSET
Baxi part no. 236241
51   OBSOLETE SCREW TF M4X25 POZI PN TAPTITE
Baxi part no. 230840
53 Part number 233583, HEAT EXCHANGER HEAT EXCHANGER
Baxi part no. 233583
53 Part number 248423, INSET HEAT EXCHANGER - SPARES INSET HEAT EXCHANGER - SPARES
Baxi part no. 248423
54 Part number 235544, SEAL-HT/EXCH-SILICONE-SIDE SEAL-HT/EXCH-SILICONE-SIDE
Baxi part no. 235544		 £11.77
55   BAFFLE TOP HEAT EXCH
Baxi part no. 239085		 £6.32
56 Part number 233527, PLATE BAFFLE CENTRE PLATE BAFFLE CENTRE
Baxi part no. 233527		 £12.53
57 Part number 233558, GASKET-BOILER-SILICONE(Green) GASKET-BOILER-SILICONE(GREEN)
Baxi part no. 233558
59 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.12
