BAXI
BERMUDA INSET 2 BS - (Surround/Fender)
Appliance Code: 37-075-13

Appliance Diagram

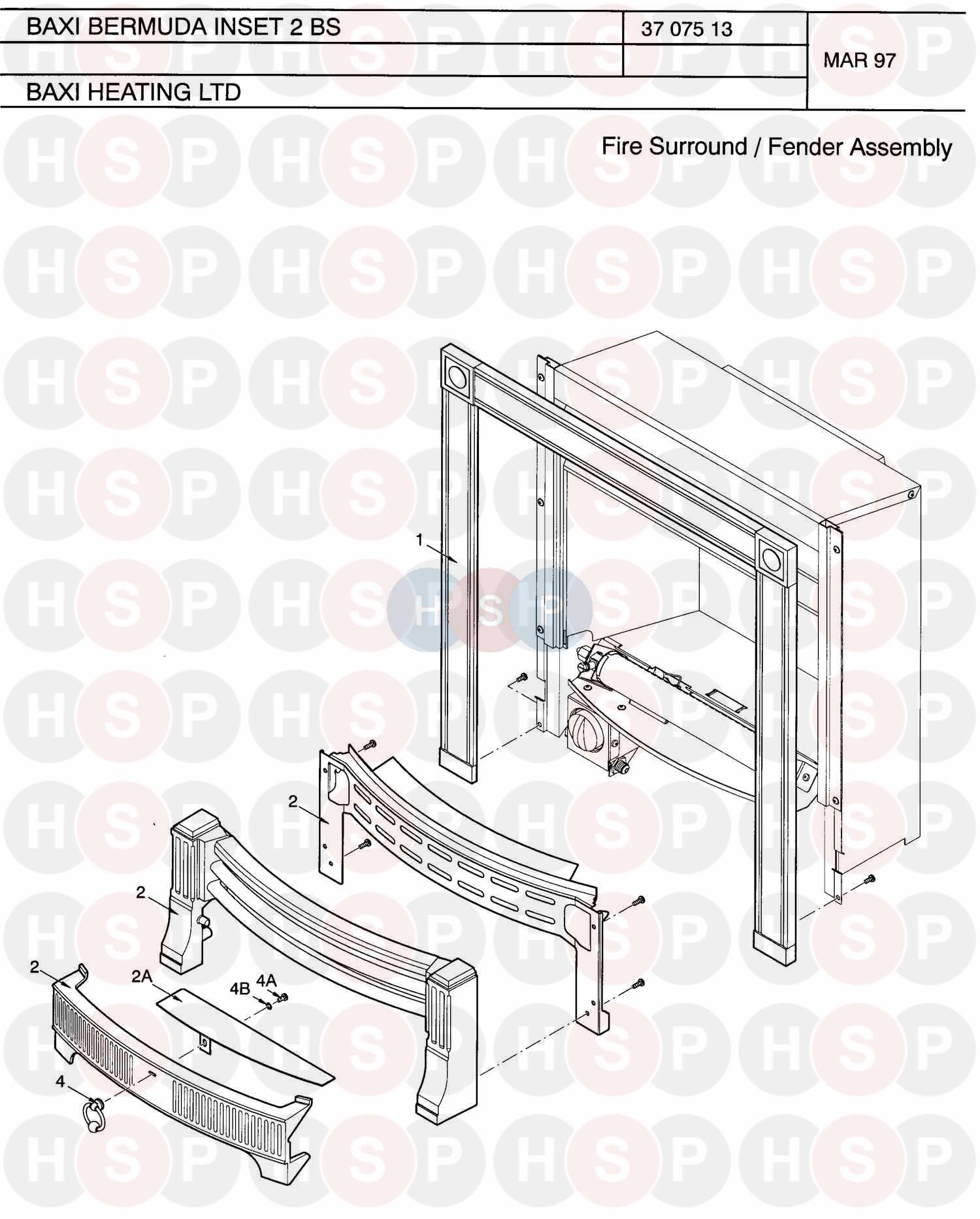

Surround/Fender diagram for Baxi Bermuda Inset 2 BSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE PIPE SUPPLY FIRE - ASSEMBLED
Baxi part no. 239294

1   OBSOLETE FRAME SURROUND INSET2 - BLACK
Baxi part no. 239135

1   OBSOLETE FRAME SURROUND INSET - BRASS
Baxi part no. 233590

2   OBSOLETE FIREFRONT FENDER ASSY - KS2
Baxi part no. 245823

2   OBSOLETE SHIELD CENTRE VIEW
Baxi part no. 239159

2   OBSOLETE
Baxi part no. 238994

2   OBSOLETE
Baxi part no. 239299

2   OBSOLETE FIREFRONT ASSEMBLY - TS2
Baxi part no. 238932

3   OBSOLETE FINIALS - FS
Baxi part no. 239284

3   OBSOLETE CLIP EDGE
Baxi part no. 220449

3   OBSOLETE FINIAL-FIREFRONT
Baxi part no. 233586

4   OBSOLETE RING-FIREFRONT
Baxi part no. 233587

4   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451

4   SCR-SET-M4X12MM-PAN HD PZ ZNPD
Baxi part no. 062726

5   OBSOLETE ASSY BOX COMBUSTION
Baxi part no. 237550

5 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012
£3.12
5   OBSOLETE BOX COMBUSTION INSET 2(SPARES)
Baxi part no. 239270

6   OBSOLETE PANEL MOUNTING CONTROLS
Baxi part no. 238721

7   OBSOLETE GAS TAP MOUNTING BRACKET
Baxi part no. 238739

8 Part number 244861, OBSOLETE GAS TAP FFD/IGN FIRE OBSOLETE GAS TAP FFD/IGN FIRE
Baxi part no. 244861

9 Part number 239289, KIT - PIEZO IGNITION KIT - PIEZO IGNITION
Baxi part no. 239289

10 Part number 239413, ELECTRO MAGNET ELECTRO MAGNET
Baxi part no. 239413

11   OBSOLETE BEZEL - INSET 2
Baxi part no. 238751

12   OBSOLETE CONTROL-KNOB-ASSEMBLY
Baxi part no. 236295

13   OBSOLETE BURNER
Baxi part no. 238885

13   OBSOLETE BURNER FIRE ASSEMBLY
Baxi part no. 241537

14   OBSOLETE ELBOW INLET
Baxi part no. 238889

14 Part number 043152, NUT-HEXAGON.LOCK-1/4" BSP NUT-HEXAGON.LOCK-1/4" BSP
Baxi part no. 043152
£3.64
15 Part number 238943, OBSOLETE PIPE FEED PILOT - ASSEMBLED OBSOLETE PIPE FEED PILOT - ASSEMBLED
Baxi part no. 238943

16   OBSOLETE PIPE FEED GAS TAP - ASSEMBLED
Baxi part no. 238806

17   OBSOLETE PIPE FEED BURNER - ASSEMBLED
Baxi part no. 238804

18   OBSOLETE PILOT/ASD ASSEMBLY
Baxi part no. 238087

18 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532
£3.01
18 Part number 236204, BURNER PILOT SENSING BURNER PILOT SENSING
Baxi part no. 236204

18 Part number 236204BAX, BURNER PILOT SENSING BURNER PILOT SENSING
Baxi part no. 236204BAX

19 Part number 243038BAX, INJECTOR F15 (or 90) INJECTOR F15 (OR 90)
Baxi part no. 243038BAX

19 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908
£3.14
19 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695

19 Part number 243038, INJECTOR F15 (or 90) INJECTOR F15 (OR 90)
Baxi part no. 243038

19   OBSOLETE INJECTOR (F14)
Baxi part no. 238942

20 Part number 236493, LEAD ELECTRODE 285mm LONG LEAD ELECTRODE 285MM LONG
Baxi part no. 236493

21   OBSOLETE SLEEVE-6MM-ELAS.GLS/FIBX290MM
Baxi part no. 227051

22 Part number 238840, OBSOLETE COAL BED - BASE OBSOLETE COAL BED - BASE
Baxi part no. 238840

23 Part number 239278, OBSOLETE COAL BED - SIDE CHEEKS & BACK OBSOLETE COAL BED - SIDE CHEEKS & BACK
Baxi part no. 239278

25 Part number 239280, OBSOLETE FRONT COALS OBSOLETE FRONT COALS
Baxi part no. 239280

26 Part number 239281, OBSOLETE COALS FITTED & LOOSE INSET 2 OBSOLETE COALS FITTED & LOOSE INSET 2
Baxi part no. 239281
