BAXI
BARBICAN - (Heat Exchanger)
Appliance Code: 32-077-20

Appliance Diagram


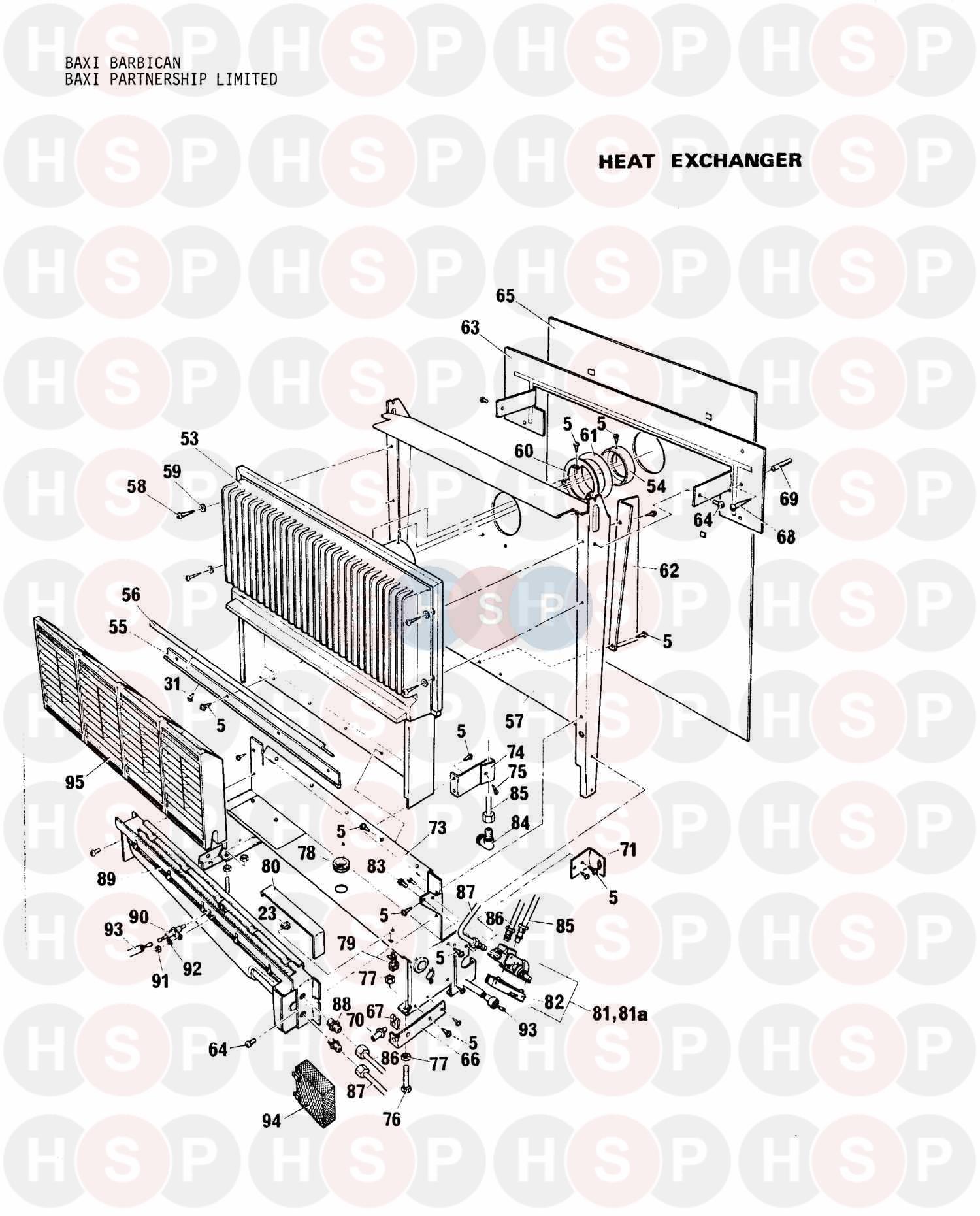

Heat Exchanger diagram for Baxi BarbicanClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 230184, NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER NOW USE 230184BAX KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184

0   OBSOLETE KIT-KNOB CONT ADAPT-B/BEL/BARB
Baxi part no. 230285

0   OBSOLETE FITTING INSTRUCTIONS
Baxi part no. 230280

0   OBSOLETE KNOB CONTROL INNER ADAPTER
Baxi part no. 230275

0 Part number 230184BAX, KNOB CONTROL OUTER ADAPTER KNOB CONTROL OUTER ADAPTER
Baxi part no. 230184BAX
£13.40
1   OBSOLETE OUTER CASE
Baxi part no. 090082

2   OBSOLETE CANOPY ASSY(SEVILLE)BER B/BARB
Baxi part no. 040975

3   OBSOLETE KIT-PNL-TOP(SEVILLE)BER B/BARB
Baxi part no. 040976

4   OBSOLETE LOUVRE-ASSY-BERMUDA B
Baxi part no. 040618

5 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
6   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010
£2.04
7   OBSOLETE KIT-CANOPYF(SEVILLE)BER B/BARB
Baxi part no. 040977

8   OBSOLETE DISTANCE PIECE TOP-BER.B
Baxi part no. 040599

9   OBSOLETE DISTANCE PIECE-REAR-BER.B
Baxi part no. 040604

10   OBSOLETE DISTANCE PIECE-SIDE-BER.B
Baxi part no. 040600

11   OBSOLETE REFLECTOR-SIDE-LH-BERMUDA B
Baxi part no. 043018

12   OBSOLETE REFLECTOR-SIDE-RH-BERMUDA B
Baxi part no. 043019

13   OBSOLETE REFLECTOR-TOP-BERMUDA B
Baxi part no. 043020

14   OBSOLETE REFLECTOR-TRIM/MESH SUPP-BER B
Baxi part no. 043021

15   OBSOLETE BRKT-CANOPY/REFLECTOR FIXING
Baxi part no. 040603

16   OBSOLETE PANEL SIDE LH
Baxi part no. 040625

17   OBSOLETE PANEL SIDE RH
Baxi part no. 040626

18 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595

19 Part number 042776, OBSOLETE SWITCH-ROCKER-BROWN. OBSOLETE SWITCH-ROCKER-BROWN.
Baxi part no. 042776

20   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104

21   OBSOLETE PANEL-HEARTH-BERMUDA B
Baxi part no. 040627

22 Part number 043045, CLIP-SPRING-UTD.CARR REF.24840 CLIP-SPRING-UTD.CARR REF.24840
Baxi part no. 043045
£2.71
23   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539

24 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325

25   OBSOLETE ASSY BOX ELECTRICAL BERMUDA B
Baxi part no. 040628

26   OBSOLETE SCR-ST-NO8X5/8-HEX HD PZ ZP AB
Baxi part no. 062713

27   OBSOLETE WASHER-LOCK EXT.M5 ST.ZPL
Baxi part no. 112065

28   OBSOLETE WASHER-PLAIN-4MM-ZINC. PLTD
Baxi part no. 062446

29 Part number 042260, OBSOLETE LAMP HOLDER WITH RIM OBSOLETE LAMP HOLDER WITH RIM
Baxi part no. 042260

29 Part number 042260POT, LAMP HOLDER LAMP HOLDER
Baxi part no. 042260POT

30   OBSOLETE PLUG-3 PIN & LEADS-BERMUDA B
Baxi part no. 040629

31 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683
£2.53
32   GROMMET-RUBBER M36
Baxi part no. 042566
£8.25
33 Part number 042261, LAMP-60 WATT-RED LAMP-60 WATT-RED
Baxi part no. 042261

34   OBSOLETE LEG-FINIAL/ADJ.FOOT-LH-BER.B
Baxi part no. 043132

35   OBSOLETE LEG-FINIAL/ADJ.FOOT-RH-BER.B
Baxi part no. 043133

36   OBSOLETE TAPPING SCREW ISO NO. 8AB X 13 RECESSED FL
Baxi part no. 062651

37   RAIL-TOP/BOTTOM-ASSY.
Baxi part no. 043029
£94.31
38   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040776

39   NOW USE 043029KIT RAIL TOP BERMUDA B
Baxi part no. 040777

40   NOW USE 043029 KIT RAIL TOP BERMUDA B
Baxi part no. 040778

42   KIT-PIN-SECURING-BERMUDA B
Baxi part no. 040804
£16.14
43   KIT-MOTIF-ROSE-BERMUDA B
Baxi part no. 040807
£23.48
44   CLIP-SPRING-MOTIF-RETAINING.
Baxi part no. 043049

45   FIX PUSH ON 1/8IN
Baxi part no. 042499
£2.51
46   OBSOLETE MESH-GLASS SUPPORT-BER.B
Baxi part no. 040605

47   OBSOLETE GUARD-DRESS-BERMUDA B
Baxi part no. 043023

48   OBSOLETE COVER-CONTROLS-ASSY-BARBICAN
Baxi part no. 090070

51   OBSOLETE CABLE-CLAMP-ENOTS-340218-03
Baxi part no. 092062

53   OBSOLETE HEAT EXCHANGER
Baxi part no. 090072

54   OBSOLETE RESTRICTOR-FLUE
Baxi part no. 090073

55 Part number 040809, PLATE-MOUNTING-BERMUDA B PLATE-MOUNTING-BERMUDA B
Baxi part no. 040809
£9.86
56   RESTRICTOR-REAR-RADIANTS-BER B
Baxi part no. 040810
£9.12
57   OBSOLETE PLATE - BACK
Baxi part no. 090074

58   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706
£2.42
59   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447
£2.36
60   OBSOLETE COLLAR - TUBE FLUE
Baxi part no. 090076

61   OBSOLETE GASKET-FLUE-CLOSURE PLATE-BARB
Baxi part no. 092059

62   PLATE-VIEW RESTRICTOR-BER.B
Baxi part no. 040775
£4.83
63 Part number 040602, OBSOLETE PLATE-BACKING. SL/GF OBSOLETE PLATE-BACKING. SL/GF
Baxi part no. 040602

64 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531
£3.12
65   OBSOLETE KIT-CLOSURE PLATE-BELMONT DLUX
Baxi part no. 090077

66   OBSOLETE EXTENSION FOOT-BELMONT DELUXE
Baxi part no. 090081

67   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092

68   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

69 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
72 Part number 043032, OBSOLETE KNOB-GAS TAP CONTROL-BER B OBSOLETE KNOB-GAS TAP CONTROL-BER B
Baxi part no. 043032

73   OBSOLETE PANEL MOUNTING
Baxi part no. 040662

74   OBSOLETE BRACKET PIPE SECURING
Baxi part no. 090075

75 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571
£3.12
76   OBSOLETE SCR-SET-M8 X 35MM-HEX-HD ZNPD
Baxi part no. 062710

77 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597
£3.12
78 Part number 043053, GROMMET-RUB.9.3mm ID X 18mm OD GROMMET-RUB.9.3MM ID X 18MM OD
Baxi part no. 043053

79   CLIP-CABLE RETAINING PLASTIC.
Baxi part no. 042911

80   OBSOLETE INDICATOR-FLUE-PULL-BARBICAN
Baxi part no. 090080

81 Part number 042872, TAP-FIRE-CONTROL-IGNITOR ASSY TAP-FIRE-CONTROL-IGNITOR ASSY
Baxi part no. 042872

82 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

83   OBSOLETE SCR-SET-M4 X 6MM HX.HD.PZ.ZNPD
Baxi part no. 062715

85   OBSOLETE PIPE-INLET FEED & N/O-BARBICAN
Baxi part no. 090079

86   OBSOLETE PIPE-BRNR FEED ETC INNER BER B
Baxi part no. 040679

87   OBSOLETE PIPE-BRNR FEED NUTS&OLVS BER B
Baxi part no. 040683

89 Part number 043016, BURNER-DUPLEX BURNER-DUPLEX
Baxi part no. 043016

90 Part number 043026, ELECTRODE-SPARK-IGNITION ELECTRODE-SPARK-IGNITION
Baxi part no. 043026

91   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439
£3.01
93 Part number 043043, OBSOLETE LEAD-ELECTRODE-BER B. OBSOLETE LEAD-ELECTRODE-BER B.
Baxi part no. 043043

94 Part number 040799, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040799

94 Part number 040800, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040800

95 Part number 043025, RADIANT SINGLE-4 RAD CONVECTOR RADIANT SINGLE-4 RAD CONVECTOR
Baxi part no. 043025
