BAXI
830 COMBI - (Controls)
Appliance Code: 47-077-39

Appliance Diagram

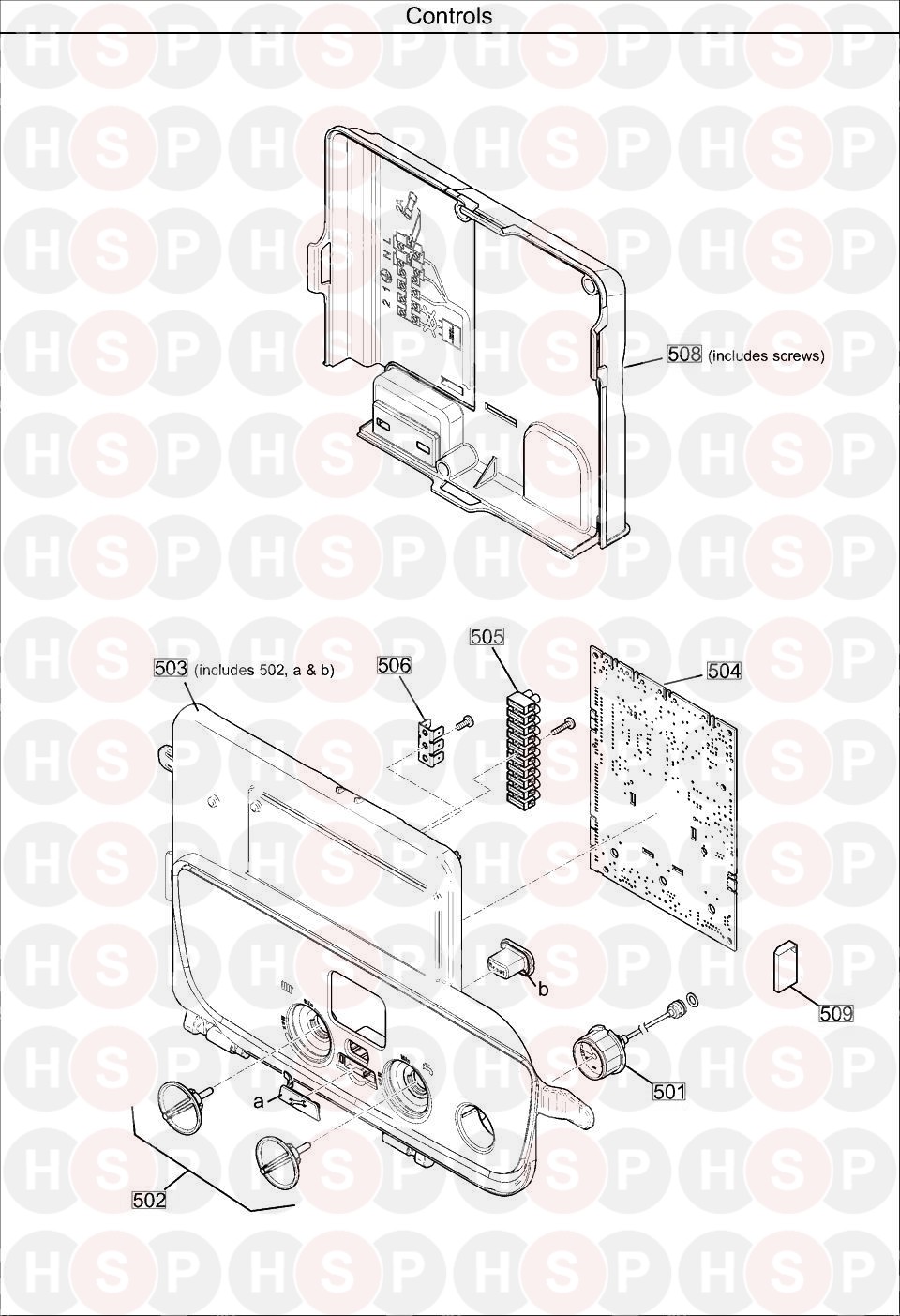

Controls diagram for Baxi 830 CombiClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

501   KIT PRESSURE GAUGE
Baxi part no. 7684005
£23.42
502   KIT CONTROL KNOB X2
Baxi part no. 7684007
£4.70
503   CONTROL COVER ASSEMBLY - COMBI
Baxi part no. 7739879
£35.73
504 Part number 7688421, KIT PCB COMBI/ SYSTEM KIT PCB COMBI/ SYSTEM
Baxi part no. 7688421
£129.59
505   TERMINAL BLOCK 10 POLES
Baxi part no. 720754101
£15.21
506   EARTH FASTON 6 CONNECTIONS
Baxi part no. 720755301
£9.54
508   KIT CONTROL REAR
Baxi part no. 7684017
£15.41
509   RDS - HDIMS COMBI 30-20CH
Baxi part no. 7690936
£27.79
