BAXI
32 SYSTEM ERP - (Combustion Box)
Appliance Code: 41-470-28

Appliance Diagram

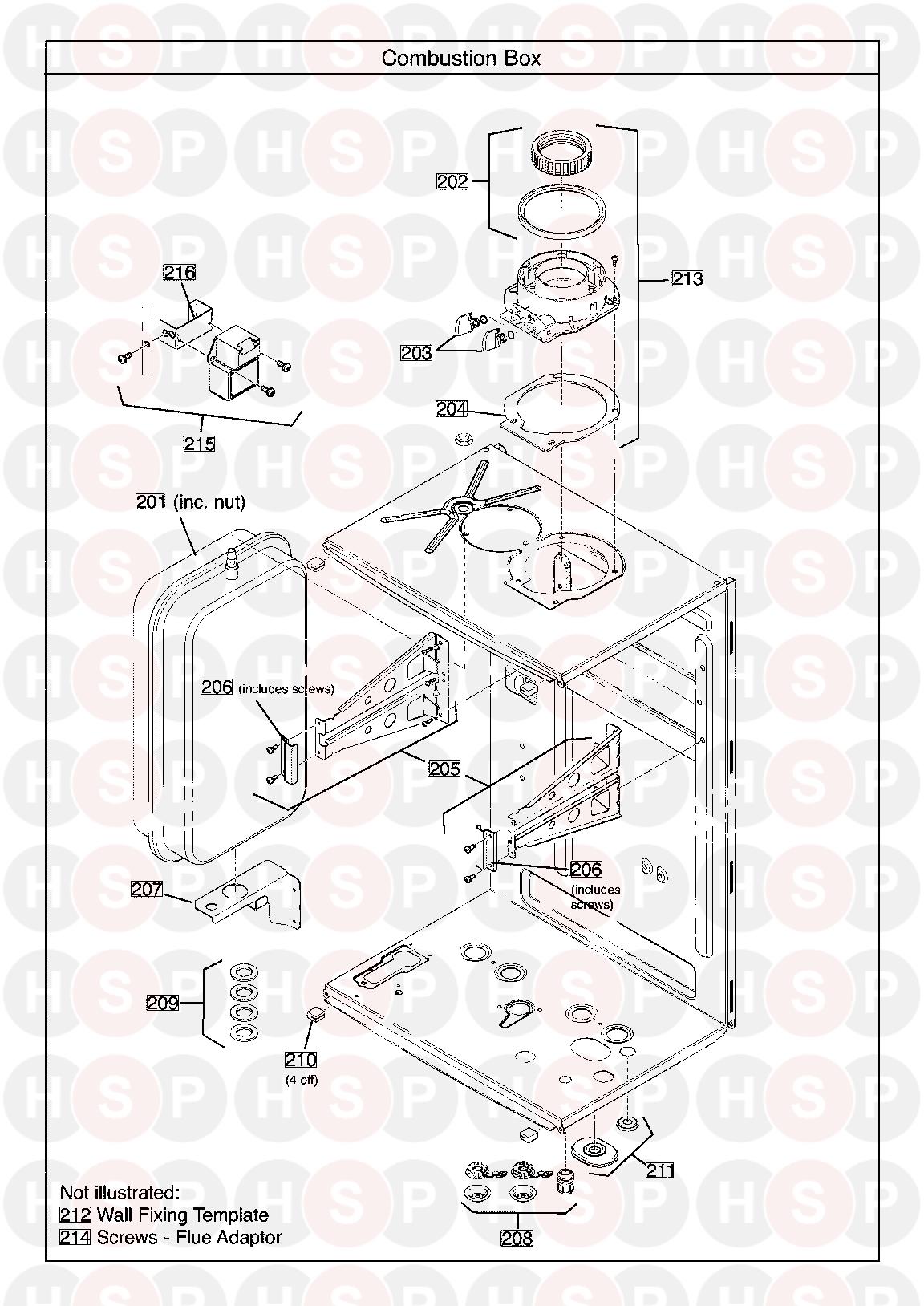

Combustion Box diagram for Baxi 32 System ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

201 Part number 720859501, EXPANSION VESSEL 10L EXPANSION VESSEL 10L
Baxi part no. 720859501
£89.38
202   NOW USE 7857597 FLUE GASKET KIT
Baxi part no. 7212905

202   FLUE GASKET KIT
Baxi part no. 7857597
£6.05
203 Part number 720850801, FLUE ADAPTER PLUG FLUE ADAPTER PLUG
Baxi part no. 720850801
£10.65
204   GASKET FLUE ADAPTER
Baxi part no. 720851001
£7.93
205   HT EXCH BRKT 6E-40KW
Baxi part no. 720782401
£28.80
206   HT EXCH FIXING PLATE
Baxi part no. 720782601
£9.35
207   EXPANS VESS MOUNT BRKT
Baxi part no. 720859701
£17.71
208   CABLE FIXING
Baxi part no. 720760901
£13.32
209 Part number 720782801, SEAL HYDRO GROUP SEAL HYDRO GROUP
Baxi part no. 720782801
£10.53
210   GASKET C FRAME - PACK OF 4
Baxi part no. 720761901
£7.27
211   GROMMET PRESSURE RELIEF VALVE
Baxi part no. 720761101
£18.42
212   TEMPLATE SYS 32
Baxi part no. 7215581
£15.67
213 Part number 720851201, FLUE ADAPTER FLUE ADAPTER
Baxi part no. 720851201
£29.30
214   SCREW ST 4.2 X13 (PACK OF 10)
Baxi part no. 7214224
£14.92
215 Part number 720913201, IGNITER ASSEMBLY IGNITER ASSEMBLY
Baxi part no. 720913201
£35.29
216   IGNITER SUPPORT BRKT & SCREW
Baxi part no. 720913401
£16.69
