BAXI
3 PF 30 SYSTEM - (Wiring Harness)
Appliance Code: 41-075-12

Appliance Diagram

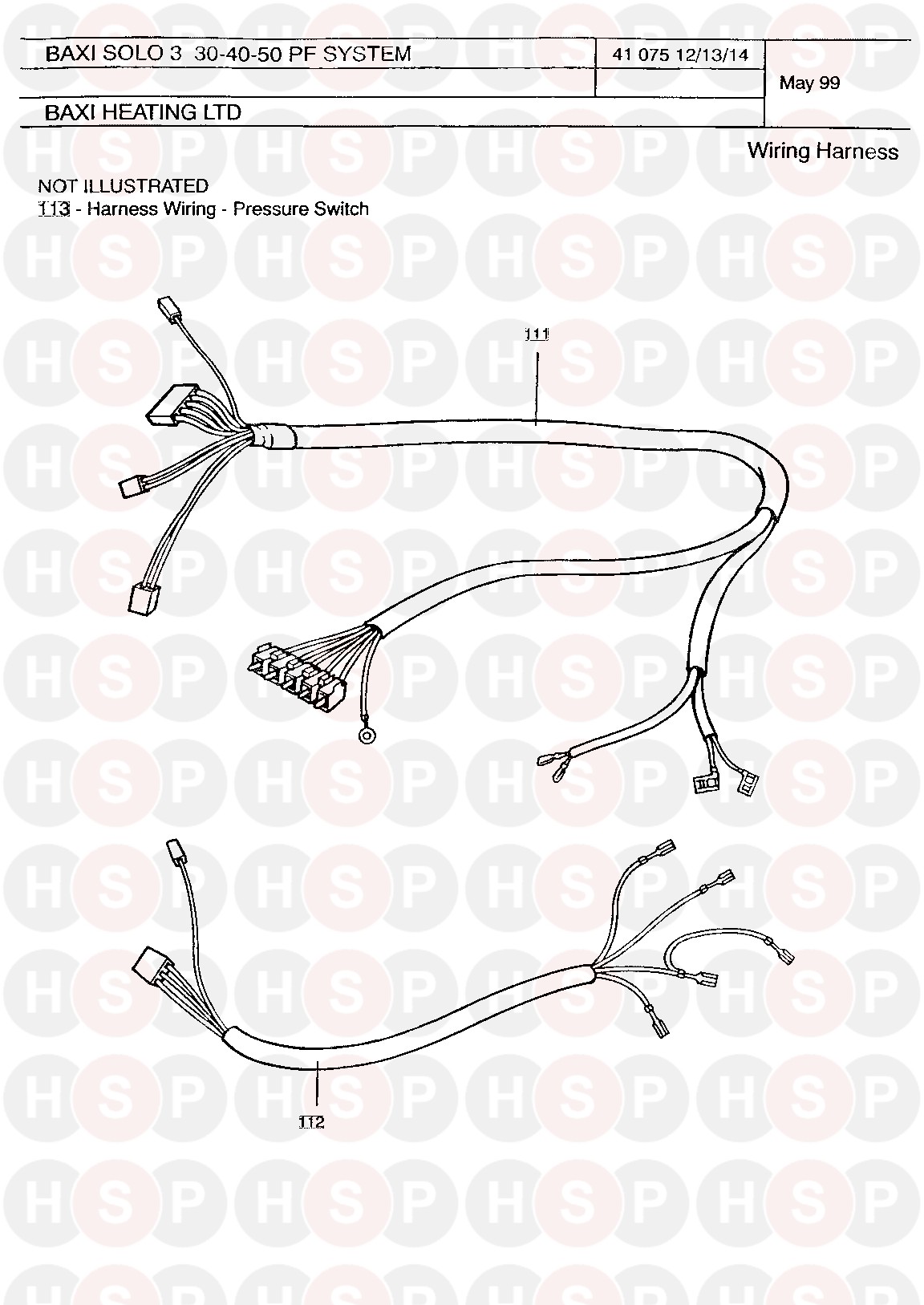

Wiring Harness diagram for Baxi 3 PF 30 SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

111 Part number 244812, HARNESS WIRING BOILER ASSY HARNESS WIRING BOILER ASSY
Baxi part no. 244812
£45.85
112 Part number 244813, HARNESS WIRING VALVE HARNESS WIRING VALVE
Baxi part no. 244813
£11.67
113   HARNESS-PRESSURE SWITCH-PF MK2
Baxi part no. 231620
£9.25
