BAXI
100 HE - (Outer Case)
Appliance Code: 41-075-32

Appliance Diagram

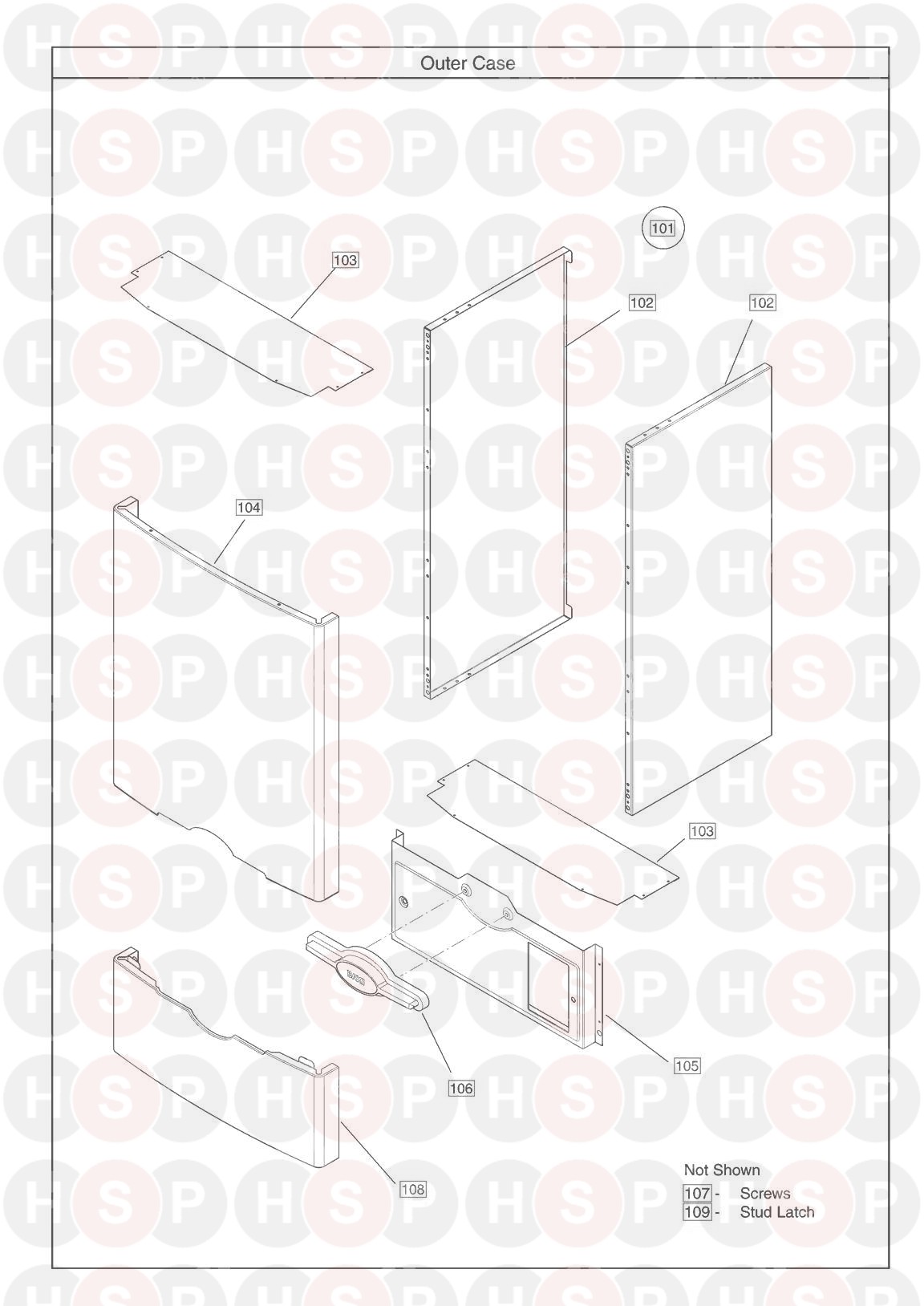

Outer  Case diagram for Baxi 100 HEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101   OBSOLETE BAXI 100HE OUTER CASE - SPARES
Baxi part no. 242504

102 Part number 240759, PAINT PANEL SIDE OUTER CASE PAINT PANEL SIDE OUTER CASE
Baxi part no. 240759
£11.29
103 Part number 240761, OBSOLETE PAINT Panel Top & Bot Out Case OBSOLETE PAINT PANEL TOP & BOT OUT CASE
Baxi part no. 240761

104 Part number 240758, OBSOLETE PAINT PANEL FRONT OUTER CASE OBSOLETE PAINT PANEL FRONT OUTER CASE
Baxi part no. 240758

105 Part number 240763, OBSOLETE PAINT Panel Infill Outer Case OBSOLETE PAINT PANEL INFILL OUTER CASE
Baxi part no. 240763

106 Part number 242509, OBSOLETE BADGE - SPARES OBSOLETE BADGE - SPARES
Baxi part no. 242509

107 Part number 225310BAX, SCR-ST-No6x1/4in FLHD POZI AB SCR-ST-NO6X1/4IN FLHD POZI AB
Baxi part no. 225310BAX
£3.12
108 Part number 240757, NOW USE 5115438 LOWER DOOR NOW USE 5115438 LOWER DOOR
Baxi part no. 240757

108 Part number 5115438, KIT SPARES LOWER DOOR KIT SPARES LOWER DOOR
Baxi part no. 5115438
£86.59
109 Part number 245921, OBSOLETE STUD LATCH-M3-BRASS OBSOLETE STUD LATCH-M3-BRASS
Baxi part no. 245921
