ARISTON
CARES ONE 30 LPG - (Return Group)
Appliance Code: 3301053

Appliance Diagram


Return Group diagram for Ariston Cares One 30 LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

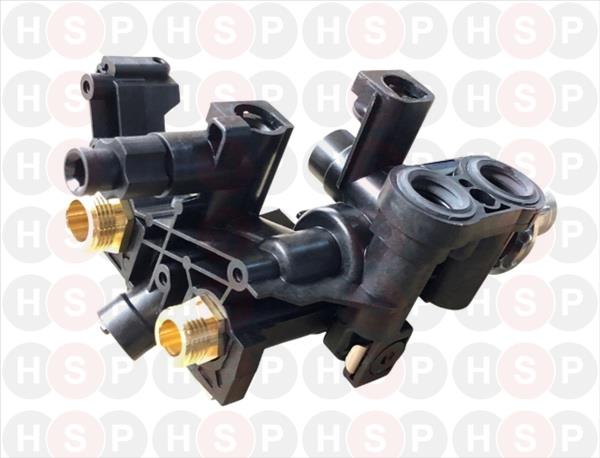

601 Part number 65116833, RETURN GROUP (UP TO 06/18) RETURN GROUP (UP TO 06/18)
Ariston part no. 65116833
£52.94
601 Part number 65117954, RETURN GROUP (FROM 07/18) RETURN GROUP (FROM 07/18)
Ariston part no. 65117954
£49.64
602 Part number 65115793, PRESSURE SWITCH (PROPORTIONAL) PRESSURE SWITCH (PROPORTIONAL)
Ariston part no. 65115793
£16.40
603 Part number 990686-01, TEMPERATURE PROBE + CLIP KIT TEMPERATURE PROBE + CLIP KIT
Ariston part no. 990686-01
£14.91
604 Part number 65116908-01, NOW USE 65116908-03 PUMP 5M PWM TACO NOW USE 65116908-03 PUMP 5M PWM TACO
Ariston part no. 65116908-01

604   PUMP 5M PWM TACO
Ariston part no. 65116908-03
£219.74
605 Part number 65114936, MOTOR (3-WAY VALVE) MOTOR (3-WAY VALVE)
Ariston part no. 65114936
£44.61
606 Part number 65114921-01, SENSOR (REED) SENSOR (REED)
Ariston part no. 65114921-01
£12.30
607 Part number 65114919, FLOW METER FLOW METER
Ariston part no. 65114919
£8.24
610 Part number 65114924, MOTOR + SPRING 3 WAY VALVE KIT MOTOR + SPRING 3 WAY VALVE KIT
Ariston part no. 65114924
£72.57
612 Part number 65114920, PLUG PLUG
Ariston part no. 65114920
£4.30
613 Part number 65104260, CLIP D:10 CLIP D:10
Ariston part no. 65104260
£2.75
614 Part number 65112086, AUTO AIR VENT ENER+ AUTO AIR VENT ENER+
Ariston part no. 65112086
£17.51
614 Part number 65116392, AUTO AIR VENT - PANASONIC AUTO AIR VENT - PANASONIC
Ariston part no. 65116392
£24.11
615 Part number 65114922, DRAIN COCK DRAIN COCK
Ariston part no. 65114922
£22.91
616 Part number 65114923, WATER FILTER WATER FILTER
Ariston part no. 65114923
£14.43
622 Part number 65114917, BY-PASS BY-PASS
Ariston part no. 65114917
£19.51
623 Part number 65114918, NOW USE 65114918-01 NON-RETURN VALVE NOW USE 65114918-01 NON-RETURN VALVE
Ariston part no. 65114918

623   CHECK VALVE CARTRIDGE
Ariston part no. 65114918-01
£10.59
650 Part number 65116542, PIPE (EXPANSION VESSEL) PIPE (EXPANSION VESSEL)
Ariston part no. 65116542
£13.76
651 Part number 65116543, PIPE (C.H. RETURN) PIPE (C.H. RETURN)
Ariston part no. 65116543
£17.09
653 Part number 65116210, BY-PASS PIPE BY-PASS PIPE
Ariston part no. 65116210

660 Part number 65114933, CLIP CLIP
Ariston part no. 65114933
£2.33
664 Part number 65104322, CLIP CLIP
Ariston part no. 65104322
£6.95
665 Part number 65114932, CLIP CLIP
Ariston part no. 65114932
£2.37
666 Part number 60000309, CLIP (FROM 04/06) CLIP (FROM 04/06)
Ariston part no. 60000309
£5.95
667 Part number 65100680, CLIP CLIP
Ariston part no. 65100680
£3.36
668 Part number 65114927, CLIP CLIP
Ariston part no. 65114927
£2.81
671 Part number 65114926, CLIP CLIP
Ariston part no. 65114926
£2.88
672 Part number 65114931, CLIP CLIP
Ariston part no. 65114931
£2.37
680 Part number 573521, GASKET 3/8" GASKET 3/8"
Ariston part no. 573521
£0.94
681 Part number 65114937, O-RING 9.9X2.62 O-RING 9.9X2.62
Ariston part no. 65114937
£2.27
682 Part number 65104262, O-RING 17.04X3.53 O-RING 17.04X3.53
Ariston part no. 65104262
£2.20
683 Part number 65114939, O-RING 23.47X2.62 O-RING 23.47X2.62
Ariston part no. 65114939
£3.25
687 Part number 61009834-10, O-RING 5.7X1.9 O-RING 5.7X1.9
Ariston part no. 61009834-10
£0.50
688 Part number 65104320, O-RING 21.89X2.62 O-RING 21.89X2.62
Ariston part no. 65104320
£2.39
690 Part number 61009834-14, O-RING 8.9X2.7 O-RING 8.9X2.7
Ariston part no. 61009834-14
£0.50
691 Part number 61308091, O-RING 17.86X2.62 O-RING 17.86X2.62
Ariston part no. 61308091
£1.31
692 Part number 65114940, O-RING 11.91X2.62 O-RING 11.91X2.62
Ariston part no. 65114940
£2.32
693 Part number 65114941, O-RING 15,88X2,62 O-RING 15,88X2,62
Ariston part no. 65114941
£2.40
694 Part number 65114938, O-RING 17.13X2.62 O-RING 17.13X2.62
Ariston part no. 65114938
£2.40
