ANDREWS
HEXFLO MINI PLATE - (Exploded View)
Appliance Code: HEXflo MINI PLATE

Appliance Diagram

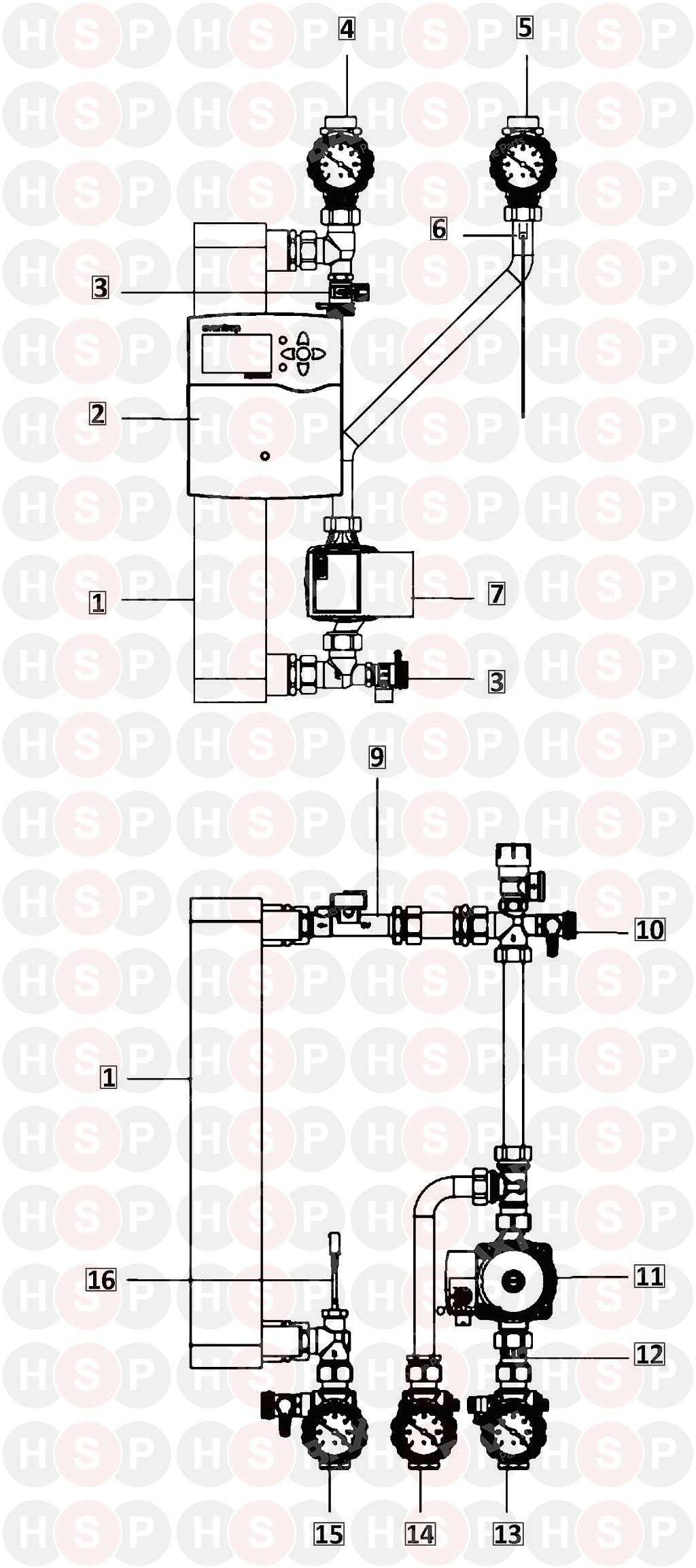

Exploded View diagram for Andrews HEXflo Mini PlateClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   PLATE HEAT EXCHANGER
Baxi part no. 5142680
£1,247.95
2   CONTROLLER X-30 & XZ-30
Andrews part no. 5142681
£2,077.33
3   DRAIN VALVE
Andrews part no. 5142688
£55.51
4   RETURN BALL VALVE BLUE
Andrews part no. 5142683
£95.19
5   SUPPLY BALL VALVE RED
Andrews part no. 5142684
£103.58
6   PT1000 SENSOR
Andrews part no. 5142685
£98.53
7   PRIMARY PUMP
Andrews part no. 5142686
£975.81
9   VOLUME FLOW SENSOR
Andrews part no. 5142687
£384.33
10   DRAIN VALVE
Andrews part no. 5142688
£55.51
11   SECONDARY PUMP
Andrews part no. 5142689
£799.24
12   CHECK VALVE
Andrews part no. 5142690
£57.85
13   HWS RETURN BALL VALVE
Andrews part no. 5142691
£140.19
14   COLD WATER INLET BALL VALVE
Andrews part no. 5142692
£126.17
15   HWS SUPPLY RETURN BALL VALVE
Andrews part no. 5142693
£159.42
16   HWS TEMPERATURE SENSOR
Andrews part no. 5142694
£180.88
