CD35C - (Controls Casing)
Appliance Code: 47-532-35

Appliance Diagram


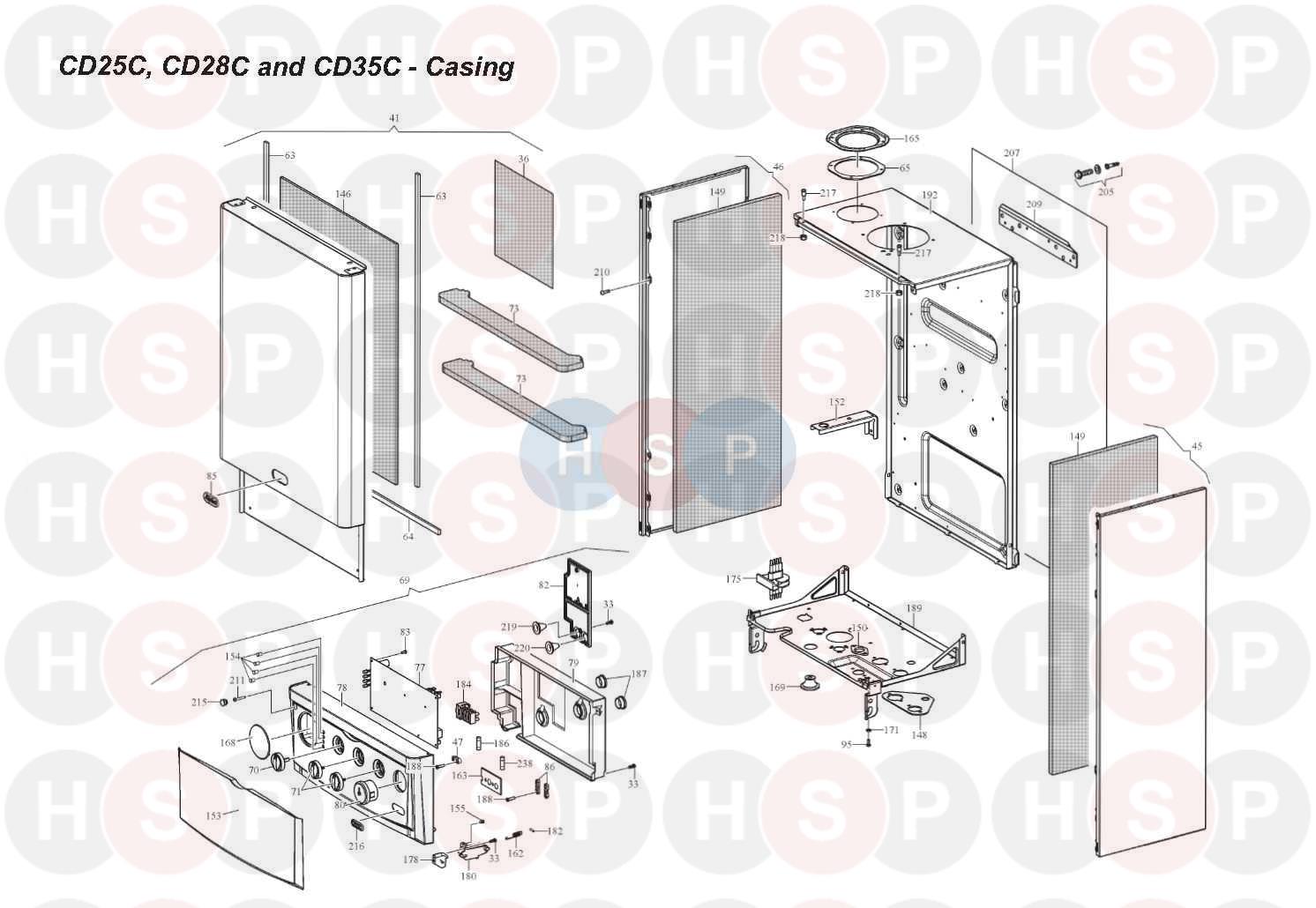

Controls Casing diagram for Alpha CD35CClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   EXPANSION VESSEL 8D PIPE
Alpha part no. 1.023562		 £30.10
2 Part number 1.023560, EXPANSION VESSEL 8 LITRE EXPANSION VESSEL 8 LITRE
Alpha part no. 1.023560		 £115.83
3 Part number 3.017121, NOW USE 3.032764 PUMP ASSY 25/28/35C NOW USE 3.032764 PUMP ASSY 25/28/35C
Alpha part no. 3.017121
3   LOW ENERGY PUMP
Alpha part no. 3.032764		 £189.60
5 Part number 1.014685, 3/4" VALVE 25/28/35C 3/4" VALVE 25/28/35C
Alpha part no. 1.014685		 £46.45
6   NUT (D15 PIPE)
Alpha part no. 1.016152		 £4.47
7   OLIVE (D15 PIPE)
Alpha part no. 1.016153		 £1.87
9 Part number 3.018596, HYDRAULIC ASSY SEAL KIT HYDRAULIC ASSY SEAL KIT
Alpha part no. 3.018596		 £21.63
10   SEAL KIT - CIRCUIT SEALS (CD13-18-24R)
Alpha part no. 3.016823		 £56.58
11   GAS MANIFOLD COVER (CD24S/C)
Alpha part no. 1.010662		 £42.42
15   PIPE, AIR INTAKE CD25/28/35C
Alpha part no. 1.023563		 £34.59
16 Part number 3.014379, BRASS PRESSURE SWITCH/WASHER BRASS PRESSURE SWITCH/WASHER
Alpha part no. 3.014379		 £31.65
20 Part number 1.016870, OVERHEAT THERMOSTAT-105DEG (CB50) OVERHEAT THERMOSTAT-105DEG (CB50)
Alpha part no. 1.016870		 £13.89
22 Part number 1.029719, FAN ASSEMBLY FAN ASSEMBLY
Alpha part no. 1.029719		 £214.03
23 Part number 1.023979, BURNER CD35 BURNER CD35
Alpha part no. 1.023979		 £96.92
26 Part number 1.021238, METAL SHEET CLIP CD25/28/35C METAL SHEET CLIP CD25/28/35C
Alpha part no. 1.021238		 £4.02
27 Part number 1.021972, SPRING PIPE CLAMP FOR D.22 SILICONE PIPE SPRING PIPE CLAMP FOR D.22 SILICONE PIPE
Alpha part no. 1.021972		 £1.13
28 Part number 3.013388, SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S) SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013388		 £11.75
29   6 X 12 X 1 ALUMINIUM WASHER
Alpha part no. 2.010982		 £0.40
30 Part number 1.018064, DIVERTER VALVE MOTOR ASSY DIVERTER VALVE MOTOR ASSY
Alpha part no. 1.018064		 £68.90
31   MOTOR LOCKING FORK CD25/28/35C
Alpha part no. 1.022519		 £1.27
33   SCREW 3X18 (CLOCK FIXING)
Alpha part no. 1.1142		 £0.32
34   SCREW M5 X 8
Alpha part no. 1.1176		 £1.51
35   BRASS NUT (SHORTENED) 1/2
Alpha part no. 1.1269		 £1.30
40   M6 CAPTIVE NUT
Alpha part no. 1.018592		 £1.90
41   FRONT CASING ASSY CD25/28/35C
Alpha part no. 3.018430		 £104.36
44 Part number 1.8372, M5 X 10 SCREW M5 X 10 SCREW
Alpha part no. 1.8372		 £0.38
45   RIGHT/LEFT SIDE CASING ASSY
Alpha part no. 3.018428		 £56.85
47   CABLE CLAMP
Alpha part no. 1.4072		 £0.70
50   CLIP - PIPE D.14
Alpha part no. 1.023010		 £1.70
51 Part number 1.011057, PRESSURE TEST POINT SCREW (CB50) PRESSURE TEST POINT SCREW (CB50)
Alpha part no. 1.011057		 £0.74
54 Part number 1.016187, SILICONE TUBE 8 X 12 750MM SILICONE TUBE 8 X 12 750MM
Alpha part no. 1.016187		 £13.94
55 Part number 1.023397, COLD INLET MANIFOLD CD25/28/35C COLD INLET MANIFOLD CD25/28/35C
Alpha part no. 1.023397		 £55.59
56 Part number 3.016824, SEAL KIT - FLUE CIRCUIT (CD13-18-24R) SEAL KIT - FLUE CIRCUIT (CD13-18-24R)
Alpha part no. 3.016824		 £32.89
57 Part number 2.013334, SEAL RING CD25/28/35C SEAL RING CD25/28/35C
Alpha part no. 2.013334		 £17.23
58   FLANGE FAN FIXING (CD24S/C)
Alpha part no. 1.012659		 £35.50
59   FLUE OUTLET ASSY CD28/35C FLUE OUTLET ASSY
Alpha part no. 3.015498		 £44.78
62   PLUG FOR POCKET FLANGE CD25/28/35C
Alpha part no. 1.021464		 £6.86
63 Part number 1.024384, ADHESIVE FOAM STRIP ADHESIVE FOAM STRIP
Alpha part no. 1.024384		 £12.61
64   ADHESIVE FOAM STRIP 15X3
Alpha part no. 1.023340		 £14.35
67   POCKET FLANGE CD25/28/35C
Alpha part no. 1.023328		 £26.38
69   CONTROL PANEL COMPLETE25/28/35
Alpha part no. 3.016997
71 Part number 1.023544, TRIMMER ADJUSTMENT KNOB 25/28/35C TRIMMER ADJUSTMENT KNOB 25/28/35C
Alpha part no. 1.023544		 £3.72
73   FRONT CASING SEAL CD25/28/35C
Alpha part no. 1.024210		 £9.90
75   PRESSURE SWITCH LOCKING SWITCH CD25/28/35C
Alpha part no. 1.021519		 £1.80
77 Part number 1.027267, NOW USE 1.029813 PCB NOW USE 1.029813 PCB
Alpha part no. 1.027267
77 Part number 1.029813, PCB CDR / C / 50 / OLD CDS PCB CDR / C / 50 / OLD CDS
Alpha part no. 1.029813		 £214.50
78   BEZEL CONTROL PANEL 25/28/35C
Alpha part no. 1.023291
79   BACK COVER, CONTROL PANEL CD25/28/35C
Alpha part no. 1.023509		 £18.51
80 Part number 1.023551, PRESSURE GAUGE PRESSURE GAUGE
Alpha part no. 1.023551		 £31.46
86   CABLE CLAMP (CB50)
Alpha part no. 1.7908		 £1.01
87 Part number 1.022302, BREATHER VALVE CLIP CD25/28/35C BREATHER VALVE CLIP CD25/28/35C
Alpha part no. 1.022302		 £16.07
88 Part number 3.017174, BY-PASS ASSY BY-PASS ASSY
Alpha part no. 3.017174		 £76.98
89 Part number 1.023565, PRESSURE RELIEF VALVE 3 BAR PRESSURE RELIEF VALVE 3 BAR
Alpha part no. 1.023565		 £27.20
90 Part number 1.021483, FLUE ADAPTER 60MM SEAL CD BLR FLUE ADAPTER 60MM SEAL CD BLR
Alpha part no. 1.021483		 £3.39
91 Part number 1.015421, ISOLATING VALVE 1/2 ISOLATING VALVE 1/2
Alpha part no. 1.015421		 £15.53
93   FLANGE-SIGHT GLASS (CD24S/C)
Alpha part no. 2.010177		 £3.27
94   CLIP, D18 PIPE CD25/28/35C
Alpha part no. 1.021985		 £1.51
95   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030		 £1.00
96   SCREW 4.2 X 6.5 SELF TAPPING (CB50)
Alpha part no. 1.013219		 £1.27
98   COMB CHAMBER INS PANEL FRONT
Alpha part no. 1.024543		 £8.83
98 Part number 1.014732, FIBRE PANEL COVER (CD24S/C) FIBRE PANEL COVER (CD24S/C)
Alpha part no. 1.014732		 £9.24
100 Part number 3.015562, DIVERTER VALVE ASSY DIVERTER VALVE ASSY
Alpha part no. 3.015562		 £125.21
105 Part number 3.017281, CONDENSATE TRAP CONDENSATE TRAP
Alpha part no. 3.017281		 £39.93
106 Part number 1.020831, FLOW SWITCH CD25/28/35C FLOW SWITCH CD25/28/35C
Alpha part no. 1.020831		 £47.10
107 Part number 1.023298, PIPE, FLOW SWITCH, COLD INLET CD25/28/35C PIPE, FLOW SWITCH, COLD INLET CD25/28/35C
Alpha part no. 1.023298		 £20.61
109 Part number 1.019144, PIPE- CONDENSATION DISCHARGE PIPE- CONDENSATION DISCHARGE
Alpha part no. 1.019144		 £11.76
110   PRIMARY HEAT EXCHANGER
Alpha part no. 1.023674		 £467.06
112   PRESSURE SWITCH FLANGE CD25/28/35C
Alpha part no. 1.023512		 £16.38
113 Part number 3.016875, CONDENSATE TRAP, COMPLETE (CD18R) CONDENSATE TRAP, COMPLETE (CD18R)
Alpha part no. 3.016875		 £29.38
116 Part number 1.012477, TRANSFORMER (CD24S/C) TRANSFORMER (CD24S/C)
Alpha part no. 1.012477		 £85.47
121   DHW HEAT EXCHANGER CD35
Alpha part no. 1.022222		 £174.63
134 Part number 3.018595, BOILER COMPLETE SEAL KIT CD25/28/35C BOILER COMPLETE SEAL KIT CD25/28/35C
Alpha part no. 3.018595		 £36.48
135   VENTURI (CD24S/C)
Alpha part no. 1.010918		 £39.33
147 Part number 1.018162, SPARK GENERATOR (CD24S/C) SPARK GENERATOR (CD24S/C)
Alpha part no. 1.018162		 £36.49
151   1/2" M-M FITTING CD25/28/35C
Alpha part no. 1.023497		 £24.73
153   DOOR, CONTROL PANEL 25/28/35C
Alpha part no. 1.023346		 £22.91
154   GLASS FOR L.E.D.
Alpha part no. 1.010365		 £1.69
155   SCREW 2.2 X 6.5 SELF TAPPING
Alpha part no. 1.013014		 £1.18
158 Part number 1.019228, DRAIN TAP - CONDENSATE TRAP DRAIN TAP - CONDENSATE TRAP
Alpha part no. 1.019228		 £6.15
159 Part number 3.018304, IGNITION ELECTRODE AND LEAD IGNITION ELECTRODE AND LEAD
Alpha part no. 3.018304		 £38.29
159 Part number 3.017477, IGNITION ELECTRODE AND LEAD IGNITION ELECTRODE AND LEAD
Alpha part no. 3.017477		 £46.14
160   AIR TRAP PLUG
Alpha part no. 1.021892		 £0.25
162   DOOR SPRING CB50
Alpha part no. 1.013967		 £5.59
163   I D CARD (TERMINAL BLOCK)
Alpha part no. 1.015621		 £5.18
165   COVER PLATE D80
Alpha part no. 2.010055		 £1.29
167 Part number 1.2363, SILICONE TUBE (CB50) SILICONE TUBE (CB50)
Alpha part no. 1.2363		 £7.22
168 Part number 1.015753, CLOCK BLANKING PLATE CLOCK BLANKING PLATE
Alpha part no. 1.015753		 £2.47
169   D.8 GROMMET
Alpha part no. 1.011131
171   RING M4
Alpha part no. 1.4246		 £0.99
173 Part number 1.016779, IGNITION ELECTRODE (CD) IGNITION ELECTRODE (CD)
Alpha part no. 1.016779		 £6.08
175   WIRING ASSY GAS VLV-O/HEAT CD25/28/35C
Alpha part no. 3.018591		 £115.98
176 Part number 1.019293, FLAME SENSING ELECTRODE CD32C FLAME SENSING ELECTRODE CD32C
Alpha part no. 1.019293		 £28.53
177   HOSE UNION FOR SILICONE TUBES (CD24S/C)
Alpha part no. 1.6221		 £0.71
178   HINGE DOOR CD25/28/35C
Alpha part no. 1.023552		 £2.28
179 Part number 1.022102, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Alpha part no. 1.022102		 £22.99
180   DOOR HINGE MOUNT CD25/28/35C
Alpha part no. 1.023554		 £2.58
182 Part number 1.024509, CYLINDRICAL PIN CD25/28/35C CYLINDRICAL PIN CD25/28/35C
Alpha part no. 1.024509		 £0.31
183 Part number 1.021762, TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY) TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY)
Alpha part no. 1.021762		 £14.92
184 Part number 1.4005, TERMINAL BLOCK & FUSE HOLDER TERMINAL BLOCK & FUSE HOLDER
Alpha part no. 1.4005
186 Part number 1.6098, FUSE 2AMP (240/280/CB/SY/CD) FUSE 2AMP (240/280/CB/SY/CD)
Alpha part no. 1.6098		 £1.35
187   CAP (P C B ACCESS HOLE)
Alpha part no. 1.011968		 £0.71
188   SCREW 3.5 X 19 SELF TAPPING
Alpha part no. 1.7967		 £1.12
190 Part number 1.024097, NOW USE 3.032764 PUMP NOW USE 3.032764 PUMP
Alpha part no. 1.024097
190   LOW ENERGY PUMP
Alpha part no. 3.032764		 £189.60
191   LOW ENERGY PUMP
Alpha part no. 3.032764		 £189.60
191 Part number 1.023566, NOW USE 3.032764 PUMP HOUSING NOW USE 3.032764 PUMP HOUSING
Alpha part no. 1.023566
192   FRAME ASSEMBLY
Alpha part no. 3.017432		 £104.40
193 Part number 1.016967, SPRING CLIP SILICONE TUBE SPRING CLIP SILICONE TUBE
Alpha part no. 1.016967		 £1.35
194   M6 STAINLESS STEEL SHALLOW NUT
Alpha part no. 1.5925		 £0.38
196 Part number 1.012067, 100DEG THERMOSTAT (CD24S/C) 100DEG THERMOSTAT (CD24S/C)
Alpha part no. 1.012067		 £12.48
197   ADHESIVE FOAM MAT
Alpha part no. 1.022208
198   PIPE CLAMP(SILICONE)
Alpha part no. 1.010500		 £1.35
199   SCREW M6 X 18MM
Alpha part no. 1.1248		 £1.32
203   NUT FOR FLEXIBLE HOSE CD25/28/35C
Alpha part no. 1.019218		 £5.55
204 Part number 1.024195, PIPE, L300 CD25/28/35C PIPE, L300 CD25/28/35C
Alpha part no. 1.024195		 £7.80
205   WALL PLUG & SCREW PACK
Alpha part no. 1.015423		 £8.36
206 Part number 1.019654, L.600 HOSE (CD24S/C) L.600 HOSE (CD24S/C)
Alpha part no. 1.019654		 £16.27
209   WALL MOUNTING BRACKET CDR
Alpha part no. 2.012717		 £9.50
211   SCREW (CONTROL PANEL)
Alpha part no. 1.2337		 £0.99
212 Part number 1.023673, Gas Valve - Dungs GAS VALVE - DUNGS
Alpha part no. 1.023673		 £124.12
214   SCREW M4 X 30
Alpha part no. 1.5408		 £1.27
220   GROMMET, SILICONE D 2 CD25/28/35C
Alpha part no. 1.020261		 £2.71
221   CDR - LPG INJECTOR
Alpha part no. 1.022509		 £22.99
221   MAIN INJECTOR 5.4MM CD28
Alpha part no. 1.024388		 £22.99
223   PIPE HOT OUTLET 25/28/35C
Alpha part no. 1.023570		 £18.57
224   PIPE SAFETY VALVE OUTLET
Alpha part no. 1.023571		 £25.54
225 Part number 1.023573, PIPE COLD INLET HOT OUTLET PIPE COLD INLET HOT OUTLET
Alpha part no. 1.023573		 £4.58
226   PIPE - DELIVERY AND RETURN
Alpha part no. 1.023574		 £19.84
227 Part number 1.023587, 3/4" VALVE WITH LATERAL CONN 3/4" VALVE WITH LATERAL CONN
Alpha part no. 1.023587		 £46.45
228 Part number 3.015849, FILLING LOOP (CB24/28, CD24/32 FILLING LOOP (CB24/28, CD24/32
Alpha part no. 3.015849		 £49.59
229   SEASONAL VALVE ASSY 25/28/35C
Alpha part no. 3.017106		 £117.58
230   INLET FITTING-SEASONALITY VLV
Alpha part no. 1.023528		 £11.00
235   SPRING 25/28/35C
Alpha part no. 1.016097		 £3.23
238 Part number 1.013931, FUSE 315MA (CD24) FUSE 315MA (CD24)
Alpha part no. 1.013931		 £1.67
501 Part number 6.5630140, 40mm CLAMP/SCREWS (FLUE BEND) 40MM CLAMP/SCREWS (FLUE BEND)
Alpha part no. 6.5630140
502 Part number 6.5404950, 40mm SEALING BAND (FLUE BEND) 40MM SEALING BAND (FLUE BEND)
Alpha part no. 6.5404950		 £9.88
504 Part number 6.5630130, 75mm CLAMP/SCREWS (OUTER FLUE) 75MM CLAMP/SCREWS (OUTER FLUE)
Alpha part no. 6.5630130		 £38.00
505 Part number 6.5472202, FLUE SEAL 60MM (CD) FLUE SEAL 60MM (CD)
Alpha part no. 6.5472202		 £3.57
506   SEALING TAPE (50X380MM)
Alpha part no. 6.0001147
508   EASYFLUE PLUME MANAGEMENT TERM
Alpha part no. 6.5472223		 £27.99


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
