ALPHA
CD18S - (Flue)
Appliance Code: 41-532-06

Appliance Diagram

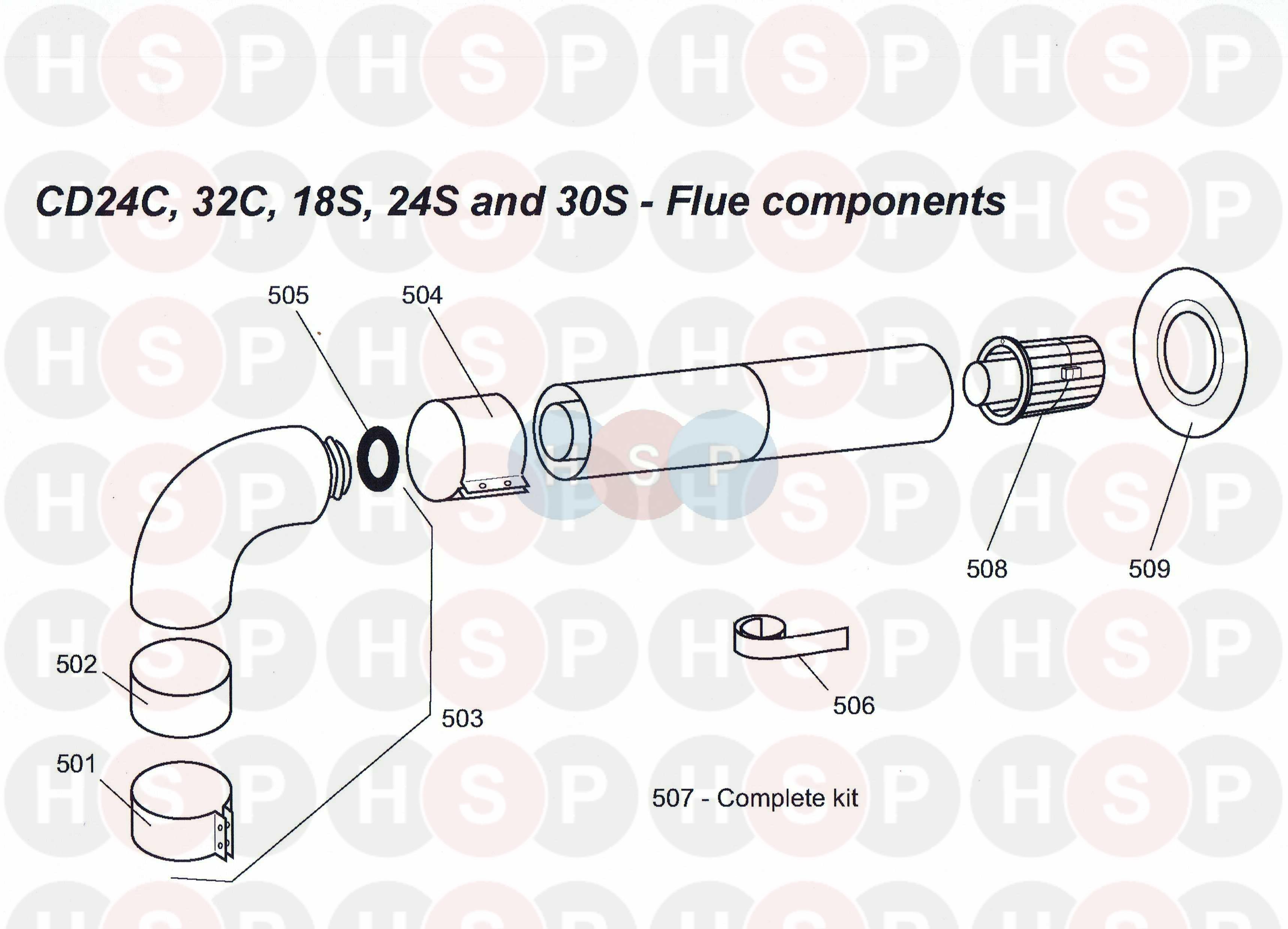

Flue diagram for Alpha CD18SClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3.014750, SEAL KIT - FLUE OUTLET CONN (CD24C/S) SEAL KIT - FLUE OUTLET CONN (CD24C/S)
Alpha part no. 3.014750		 £49.54
2 Part number 1.010371, CLIP (HEAT EXCHR. TUBE) CLIP (HEAT EXCHR. TUBE)
Alpha part no. 1.010371		 £2.75
3 Part number 1.010430, CAP (SAMPLING POINT) CAP (SAMPLING POINT)
Alpha part no. 1.010430		 £2.75
5   IGNITOR SENSOR (CD24C/S)
Alpha part no. 1.018163		 £26.63
6 Part number 1.010771, AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500) AUTOMATIC AIR VENT (CB/CD/SY) (240/280/500)
Alpha part no. 1.010771		 £23.47
7 Part number 3.014749, SEAL KIT - PRI HEAT EXCH/FAN/ CONDENSATE TRAP (CD24C/S) SEAL KIT - PRI HEAT EXCH/FAN/ CONDENSATE TRAP (CD24C/S)
Alpha part no. 3.014749		 £61.40
9 Part number 3.013388, SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S) SEAL KIT- ISOL.VALVES & CONNS (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013388		 £11.75
10 Part number 1.021762, TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY) TEMPERATURE SENSOR (NTC) (240/280/500/CB/CD/SY)
Alpha part no. 1.021762		 £14.92
11 Part number 3.013392, SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S) SEAL KIT A.A.V/N.T.C/P/GGE/EXP (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013392		 £5.70
12   GAS MANIFOLD (CD24S/C)
Alpha part no. 1.010589		 £89.52
13 Part number 1.010659, FAN ASSY (CD24S/C) FAN ASSY (CD24S/C)
Alpha part no. 1.010659		 £224.81
14   GAS MANIFOLD COVER (CD24S/C)
Alpha part no. 1.010662		 £42.42
15 Part number 1.2363, SILICONE TUBE (CB50) SILICONE TUBE (CB50)
Alpha part no. 1.2363		 £7.22
17 Part number 1.018320, NOW USE 3.014379 PRIMARY PRESSURE SWITCH NOW USE 3.014379 PRIMARY PRESSURE SWITCH
Alpha part no. 1.018320
17 Part number 3.014379, BRASS PRESSURE SWITCH/WASHER BRASS PRESSURE SWITCH/WASHER
Alpha part no. 3.014379		 £31.65
18   VENTURI (CD24S/C)
Alpha part no. 1.010918		 £39.33
19 Part number 3.013387, SEAL KIT - H/EXCHS./PUMP (CB24/28/SY ONLY) SEAL KIT - H/EXCHS./PUMP (CB24/28/SY ONLY)
Alpha part no. 3.013387		 £9.04
20   NOW USE SEAL KIT 3.014732
Alpha part no. 1.015244
20   SEAL KIT AAV/NTC/PPS/EXP VESS/ PRESS GAUGE (CB50)
Alpha part no. 3.014732		 £7.37
21 Part number 1.013172, BURNER CD24S/C) BURNER CD24S/C)
Alpha part no. 1.013172		 £93.54
22 Part number 1.011057, PRESSURE TEST POINT SCREW (CB50) PRESSURE TEST POINT SCREW (CB50)
Alpha part no. 1.011057		 £0.74
23 Part number 1.023560, EXPANSION VESSEL 8 LITRE EXPANSION VESSEL 8 LITRE
Alpha part no. 1.023560		 £115.83
23 Part number 1.015394, NOW USE 1.023560 EXPANSION VESSEL 8LT(CB/SY/CD)(HE) NOW USE 1.023560 EXPANSION VESSEL 8LT(CB/SY/CD)(HE)
Alpha part no. 1.015394
24 Part number 1.015395, EXPANSION VESSEL PIPE D.8 EXPANSION VESSEL PIPE D.8
Alpha part no. 1.015395		 £17.27
25   D.18 PIPE-PRI / CONDENSING HEAT EXCH (CD24S ONLY)
Alpha part no. 1.018237		 £27.14
28   D.14 PIPE-GAS VALVE MANIFOLD (CD24S/C)
Alpha part no. 1.017956		 £20.90
29   FLANGE-PIPE FIXING FAN CD24S/C
Alpha part no. 1.011752		 £16.19
31   SAFETY VALVE DISCHARGE PIPE
Alpha part no. 1.015415		 £16.05
34   GAS BEND PIPE 15MM (CD18S)
Alpha part no. 1.023017		 £12.25
35   WALL PLUG & SCREW PACK
Alpha part no. 1.015423		 £8.36
36 Part number 1.011844, DRAIN TRAP (PLASTIC) (CD24S/C) DRAIN TRAP (PLASTIC) (CD24S/C)
Alpha part no. 1.011844		 £49.05
38 Part number 1.016674, PIPE HEATING FLOW PIPE HEATING FLOW
Alpha part no. 1.016674		 £32.17
39   GAS COCK (CB50)
Alpha part no. 1.018129		 £25.98
40 Part number 1.015610, PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY) PUMP-GRUNDFOS 15/60 (240/280/CB/CD/SY)
Alpha part no. 1.015610		 £141.31
44   FLUE OUTLET/AIR INLET MOULDING
Alpha part no. 1.013217		 £45.65
46 Part number 1.011132, CORD PACKAGING (CD24S/C) CORD PACKAGING (CD24S/C)
Alpha part no. 1.011132		 £21.46
47   D.12 PIPE GROMMET (CD24S/C)
Alpha part no. 1.011362		 £3.81
48   NUT (D15 PIPE)
Alpha part no. 1.016152		 £4.47
49   OLIVE (D15 PIPE)
Alpha part no. 1.016153		 £1.87
50 Part number 1.012477, TRANSFORMER (CD24S/C) TRANSFORMER (CD24S/C)
Alpha part no. 1.012477		 £85.47
51   FLANGE FAN FIXING (CD24S/C)
Alpha part no. 1.012659		 £35.50
52 Part number 1.013154, SEAL (ROOM SEALED CHAMBER) SEAL (ROOM SEALED CHAMBER)
Alpha part no. 1.013154		 £8.24
54 Part number 3.013386, SEAL KIT - WATER COMPLETE (CB24/28/SY)(CD24C/S) SEAL KIT - WATER COMPLETE (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013386		 £29.22
56   BRASS NUT (SHORTENED) 3/4
Alpha part no. 1.1260		 £1.92
58 Part number 3.013391, SEAL KIT- DIVERTER/FLOW VLVE. (CB24/28)(CD24C/S) SEAL KIT- DIVERTER/FLOW VLVE. (CB24/28)(CD24C/S)
Alpha part no. 3.013391		 £44.48
61   DOUBLE CLIP
Alpha part no. 1.1378		 £1.05
62   SCREW (CONTROL PANEL)
Alpha part no. 1.2337		 £0.99
63 Part number 1.016779, IGNITION ELECTRODE (CD) IGNITION ELECTRODE (CD)
Alpha part no. 1.016779		 £6.08
65   GROMMET (ELECTRODES)
Alpha part no. 1.5780		 £1.29
66 Part number 1.6600, GROMMET (PRIMARY PIPES)(CB/SY) GROMMET (PRIMARY PIPES)(CB/SY)
Alpha part no. 1.6600		 £3.85
68 Part number 3.016446, FLUE OUTLET (CD24S/C) FLUE OUTLET (CD24S/C)
Alpha part no. 3.016446		 £50.46
70   COVER PLATE D80
Alpha part no. 2.010055		 £1.29
71   SIGHT GLASS D.40 (CD24S/C)
Alpha part no. 1.013368		 £14.35
74   BRACKET-EXPANSION VESSEL CD24S/C
Alpha part no. 2.011849		 £17.57
75 Part number 2.010989, BRACKET (CONTROL PANEL) BRACKET (CONTROL PANEL)
Alpha part no. 2.010989		 £1.05
76 Part number 1.014732, FIBRE PANEL COVER (CD24S/C) FIBRE PANEL COVER (CD24S/C)
Alpha part no. 1.014732		 £9.24
77 Part number 1.014785, GAS MANIFOLD SEAL (CDD24S/C) GAS MANIFOLD SEAL (CDD24S/C)
Alpha part no. 1.014785		 £12.48
81   FRONT CASING PANEL HE
Alpha part no. 2.012769		 £102.01
82   SIDE PANEL HE
Alpha part no. 2.012770		 £61.37
85   D.18 PIPE-CONDENSATION DISCHARGE (CD24S/C)
Alpha part no. 1.018028		 £52.90
86   BRACKET-DRAIN AIR TAP CD24S/C
Alpha part no. 2.011904		 £10.09
90 Part number 3.012705, GLASS (WITH GROMMET) GLASS (WITH GROMMET)
Alpha part no. 3.012705		 £4.32
91   UPPER FRAME SUPPORT
Alpha part no. 2.011621		 £5.30
94   CONTROL PANEL ASSY (CD18S)
Alpha part no. 3.016758		 £300.68
95   GLASS FOR L.E.D.
Alpha part no. 1.010365		 £1.69
96   CAP (P C B ACCESS HOLE)
Alpha part no. 1.011968		 £0.71
97 Part number 1.013340, DHW AND C.H CONTROL KNOB DHW AND C.H CONTROL KNOB
Alpha part no. 1.013340		 £1.95
98 Part number 1.014054, SELECTOR SWITCH KNOB SELECTOR SWITCH KNOB
Alpha part no. 1.014054
99 Part number 3.017246, G/VLV PLUG & LEAD ONLY CB/HE/CD (NOT CDR) G/VLV PLUG & LEAD ONLY CB/HE/CD (NOT CDR)
Alpha part no. 3.017246		 £30.46
105   CONTROL PANEL ONLY (18S)
Alpha part no. 1.023013		 £55.25
106   CONTROL PANEL REAR COVER
Alpha part no. 1.015403
107 Part number 1.015404, COVER (TERMINAL BLOCK) COVER (TERMINAL BLOCK)
Alpha part no. 1.015404
108 Part number 1.017788, NOW USE 1.029813 PCB (CD24C/CD24S/CD32C) NOW USE 1.029813 PCB (CD24C/CD24S/CD32C)
Alpha part no. 1.017788
108 Part number 1.029813, PCB CDR / C / 50 / OLD CDS PCB CDR / C / 50 / OLD CDS
Alpha part no. 1.029813		 £214.50
109   COVER (CLOCK CONNECTIONS)
Alpha part no. 1.015406		 £3.81
111 Part number 1.015753, CLOCK BLANKING PLATE CLOCK BLANKING PLATE
Alpha part no. 1.015753		 £2.47
112 Part number 1.016151, PRESSURE GAUGE (CB/SY/CD) PRESSURE GAUGE (CB/SY/CD)
Alpha part no. 1.016151		 £39.66
113 Part number 1.4005, TERMINAL BLOCK & FUSE HOLDER TERMINAL BLOCK & FUSE HOLDER
Alpha part no. 1.4005
114   CABLE CLAMP
Alpha part no. 1.4072		 £0.70
115   SCREW 3.9 X 13 SELF TAPPING
Alpha part no. 1.4139		 £0.99
116 Part number 1.6098, FUSE 2AMP (240/280/CB/SY/CD) FUSE 2AMP (240/280/CB/SY/CD)
Alpha part no. 1.6098		 £1.35
117   CABLE CLAMP (CB50)
Alpha part no. 1.7908		 £1.01
118   SCREW 3.5 X 19 SELF TAPPING
Alpha part no. 1.7967		 £1.12
119   WALL TEMPLATE HE
Alpha part no. 1.022263		 £36.57
120   WALL MOUNTING BRACKET
Alpha part no. 2.011146		 £22.87
121 Part number 1.018030, PRI / CONDENSING HEAT EXCH CD24S/C PRI / CONDENSING HEAT EXCH CD24S/C
Alpha part no. 1.018030		 £448.73
122 Part number 1.019654, L.600 HOSE (CD24S/C) L.600 HOSE (CD24S/C)
Alpha part no. 1.019654		 £16.27
124   AIR INTAKE PIPE (CD24S/C)
Alpha part no. 1.015611		 £38.97
125   D.60-100 FLANGE INLET-OUTLET CD24C/S
Alpha part no. 1.017911		 £9.70
128 Part number 1.011846, GAS VALVE-VK4115 (CD24S/C) GAS VALVE-VK4115 (CD24S/C)
Alpha part no. 1.011846		 £167.87
129   PIPE ISOL.VALVE/GAS VALVE
Alpha part no. 3.013115		 £22.37
130   FLANGE-GAS VALVE (CD24S/C)
Alpha part no. 1.2311
138   WATER MANIFOLD ASSY (SY24)
Alpha part no. 3.012803		 £63.76
139 Part number 1.011126, PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY) PRESSURE RELIEF VALVE - 3 BAR (CB/CD/SY)
Alpha part no. 1.011126		 £24.74
140   RETAINING SCREW (P R V )
Alpha part no. 1.016169		 £1.32
160 Part number 1.012067, 100DEG THERMOSTAT (CD24S/C) 100DEG THERMOSTAT (CD24S/C)
Alpha part no. 1.012067		 £12.48
161   BRACKET-THERMOSTAT (CD24S/C)
Alpha part no. 2.011996		 £4.05
165   SCREW M5 X 8
Alpha part no. 1.1176		 £1.51
166   RING M4
Alpha part no. 1.4246		 £0.99
167   NOW USE 1.7030 SCREW SELF TAPPING M4 X 8
Alpha part no. 1.016246
167   SCREW SWAGEFORM M4 X 10
Alpha part no. 1.7030		 £1.00
169   SCREW SELF TAPPING 4.2 X 9.5
Alpha part no. 1.4557		 £0.99
171   FLANGE-SIGHT GLASS (CD24S/C)
Alpha part no. 2.010177		 £3.27
177 Part number 3.014936, BY PASS VALVE BY PASS VALVE
Alpha part no. 3.014936		 £66.26
178 Part number 3.013371, CYCLONE ASSY.(AFTER S/NO.B110) CYCLONE ASSY.(AFTER S/NO.B110)
Alpha part no. 3.013371		 £127.58
179 Part number 3.015850, FILLING LOOP 15MM (X,CB50,CD50 FILLING LOOP 15MM (X,CB50,CD50
Alpha part no. 3.015850		 £56.52
180   PIPE RTN(CYC.)AFTER S/NO.B110
Alpha part no. 1.016675		 £14.18
187   BY-PASS VALVE (CB50)
Alpha part no. 1.016383		 £11.09
190 Part number 3.013626, IGNITOR-TWIN ROW (CD24S/C) IGNITOR-TWIN ROW (CD24S/C)
Alpha part no. 3.013626		 £39.14
194 Part number 1.018162, SPARK GENERATOR (CD24S/C) SPARK GENERATOR (CD24S/C)
Alpha part no. 1.018162		 £36.49
195   BOTTOM GUARD BRACKET (CD24S/C)
Alpha part no. 2.012015		 £15.98
196   NOW USE 2.013334 SEAL RING
Alpha part no. 2.010792
196 Part number 2.013334, SEAL RING CD25/28/35C SEAL RING CD25/28/35C
Alpha part no. 2.013334		 £17.23
197   BACK PANEL SEALED CHAMBER (CD24S/C)
Alpha part no. 2.011709
198   BRACKET-SPARK GENERATOR MOUNT (CB24S/C)
Alpha part no. 2.011923		 £9.70
200   THREADED BRACKET FOR SEALED CHAMBER (CB50)
Alpha part no. 2.010314		 £1.57
201   REAR FRAME SUPPORT BRACKET (CD24S/C)
Alpha part no. 2.011596		 £6.98
202   REAR FRAME RIGHT H/S PANEL (CD24S/C)
Alpha part no. 2.011845		 £28.38
203   REAR FRAME LEFT H/S PANEL (CD24S/C)
Alpha part no. 2.011847		 £28.38
204   EARTH CABLE FOR SPARK GENERATOR (CB24S/C)
Alpha part no. 1.018532		 £3.81
206   SCREW M4 X 16 (CB50)
Alpha part no. 1.6985		 £0.31
208   1" F NUT-FLANGED END PIPE
Alpha part no. 1.4910		 £3.69
213   SCREW 4.2 X 6.5 SELF TAPPING (CB50)
Alpha part no. 1.013219		 £1.27
214 Part number 1.018031, 100DEG THERMOSTAT FIXING SCREW 100DEG THERMOSTAT FIXING SCREW
Alpha part no. 1.018031		 £29.28
217   PIPE - R/S CHAMBER TO CH FLOW
Alpha part no. 1.019278		 £36.69
218   D.18 PIPE-PRI / CONDENSING HE SEALED CHAMB PIPE (CD24S ONLY)
Alpha part no. 1.018038		 £17.77
219 Part number 1.019144, PIPE- CONDENSATION DISCHARGE PIPE- CONDENSATION DISCHARGE
Alpha part no. 1.019144		 £11.76
346   PIPE CLAMP(SILICONE)
Alpha part no. 1.010500		 £1.35
501 Part number 6.5630140, 40mm CLAMP/SCREWS (FLUE BEND) 40MM CLAMP/SCREWS (FLUE BEND)
Alpha part no. 6.5630140
502 Part number 6.5404950, 40mm SEALING BAND (FLUE BEND) 40MM SEALING BAND (FLUE BEND)
Alpha part no. 6.5404950		 £9.88
504 Part number 6.5630130, 75mm CLAMP/SCREWS (OUTER FLUE) 75MM CLAMP/SCREWS (OUTER FLUE)
Alpha part no. 6.5630130		 £38.00
505 Part number 6.5472202, FLUE SEAL 60MM (CD) FLUE SEAL 60MM (CD)
Alpha part no. 6.5472202		 £3.57
999   CABLE-NTC/DHW FLOW SWITCH(CD)
Alpha part no. 3.014375		 £35.65
999   CABLE-TERM BLOCK/FUSE HOLDER/ CLOCK (CD24S/C)
Alpha part no. 3.014376		 £25.83
999   CABLE ASSY-.PRIM.PRESS.SWITCH (CB24/28/SY)(CD24C/S)
Alpha part no. 3.013460		 £7.40
999 Part number 3.014751, CABLE-GAS VALVE/OVERHEAT STAT (CD24C/S ONLY) CABLE-GAS VALVE/OVERHEAT STAT (CD24C/S ONLY)
Alpha part no. 3.014751		 £58.96
999   CABLE -FAN (CD24/S ONLY)
Alpha part no. 3.014752		 £58.96
999 Part number 1.013931, FUSE 315MA (CD24) FUSE 315MA (CD24)
Alpha part no. 1.013931		 £1.67
999 Part number 3.013461, CABLE-PUMP (CB24/28/SY) (CD24C/S) CABLE-PUMP (CB24/28/SY) (CD24C/S)
Alpha part no. 3.013461		 £8.85
999 Part number 3.013389, SEAL KIT- DHW DIAPHRAGM (CB24/28)(CD24C/S) SEAL KIT- DHW DIAPHRAGM (CB24/28)(CD24C/S)
Alpha part no. 3.013389		 £31.77


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
