WORCESTER
28I RSF - (Superstructure)
Appliance Code: 47-311-54

Appliance Diagram


Superstructure diagram for Worcester 28i RSFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 77161922160, INSULATION PACK INSULATION PACK
Worcester part no. 77161922160		 £31.35
Part number 87161201260, HARNESS-FLAME SENSE TO PCB BOARD HARNESS-FLAME SENSE TO PCB BOARD
Worcester part no. 87161201260		 £5.35
Part number 87161412110, BLANKING CAP RED BLANKING CAP RED
Worcester part no. 87161412110		 £2.63
1 Part number 87161461590, AIR PRESSURE SWITCH 28I HUBA AIR PRESSURE SWITCH 28I HUBA
Worcester part no. 87161461590
2   GAS SENSOR CONNECTOR
Worcester part no. 87161412270		 £4.66
3   NUT - CLAMPING(BRASS)
Worcester part no. 87161402530		 £3.36
4   BUNG-PILOT LARGE HOLE (5 PACK)
Worcester part no. 87161407070		 £7.16
5 Part number 87161000030, PIPE - AIR PRESSURE SWITCH PIPE - AIR PRESSURE SWITCH
Worcester part no. 87161000030		 £16.90
6 Part number 87161010810, RED SILICONE TUBING 5M LONG RED SILICONE TUBING 5M LONG
Worcester part no. 87161010810		 £17.40
7   POSITIVE AIR PRESS TUBE MARKER
Worcester part no. 87161002770		 £2.07
8 Part number 87161010800, BEIGE SILICONE TUBING 1M LONG BEIGE SILICONE TUBING 1M LONG
Worcester part no. 87161010800		 £9.29
9 Part number 87161429050, PRB 20/501 G/W HEAT EXCHANGER PRB 20/501 G/W HEAT EXCHANGER
Worcester part no. 87161429050		 £305.28
10 Part number 87161405040, AUTOMATIC PURGER AUTOMATIC PURGER
Worcester part no. 87161405040		 £11.55
11 Part number 87161423070, T/STAT RANCO LM7 P9024 (LIMIT) T/STAT RANCO LM7 P9024 (LIMIT)
Worcester part no. 87161423070		 £24.78
12 Part number 87161483420, PIN RETAINING PIN RETAINING
Worcester part no. 87161483420		 £2.83
13 Part number 87161426520, BURNER ASSEMBLY NG BURNER ASSEMBLY NG
Worcester part no. 87161426520		 £65.85
14 Part number 87161203450, FLAME SENCE ELECTRODE AND HARNESS FLAME SENCE ELECTRODE AND HARNESS
Worcester part no. 87161203450		 £11.64
15 Part number 87161051860, ELECTRODE SPARK AFTER FD292 ELECTRODE SPARK AFTER FD292
Worcester part no. 87161051860		 £12.43
15 Part number 87161421000, SPARK ELECTRODE ASSEMBLY BEFORE FD291 SPARK ELECTRODE ASSEMBLY BEFORE FD291
Worcester part no. 87161421000		 £8.13
16 Part number 87161401020, NUT M4 EXTENDED NUT M4 EXTENDED
Worcester part no. 87161401020		 £4.94
17 Part number 87161483050, CLIP - FLUE HOOD RETAINING CLIP - FLUE HOOD RETAINING
Worcester part no. 87161483050		 £2.11
18 Part number 87161002650, COMBUSTION CHAMBER COVER COMBUSTION CHAMBER COVER
Worcester part no. 87161002650		 £19.10
19 Part number 87161212270, COLLECTOR HOOD ASSEMBLY COLLECTOR HOOD ASSEMBLY
Worcester part no. 87161212270
20 Part number 87161216810, FAN ASSEMBLY 28I FAN ASSEMBLY 28I
Worcester part no. 87161216810		 £111.02
21 Part number 87161410000, AIR FLOW SENSOR AIR FLOW SENSOR
Worcester part no. 87161410000		 £8.26
22 Part number 87161209800, HARNESS FAN 24/28I HARNESS FAN 24/28I
Worcester part no. 87161209800		 £6.79
23 Part number 87161202360, HARNESS IGNITION ASSEMBLY HARNESS IGNITION ASSEMBLY
Worcester part no. 87161202360
24 Part number 87161407080, RUBBER GROMMET RUBBER GROMMET
Worcester part no. 87161407080
25 Part number 87161202540, INNER CASING COVER ASSEMBLY INNER CASING COVER ASSEMBLY
Worcester part no. 87161202540
26 Part number 87161006400, SEAL SEAL
Worcester part no. 87161006400		 £12.57
27 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24

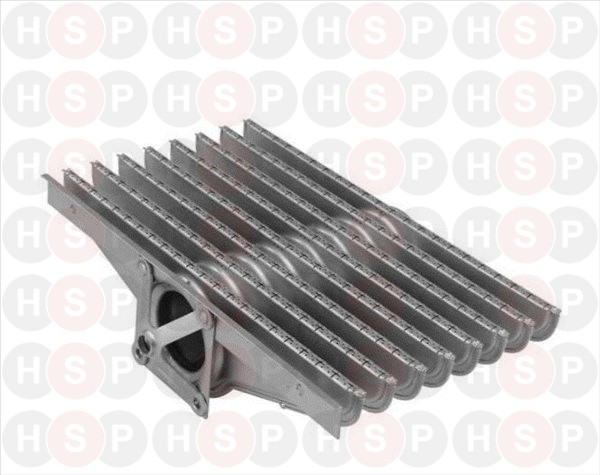

28   BURNER GAUZE
Worcester part no. 87161426010		 £19.27
29 Part number 29144114120, SCREW M4X8 (3X) AFTER FD992 AND BEFORE FD111 SCREW M4X8 (3X) AFTER FD992 AND BEFORE FD111
Worcester part no. 29144114120		 £2.68
30 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
30 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
31 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
31 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
32 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
33 Part number 29144114110, SCREW M3X6MM ZC PL P/H TAPTITE AFTER FD992 SCREW M3X6MM ZC PL P/H TAPTITE AFTER FD992
Worcester part no. 29144114110		 £2.79
34 Part number 87161422090, INSULATION-REAR(2302) INSULATION-REAR(2302)
Worcester part no. 87161422090		 £16.75
35 Part number 87161422100, INSULATION-SIDE INSULATION-SIDE
Worcester part no. 87161422100		 £25.17
36 Part number 87161422110, INSULATION-FRONT INSULATION-FRONT
Worcester part no. 87161422110		 £16.75
