WORCESTER
350 RSF - (Heat Exchanger)
Appliance Code: 47-311-13

Appliance Diagram


Heat Exchanger diagram for Worcester 350 RSFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

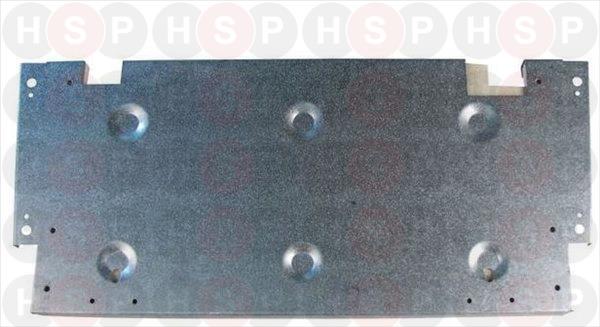

3 Part number 87161004430, COMBUSTION FRONT BACK PANEL COMBUSTION FRONT BACK PANEL
Worcester part no. 87161004430
5   ELECTRODE MOUNTING BRACKET
Worcester part no. 87161008060
6   OBSOLETE SPARK ELECTRODE 60999/000
Worcester part no. 87161421220
8 Part number 87161428040, HEAT EXCHANGER WITH O-RINGS HEAT EXCHANGER WITH O-RINGS
Worcester part no. 87161428040
9   CER.FIB.BRD.10X142X204MM (SIDES)
Worcester part no. 87161422620
10 Part number 87161422630, CER.FIB.BRD.10X191X404MM (BACK) CER.FIB.BRD.10X191X404MM (BACK)
Worcester part no. 87161422630
12 Part number 87161208090, OBSOLETE COLLECTOR HOOD ASSEMBLY OBSOLETE COLLECTOR HOOD ASSEMBLY
Worcester part no. 87161208090
13 Part number 87161206260, OBSOLETE FAN ASSEMBLY OBSOLETE FAN ASSEMBLY
Worcester part no. 87161206260
15   OBSOLETE PRES. SWITCH ADAPTER PACK -350
Worcester part no. 87161461430
16 Part number 87161483420, PIN RETAINING PIN RETAINING
Worcester part no. 87161483420		 £2.83
17   J BOLT ZINC PLT O-F 924 4X93
Worcester part no. 87161405410
18   NUT M4 MS WING ZN PL TABLE 1
Worcester part no. 29151911040
19 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
20   INNER CASING COVER ASSEMBLY
Worcester part no. 87161208080
21   RING INNER ALUM
Worcester part no. 87161400040
22 Part number 87161400030, RING OUTER ALUM RING OUTER ALUM
Worcester part no. 87161400030
23 Part number 29111311580, SCREW M5X16MM HEXAGON SLOTTED HEAD SCREW M5X16MM HEXAGON SLOTTED HEAD
Worcester part no. 29111311580		 £2.54
24   GASKET-SIL.SP 3MM X112ID
Worcester part no. 87161407400
25 Part number 87161482090, STRAP FLUE DUCT STRAP FLUE DUCT
Worcester part no. 87161482090		 £26.46
26 Part number 29124210290, SCREW NO8 X 1 POZI FL HD ST MS ZP SCREW NO8 X 1 POZI FL HD ST MS ZP
Worcester part no. 29124210290		 £2.56
27   TIE STRIP PAINTED C/W BOLTS & WING NUTS
Worcester part no. 87161009990
30 Part number 87161409090, GASKET-SIL.SP92X52X3.0MM GASKET-SIL.SP92X52X3.0MM
Worcester part no. 87161409090
32   SCREW SPECIAL 3-3345 M5 X 24LG
Worcester part no. 87161550100
33   SCREW M5X10MM HEX/SLOTTED HEAD
Worcester part no. 29111311520
