WORCESTER
240 OF - (Assembly 1)
Appliance Code: 47-311-09

Appliance Diagram


Assembly 1 diagram for Worcester 240 OfClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161481530, INJECTOR(PILOT)LPG INJECTOR(PILOT)LPG
Worcester part no. 87161481530		 £5.49
0   INJEC. LPG 1/8 X120DEGX2.8DI
Worcester part no. 87161563380		 £4.51
2   OBSOLETE
Worcester part no. ZGSCR159
3   OBSOLETE
Worcester part no. ZGRAW001
9   OBSOLETE SCREW M3 X 6 TAPTITE RECESSED PAN HEAD
Worcester part no. 99021102
10 Part number 87161422930, COMB. CHAMBER INSULATION KIT COMB. CHAMBER INSULATION KIT
Worcester part no. 87161422930
11   COMBUSTION CHAMBER FRONT PANEL
Worcester part no. 87161003670		 £32.50
12 Part number 29124212250, SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X) SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X)
Worcester part no. 29124212250		 £2.45
13 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
14   OBSOLETE DRAUGHT DIVERTER COMPLETE
Worcester part no. SSA6733/0
15   OBSOLETE
Worcester part no. SSA7128/9
16 Part number 87161407470, STRIP-SIL.SP.515 8X8MM WHITE STRIP-SIL.SP.515 8X8MM WHITE
Worcester part no. 87161407470
17   OBSOLETE TAPPING SCREW ISO NO8AB X 25 RECESSED FLANGE
Worcester part no. S10823
19 Part number 87161209030, STAT OVERHEAT C/W LEADS (SHORT) STAT OVERHEAT C/W LEADS (SHORT)
Worcester part no. 87161209030
21 Part number 87161428020, GAS TO WATER HEAT EXCHANGER GAS TO WATER HEAT EXCHANGER
Worcester part no. 87161428020
22 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
23   OBSOLETE SCREW M4 X 10 TAPTITE RECESSED PAN HEAD
Worcester part no. 766290
24 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
27 Part number 87161402890, RING-COMPRESSION 15MM RING-COMPRESSION 15MM
Worcester part no. 87161402890		 £2.80
28   NOW USE 87161402910 CAP NUT 18MM
Worcester part no. ZCCMP090
28   CAP NUT 18MM
Worcester part no. 87161402910		 £3.73
30   OBSOLETE PIPE ASSEMBLY - OPEN VENT
Worcester part no. 7716192126
33 Part number 87161426080, BURNER AEROMATIC LPG BURNER AEROMATIC LPG
Worcester part no. 87161426080
34 Part number 87161563370, MAIN BURNER INJECTOR 4.4 DIA. MAIN BURNER INJECTOR 4.4 DIA.
Worcester part no. 87161563370		 £4.19
35 Part number 87161426140, PILOT BURNER Q385A2010 PILOT BURNER Q385A2010
Worcester part no. 87161426140
36 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
37 Part number 87161421040, SPARK ELECTRODE SPARK ELECTRODE
Worcester part no. 87161421040
37   ELECTRODE
Worcester part no. 87161421190
38 Part number 87161466390, LEAD ASSY 0.7 PTFE CABLE 220MM LEAD ASSY 0.7 PTFE CABLE 220MM
Worcester part no. 87161466390
40   NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479
41 Part number 87161424950, OBSOLETE GAS VALVE RC 1/2 V4600N 3061 OBSOLETE GAS VALVE RC 1/2 V4600N 3061
Worcester part no. 87161424950
42 Part number 87161407720, OBSOLETE GASKET PACK GAS C240 RSF OBSOLETE GASKET PACK GAS C240 RSF
Worcester part no. 87161407720
43   HARNESS GAS VALVE OF/BF/RSFE (E+)
Worcester part no. 87161208760
44   MANIFOLD BURNER OF
Worcester part no. 87161430240
46   OBSOLETE PRECISION SCREW M5 X 10 HEXAGON/SLOTTED HEAD
Worcester part no. S26520
48 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
49 Part number 87161424240, GAS COCK 1/2 BSPT & G5/8 MA GAS COCK 1/2 BSPT & G5/8 MA
Worcester part no. 87161424240		 £14.90
51   CAP NUT - 1 1/2 BSP ( PUMP NUT )
Worcester part no. 87161405150		 £7.95
52   OBSOLETE
Worcester part no. 87161480350
53   OBSOLETE THERMOSTAT
Worcester part no. SPK0039
53 Part number 87161423190, TEMPERATURE SENSOR TEMPERATURE SENSOR
Worcester part no. 87161423190		 £12.54
55 Part number 87161204820, OBSOLETE COUPLING ASSLY(PUMP TO DIV OBSOLETE COUPLING ASSLY(PUMP TO DIV
Worcester part no. 87161204820
57 Part number 87161424190, DIVERTER VALVE REF:- D2040 DIVERTER VALVE REF:- D2040
Worcester part no. 87161424190		 £146.81
58 Part number 87161208330, MICRO SWITCH & HARNESS MICRO SWITCH & HARNESS
Worcester part no. 87161208330
59 Part number 87161484000, WATER FILTER MPMV3326 ST.ST. WATER FILTER MPMV3326 ST.ST.
Worcester part no. 87161484000		 £4.19
60 Part number 87161410540, FLOW REGULATOR TYPE E-W 8 LITRE WHITE FLOW REGULATOR TYPE E-W 8 LITRE WHITE
Worcester part no. 87161410540		 £6.39
61 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
62 Part number 87161402440, FLOW REGULATOR HOUSING FLOW REGULATOR HOUSING
Worcester part no. 87161402440		 £7.98

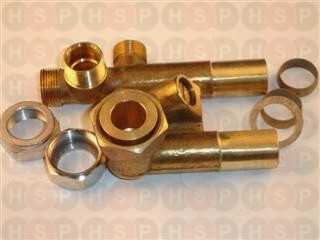

63 Part number 87161205070, COUPLING ASSEMBLY COUPLING ASSEMBLY
Worcester part no. 87161205070		 £12.47
64 Part number 87161205080, OBSOLETE VALVE BY-PASS ASSEMBLY OBSOLETE VALVE BY-PASS ASSEMBLY
Worcester part no. 87161205080
65 Part number 87161424350, OBSOLETE VALVE 22MM BULKHEAD (BALL TYPE) OBSOLETE VALVE 22MM BULKHEAD (BALL TYPE)
Worcester part no. 87161424350
70 Part number 87161425040, EXPANSION VESSEL 10L EXPANSION VESSEL 10L
Worcester part no. 87161425040		 £91.85
71   OBSOLETE
Worcester part no. 87161003740
72 Part number 87161402260, NUT 10MM COMPRESSION NUT 10MM COMPRESSION
Worcester part no. 87161402260		 £3.47
73 Part number 87161402270, 10MM COMPRESSION RING 10MM COMPRESSION RING
Worcester part no. 87161402270		 £2.83
74 Part number 87161424160, VALVE PR.REL.1/2 X15MM X 1/8 VALVE PR.REL.1/2 X15MM X 1/8
Worcester part no. 87161424160		 £13.20
79 Part number 87161205600, WATER TO WATER HEAT EXCHANGER WATER TO WATER HEAT EXCHANGER
Worcester part no. 87161205600
81   OBSOLETE PIPE - DOMESTIC OUTLET 0455
Worcester part no. 87161205700
84 Part number 29124212100, SCREW ISO NO 6B X 9.5 RECESSED SCREW ISO NO 6B X 9.5 RECESSED
Worcester part no. 29124212100		 £2.56
85   OBSOLETE CABINET BOTTOM PANEL
Worcester part no. 87161003610
86   OBSOLETE
Worcester part no. 87161003890
87   OBSOLETE FACIA PANEL-GREY
Worcester part no. 87161411270
89 Part number 87161410860, KNOB CONTROL KNOB CONTROL
Worcester part no. 87161410860
90 Part number 87161209090, HARNESS POTENTIOMETER HARNESS POTENTIOMETER
Worcester part no. 87161209090		 £13.88
91 Part number 87161208620, LAMP GREEN C/W CONNECTORS LAMP GREEN C/W CONNECTORS
Worcester part no. 87161208620
92 Part number 87161208610, LAMP AMBER C/W CONNECTORS LAMP AMBER C/W CONNECTORS
Worcester part no. 87161208610
93 Part number 87161461060, SWITCH ARROW200400E839 AA 3POS SWITCH ARROW200400E839 AA 3POS
Worcester part no. 87161461060		 £13.95
94 Part number 87161423260, PRESSURE GAUGE & WASHER PRESSURE GAUGE & WASHER
Worcester part no. 87161423260
97 Part number 87161463040, OBSOLETE MOTHER DRIVER BOARD W4115B1226 OBSOLETE MOTHER DRIVER BOARD W4115B1226
Worcester part no. 87161463040
99 Part number 87161410600, PCB BLACK NYLON PILLARS AFTER FD989 PCB BLACK NYLON PILLARS AFTER FD989
Worcester part no. 87161410600		 £2.63
106   OBSOLETE
Worcester part no. 87161206370
107   OBSOLETE
Worcester part no. SMP7086/1
109   OBSOLETE
Worcester part no. 87161482070
114   OBSOLETE VALVE
Worcester part no. ZAGAS185

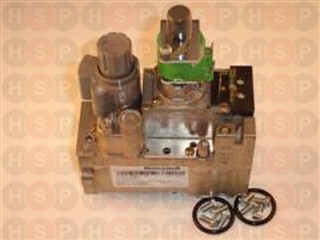

114 Part number 87161567370, OBSOLETE GAS VALVE OBSOLETE GAS VALVE
Worcester part no. 87161567370
115   C240RSF FUSE PACK
Worcester part no. 87161560120		 £2.95
119   OBSOLETE INSTALLATION/SERVICING INSTRUCTIONS
Worcester part no. 87161451100
119   OBSOLETE INSTALLATION/SERVICING INSTRUCTIONS
Worcester part no. 87161451110
119   OBSOLETE 240 OF SERV & INST MANUAL
Worcester part no. 87161451120
120   OBSOLETE 240 OF, BF USER MANUAL
Worcester part no. 87161451130
120 Part number 87161407710, OBSOLETE GASKET PACK WATER C240RSF OBSOLETE GASKET PACK WATER C240RSF
Worcester part no. 87161407710
122 Part number 77161920080, ELECTRONIC TIMER-S230E7 ELECTRONIC TIMER-S230E7
Worcester part no. 77161920080
122 Part number 77161920090, OBSOLETE MECHANICAL TIMER-S230M1 OBSOLETE MECHANICAL TIMER-S230M1
Worcester part no. 77161920090
