IDEAL
CLASSIC RS 60 - (Appliance Overview)
Appliance Code: 41-429-38

Appliance Diagram


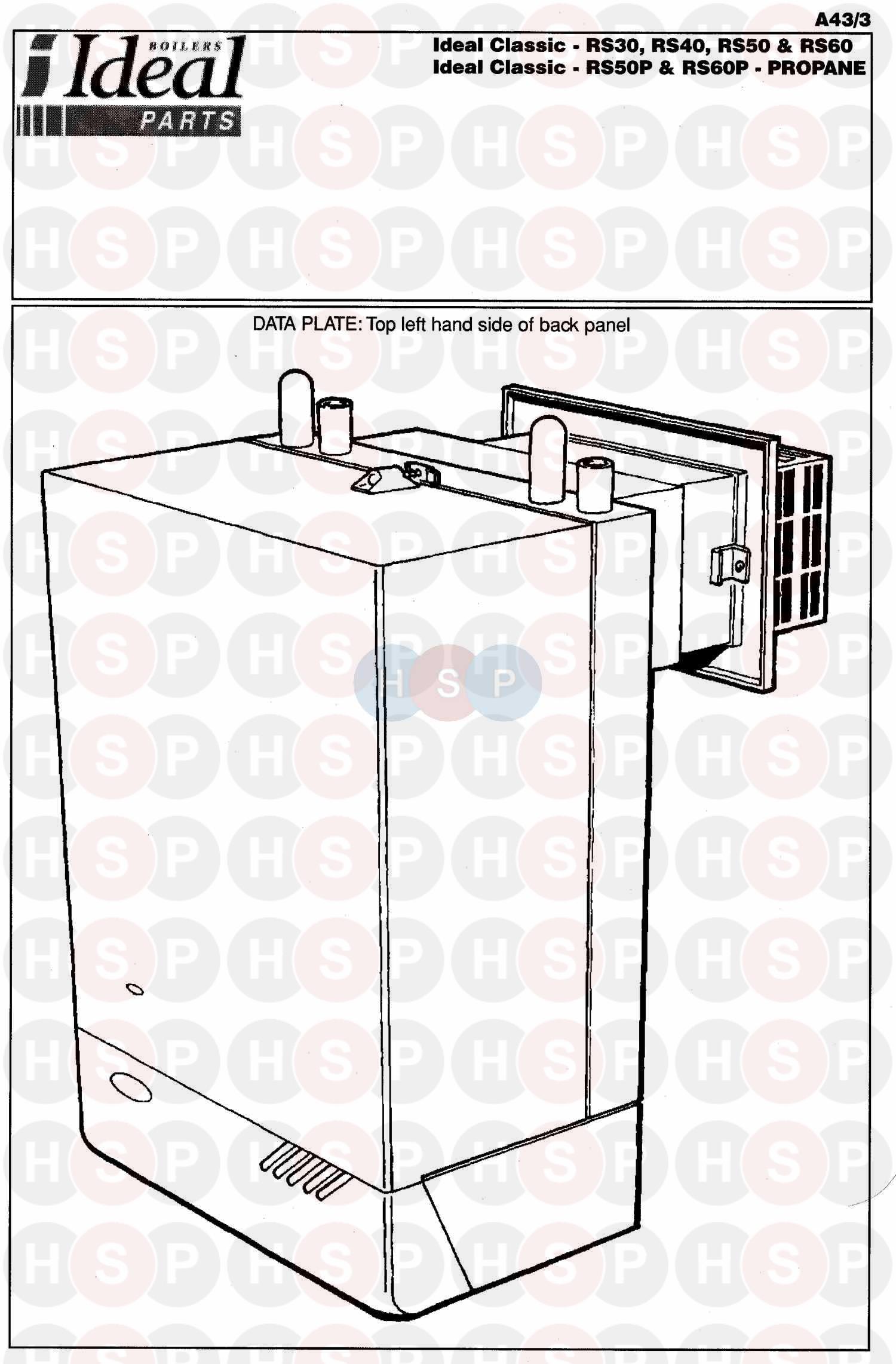

Appliance Overview diagram for Ideal Classic RS 60Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE WALL MTG TEMPLATE RS CL2
Ideal part no. 114430
1   INTERPANEL ASS RS260 CLASSIC
Ideal part no. 137487		 £584.36
2   OBSOLETE 4 FLUEWAY BAFFLES RS 60
Ideal part no. 079582
3   OBSOLETE HOOK BOLTS C/W FIXINGS 50/80NF
Ideal part no. 079583
4   OBSOLETE L H FLOW PIPE CLASSIC RS
Ideal part no. 137458
4   OBSOLETE R H FLOW PIPE CLASSIC RS
Ideal part no. 137457
5   OBSOLETE RETURN PIPE ASS CLASSIC RS60
Ideal part no. 137462
6   OBSOLETE COLL HD ASS CLASSIC RS60
Ideal part no. 137336
7   OBSOLETE COMB CHBR ASS CLASS RS60/NF80
Ideal part no. 137479
8   COMB CHAMBER INSUL NF/RS
Ideal part no. 079586
9 Part number 079602, NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN) NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN)
Ideal part no. 079602
9 Part number 171414, SIGHT GLASS ASSY KIT CLA FF SIGHT GLASS ASSY KIT CLA FF
Ideal part no. 171414		 £9.33
10   OBSOLETE GAS M/FOLD EXTEN CLASSIC
Ideal part no. 079587
11   OBSOLETE GAS M/FOLD ASSY CLASSIC 2 RS/NF
Ideal part no. 079588
12   OBSOLETE AIR BOX C/W GSKT RS/NF CLASSIC
Ideal part no. 079589
13   MAIN BURNER AEROMATIC 19/123261 RS60
Ideal part no. 113178
14 Part number 003362, OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1600 OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1600
Ideal part no. 003362
14   OBSOLETE INJECTOR CAT10 SIZE 1050
Ideal part no. 079655
15   OBSOLETE INJECTOR PILOT 45900421-001 38/36A
Ideal part no. 004981
16   OBSOLETE P/BNR HEAD Q359A 1124 W/INJ
Ideal part no. 079590
17 Part number 137330, PILOT SHIELD CLASSIC/ELAN PILOT SHIELD CLASSIC/ELAN
Ideal part no. 137330
18 Part number 079591, H/WELL VALVE V4700E 1072 H/WELL VALVE V4700E 1072
Ideal part no. 079591		 £266.33
19   OBSOLETE ANGLE FLANGE GASCOCK RS/NF
Ideal part no. 079592
20 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
21 Part number 113172, IGNITION ELECTRODE CLASSIC IGNITION ELECTRODE CLASSIC
Ideal part no. 113172
22 Part number 000842, THERMOCOUPLE+600MM LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842		 £20.99
23   OBSOLETE CTRL BOX ASS ELAN/CLASSIC RS
Ideal part no. 137648
24 Part number 171970, OBSOLETE THERMOSTAT KIT OBSOLETE THERMOSTAT KIT
Ideal part no. 171970
24 Part number 113193, OBSOLETE T/STAT K36L1016 CLASSIC OBSOLETE T/STAT K36L1016 CLASSIC
Ideal part no. 113193
25 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
27   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033
28   OBSOLETE BLR CSG C/W DOOR CLASSIC RS
Ideal part no. 079705
29   OBSOLETE CONT CSG POD C/W DOOR CLASSIC
Ideal part no. 079702
29 Part number 079708, OBSOLETE CONT CSG DOOR ASSY CLASSIC RS OBSOLETE CONT CSG DOOR ASSY CLASSIC RS
Ideal part no. 079708
30   OBSOLETE WALL MNTG PLT ASSY CLASSIC RS
Ideal part no. 079593
32 Part number 079594, CSG SEAL W/FIX CLASSIC (KIT) CSG SEAL W/FIX CLASSIC (KIT)
Ideal part no. 079594
37 Part number 110080, PROGRAMMER MP 241/01 PROGRAMMER MP 241/01
Ideal part no. 110080		 £297.70
39 Part number 113201, LIMIT STAT LM7 P9054 CLASSIC RS LIMIT STAT LM7 P9054 CLASSIC RS
Ideal part no. 113201
40   OBSOLETE H/WARE PK CLASSIC RS/EL 2
Ideal part no. 137567
41 Part number 079662, MANIFOLD GASKET SET MANIFOLD GASKET SET
Ideal part no. 079662		 £20.23
50 Part number 100788, FLOW P/WORK ASS SEALED SYSTEM FLOW P/WORK ASS SEALED SYSTEM
Ideal part no. 100788		 £393.32
50   RETURN PIPE SEALED SYSTEM
Ideal part no. 100792		 £8.67
50   OBSOLETE PUMP OUTLET PIPE SEALED SYSTEM
Ideal part no. 100791
50 Part number 137662, T/STAT POCKET CLASSIC T/STAT POCKET CLASSIC
Ideal part no. 137662		 £42.75
50   OBSOLETE PUMP GRUNDFOS UPS 15-50 STD
Ideal part no. 113221
50 Part number 113089, PRESSURE GAUGE PRESSURE GAUGE
Ideal part no. 113089		 £103.05
50 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116		 £29.95
50 Part number 005713, FLEXIBLE HOSE COMBI FLEXIBLE HOSE COMBI
Ideal part no. 005713		 £26.60
50   WIRING S/ASS CLASSIC NF/MEX FF
Ideal part no. 137717		 £6.99
50 Part number 075248, 1/2IN SAFETY VALVE ASSY ALTECNI 1/2IN SAFETY VALVE ASSY ALTECNI
Ideal part no. 075248		 £36.00
50   OBSOLETE MTG BRKT S/ASS CLASSIC NF/EL2
Ideal part no. 137721
50   OBSOLETE JKT ASS:SEAL SYSTEM CLASSIC
Ideal part no. 100878
50   OBSOLETE H/WARE PK SEALED SYSTEM
Ideal part no. 100874
500 Part number 113205, EXPANSION VESSEL 8 LTR S/S KIT EXPANSION VESSEL 8 LTR S/S KIT
Ideal part no. 113205		 £108.69
501 Part number 100787, L/STAT LM7P9057 SEALED SYSTEM L/STAT LM7P9057 SEALED SYSTEM
Ideal part no. 100787		 £22.75
