MEXICO SLIMLINE CF 55 - (Boiler Assembly 1)
Appliance Code: 41-407-18

Appliance Diagram

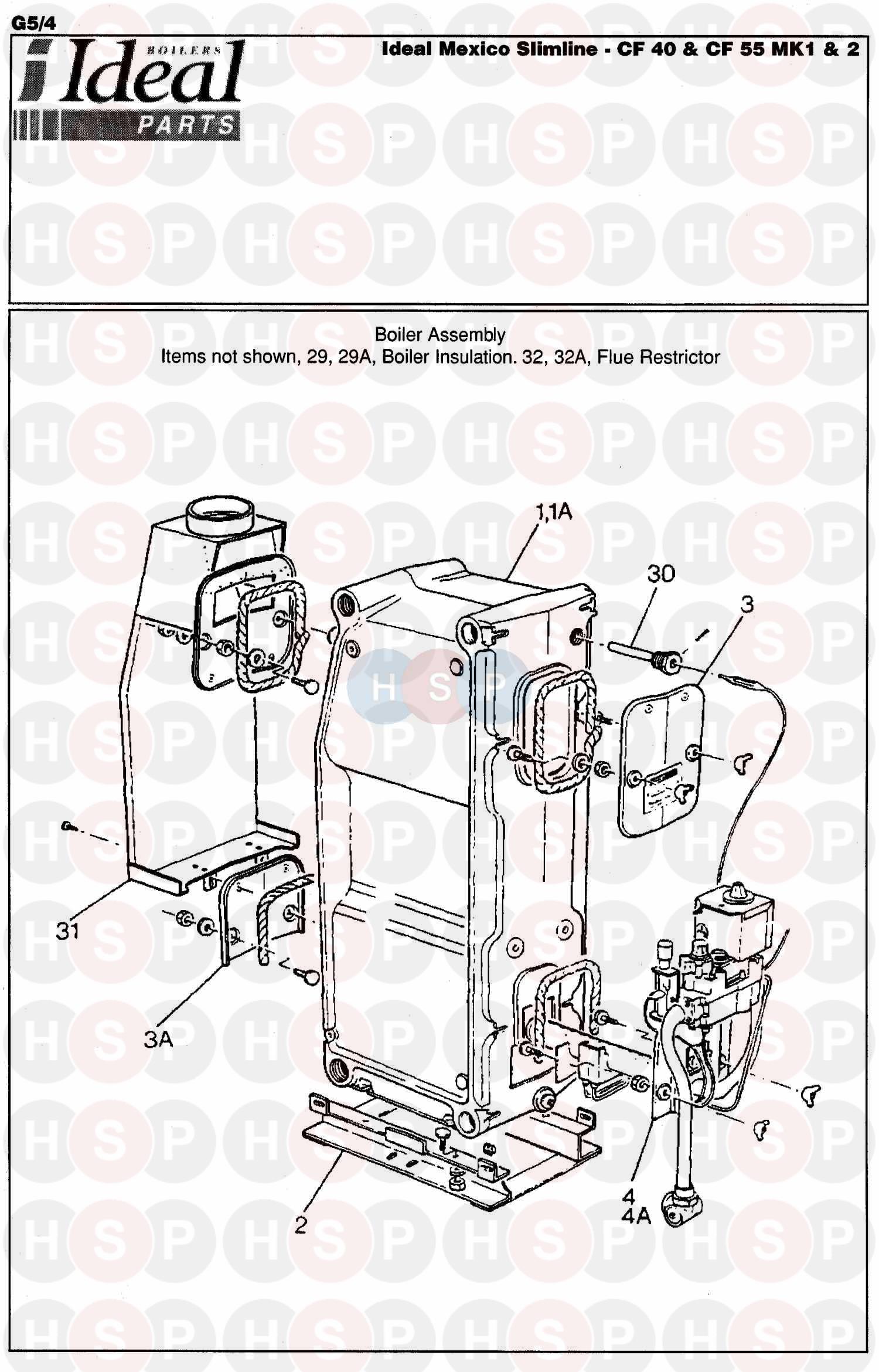

Boiler Assembly 1 diagram for Ideal Mexico Slimline CF 55Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 052888, HT LEAD ASSY 460mm LG RS/MEXSL HT LEAD ASSY 460MM LG RS/MEXSL
Ideal part no. 052888
£3.54
0   OBSOLETE D/DIVERTER ASS MX S/LINE CF
Ideal part no. 139566

0   OBSOLETE END CAP GSKTS (538.300.003)
Ideal part no. 065703

0   OBSOLETE H/WARE PK MEX SLIM CF/RS
Ideal part no. 012995

0   OBSOLETE FRT PLT/BNR/G-LINE:MX S/L CF50
Ideal part no. 150295

0   OBSOLETE CTRL BOX MEX SL CF40/50
Ideal part no. 150296

0   OBSOLETE HINGE STUD 204-120601 MEX S/L
Ideal part no. 003267

0   OBSOLETE STUD ANCHOR-PLASTIC MEX SLIM
Ideal part no. 003225

0   OBSOLETE LOCATION STUD
Ideal part no. 003228

1   OBSOLETE BLR BODY ASS MXSL CF50
Ideal part no. 057833

2   OBSOLETE BOILER FOOT ASS MEX SLIM RS/CF
Ideal part no. 054387

3   OBSOLETE BACK PLATE MEX SLIM CF40/50
Ideal part no. 053670

4   OBSOLETE FRT PLT/BNR GL ASS MX2 SL CF55
Ideal part no. 053661

5 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334

6   OBSOLETE PILOT PIPE MEX SLIM 55
Ideal part no. 078226

6   OBSOLETE PILOT PIPE ASSY MX2 SLIM RS/CF
Ideal part no. 079685

7 Part number 065602, LINT ARREST GAUZE (P51AB16467) LINT ARREST GAUZE (P51AB16467)
Ideal part no. 065602

7 Part number 012532, MAIN BURNER BRAY MK9 AB 16642 MAIN BURNER BRAY MK9 AB 16642
Ideal part no. 012532

8   OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1500
Ideal part no. 003242

9 Part number 079355, PILOT BNR ASSY Q385A-1020 PILOT BNR ASSY Q385A-1020
Ideal part no. 079355

9 Part number 077868, PILOT BURNER ASSY Q359A1041 PILOT BURNER ASSY Q359A1041
Ideal part no. 077868
£24.81
10 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825
£5.68
11   OBSOLETE PLT BNR BRKT ASSY SLIM RS/CF
Ideal part no. 078228

12 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114
£225.72
13   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288

14 Part number 077428, IGN ELECTRODE + HT LEAD KIT IGN ELECTRODE + HT LEAD KIT
Ideal part no. 077428

14   OBSOLETE ELECTRODE ASSY MX2 SLIM RS/CF
Ideal part no. 079686

15 Part number 000842, THERMOCOUPLE+600mm LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842
£20.99
16   OBSOLETE CTRL BOX MX2 SLIMLINE RS
Ideal part no. 053621

17 Part number 003178, T/STAT 24INCL6 PO 104 RANGE 54 T/STAT 24INCL6 PO 104 RANGE 54
Ideal part no. 003178

18 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909

19   OBSOLETE SUPPRESSOR HRNS ASS MEX
Ideal part no. 058887

20   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069

21   OBSOLETE G/COCK C/W G/INLET PIPE MEX SL
Ideal part no. 078759

22   OBSOLETE JKT COMP MEX 2 S/LINE CF 40/55
Ideal part no. 079382

23   OBSOLETE LH SIDE PNL PTD MX S/LINE CF
Ideal part no. 132260

24   OBSOLETE RH SIDE PNL PTD MX S/LINE CF
Ideal part no. 132261

25   OBSOLETE TOP PNL PTD MEX SLIM CF
Ideal part no. 132263

26   OBSOLETE UPPER FRT PNL MEX SLIM 1-2
Ideal part no. 078221

27   OBSOLETE JACKET LOWER FRT PNL ASSY
Ideal part no. 078230

28   OBSOLETE TP PNL INFIL PC PTD MX SLIM CF
Ideal part no. 132244

30   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523

31   OBSOLETE DRAFT DIV ASS MEX SL CF40/50
Ideal part no. 053662

32   OBSOLETE FLUE RESTRICTOR MEX SLIM CF40
Ideal part no. 053797
