GLOWWORM
FUELSAVER UFB 80FF 1991 AVA - (Appliance Overview)
Appliance Code: 41-319-27

Appliance Diagram


Appliance Overview diagram for Glowworm Fuelsaver UFB 80FF 1991 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE INSTALLATION/SERVICING BK 5/92
Glowworm part no. 220178
1   OBSOLETE USER INSTR 10/91
Glowworm part no. 220154
1   OBSOLETE INN CSE FRT-SPARE-ECONPF60/80
Glowworm part no. 800284
2   SCREW -M4X6MM
Glowworm part no. SK6212
3 Part number 432784, SIGHT GLASS FRAME(3STNPF) S/FL SIGHT GLASS FRAME(3STNPF) S/FL
Glowworm part no. 432784
3 Part number S432784, Frame - Sight glass FRAME - SIGHT GLASS
Glowworm part no. S432784
4 Part number 208302, NOW USE S208302 SIGHT GLASS NOW USE S208302 SIGHT GLASS
Glowworm part no. 208302
4 Part number S208302, SIGHT GLASS SIGHT GLASS
Glowworm part no. S208302		 £6.61
5 Part number 208093, NOW USE S208093 GASKET-SIGHT GLASS NOW USE S208093 GASKET-SIGHT GLASS
Glowworm part no. 208093
5 Part number S208093, GASKET-SIGHT GLASS GASKET-SIGHT GLASS
Glowworm part no. S208093		 £6.61
6 Part number 208047, SEAL-8X13.5X1800mm CASE SEAL-8X13.5X1800MM CASE
Glowworm part no. 208047
6 Part number S208047, SEAL-8X13.5X1800mm CASE SEAL-8X13.5X1800MM CASE
Glowworm part no. S208047
7 Part number 208243, NOW USE S208243 SCREW-NO.10 X 3/4 REC NOW USE S208243 SCREW-NO.10 X 3/4 REC
Glowworm part no. 208243
7 Part number S208243, Screw ( no.10 X 3/4 ) SCREW ( NO.10 X 3/4 )
Glowworm part no. S208243
8   OBSOLETE MAIN PANEL ASSY-SPARE-ECONPF80
Glowworm part no. 800288
9 Part number 51062003, NOW USE S51062003 NUT-SPIRE CAPT NO.10 NOW USE S51062003 NUT-SPIRE CAPT NO.10
Glowworm part no. 51062003
9 Part number S51062003, Nut- spire capt no.10 NUT- SPIRE CAPT NO.10
Glowworm part no. S51062003		 £4.29
10   CLIP - EDGE CABLE
Glowworm part no. SK6899
11   PIPE CLIP
Glowworm part no. 204221
11   CLIP - PIPE
Glowworm part no. S204221
12   PIN-PIPE CLIP-FASTEX
Glowworm part no. 204222
12   PIN-PIPE CLIP
Glowworm part no. S204222
16 Part number 204154, NOW USE S204154 LOCK NUT-M36 X 8 NOW USE S204154 LOCK NUT-M36 X 8
Glowworm part no. 204154
16 Part number S204154, LOCK NUT-M36 X 8 LOCK NUT-M36 X 8
Glowworm part no. S204154		 £6.58
17 Part number 51987004, OBSOLETE WASHER-FIBRE 48OD OBSOLETE WASHER-FIBRE 48OD
Glowworm part no. 51987004
18 Part number 230332, NOW USE S230332 BULKHEAD CONNECTOR NOW USE S230332 BULKHEAD CONNECTOR
Glowworm part no. 230332
18 Part number S230332, BULKHEAD CONNECTOR BULKHEAD CONNECTOR
Glowworm part no. S230332		 £12.38
19   OBSOLETE COMB CHAMBER BODY (NPF) UFB68
Glowworm part no. 443056
20   OBSOLETE INSUL-C/C BACK
Glowworm part no. 230322
21 Part number 230320, NOW USE S230320 INSUL - C/C SIDE NOW USE S230320 INSUL - C/C SIDE
Glowworm part no. 230320
21 Part number S230320, Insulation-combustion chamber side INSULATION-COMBUSTION CHAMBER SIDE
Glowworm part no. S230320		 £4.43
22   OBSOLETE HEAT EXCHANGER-SPARE-ECONP 80F
Glowworm part no. 800282
24 Part number 230037, NOW USE S230037 WASHER-SEALING NOW USE S230037 WASHER-SEALING
Glowworm part no. 230037
24 Part number S230037, Washer sealing WASHER SEALING
Glowworm part no. S230037
25   OBSOLETE FLUE HOOD ASSY
Glowworm part no. 2000443175
26 Part number 800276, Fan assembly FAN ASSEMBLY
Glowworm part no. 800276		 £334.02
27 Part number 230246, SILICONE TUBE-230mm RED SA160 SILICONE TUBE-230MM RED SA160
Glowworm part no. 230246
27 Part number S230246, Silicone tube-230mm red SILICONE TUBE-230MM RED
Glowworm part no. S230246
28 Part number 230247, OBSOLETE SILICONE TUBE-190mm CLEARSA160 OBSOLETE SILICONE TUBE-190MM CLEARSA160
Glowworm part no. 230247
29 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
30   OBSOLETE FLUE HOOD BRACKET (1XB) UFB68
Glowworm part no. 443051
31   HOOK BOLT
Glowworm part no. 441552
31   HOOK BOLT
Glowworm part no. S441552
32 Part number 208012, NOW USE S208012 NUT-WING M4 ZP NOW USE S208012 NUT-WING M4 ZP
Glowworm part no. 208012
32 Part number S208012, Nut ( wing M4 ) NUT ( WING M4 )
Glowworm part no. S208012
33   OBSOLETE BURNER 60F3 - AC07/052049
Glowworm part no. 230353
34 Part number 230209, PILOT BNR-J/SON 27A5H2H7215C1L PILOT BNR-J/SON 27A5H2H7215C1L
Glowworm part no. 230209
34 Part number S230209, Pilot burner PILOT BURNER
Glowworm part no. S230209
35   OBSOLETE SCREW-M5X6MM BRS HX SLT
Glowworm part no. 208408
36 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
37   OBSOLETE BURNER SUPP BRKT (1XB) UFB
Glowworm part no. 443008
38 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
38 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
39 Part number 432901, Gland plate GLAND PLATE
Glowworm part no. 432901		 £72.14
40 Part number 432915, NOW USE S432915 GLAND PLATE ASSY - MICRON NOW USE S432915 GLAND PLATE ASSY - MICRON
Glowworm part no. 432915
40 Part number S432915, Gland plate GLAND PLATE
Glowworm part no. S432915
41   OBSOLETE GLAND PLATE SCREW
Glowworm part no. 230328
42 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
43   OBSOLETE COMBUSTION CHAMBER DOOR ASSY
Glowworm part no. 443199
44   NOW USE S230323 INSUL-C/C FRONT
Glowworm part no. 230323
44   INSULATION-COMBUSTION CHAMBER FRONT
Glowworm part no. S230323		 £4.43
45 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
46 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
47   OBSOLETE RETAINER-PHIAL
Glowworm part no. 410939
48 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
48 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
49 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
49 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
50 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
50 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
51 Part number 417517, NOW USE VR4700E1034 GAS CNTRL ASSY NOW USE VR4700E1034 GAS CNTRL ASSY
Glowworm part no. 417517

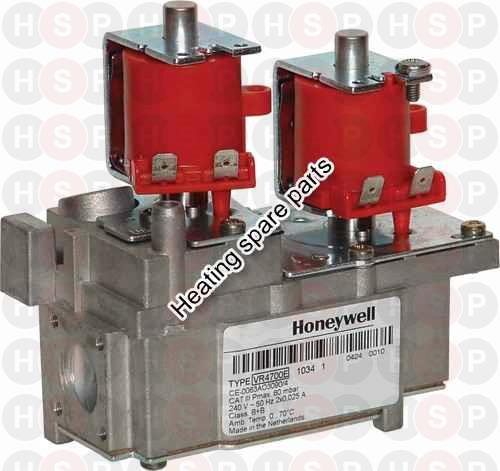

51 Part number VR4700E1034, Gas valve GAS VALVE
Glowworm part no. VR4700E1034
52   OBSOLETE GAS CONTROL COVER
Glowworm part no. 203315
53   NOW USE S203306 GAS CONTROL SCREW
Glowworm part no. 203306
53   SCREW-GAS CONTROL
Glowworm part no. S203306		 £4.91
54   OBSOLETE GROMMET PLATE-HONEYWELL
Glowworm part no. 203307
55   OBSOLETE PILOT TUBE ASSY-SPARE-ECON PF
Glowworm part no. 800289
56 Part number 204184, OBSOLETE TUBING NUT-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. 204184
56 Part number S204184, OBSOLETE Tubing nut-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. S204184
57 Part number 204185, NOW USE S204185 ADAPTER OLIVE-REDUCER NOW USE S204185 ADAPTER OLIVE-REDUCER
Glowworm part no. 204185
57 Part number S204185, ADAPTER OLIVE-REDUCER ADAPTER OLIVE-REDUCER
Glowworm part no. S204185		 £6.97
58 Part number 204853, NOW USE S204853 TB NUT-4mm-H/W 45.004.388-001 NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001
Glowworm part no. 204853
58 Part number S204853, Tubing nut -4mm TUBING NUT -4MM
Glowworm part no. S204853		 £8.27
59   OBSOLETE MANIFOLD ASSY - PNTD ALLUFB
Glowworm part no. 443065
60 Part number 208294, NOW USE S208294 SCREW-M5X14mm+5DG MS PN NOW USE S208294 SCREW-M5X14MM+5DG MS PN
Glowworm part no. 208294
60 Part number S208294, Screw ( M5X14mm ) SCREW ( M5X14MM )
Glowworm part no. S208294		 £6.61
61   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. 212080
61   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. S212080
62 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
62 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
63   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
63   SCREW
Glowworm part no. S78129
64   OBSOLETE INJECTOR-BURNER
Glowworm part no. 230367
65 Part number 230335, SILICONE TUBE-430mm RED SA160 SILICONE TUBE-430MM RED SA160
Glowworm part no. 230335
65 Part number S230335, Silicone tube -430mm red SILICONE TUBE -430MM RED
Glowworm part no. S230335
66   SILICONE TUBE-430MM CLEARSA160
Glowworm part no. 230336
66   SILICONE TUBE -430MM
Glowworm part no. S230336
67   OBSOLETE CONTROL BOX ASSY
Glowworm part no. 443113
68   OBSOLETE CTRL BOX BODY ASY-SPARE-ECON PF
Glowworm part no. 800290
69 Part number 900817, NOW USE S900817 PCB-ALTERNATIVE-KFB SEE REMS NOW USE S900817 PCB-ALTERNATIVE-KFB SEE REMS
Glowworm part no. 900817
69 Part number S900817, Printed circuit board (5 wire-1 fuse) PRINTED CIRCUIT BOARD (5 WIRE-1 FUSE)
Glowworm part no. S900817		 £162.29
70   TERMINAL BLOCK ASSY
Glowworm part no. 443176
70   TERMINAL BLOCK
Glowworm part no. S443176
71 Part number SWW4607, Ignition lead IGNITION LEAD
Glowworm part no. SWW4607
72   OBSOLETE GAS CONTROL HARNESS
Glowworm part no. 443105
73 Part number 443106, NOW USE S443106 FAN HARNESS ASSY NOW USE S443106 FAN HARNESS ASSY
Glowworm part no. 443106
73 Part number S443106, Harness - Fan HARNESS - FAN
Glowworm part no. S443106
74 Part number 443104, NOW USE S443104 PRESSURE SWITCH HARNESS NOW USE S443104 PRESSURE SWITCH HARNESS
Glowworm part no. 443104
74 Part number S443104, Harness - Pressure switch HARNESS - PRESSURE SWITCH
Glowworm part no. S443104
75   NOW USE S204220 GROMMET-ROBERT MOSS
Glowworm part no. 204220
75   GROMMET
Glowworm part no. S204220
76 Part number 204259, NOW USE S204259 BUSH-CORD GRIP-ELKAY 744 NOW USE S204259 BUSH-CORD GRIP-ELKAY 744
Glowworm part no. 204259
76 Part number S204259, Bush-cord grip BUSH-CORD GRIP
Glowworm part no. S204259
77   NOW USE S204260 LOCKNUT-ELKAY 93
Glowworm part no. 204260
77   LOCKNUT
Glowworm part no. S204260
78   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
78   CORD GRIP
Glowworm part no. S204239
79   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
79   LOCKNUT
Glowworm part no. S204240
80 Part number 230357, A/P SWITCH A/P SWITCH
Glowworm part no. 230357
80 Part number S230357, Air pressure switch AIR PRESSURE SWITCH
Glowworm part no. S230357
81 Part number 208308, NOW USE S208308 SCREW-M4X10mm+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
81 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
82 Part number 800272, O/Heat stat + heat O/HEAT STAT + HEAT
Glowworm part no. 800272		 £59.97
83 Part number 800271, OBSOLETE CONTROL STAT&HEATSINK-ECON PF OBSOLETE CONTROL STAT&HEATSINK-ECON PF
Glowworm part no. 800271
84 Part number 800275, Control knob + clip CONTROL KNOB + CLIP
Glowworm part no. 800275
85 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
85 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
86   NOW USE S230226 SCREW-NO.4X3/4 PLASTITE-RECPAN
Glowworm part no. 230226
86   SCREW -NO.4X3/4 PLASTITE
Glowworm part no. S230226
88   SCREW - M4X10MM
Glowworm part no. SK6359
89 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
90 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
91   OBSOLETE FLUE ELBOW GASKET
Glowworm part no. 230315
91   FLUE ELBOW GASKET
Glowworm part no. S230315		 £4.29
92   OBSOLETE WASHER-M5 MS PLAIN ZP
Glowworm part no. 208228
93   NOW USE S208283 SCREW-M4X16MM+5DG MS PN
Glowworm part no. 208283
93   SCREW ( M4X16MM )
Glowworm part no. S208283
94   OBSOLETE FLUE ELBOW-SPARE-ECONP60/80F
Glowworm part no. 2000800300
95 Part number 209148, FLUE DUCT-ALUM DRAWN TUBE FLUE DUCT-ALUM DRAWN TUBE
Glowworm part no. 209148
95 Part number S209148, Flue duct FLUE DUCT
Glowworm part no. S209148
96 Part number 209174, WALL LINER-KFB WALL LINER-KFB
Glowworm part no. 209174
96 Part number S209174, Wall liner WALL LINER
Glowworm part no. S209174
97 Part number 440096, OBSOLETE Terminal OBSOLETE TERMINAL
Glowworm part no. 440096
98   OBSOLETE OUTER CASE FRT ASSY FSUFB80F
Glowworm part no. 443132
99   OBSOLETE HANDLE & NAME STRIP FSUFB60>80B&F
Glowworm part no. 800277
100   OBSOLETE SCREW-M4X6MM MS HX HD BZP
Glowworm part no. SK7447
101   OBSOLETE SIDE PANEL PNTD UFB
Glowworm part no. 443024
102   OBSOLETE CASE TOP-PNTD UFB60/80
Glowworm part no. 443058
103   OBSOLETE TOP LOCN BRACKET PNTD UFB60/80
Glowworm part no. 443060
104   OBSOLETE CASE BASE ASSY
Glowworm part no. 443190
105   NOW USE S208520 NUT-SPIRE CPNO.6-SNU 2592/17/4
Glowworm part no. 208520
105   NUT-SPIRE CAPT NO.6
Glowworm part no. S208520
106   OBSOLETE CASE BASE BRACKET ASSY
Glowworm part no. 443189
107   OBSOLETE MAGNETIC CA140042
Glowworm part no. 140041
108   OBSOLETE WASHER-CUP POLY
Glowworm part no. 204274
109   OBSOLETE SCREW CAP-POLY
Glowworm part no. 204273
110   SCREW-M4 X 6MM REC
Glowworm part no. 208365
110   SCREW ( M4 X 6MM )
Glowworm part no. S208365
111   OBSOLETE NUT-COMPRESSION QC
Glowworm part no. 61940732
111   OBSOLETE NUT-COMPRESSION QC
Glowworm part no. S61940732
112   OBSOLETE OLIVE-28MM DIA
Glowworm part no. 66360002
112   OBSOLETE OLIVE-28MM DIA
Glowworm part no. S66360002
113 Part number 212140, SEAL-35X15X340mm WALL SEAL-35X15X340MM WALL
Glowworm part no. 212140
113 Part number S212140, SEAL-35X15X340mm WALL SEAL-35X15X340MM WALL
Glowworm part no. S212140
114   OBSOLETE TAPE/ROLL ASSY
Glowworm part no. 432893
115   OBSOLETE WALL MNTG BRKT (PCF) UFB34568
Glowworm part no. 443010
116 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
117 Part number SWW8303, Lead LEAD
Glowworm part no. SWW8303
118 Part number 208537, NOW USE S208537 SILICONE TUBE-40mm RED SA160 NOW USE S208537 SILICONE TUBE-40MM RED SA160
Glowworm part no. 208537
118 Part number S208537, Silicone tube-40mm red SILICONE TUBE-40MM RED
Glowworm part no. S208537		 £4.29
119   GASKET-FAN MOUNTING
Glowworm part no. 230325
119   GASKET -FAN MOUNTING
Glowworm part no. S230325
120   NOW USE S230368 P.C.B. POSTS(RICHCO-TCBS-4-01)
Glowworm part no. 230368
120   POSTS - P.C.B.
Glowworm part no. S230368		 £4.91
121   NOW USE S50754002 SCREW-NO.6X1/4 REC BZP
Glowworm part no. 50754002
121   SCREW - NO.6X1/4
Glowworm part no. S50754002
123   OBSOLETE MAIN PNL TOP BAFF (NPF) UFB80
Glowworm part no. 443077
124   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
124   SCREW - M4X8MM
Glowworm part no. S403014
125   OBSOLETE H/EXCH RET PLATE (P.INS) UFB68
Glowworm part no. 443055
126 Part number 203350, OBSOLETE SOLENOID-G/VALVE 45900406.003 OBSOLETE SOLENOID-G/VALVE 45900406.003
Glowworm part no. 203350
126 Part number S203350, OBSOLETE Solenoid-gas valve OBSOLETE SOLENOID-GAS VALVE
Glowworm part no. S203350


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
