CHAFFOTEAUX
MINIFLAME MK 2 BF - (Assembly 1)
Appliance Code: 41-980-24

Appliance Diagram


Assembly 1 diagram for Chaffoteaux Miniflame MK 2 BFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRONT COVER ASSEMBLY - MARK II
Chaffoteaux part no. 0034374.00

5   OBSOLETE SIGHT GLASS ASSY
Chaffoteaux part no. 60081047
£28.66
9   OBSOLETE SPRING CLIP
Chaffoteaux part no. 0029090.00

13 Part number 0061853.07, NOW USE 60061853-07 WASHER 11.0 X 5.0 X 1.5 NOW USE 60061853-07 WASHER 11.0 X 5.0 X 1.5
Chaffoteaux part no. 0061853.07

13 Part number 60061853-07, SHEET GASKET D: 11-5-1.5 SHEET GASKET D: 11-5-1.5
Chaffoteaux part no. 60061853-07
£0.50
14   OBSOLETE GAS CONTROL KNOB
Chaffoteaux part no. 60027102

15   NUT M 22-1.5
Chaffoteaux part no. 60018732-10
£0.79
16   OBSOLETE SCREW ()
Chaffoteaux part no. 0034376.02

22   TRAPPED NUT M 6
Chaffoteaux part no. 60008588-03
£2.48
23 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Chaffoteaux part no. 60081273
£23.36
24 Part number 60031527-03, SCREW M 6-10 SCREW M 6-10
Chaffoteaux part no. 60031527-03
£0.74
26   OBSOLETE HEATING BODY G7 MINIFLAME 1 & 11
Chaffoteaux part no. 0034828.06

28 Part number 60005799-13, SCREW HS M 6-12 SCREW HS M 6-12
Chaffoteaux part no. 60005799-13
£0.55
29   WASHER D: 14.2-7.2-1.2
Chaffoteaux part no. 60005369-03
£0.41
30   OBSOLETE WASHER 16.0 X 6.0 X 1.5
Chaffoteaux part no. 0019869.08

31   OBSOLETE BLANKING DISC
Chaffoteaux part no. 0028914.00

32   OBSOLETE RETAINER BLANKING DISC
Chaffoteaux part no. 0028913.00

33   OBSOLETE SCREW - M5 X 22 STEEL NICKEL PLATED
Chaffoteaux part no. 0015691.00

34 Part number 60026773, FOAM SEAL 25x12 L: 1.030M FOAM SEAL 25X12 L: 1.030M
Chaffoteaux part no. 60026773
£4.51
36   OBSOLETE F & R SEALING RING
Chaffoteaux part no. 0028921.00

40   OBSOLETE GAS SERVICE TAP SH12/MINI I
Chaffoteaux part no. 0043794.00

41 Part number 60061855-16, SHEET GASKET D: 18.2-14-1.5 SHEET GASKET D: 18.2-14-1.5
Chaffoteaux part no. 60061855-16
£0.60
42   OBSOLETE WALL FIXING SCREW
Chaffoteaux part no. 0005787.00

44   OBSOLETE NUT M7
Chaffoteaux part no. 0029094.03

45 Part number 60034269, IGNITER IGNITER
Chaffoteaux part no. 60034269
£15.85
46   OBSOLETE IGNITER PROTECTION
Chaffoteaux part no. 60035307

47   OBSOLETE ELECTRODE AND CABLE ASSY
Chaffoteaux part no. 0033200.00

48   OBSOLETE PIEZO IGNITOR
Chaffoteaux part no. 0040351.00

51   OBSOLETE BURNER HEAD ASSY
Chaffoteaux part no. 0022103.00

57   OBSOLETE MANIFOLD M12N
Chaffoteaux part no. 0019247.06

59   PRESSURE TEST POINT SCREW
Chaffoteaux part no. 60019445
£1.24
61   INJECTOR D: 1.18
Chaffoteaux part no. 60014154-18
£1.75
62 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131
£0.42
63   NOW USE 60022118-03 WASHER 10.0 X 5.0 X 1.0
Chaffoteaux part no. 0022118.03

63   WASHER D: 10-5-1
Chaffoteaux part no. 60022118-03
£0.40
74   OBSOLETE RESTRICTOR GASKET 2.95
Chaffoteaux part no. 0023991.15

75   NOW USE 60100307-20 PILOT TUBE
Chaffoteaux part no. 60028851

76   NUT H M 8-0.75
Chaffoteaux part no. 60026550
£1.64
77 Part number 60026646, PILOT INJECTOR D: 0.3 PILOT INJECTOR D: 0.3
Chaffoteaux part no. 60026646
£7.83
78   FILTER
Chaffoteaux part no. 60020682

79   WASHER D: 4.2-2.2-1
Chaffoteaux part no. 60029244-01

80   SUPPORT & PILOT TUBE
Chaffoteaux part no. 60100307-20
£13.91
81   NOW USE 60027051-03 THERMOCOUPLE CLAMP
Chaffoteaux part no. 0027051.03

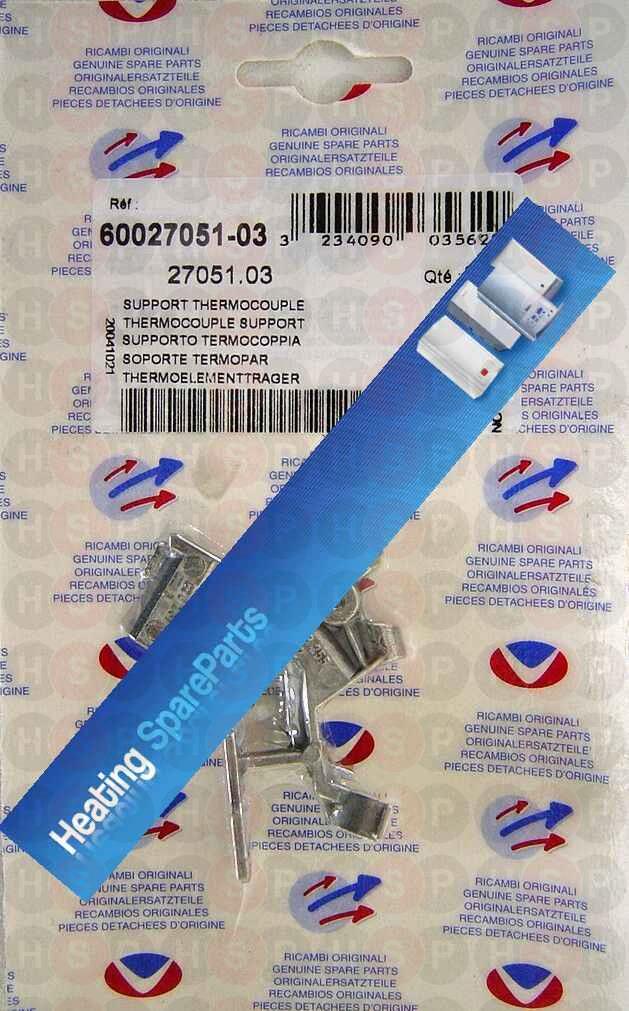

81 Part number 60027051-03, THERMOCOUPLE SUPPORT THERMOCOUPLE SUPPORT
Chaffoteaux part no. 60027051-03
£18.87
82 Part number 60075010, SCREW M 3-8 SCREW M 3-8
Chaffoteaux part no. 60075010
£0.47
84   OBSOLETE BURNER BASE
Chaffoteaux part no. 60032249-08

85   OBSOLETE NUT M 36-1.5
Chaffoteaux part no. 60032250-08

86 Part number 60022833-10, PERB WASHER D: 34.1-25.7-1.5 PERB WASHER D: 34.1-25.7-1.5
Chaffoteaux part no. 60022833-10
£0.83
87   OBSOLETE GAS RESTRICTOR D: 3.1
Chaffoteaux part no. 60032684

88   OBSOLETE GASKET (/MANIFOLD)
Chaffoteaux part no. 60015600

89 Part number 60060466, ELECTRODE & LEAD ASSY ELECTRODE & LEAD ASSY
Chaffoteaux part no. 60060466

93 Part number 60028297, THERMOCOUPLE ASSY THERMOCOUPLE ASSY
Chaffoteaux part no. 60028297
£40.43
94 Part number 60033509, FUSE 109C FUSE 109C
Chaffoteaux part no. 60033509
£8.87
95   WASHER D: 16-4.2-1.2
Chaffoteaux part no. 60033511
£0.78
97   OBSOLETE NUT H M 4-0.7
Chaffoteaux part no. 60011104-03

98   WASHER D: 12-4.2-1.5
Chaffoteaux part no. 60033510
£0.67
99   OBSOLETE WASHER - M4 SHAKEPROOF
Chaffoteaux part no. 0010465.00

133   OBSOLETE NUT MAXI II
Chaffoteaux part no. 60032232-08

134   OBSOLETE GASKET D: 48-35-1.5
Chaffoteaux part no. 60032233

135   OBSOLETE SPRING-VALVE
Chaffoteaux part no. 60032289

136   OBSOLETE GAS VALVE
Chaffoteaux part no. 60032581

137   OBSOLETE WASHER VALVE FACING
Chaffoteaux part no. 0021112.00

138   GAS SECTION BODY
Chaffoteaux part no. 60730107
£104.19
139   WASHER
Chaffoteaux part no. 60026578
£0.98
140   OBSOLETE SPINDLE-VALVE MAXI II
Chaffoteaux part no. 0032258.00

141   SPRING
Chaffoteaux part no. 60032290
£0.90
142   OBSOLETE SPRING SEAT
Chaffoteaux part no. 60032259

143   NOW USE 60020769-06 CIRCLIP EXT 3.1
Chaffoteaux part no. 0020769.06

143   CIRCLIPS EXT D: 3.1
Chaffoteaux part no. 60020769-06
£1.11
144   GASKET (/GAS SECTION)
Chaffoteaux part no. 60018652
£0.96
145   THERMO-ELECTRIC BOX
Chaffoteaux part no. 60032295
£116.14
146 Part number 60019483, THERMO-ELECTRIC VALVE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60019483
£20.25
147   GAS VALVE FACING
Chaffoteaux part no. 60021783
£1.20
148   OBSOLETE THERMO-ELECTRIC VALVE HOUSING
Chaffoteaux part no. 60026576

149 Part number 60026587, PUSH ROD ASSY PUSH ROD ASSY
Chaffoteaux part no. 60026587
£8.67
150 Part number 60022871, GAS VALVE FACING GAS VALVE FACING
Chaffoteaux part no. 60022871
£0.76
151   GAS VALVE NAT
Chaffoteaux part no. 60026777
£2.99
152   OBSOLETE SPRING
Chaffoteaux part no. 60019127

153   OBSOLETE PLUG
Chaffoteaux part no. 60031627-08

154   OBSOLETE REGULATING SCREW
Chaffoteaux part no. 60031629-08

155   OBSOLETE SCREW - CAPPING
Chaffoteaux part no. 0031628.08

156   OBSOLETE WASHER 12.5 X 9.0 X 1.5
Chaffoteaux part no. 0019870.04

157 Part number 60018653, GASKET(/Box cover) GASKET(/BOX COVER)
Chaffoteaux part no. 60018653
£0.94
158   GAS COCK MECHANISM
Chaffoteaux part no. 60032296
£45.34
159   1/2 STRAP
Chaffoteaux part no. 60026707
£1.29
160 Part number 60042585-02, SCREW M 4-12 SCREW M 4-12
Chaffoteaux part no. 60042585-02
£0.41
161   SCREW CS M 6-45
Chaffoteaux part no. 60029555-03
£0.88
162   SCREW CB M 6-12
Chaffoteaux part no. 60032390-08
£0.78
163   GASKET D: 29.5-21.5-3
Chaffoteaux part no. 60019109
£1.19
168   OBSOLETE GAS SECTION NAT ASSY
Chaffoteaux part no. 60032582

171 Part number 60022639, GLAND GLAND
Chaffoteaux part no. 60022639
£7.96
172 Part number 60061854-11, SHEET GASKET D: 14.8-10.3-1.5 SHEET GASKET D: 14.8-10.3-1.5
Chaffoteaux part no. 60061854-11
£0.58
172 Part number 0061854.11, NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5 NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5
Chaffoteaux part no. 0061854.11

174 Part number 60024164-09, O-RING D: 4.9-1.9 O-RING D: 4.9-1.9
Chaffoteaux part no. 60024164-09
£0.41
175 Part number 60100605-30, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100605-30
£25.61
177 Part number 60010419, DIAPHRAGM DIAPHRAGM
Chaffoteaux part no. 60010419
£2.52
178 Part number 60024164-16, O-RING D: 12.1-2.7 O-RING D: 12.1-2.7
Chaffoteaux part no. 60024164-16
£0.54
180   THERMOSTAT CARTRIDGE
Chaffoteaux part no. 60031313
£23.26
181   SPRING
Chaffoteaux part no. 60043423

182   OBSOLETE WASHER 29.9 X 24.0 X 1.5
Chaffoteaux part no. 0022834.02

183   OBSOLETE PLUG - THERMOSTAT RETAINING
Chaffoteaux part no. 0027182.00

184 Part number 60024164-18, O-RING D: 13.6-2.7 O-RING D: 13.6-2.7
Chaffoteaux part no. 60024164-18
£0.44
185   SCREW M 6-12
Chaffoteaux part no. 60000101-13
£0.68
186   OBSOLETE DRAIN PLUG - G7
Chaffoteaux part no. 0029100.00

187   OBSOLETE DRAIN SCREW
Chaffoteaux part no. 60031547-08

188 Part number 60024164-05, O-RING D: 3.4-1.9 O-RING D: 3.4-1.9
Chaffoteaux part no. 60024164-05
£0.42
189   OBSOLETE WATER BEND RETURN
Chaffoteaux part no. 0029099.08

190   OBSOLETE WATER FLOW BEND
Chaffoteaux part no. 0029098.08

191   OBSOLETE NUT 3/4
Chaffoteaux part no. 60029519-08

192 Part number 60061855-01, SHEET GASKET D: 24-18.2-1.5 SHEET GASKET D: 24-18.2-1.5
Chaffoteaux part no. 60061855-01
£0.79
193   GRUB SCREW
Chaffoteaux part no. 60017908
£1.21
194   OBSOLETE SUPPORT BRACKET-WATER SECTION
Chaffoteaux part no. 0028908.00

196   OBSOLETE FLUE TERMINAL
Chaffoteaux part no. 0028996.00

197   OBSOLETE WALL LINER 14 INCH G7 BF
Chaffoteaux part no. 0028952.00

198   OBSOLETE FLUE DUCT 14 INCH G7 BF
Chaffoteaux part no. 0028949.00

200   SCREW H M 4-16
Chaffoteaux part no. 60028467-08
£3.20
202   FAN WASHER D: 4
Chaffoteaux part no. 60028466-03
£1.28
207   OBSOLETE FLUE DUCT EXTENSION G7 BF
Chaffoteaux part no. CHL043

208   OBSOLETE WALL LINER EXT BODY 14-20 INCH
Chaffoteaux part no. 60056375

208   OBSOLETE WALL LINER EXT. COVER 14-20 INCH
Chaffoteaux part no. 60056376

210   OBSOLETE CHAIN 20 INCH
Chaffoteaux part no. 60022555-10

211   OBSOLETE FLUE SEALING TAPE
Chaffoteaux part no. CHL046
