BAXI
BERMUDA C5 LPG - (First Line Spares)
Appliance Code: 37-077-74

Appliance Diagram


First Line Spares diagram for Baxi Bermuda C5 LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   NOW USE 238364BAX OUTER CASE ASSY SPARES-C5
Baxi part no. 238364
1   SPARES OUTER CASE ASSY - C5
Baxi part no. 238364BAX		 £447.80
2   SIDE-CHEEK - OAK
Baxi part no. 232379		 £17.41
3 Part number 040961, SHIELD-HEAT-SIDE-CHEEK-C3-C4 SHIELD-HEAT-SIDE-CHEEK-C3-C4
Baxi part no. 040961		 £7.76
4   PANEL TOP
Baxi part no. 232403		 £10.07
5   SCR-NO 8X14TPIX1/2 HARDTWIN-WD
Baxi part no. 042244		 £2.18
6 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
7   SHIELD HEAT PANEL TOP
Baxi part no. 232809		 £7.72
8 Part number 237647, BEZEL BEZEL
Baxi part no. 237647
8 Part number 245988, BEZEL BEZEL
Baxi part no. 245988
9 Part number 232705, CONTROL KNOB ASSY CONTROL KNOB ASSY
Baxi part no. 232705
10   LOUVRE-CONVECTION
Baxi part no. 043046		 £29.90
11   NOW USE 040774 PANEL-CANOPY & INSUL-PW3/C3
Baxi part no. 236449
11   PANEL-CANOPY & INSUL-PW3/C3
Baxi part no. 040774		 £23.71
12 Part number 232407, PANEL FRONT LOWER PANEL FRONT LOWER
Baxi part no. 232407
13 Part number 237899, REFLECTOR ASSY - RADIANTS 5 REFLECTOR ASSY - RADIANTS 5
Baxi part no. 237899		 £103.17
14 Part number 043036, OBSOLETE GUARD-DRESS OBSOLETE GUARD-DRESS
Baxi part no. 043036
15 Part number 234341, CONTROLS COVER ASSY - RADS4 CONTROLS COVER ASSY - RADS4
Baxi part no. 234341
16   OBSOLETE INNER CASE COMPLETE 234340 37-077-27 156-
Baxi part no. 234340
17 Part number 040608, Assy Heat Ex BBU Rads (Spares) ASSY HEAT EX BBU RADS (SPARES)
Baxi part no. 040608
18   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934
19 Part number 040809, PLATE-MOUNTING-BERMUDA B PLATE-MOUNTING-BERMUDA B
Baxi part no. 040809		 £9.86
20   RESTRICTOR-REAR-RADIANTS-BER B
Baxi part no. 040810		 £9.12
21 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3.01
22 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
23 Part number 220045, PLATE-BACK-BERMUDA C3-PW3-C3W PLATE-BACK-BERMUDA C3-PW3-C3W
Baxi part no. 220045		 £20.00
24 Part number 040697, CASE SURROUND-BERM C3/PW3 CASE SURROUND-BERM C3/PW3
Baxi part no. 040697		 £13.03
25   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731		 £2.47
26   CHANNEL- REAR-C3/PW3
Baxi part no. 040698		 £11.86
27   PLATE-VIEW RESTRICTOR-BER.B
Baxi part no. 040775		 £4.83
28 Part number 040968, PLATE-BACKING-PAINTED BER C3 PLATE-BACKING-PAINTED BER C3
Baxi part no. 040968		 £18.85
29 Part number 062531, SCR-TF-M5x8MM-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
30 Part number 231032, NOW USE 231032BAX PLATE SUPPORT FIRE - RADIANT NOW USE 231032BAX PLATE SUPPORT FIRE - RADIANT
Baxi part no. 231032
30 Part number 231032BAX, PLATE SUPPORT FIRE - RADIANT PLATE SUPPORT FIRE - RADIANT
Baxi part no. 231032BAX		 £10.58
31 Part number 228212, KIT FEET ADJUST (CONV & FIRES) KIT FEET ADJUST (CONV & FIRES)
Baxi part no. 228212		 £20.83
32 Part number 222960, OBSOLETE BRACKET-WALL FIXING OBSOLETE BRACKET-WALL FIXING
Baxi part no. 222960
33   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
34 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
35 Part number 237464, SPINDLE EXT - CONTROL KNOB SPINDLE EXT - CONTROL KNOB
Baxi part no. 237464		 £12.34
36 Part number 234667, NOW USE 238263BAX PIN SPLIT 1.8x15mm NOW USE 238263BAX PIN SPLIT 1.8X15MM
Baxi part no. 234667

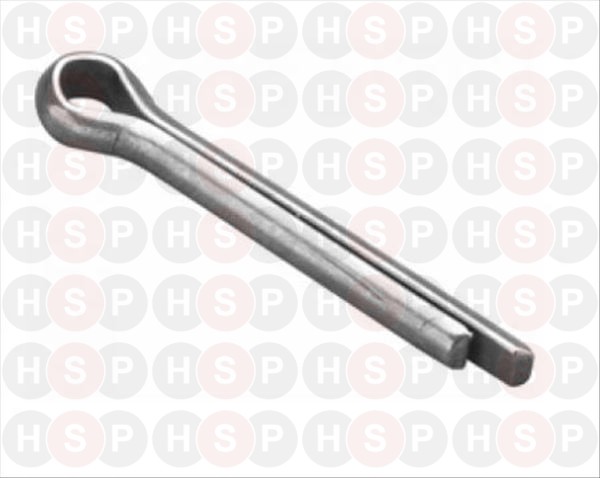

36 Part number 238263BAX, PIN SPLIT 1.8x15mm MILD STEEL PIN SPLIT 1.8X15MM MILD STEEL
Baxi part no. 238263BAX
37 Part number 238965, KIT GAS TAP FFD Ign & FILTER KIT GAS TAP FFD IGN & FILTER
Baxi part no. 238965		 £88.53
37 Part number 236983, GAS TAP GAS TAP
Baxi part no. 236983
37 Part number 232440, IGNITER GAS TAP IGNITER GAS TAP
Baxi part no. 232440		 £172.88
37 Part number 250024, KIT-GAS TAP (RADS 5) KIT-GAS TAP (RADS 5)
Baxi part no. 250024
38 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412
39 Part number 239289, KIT - PIEZO IGNITION KIT - PIEZO IGNITION
Baxi part no. 239289
39 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
40 Part number 236259, OBSOLETE CIRCLIP OBSOLETE CIRCLIP
Baxi part no. 236259
41 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
42 Part number 238029, OBSOLETE SLEEVE ELECTRODE OBSOLETE SLEEVE ELECTRODE
Baxi part no. 238029
42 Part number 237841, LEAD ELECTRODE 545mm - C5/C5W LEAD ELECTRODE 545MM - C5/C5W
Baxi part no. 237841		 £10.72
42 Part number 238029BAX, OBSOLETE SLEEVE ELECTRODE OBSOLETE SLEEVE ELECTRODE
Baxi part no. 238029BAX
43 Part number 233282, PIPE SUPPLY GAS TAP - ASSY PIPE SUPPLY GAS TAP - ASSY
Baxi part no. 233282
44   BRACKET MOUNTING GAS TAP
Baxi part no. 233207		 £6.96
45   OBSOLETE NUT HEX LOCK M15 X 1
Baxi part no. 234666
46   FRAME MOUNTING
Baxi part no. 234283		 £6.96
47 Part number 043053, GROMMET-RUB.9.3mm ID X 18mm OD GROMMET-RUB.9.3MM ID X 18MM OD
Baxi part no. 043053
48   CLIP-CABLE RETAINING PLASTIC.
Baxi part no. 042911
49 Part number 102102, OBSOLETE NUT-CAPTIVE-No8-R-ANG-ZNPD-CHR OBSOLETE NUT-CAPTIVE-NO8-R-ANG-ZNPD-CHR
Baxi part no. 102102
50 Part number 042874, CONNECTOR-REDUCING 10mm TO 6mm CONNECTOR-REDUCING 10MM TO 6MM
Baxi part no. 042874
51 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875		 £4.72
52 Part number 238270, INJECTOR - C06 - NG INJECTOR - C06 - NG
Baxi part no. 238270		 £12.28
53 Part number 042779, ARRESTER LINT ARRESTER LINT
Baxi part no. 042779		 £9.48
54   SUP.SYST.MTG.FRAME NON DV
Baxi part no. 238037
55   FLUE HOOD SUB ASSEMBLY
Baxi part no. 238289		 £20.44
56 Part number 238026, PILOT FEED PIPE ASSEMBLY PILOT FEED PIPE ASSEMBLY
Baxi part no. 238026
56 Part number 238026BAX, PILOT FEED PIPE ASSEMBLY PILOT FEED PIPE ASSEMBLY
Baxi part no. 238026BAX
57 Part number 237854, BURNER BURNER
Baxi part no. 237854
58 Part number 237852, RADIANT PLAQUE SET(237851 x 4) RADIANT PLAQUE SET(237851 X 4)
Baxi part no. 237852		 £64.51
59 Part number 237851, NOW USE 237852 RADIANT PLAQUE NOW USE 237852 RADIANT PLAQUE
Baxi part no. 237851
60 Part number 232464, PIPE FEED FIRE ASSY PIPE FEED FIRE ASSY
Baxi part no. 232464
60 Part number 236450, PIPE FIRE FEED PIPE FIRE FEED
Baxi part no. 236450
61   OBSOLETE INSTALLATION INSTRUCTIONS
Baxi part no. 237650
62   OBSOLETE USER INSTRUCTIONS
Baxi part no. 237651
