BAXI
BERMUDA PW4 DELUXE RENEWAL - (First Line Spares)
Appliance Code: 37-077-54

Appliance Diagram


First Line Spares diagram for Baxi Bermuda PW4 Deluxe RenewalClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 232387, NOW USE 238367BAX NOW USE 238367BAX
Baxi part no. 232387

1 Part number 238367BAX, SPARES OUTER CASE ASSY -PW5 DEL SPARES OUTER CASE ASSY -PW5 DEL
Baxi part no. 238367BAX
£524.88
2 Part number 232410, OBSOLETE CASE SURROUND ASSEMBLY -O/CASE OBSOLETE CASE SURROUND ASSEMBLY -O/CASE
Baxi part no. 232410

3   PANEL REAR LH
Baxi part no. 226999
£4.84
4   PANEL REAR RH
Baxi part no. 226998
£4.66
5   OBSOLETE SHIELD TOP O/CASE
Baxi part no. 226997

6   SCR-NO 8X14TPIX1/2 HARDTWIN-WD
Baxi part no. 042244
£2.18
7   LOUVRE-CONVECTION
Baxi part no. 043046
£29.90
8   PANEL-CANOPY & INSUL-PW3/C3
Baxi part no. 040774
£23.71
8   NOW USE 040774 PANEL-CANOPY & INSUL-PW3/C3
Baxi part no. 236449

9 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595

10 Part number 040378, NOW USE 237899 REFLECTOR NOW USE 237899 REFLECTOR
Baxi part no. 040378

10 Part number 237899, REFLECTOR ASSY - RADIANTS 5 REFLECTOR ASSY - RADIANTS 5
Baxi part no. 237899
£103.17
11 Part number 232407, PANEL FRONT LOWER PANEL FRONT LOWER
Baxi part no. 232407

12 Part number 234341, CONTROLS COVER ASSY - RADS4 CONTROLS COVER ASSY - RADS4
Baxi part no. 234341

13 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548
£3.01
14 Part number 043036, OBSOLETE GUARD-DRESS OBSOLETE GUARD-DRESS
Baxi part no. 043036

15   OBSOLETE INNER CASE ASSEMBLY COMPLETE 234351 37-077
Baxi part no. 234351

16 Part number 040608, Assy Heat Ex BBU Rads (Spares) ASSY HEAT EX BBU RADS (SPARES)
Baxi part no. 040608

17   TRIM - HEAT EXCHANGER - G.F.
Baxi part no. 040934

18 Part number 040809, PLATE-MOUNTING-BERMUDA B PLATE-MOUNTING-BERMUDA B
Baxi part no. 040809
£9.86
19   RESTRICTOR-REAR-RADIANTS-BER B
Baxi part no. 040810
£9.12
20 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532
£3.01
21 Part number 220045, PLATE-BACK-BERMUDA C3-PW3-C3W PLATE-BACK-BERMUDA C3-PW3-C3W
Baxi part no. 220045
£20.00
22 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679
£3.01
23 Part number 040697, CASE SURROUND-BERM C3/PW3 CASE SURROUND-BERM C3/PW3
Baxi part no. 040697
£13.03
24   SCR-ST-NO8X3/8 FL.PZ.CH.BLK.AB
Baxi part no. 062731
£2.47

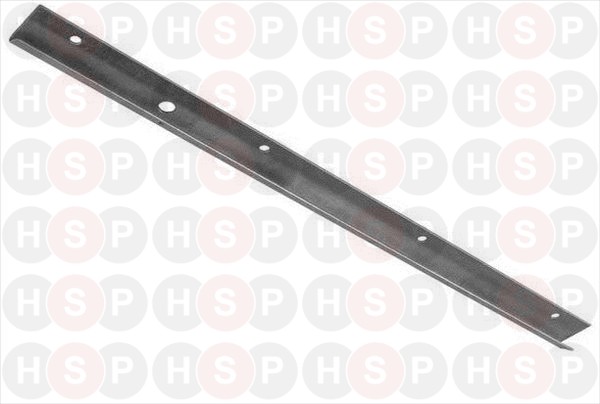

25   CHANNEL- REAR-C3/PW3
Baxi part no. 040698
£11.86
26   PLATE-VIEW RESTRICTOR-BER.B
Baxi part no. 040775
£4.83
27 Part number 040717, PLATE-BACKING-BERMUDA PW3 PLATE-BACKING-BERMUDA PW3
Baxi part no. 040717
£21.09
28 Part number 222960, OBSOLETE BRACKET-WALL FIXING OBSOLETE BRACKET-WALL FIXING
Baxi part no. 222960

29 Part number 231032BAX, PLATE SUPPORT FIRE - RADIANT PLATE SUPPORT FIRE - RADIANT
Baxi part no. 231032BAX
£10.58
29 Part number 231032, NOW USE 231032BAX PLATE SUPPORT FIRE - RADIANT NOW USE 231032BAX PLATE SUPPORT FIRE - RADIANT
Baxi part no. 231032

30   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319

31 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320
£2.41
32   OBSOLETE CONTROL KNOB ASSEMBLY
Baxi part no. 231553

33   FRAME MOUNTING
Baxi part no. 234283
£6.96
34 Part number 102102, OBSOLETE NUT-CAPTIVE-No8-R-ANG-ZNPD-CHR OBSOLETE NUT-CAPTIVE-NO8-R-ANG-ZNPD-CHR
Baxi part no. 102102

35   CLIP-CABLE RETAINING PLASTIC.
Baxi part no. 042911

36 Part number 043053, GROMMET-RUB.9.3mm ID X 18mm OD GROMMET-RUB.9.3MM ID X 18MM OD
Baxi part no. 043053

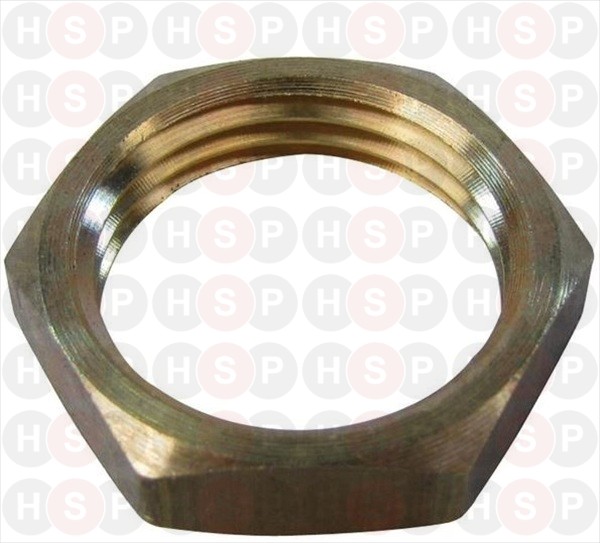

37 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875
£4.72
38   OBSOLETE GAS TAP FFD/IGN FIRE
Baxi part no. 233065

39 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941

40   BRACKET MOUNTING GAS TAP
Baxi part no. 233356
£5.58
41 Part number 043152, NUT-HEXAGON.LOCK-1/4 BSP NUT-HEXAGON.LOCK-1/4 BSP
Baxi part no. 043152
£3.64
42   PIPE FEED BURNER - ASSY
Baxi part no. 233966
£5.14
43   PIPE FEED BURNER - ASSY
Baxi part no. 233965
£8.79
44 Part number 043034, INJECTOR-170 S. INJECTOR-170 S.
Baxi part no. 043034

45 Part number 043016, BURNER-DUPLEX BURNER-DUPLEX
Baxi part no. 043016

46 Part number 043026, ELECTRODE-SPARK-IGNITION ELECTRODE-SPARK-IGNITION
Baxi part no. 043026

47   OBSOLETE LEAD-ELECTRODE-ASSY.
Baxi part no. 043041

48   OBSOLETE BRACKET RETAINING THERMOCOUPLE
Baxi part no. 232518

49 Part number 230677, THERMOCOUPLE-750 mm LONG. THERMOCOUPLE-750 MM LONG.
Baxi part no. 230677

50 Part number 228212, KIT FEET ADJUST (CONV & FIRES) KIT FEET ADJUST (CONV & FIRES)
Baxi part no. 228212
£20.83
51 Part number 042874, CONNECTOR-REDUCING 10mm TO 6mm CONNECTOR-REDUCING 10MM TO 6MM
Baxi part no. 042874

52 Part number 233964, PIPE SUPPLY GAS TAP - ASSY PIPE SUPPLY GAS TAP - ASSY
Baxi part no. 233964

53 Part number 042779, ARRESTER LINT ARRESTER LINT
Baxi part no. 042779
£9.48
54 Part number 232464, PIPE FEED FIRE ASSY PIPE FEED FIRE ASSY
Baxi part no. 232464

54 Part number 043012, PIPE-FIRE SUPPLY-10MM DIA PIPE-FIRE SUPPLY-10MM DIA
Baxi part no. 043012

54 Part number 236450, PIPE FIRE FEED PIPE FIRE FEED
Baxi part no. 236450

54 Part number 236964, PIPE-FIRE SUPPLY-10MM DIA PIPE-FIRE SUPPLY-10MM DIA
Baxi part no. 236964

55 Part number 043025, RADIANT SINGLE-4 RAD CONVECTOR RADIANT SINGLE-4 RAD CONVECTOR
Baxi part no. 043025
£16.74
56   OBSOLETE SUPPORT-WALL FIXING-PW3-C3.
Baxi part no. 220002

57 Part number 231997, SHIELD-DRAUGHT-FIRE-RADIANT SHIELD-DRAUGHT-FIRE-RADIANT
Baxi part no. 231997
