BAXI
PW 3 DELUXE - (Appliance Overview)
Appliance Code: 37-077-21

Appliance Diagram


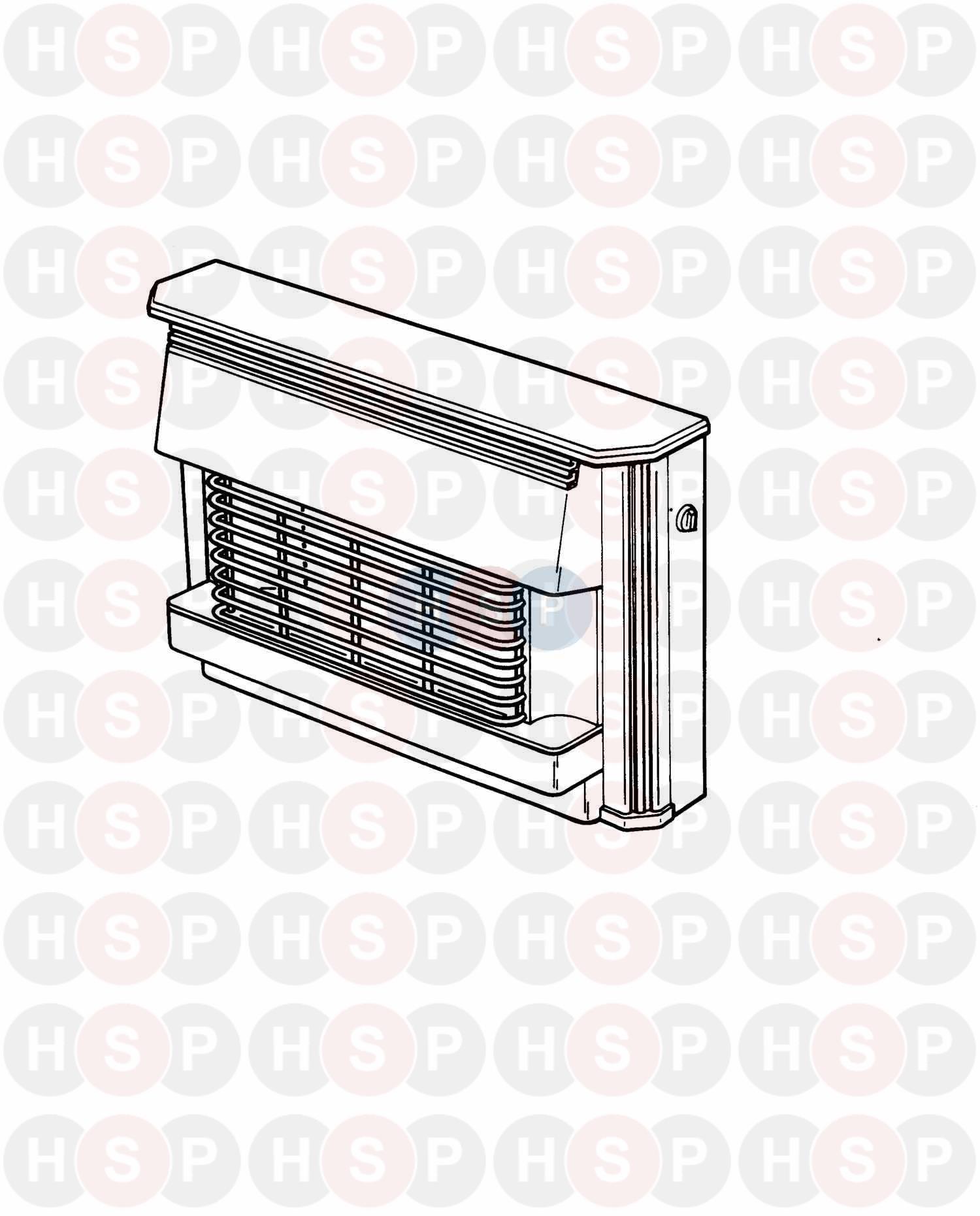

Appliance Overview diagram for Baxi PW 3 DeluxeClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PW3 DELUX OUTER CASE SPARE
Baxi part no. 230231
2   OBSOLETE CASE SURROUND KIT PACK 230180 37-077-21 1
Baxi part no. 230180
3   OBSOLETE DATA PLATE ASSY PRIMA 30C
Baxi part no. 230183
4   OBSOLETE REAR PANEL - RH 230182 37-077-21 156-178
Baxi part no. 230182
5   OBSOLETE SHIELD TOP O/CASE
Baxi part no. 226997
6 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
7   LOUVRE-CONVECTION
Baxi part no. 043046		 £29.90
8   PANEL-CANOPY & INSUL-PW3/C3
Baxi part no. 040774		 £23.71
9 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595
10 Part number 040378, NOW USE 237899 REFLECTOR NOW USE 237899 REFLECTOR
Baxi part no. 040378
10 Part number 237899, REFLECTOR ASSY - RADIANTS 5 REFLECTOR ASSY - RADIANTS 5
Baxi part no. 237899		 £103.17
11 Part number 232407, PANEL FRONT LOWER PANEL FRONT LOWER
Baxi part no. 232407
11 Part number 040695, PANEL FRONT COVER PANEL FRONT COVER
Baxi part no. 040695
16 Part number 062699, SCR-ST-No6x3/8 PAN HD PZ ZP SCR-ST-NO6X3/8 PAN HD PZ ZP
Baxi part no. 062699		 £3.12
17 Part number 043036, OBSOLETE GUARD-DRESS OBSOLETE GUARD-DRESS
Baxi part no. 043036
18 Part number 040608, Assy Heat Ex BBU Rads (Spares) ASSY HEAT EX BBU RADS (SPARES)
Baxi part no. 040608
19 Part number 040809, PLATE-MOUNTING-BERMUDA B PLATE-MOUNTING-BERMUDA B
Baxi part no. 040809		 £9.86
20   RESTRICTOR-REAR-RADIANTS-BER B
Baxi part no. 040810		 £9.12
21 Part number 062683, SCR-ST-NO8x1/4 FLHD-POZI-ZPD B SCR-ST-NO8X1/4 FLHD-POZI-ZPD B
Baxi part no. 062683		 £2.53
22   OBSOLETE PLATE-BACK-BERMUDA B
Baxi part no. 040610
23   SCR-ST-NO8X3/4-PAN HD POZ ZNPD
Baxi part no. 062706		 £2.42
24   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
25   OBSOLETE CASE SURROUND ASSEMBLY
Baxi part no. 226498
26   CHANNEL- REAR-C3/PW3
Baxi part no. 040698		 £11.86
27   PLATE-VIEW RESTRICTOR-BER.B
Baxi part no. 040775		 £4.83
28 Part number 040717, PLATE-BACKING-BERMUDA PW3 PLATE-BACKING-BERMUDA PW3
Baxi part no. 040717		 £21.09
29 Part number 062531, SCR-TF-M5x8mm-PAN POZI ZN PD SCR-TF-M5X8MM-PAN POZI ZN PD
Baxi part no. 062531		 £3.12
30 Part number 040003, Kit Support Wall Fixing PW3/C3 KIT SUPPORT WALL FIXING PW3/C3
Baxi part no. 040003		 £33.46
31   SCR-SET-M5X10-SLOT CHEESE
Baxi part no. 062415		 £2.44
32   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
33 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
34   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
35 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
36   OBSOLETE CONTROL KNOB ASSY PW3 DEL.
Baxi part no. 227009
37   OBSOLETE FRAME MOUNTING
Baxi part no. 220026
38 Part number 102102, OBSOLETE NUT-CAPTIVE-No8-R-ANG-ZNPD-CHR OBSOLETE NUT-CAPTIVE-NO8-R-ANG-ZNPD-CHR
Baxi part no. 102102
39   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749		 £2.33
39 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
40   OBSOLETE FULL NUT M8 HEXAGON - STEEL GRADE 8. BS369
Baxi part no. 062723
41 Part number 043053, GROMMET-RUB.9.3mm ID X 18mm OD GROMMET-RUB.9.3MM ID X 18MM OD
Baxi part no. 043053
42   CLIP-CABLE RETAINING PLASTIC.
Baxi part no. 042911
43 Part number 042874, CONNECTOR-REDUCING 10mm TO 6mm CONNECTOR-REDUCING 10MM TO 6MM
Baxi part no. 042874
44 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875		 £4.72
45 Part number 042872, TAP-FIRE-CONTROL-IGNITOR ASSY TAP-FIRE-CONTROL-IGNITOR ASSY
Baxi part no. 042872
46 Part number 042941, IGNITOR-PIEZO-REF 66111 (VERN) IGNITOR-PIEZO-REF 66111 (VERN)
Baxi part no. 042941
47   OBSOLETE BRKT GAS TAP MOUNTING.PW3 DEL
Baxi part no. 227639
48   OBSOLETE SCR-SET-M4 X 6MM HX.HD.PZ.ZNPD
Baxi part no. 062715
49   OBSOLETE PIPE-SUPPLY GAS TAP
Baxi part no. 227897
51   OBSOLETE PIPE ASSY FEED OUTER BURNER
Baxi part no. 227899
52 Part number 043034, INJECTOR-170 S. INJECTOR-170 S.
Baxi part no. 043034
53 Part number 043016, BURNER-DUPLEX BURNER-DUPLEX
Baxi part no. 043016
54 Part number 043026, ELECTRODE-SPARK-IGNITION ELECTRODE-SPARK-IGNITION
Baxi part no. 043026
55   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
56   OBSOLETE WASHER-PLAIN-4MM-ZINC. PLTD
Baxi part no. 062446
57   OBSOLETE LEAD-ELECTRODE-ASSY.
Baxi part no. 043041
58 Part number 040799, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040799
58 Part number 040800, OBSOLETE LINT ARRESTER-ASSY-FIRE OBSOLETE LINT ARRESTER-ASSY-FIRE
Baxi part no. 040800
59 Part number 043025, RADIANT SINGLE-4 RAD CONVECTOR RADIANT SINGLE-4 RAD CONVECTOR
Baxi part no. 043025		 £16.74
60 Part number 043012, PIPE-FIRE SUPPLY-10mm DIA PIPE-FIRE SUPPLY-10MM DIA
Baxi part no. 043012
60 Part number 040677, pipe supply PIPE SUPPLY
Baxi part no. 040677
