BAXI
BERMUDA RG3 RENEWAL NG - (Controls)
Appliance Code: 37-075-06

Appliance Diagram


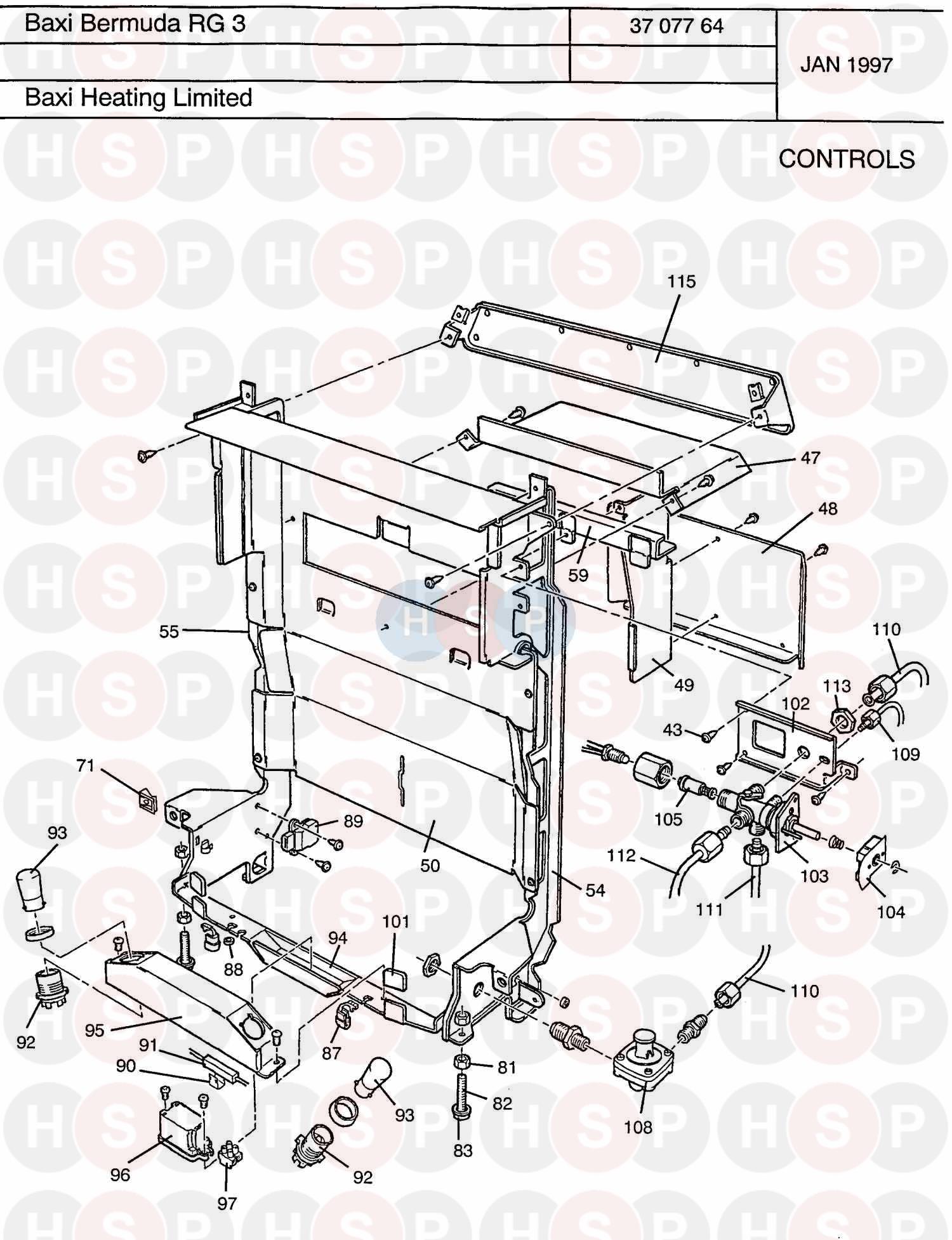

Controls diagram for Baxi Bermuda RG3 Renewal NGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE INSTALLATION AND SERVICING INSTRUCTIONS -
Baxi part no. 237641
0   OBSOLETE USERS INSTRUCTIONS - RG3
Baxi part no. 237640
0   OBSOLETE KIT PIPE RENEWAL RG2/VP2/SP2
Baxi part no. 236965
0 Part number 230283, NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP NOW USE 230283BAX KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283
0 Part number 230283BAX, KIT-KNOB CONTROL ADAPT-VP/SP KIT-KNOB CONTROL ADAPT-VP/SP
Baxi part no. 230283BAX		 £20.88
1   OBSOLETE O/CASE FRONT ASSY - RG/2/3
Baxi part no. 234093
2   OBSOLETE CANOPY
Baxi part no. 234094
4   OBSOLETE TRIM LOWER CANOPY 232337 37-077-30 156-24
Baxi part no. 232337
5   OBSOLETE KIT LOUVRE - RG
Baxi part no. 234095
7 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
8   SCR-ST-NO8X3/8-FL.HD POZ B
Baxi part no. 062648
9   SCR-ST-NO8X3/8IN-FL.HD-BLK-B
Baxi part no. 227312		 £2.32
10   OBSOLETE PANEL INFILL RH CANOPY
Baxi part no. 232252
11   OBSOLETE PANEL INFILL LH CANOPY
Baxi part no. 232253
12   OBSOLETE FASTENER-1/4 TURN
Baxi part no. 233461
14 Part number 230724, LATCH-FEMALE LATCH-FEMALE
Baxi part no. 230724		 £9.77
17   OBSOLETE GRATE-ASSY
Baxi part no. 232344
18   OBSOLETE PANEL FRONT HEARTH
Baxi part no. 232242
19   OBSOLETE PANEL TOP LOWER HEARTH
Baxi part no. 232320
20   OBSOLETE PANEL FRONT LOWER HEARTH
Baxi part no. 232321
21   OBSOLETE TRIM LOWER HEARTH 232319 37-077-30 156-25
Baxi part no. 232319
23   OBSOLETE BADGE-HEARTH
Baxi part no. 232700
24   FIX PUSH ON 1/8IN
Baxi part no. 042499		 £2.51
26   LATCH-MALE
Baxi part no. 230723
27   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
28 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
29 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
30   OBSOLETE SCREW NO.6X1/4 POZI PN B
Baxi part no. 233891
31   OBSOLETE PANEL INFILL TOP OUTER CASE
Baxi part no. 232218
33   OBSOLETE CHANNEL REAR OUTER CASE
Baxi part no. 232186
35   OBSOLETE NUT CAPTIVE - U TYPE NO 8
Baxi part no. 102247
36   OBSOLETE GRILLE REAR LH OUTER CASE
Baxi part no. 232975
37   OBSOLETE PANEL INFILL RH OUTER CASE
Baxi part no. 232209
38   OBSOLETE GRILLE REAR RH OUTER CASE
Baxi part no. 232183
40 Part number 233466, KNOB-CONTROL-ASSY KNOB-CONTROL-ASSY
Baxi part no. 233466
41 Part number 228954, SWITCH-ON/OFF SWITCH-ON/OFF
Baxi part no. 228954
42   OBSOLETE SHIELD ELECTRICAL
Baxi part no. 233084
43 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
44 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549		 £3.12
45   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
46 Part number 225780, PANEL-MOUNTING-APPLIANCE-VP PANEL-MOUNTING-APPLIANCE-VP
Baxi part no. 225780		 £11.47
47   OBSOLETE SHIELD-HEAT-FLUE-LFE 3
Baxi part no. 040001
48   PANEL-DEFTOR-LOWER-D/DRGHT-VP
Baxi part no. 225381		 £7.39
54   OBSOLETE CARRIER MOUNTING RH INNER CASE
Baxi part no. 231959
55   OBSOLETE CARRIER MOUNTING LH INNER CASE
Baxi part no. 231960
56   OBSOLETE
Baxi part no. 233950
57   GASKET-HT.EX.CERAMIC
Baxi part no. 226874
60 Part number 226876, SEAL-FRAME-GLASS-ROPE SEAL-FRAME-GLASS-ROPE
Baxi part no. 226876
61 Part number 233864, OBSOLETE GLASS & FRAME ASSY - BER RG OBSOLETE GLASS & FRAME ASSY - BER RG
Baxi part no. 233864
62 Part number 238964, OBSOLETE COAL BED OBSOLETE COAL BED
Baxi part no. 238964
63   PIN-LOCATION-COAL BED
Baxi part no. 092125		 £32.67
64 Part number 226910, INJECTOR-FO2 INJECTOR-FO2
Baxi part no. 226910		 £12.65
65 Part number 233460, INJECTOR-FO6 INJECTOR-FO6
Baxi part no. 233460
66 Part number 232435, BURNER ASSEMBLY (Packed) BURNER ASSEMBLY (PACKED)
Baxi part no. 232435		 £52.36
67   OBSOLETE PANEL INFILL RH COMBUSTION BOX
Baxi part no. 232194BAX
67   OBSOLETE PANEL INFILL RH COMBUSTION BOX
Baxi part no. 232194
68   OBSOLETE PANEL INFILL LH COMBUSTION BOX
Baxi part no. 232195
69   OBSOLETE BOX COMBUSTION
Baxi part no. 231962
72   OBSOLETE PANEL REFLECTOR(UPPER COAL BED)
Baxi part no. 232429
74   OBSOLETE RAIL SIDE SEAL
Baxi part no. 232213
79   OBSOLETE BRKT SECURING BOX LAMP UPPER
Baxi part no. 233837
81 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.12
82   SCR-SET-M8X35MM-HEX.HD.BLK
Baxi part no. 062749		 £2.33
83 Part number 227313, CAP-PROTECTION CAP-PROTECTION
Baxi part no. 227313		 £1.87
85   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
86   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
87   TIE-CABLE-INSULOID LKO.
Baxi part no. 082061		 £8.45
88   GROMMET-RUBBER M36
Baxi part no. 042566		 £8.25
89 Part number 5134533, OBSOLETE PLUG & SOCKET 3 PIN OBSOLETE PLUG & SOCKET 3 PIN
Baxi part no. 5134533
89 Part number 042971, OBSOLETE PLUG - 3-PIN OBSOLETE PLUG - 3-PIN
Baxi part no. 042971
90   CLIP-RESISTOR
Baxi part no. 043174		 £2.20
91 Part number 228955, OBSOLETE RESISTOR OBSOLETE RESISTOR
Baxi part no. 228955
91 Part number 047023, OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF OBSOLETE KIT-RESTOR-FIRE LGT EFFECT-GF
Baxi part no. 047023
92 Part number 225151, OBSOLETE OBSOLETE
Baxi part no. 225151
93 Part number 042842, OBSOLETE LAMP-15W-AMBER-PYGMY OBSOLETE LAMP-15W-AMBER-PYGMY
Baxi part no. 042842
94   OBSOLETE RAIL SUPPORT BOX LAMP
Baxi part no. 233106
96 Part number 240257BAX, SPARK GENERATOR - 1HZ SPARK GENERATOR - 1HZ
Baxi part no. 240257BAX		 £26.41
96 Part number 240257, NOW USE 240257BAX SPARK GENERATOR - 1HZ NOW USE 240257BAX SPARK GENERATOR - 1HZ
Baxi part no. 240257
99   OBSOLETE SET OF WIRES-BERMUDA RG
Baxi part no. 233807
100   PIN-FIXING-PLASTIC
Baxi part no. 112047		 £0.16
101   OBSOLETE BOOT PROTECTION
Baxi part no. 233850
103 Part number 239411, OBSOLETE KIT - RG3 GAS TAP OBSOLETE KIT - RG3 GAS TAP
Baxi part no. 239411
104 Part number 232333, MICRO SWITCH KIT MICRO SWITCH KIT
Baxi part no. 232333
105 Part number 082462, MAGNETIC UNIT-BRAZILIA 8000 C MAGNETIC UNIT-BRAZILIA 8000 C
Baxi part no. 082462
106 Part number 234099, KIT PILOT ASSY INC FILTER -RG KIT PILOT ASSY INC FILTER -RG
Baxi part no. 234099
107 Part number 082412, OBSOLETE FILTER PILOT OBSOLETE FILTER PILOT
Baxi part no. 082412
108   OBSOLETE GOVERNOR ASSEMBLY (5.4)
Baxi part no. 241684
108   OBSOLETE GOVERNOR-SPECIAL
Baxi part no. 230746
113 Part number 042875, NUT-HEXAGON LOCK-3/8 BSP NUT-HEXAGON LOCK-3/8 BSP
Baxi part no. 042875		 £4.72
114   OBSOLETE CLIP-EDGE-S TYPE-SPR STEEL
Baxi part no. 062589
115   OBSOLETE SUPPORT - WALL FIXING - G.F.
Baxi part no. 220467
116 Part number 220469, SHIELD CONTROLS (BOILER) SHIELD CONTROLS (BOILER)
Baxi part no. 220469
117   SHIELD-TOP-VALVE-VP
Baxi part no. 227314		 £2.83
118 Part number 040640, OBSOLETE SOCKET-3 PIN-ASSY OBSOLETE SOCKET-3 PIN-ASSY
Baxi part no. 040640
119   SCR-SET-M5X10-SLOT CHEESE
Baxi part no. 062415		 £2.44
120 Part number 227864, OBSOLETE PIPE SUPPLY FIRE 10mm OBSOLETE PIPE SUPPLY FIRE 10MM
Baxi part no. 227864
